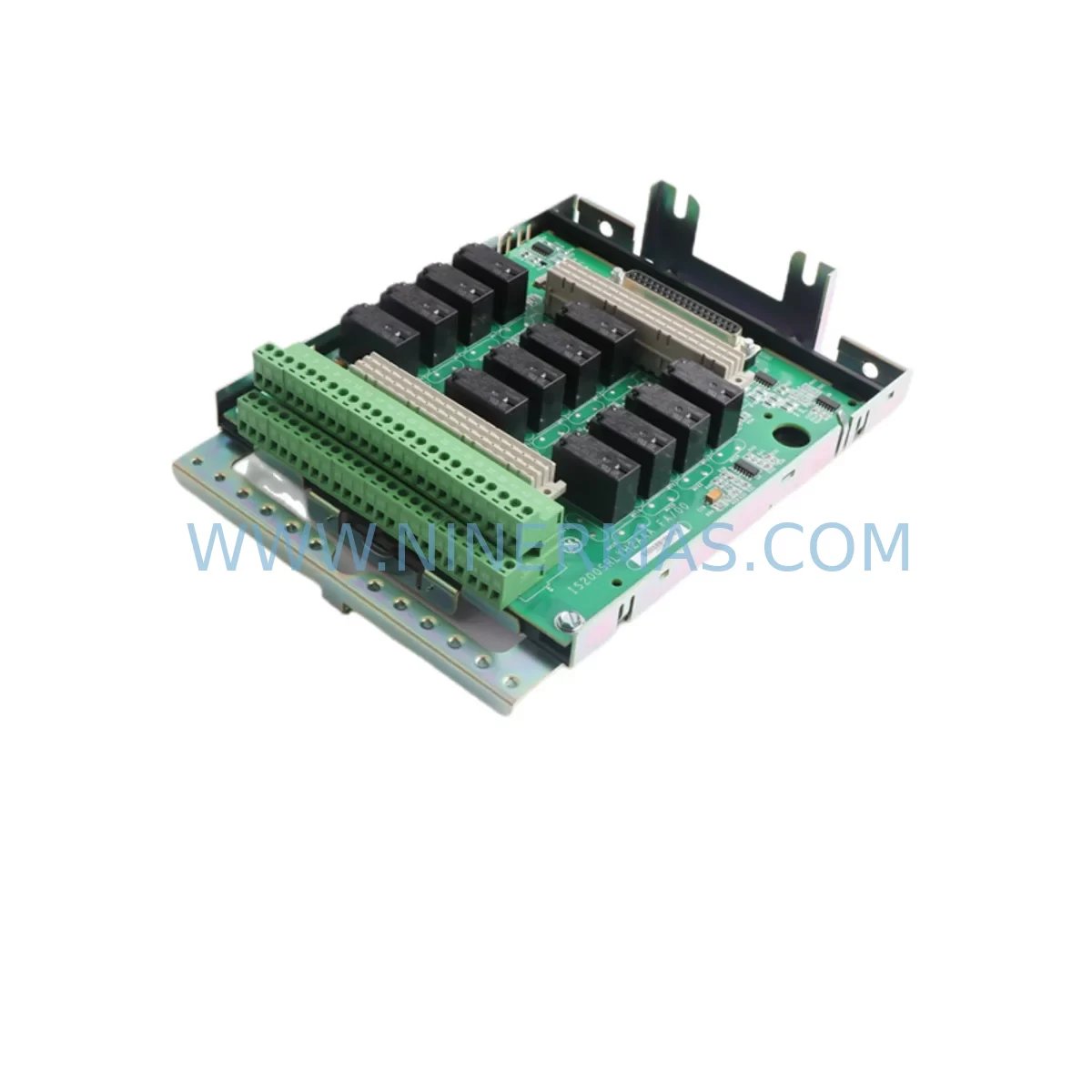

GE IS230SNRLH2A IS200SRLYH2AAA Safety-Reliable I/O Module

GE IS230SNRLH2A IS200SRLYH2AAA Safety-Reliable I/O Module for Critical Control Sites

The GE IS230SNRLH2A paired with the IS200SRLYH2AAA represents a cornerstone I/O and relay output module assembly within the GE Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in power generation, petrochemical processing, and heavy industrial environments. Engineered to operate continuously in demanding field conditions, this module assembly delivers the signal integrity, relay switching reliability, and system interoperability that safety-critical control loops demand. For facilities where unplanned downtime is measured in tens of thousands of dollars per hour, the IS230SNRLH2A / IS200SRLYH2AAA combination is not merely a spare part — it is a frontline defense against control interruption, spurious trips, and cascading process failures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark VI turbine control cabinet, the IS230SNRLH2A serves as the nerve center for relay-based output commands — translating digital control logic from the IS215VCMIH2A VCMI controller card into hardwired relay contact closures that actuate fuel valves, inlet guide vane actuators, and emergency shutdown solenoids. When this module degrades or fails, the consequences range from nuisance trips to complete turbine lockout, making rapid, verified replacement essential.

To ensure the IS230SNRLH2A operates within a fully protected and stable control environment, it must be supported by a robust surrounding architecture. The IS200EPBAG1A power board provides regulated backplane power, shielding the I/O module from upstream voltage fluctuations and brownout conditions that could cause relay chatter or false output states. Alongside it, the IS200VSVOH1B servo output module manages analog positioning signals for variable geometry components, while the IS215ACLEH1A analog I/O module handles 4–20 mA process feedback loops — both of which depend on the relay outputs of the IS230SNRLH2A to execute protective actions when process limits are breached.

In high-EMI environments — such as those adjacent to large synchronous generators, variable frequency drives, or high-current bus bars — the IS200SRLYH2AAA relay output board provides galvanic isolation between the control logic domain and the field wiring domain. This isolation is critical for preventing ground loops, common-mode noise injection, and signal drift that can cause the IS200TRLYH1C terminal relay board or downstream field devices to receive erroneous commands. Pairing the IS230SNRLH2A with properly rated surge suppressors on relay output terminals further reduces the risk of inductive kickback damage from solenoid valve coils and contactor coils in the field.

For communication integrity, the Mark VI system relies on the IS215UCVEH2A UCVE controller to coordinate I/O scanning and redundancy management across the control racks. Any degradation in the IS230SNRLH2A’s relay response time or contact resistance can introduce latency into the safety interlock response chain — a risk that is unacceptable in turbine overspeed protection or flame detection circuits. Maintaining a verified spare IS230SNRLH2A / IS200SRLYH2AAA assembly in the site spare parts inventory eliminates the mean-time-to-repair (MTTR) risk associated with sourcing these modules during an unplanned outage.

Additionally, the IS200DSPXH1D digital signal processor board and IS200BICLH1A bus interface card form part of the broader Mark VI I/O architecture that depends on stable relay output modules to maintain deterministic control loop execution. A failed or intermittent IS230SNRLH2A can propagate faults upstream into the controller’s diagnostic registers, triggering unnecessary system-wide alarms and complicating fault isolation during critical operations.

Critical Industrial Safety Applications

The IS230SNRLH2A / IS200SRLYH2AAA assembly is deployed across a wide spectrum of safety-critical industrial environments where control reliability is non-negotiable:

Power Generation: In combined-cycle and gas turbine power plants, this module governs the relay outputs that control fuel gas stop valves, purge sequence contactors, and generator breaker trip coils. A single relay output failure during a load rejection event can result in turbine overspeed — a catastrophic mechanical failure mode. Facilities operating GE Frame 6B, 7E, 7FA, and 9E turbines rely on verified IS230SNRLH2A spares to maintain N+1 redundancy in their control systems.

Petrochemical & Refinery Operations: In compressor train control systems and fired heater management, the IS230SNRLH2A interfaces with emergency shutdown (ESD) relay circuits that must respond within milliseconds to high-pressure or high-temperature exceedances. The module’s relay contact ratings and isolation characteristics make it suitable for SIL-rated interlock loops when properly integrated with the plant’s safety instrumented system (SIS) architecture.

Mining & Mineral Processing: Large grinding mill drives, conveyor systems, and crusher control panels in mining operations subject control hardware to extreme vibration, dust ingress, and wide ambient temperature swings. The IS230SNRLH2A’s robust construction and enclosed cabinet installation profile make it a reliable choice for these environments, particularly where Mark VI-based drive control systems have been adapted for heavy industrial use.

Water & Wastewater Treatment: Pump station control systems and aeration blower management applications use relay output modules to control motor starters, valve actuators, and alarm annunciators. The IS230SNRLH2A’s compatibility with the Mark VI platform allows water utilities that have standardized on GE control systems to maintain consistent spare parts strategies across multiple facilities.

Port & Marine Applications: Ship propulsion control systems and port crane drive controllers operating in high-humidity, salt-laden environments demand relay output modules with proven isolation and corrosion resistance. The IS230SNRLH2A, when installed in properly sealed and climate-controlled control cabinets, provides the relay switching reliability required for safe crane load management and vessel maneuvering control.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IS230SNRLH2A / IS200SRLYH2AAA?
The 12-month warranty covers all functional failures attributable to component defects or workmanship issues under normal operating conditions consistent with GE Mark VI system specifications. If the module fails to perform its relay output or I/O interface functions within the warranty period, NINERMAS will provide a replacement unit or full refund. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on this module assembly?
Every IS230SNRLH2A / IS200SRLYH2AAA assembly undergoes functional verification testing prior to shipment. This includes relay contact continuity and isolation resistance checks, backplane connector integrity inspection, and visual inspection for component damage, corrosion, or counterfeit indicators. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all Mark VI system configurations?
The IS230SNRLH2A is designed for use within the GE Mark VI Turbine Control System platform. Compatibility depends on the specific Mark VI rack configuration, firmware revision, and I/O assignment within the application software. NINERMAS recommends verifying the module’s hardware revision level against your system’s Bill of Materials (BOM) before installation. Our technical team can assist with compatibility verification based on your system’s configuration documentation.

Q4: Can NINERMAS support long-term supply of this module for multi-site operations?
Yes. NINERMAS maintains inventory of IS230SNRLH2A and IS200SRLYH2AAA modules to support both emergency replacement and planned maintenance programs. For multi-site operators or EPC contractors managing large GE Mark VI fleets, we offer framework supply agreements with guaranteed lead times, batch testing, and documentation packages. Contact our team to discuss volume pricing and supply continuity arrangements.
