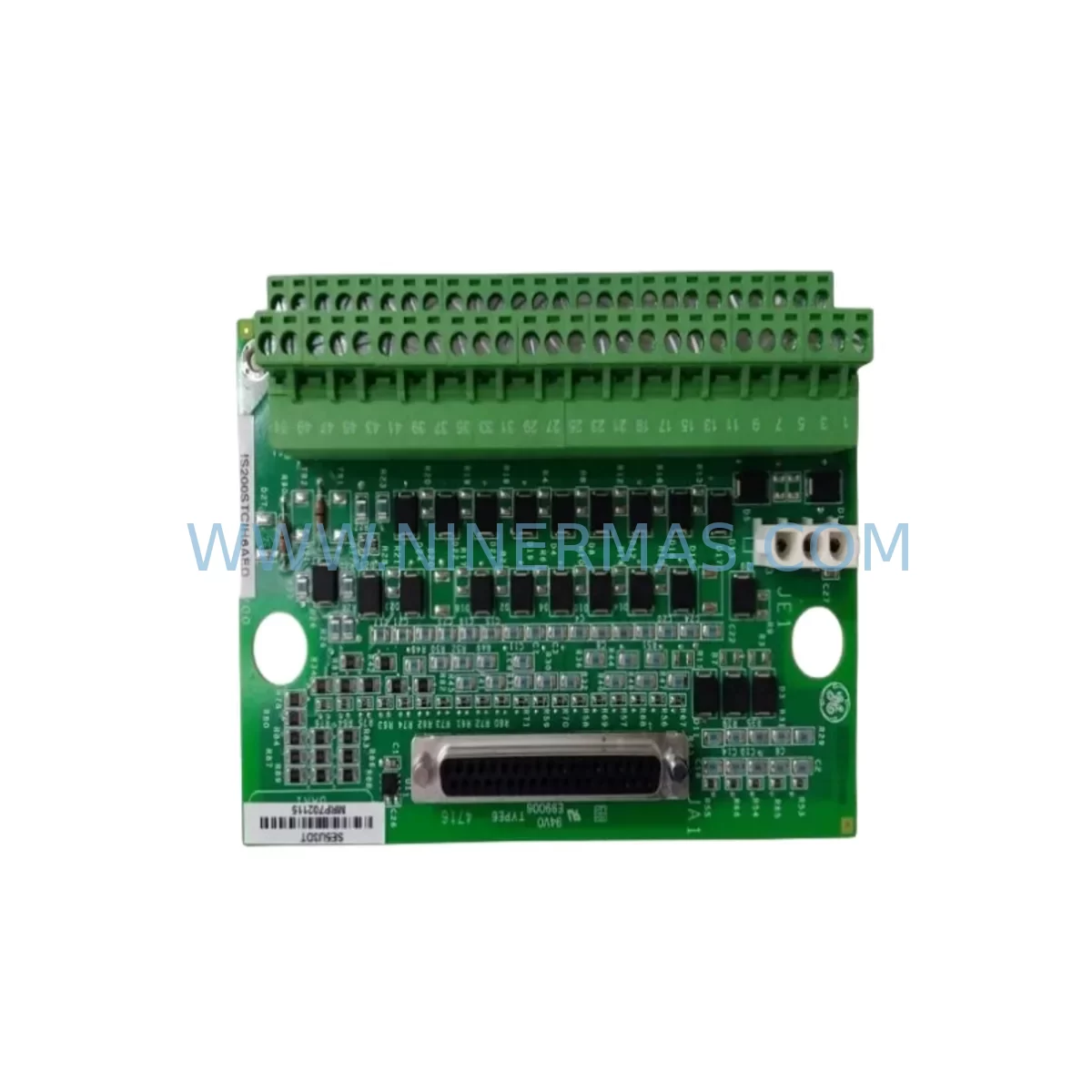

GE IS220PAOCH1BE Safety-Reliable Analog Output I/O Pack

GE IS220PAOCH1BE Safety-Reliable Analog Output I/O Pack for Critical Control Sites

The GE IS220PAOCH1BE is a high-integrity analog output I/O pack engineered for the IS200 series platform, widely deployed in GE Mark VI and Mark VIe turbine control systems across power generation, petrochemical, and heavy industrial facilities. Designed to deliver precise, stable analog output signals in demanding environments, the IS220PAOCH1BE plays a central role in maintaining continuous control loop integrity where signal accuracy and system uptime are non-negotiable.

In critical control sites — including gas turbine enclosures, steam turbine halls, combined-cycle power plants, and offshore platforms — the IS220PAOCH1BE provides reliable 4–20 mA analog output channels that drive actuators, control valves, variable frequency drives, and positioners. Its robust design addresses the core risks of industrial control: signal drift, electromagnetic interference, power transients, and thermal stress. When a single output channel failure can trigger an unplanned turbine trip or process shutdown, the reliability of every I/O pack in the control cabinet becomes a safety-critical decision.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Maintaining safety and reliability in a GE Mark VI or Mark VIe control cabinet requires a systems-level approach. The IS220PAOCH1BE does not operate in isolation — it functions as part of a tightly integrated I/O architecture where every component must perform within specification to protect the overall control loop.

In a typical Mark VIe turbine control cabinet, the IS220PAOCH1BE is paired with an IS200 series terminal board such as the IS200AOCH1C, which provides the physical wiring interface for field devices. The terminal board handles the analog output signal conditioning and field wiring termination, while the IS220PAOCH1BE pack manages the digital-to-analog conversion and IONet communication back to the Mark VIe controller. Any degradation in either component — whether from connector corrosion, thermal cycling, or aging capacitors — can introduce output signal errors that affect valve positioning accuracy and process stability.

The Mark VIe controller itself, typically an IS420UCSBH3A or IS420UCSBH2A processor module, relies on accurate feedback from field instruments and precise output commands to maintain turbine speed, exhaust temperature, and fuel flow within safe operating bands. When the IS220PAOCH1BE is replaced or upgraded, engineers must verify that the IONet address configuration, output channel scaling, and alarm setpoints in the Mark VIe application software remain consistent with the original design. Failure to validate these parameters can result in control loop instability or false trip conditions.

Power supply integrity is equally critical. The IS200 series I/O packs draw regulated DC power from the control cabinet power distribution system, often sourced from redundant 28 VDC power supplies such as the IS200EPBAG1A or equivalent. Voltage sags, ripple, or ground faults in the power rail can cause I/O pack resets or communication dropouts on the IONet network, leading to loss of analog output control. Installing surge protection devices and maintaining clean power distribution within the control cabinet significantly reduces this risk.

For facilities operating in high-EMI environments — such as those adjacent to large motors, variable frequency drives, or high-voltage switchgear — proper cable shielding and grounding of the IS220PAOCH1BE’s analog output wiring is essential. Unshielded or improperly grounded 4–20 mA loops are susceptible to induced noise that can cause actuator hunting, valve oscillation, or erroneous process readings. Using twisted-pair shielded cable and maintaining a single-point ground at the control cabinet significantly reduces interference-related failures.

Signal isolators are frequently used in conjunction with IS220PAOCH1BE outputs when field devices are located at significant distances from the control cabinet or when galvanic isolation is required to protect the I/O pack from ground loops. DIN-rail mounted signal isolators and loop-powered transmitter barriers provide an additional layer of protection for the analog output circuit, extending the operational life of the I/O pack and reducing the risk of field-induced damage.

In redundant control architectures, the IS220PAOCH1BE may be deployed in dual or triple redundant configurations alongside companion I/O packs and voting logic within the Mark VIe system. This redundancy ensures that a single I/O pack failure does not result in loss of control output, allowing maintenance teams to replace a failed pack online without interrupting the turbine control process — a critical capability for continuous production facilities where planned outages are measured in days and unplanned trips carry significant financial and safety consequences.

Critical Industrial Safety Applications

The IS220PAOCH1BE is deployed across a wide range of critical industrial environments where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In gas turbine power plants, the IS220PAOCH1BE drives fuel control valve actuators and inlet guide vane positioners, where precise analog output accuracy is essential for maintaining combustion stability and preventing over-temperature trips. A drifting or failed analog output in this application can result in turbine overspeed, compressor surge, or hot section damage — all of which carry significant safety and financial consequences.

In petrochemical and refinery facilities, the IS220PAOCH1BE is used in compressor anti-surge control systems, where fast and accurate analog output response is critical to preventing compressor surge events that can damage rotating equipment and create hazardous process conditions. The module’s ability to maintain stable output under high-EMI conditions — common in facilities with large motor drives and high-voltage distribution systems — makes it well-suited for these demanding applications.

In power generation and combined-cycle plants, the IS220PAOCH1BE supports steam turbine bypass valve control, heat recovery steam generator (HRSG) damper positioning, and auxiliary system control loops. These applications require sustained analog output accuracy over extended operating periods, often measured in years between planned maintenance outages.

In mining and mineral processing facilities, the IS220PAOCH1BE is used in conveyor drive control, crusher feed rate regulation, and flotation cell level control — applications where control system failures can result in equipment damage, production loss, and safety incidents. The module’s robust construction and compatibility with the Mark VI control platform make it a reliable choice for these high-availability applications.

In water and wastewater treatment plants, the IS220PAOCH1BE supports pump speed control, chemical dosing systems, and aeration blower regulation — critical processes where control system reliability directly impacts water quality compliance and public health protection.

Safety and Quality FAQ

Q1: Does the IS220PAOCH1BE come with a warranty?
Yes. Every IS220PAOCH1BE supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Our quality commitment ensures that each unit undergoes outgoing inspection and functional verification before dispatch.

Q2: What outgoing tests are performed before shipment?
Each IS220PAOCH1BE unit is subject to visual inspection, connector integrity verification, and functional testing prior to shipment. Units that do not meet our quality standards are quarantined and not dispatched. Test records are available upon request for customers with specific quality documentation requirements.

Q3: Is the IS220PAOCH1BE compatible with both Mark VI and Mark VIe systems?
The IS220PAOCH1BE is designed for the IS200 series I/O platform, which is used across GE Mark VI and Mark VIe turbine control systems. Compatibility depends on the specific terminal board, IONet configuration, and application software version in use at your site. We recommend verifying the terminal board part number and I/O pack revision level against your system documentation before installation. Our technical team can assist with compatibility assessment upon request.

Q4: Can NINERMAS support long-term supply of IS220PAOCH1BE for ongoing maintenance programs?
Yes. NINERMAS maintains inventory of IS220PAOCH1BE and related IS200 series I/O packs to support long-term spare parts programs for power generation and industrial facilities. We can work with your procurement team to establish scheduled supply agreements, ensuring availability of critical spare parts without the lead time uncertainty associated with spot purchasing. Contact us to discuss your site’s specific inventory and lifecycle support requirements.
