GE IS200TRLYH1BGF Retrofit-Compatible Relay Board for Legacy Systems

GE IS200TRLYH1BGF Retrofit-Compatible Relay Board for Legacy Systems

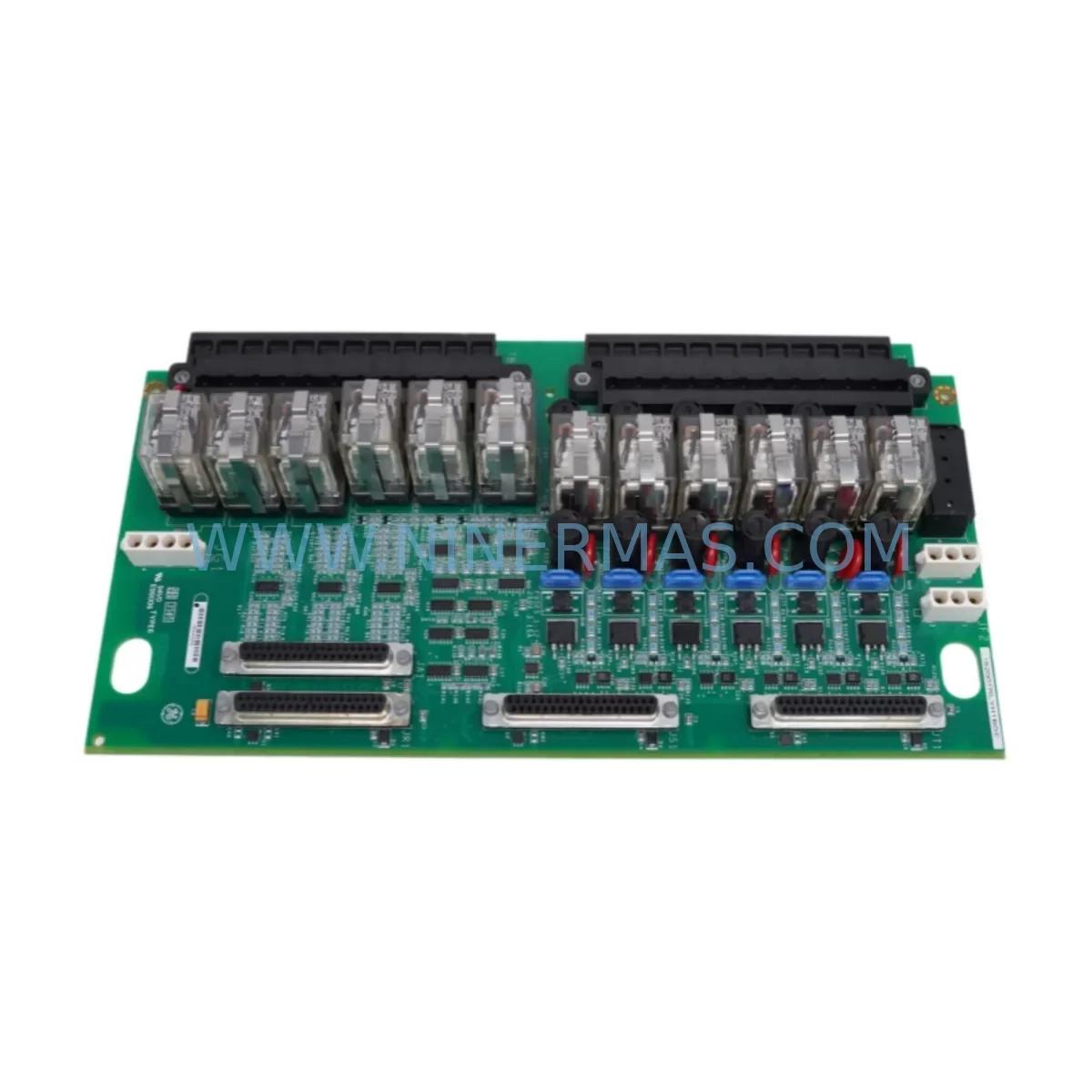

The GE IS200TRLYH1BGF is a relay output board designed for the GE Mark VI Speedtronic turbine control system. As aging Mark VI installations approach end-of-support lifecycle, plant engineers and automation integrators increasingly rely on verified replacement boards like the IS200TRLYH1BGF to sustain operational continuity without committing to a full control system overhaul. NINERMAS maintains ready stock of this module, fully tested and backed by a 12-month warranty, to support both emergency breakdown recovery and planned retrofit programs.

The IS200TRLYH1BGF provides relay contact outputs used in turbine protection, sequencing, and auxiliary control logic. In legacy Mark VI panels, this board interfaces directly with the VCMI or VTUR controller cards via the VME backplane, and its relay contacts are wired to field devices including solenoid valves, motor starters, and alarm annunciators. When replacing a failed or end-of-life IS200TRLYH1BGF, engineers must verify the relay contact ratings, terminal block wiring assignments, and the board’s slot address within the Mark VI I/O rack before powering down the system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the IS200TRLYH1BGF within an operating Mark VI turbine control panel requires careful pre-outage planning. Before scheduling the swap, the maintenance team should pull the existing ToolboxST configuration file and document all I/O point assignments mapped to the relay board’s output channels. This ensures that after the new board is seated in the VME rack, the software configuration can be verified channel-by-channel without relying on memory or informal records.

The IS200TRLYH1BGF sits within a broader ecosystem of Mark VI I/O and controller hardware. In a typical Mark VI cabinet, it operates alongside boards such as the IS200VTURH1BED turbine controller, the IS200VCMIH2C communication interface module, and analog input boards like the IS200TBAIH1BGF. Power distribution within the cabinet is managed through the IS200EPCTG1A power supply module, and the backplane integrity of the VME rack — often an IS200EMIOH1A or similar chassis — must be inspected before inserting the replacement board. If the retrofit is part of a broader I/O expansion or panel upgrade, the IS200TSVOH1BGF servo output board and IS200TRPGH1BGF protection relay board may also be involved in the same outage window.

For sites migrating from older Mark V Speedtronic panels to Mark VI, the IS200TRLYH1BGF is a key component in the new I/O layer. The migration typically involves replacing Mark V TCCA and TCCB controller cards with Mark VI VCMI and VTUR equivalents, re-terminating field wiring to new terminal blocks, and re-mapping all I/O points in ToolboxST. HMI screens built on the legacy CIMPLICITY or WinCC platform must be reviewed to confirm that relay output status tags are correctly linked to the new I/O addresses. Communication links between the Mark VI controller and plant DCS — often via Modbus TCP or GE’s proprietary SRTP protocol — should be tested under simulated load before returning the unit to service.

Installation space is rarely a concern when replacing like-for-like within the same Mark VI rack, but engineers should confirm that the replacement IS200TRLYH1BGF board revision is compatible with the installed firmware version of the VCMI controller. Mismatched board revisions can cause I/O initialization errors that are not immediately obvious during bench testing but surface during live commissioning. NINERMAS technical staff can assist with revision cross-referencing prior to shipment.

Downtime Control During System Migration

Minimizing turbine or process downtime during an IS200TRLYH1BGF replacement requires a structured hot-swap or planned outage protocol. Where the process permits, relay outputs can be temporarily bypassed using hardwired jumpers on the terminal block, allowing the control system to remain in a safe hold state while the board is exchanged. This approach is particularly valuable in combined-cycle power plants where auxiliary systems must remain energized during the main unit outage.

Before removing the failed board, the technician should use ToolboxST to force all relay outputs to their safe de-energized state and confirm that no active interlocks are dependent on the board’s contact outputs. The original program logic — including relay seal-in circuits, permissive chains, and trip relay assignments — must be preserved in the controller memory and should not require re-download after a board swap, provided the ToolboxST hardware configuration is not altered. After seating the replacement IS200TRLYH1BGF, a full I/O checkout should be performed: each relay output is individually energized from the ToolboxST forcing function, and field personnel confirm contact closure at the terminal block and at the connected field device.

For sites with redundant Mark VI controllers (TMR — Triple Modular Redundant configurations), the board replacement can often be performed on one voter leg at a time without a full system shutdown, further reducing operational impact. NINERMAS recommends coordinating the replacement schedule with the OEM service team or a qualified Mark VI integrator to ensure that the redundancy management system is correctly configured before and after the swap.

Retrofit Support FAQ

Q: Is the IS200TRLYH1BGF a direct replacement for all Mark VI relay output applications?
A: The IS200TRLYH1BGF is the standard relay output board for the GE Mark VI Speedtronic platform. However, board suffix revisions (e.g., BGF, BEF, BAA) may indicate hardware differences. NINERMAS will cross-reference your existing board’s part number and firmware revision before shipment to confirm compatibility.

Q: What wiring changes are required when replacing the IS200TRLYH1BGF?
A: In most cases, the existing field-side terminal block wiring can be reused without modification. The terminal block connector is typically unplugged from the old board and plugged directly into the replacement. Engineers should verify terminal numbering against the original loop drawings and confirm that no wiring has been field-modified since the original installation.

Q: How is the replacement board tested before shipment?
A: Every IS200TRLYH1BGF unit supplied by NINERMAS undergoes functional testing including relay coil energization, contact continuity verification, and backplane connector inspection. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the IS200TRLYH1BGF and can typically ship within 1–3 business days. For urgent breakdown situations, expedited shipping is available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock and lead time.
