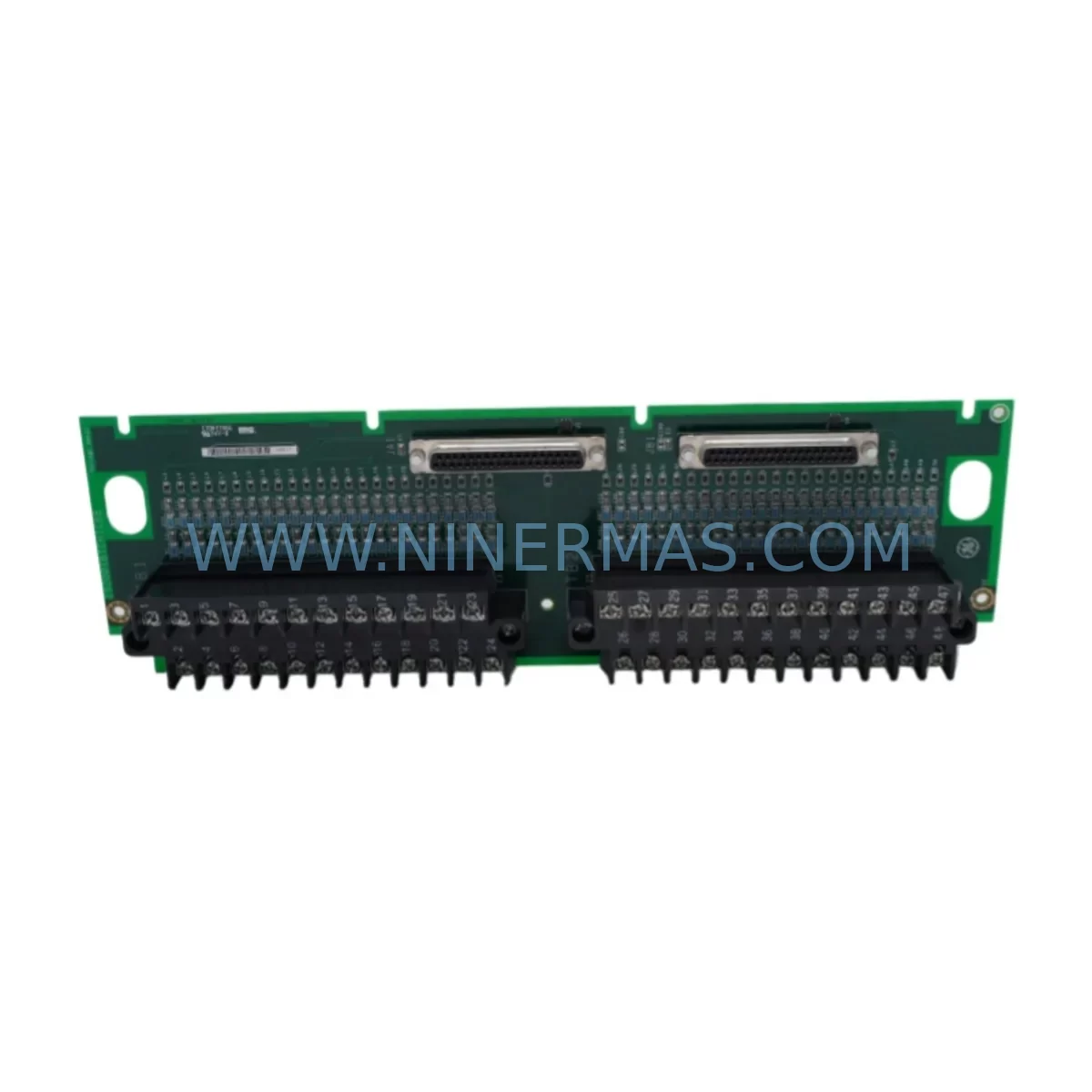

GE IS200TBTCH1BBB Safety-Reliable Thermocouple Terminal Module

GE IS200TBTCH1BBB Safety-Reliable Thermocouple Terminal Module for Critical Control Sites

The GE IS200TBTCH1BBB is a ruggedized thermocouple terminal module engineered for the most demanding industrial automation environments. Designed as part of GE’s Mark VI turbine control system architecture, this module delivers exceptional signal fidelity and thermal measurement accuracy in continuous production, critical interlock loops, and high-electromagnetic-interference (EMI) control cabinets. At NINERMAS, we maintain verified stock of the IS200TBTCH1BBB with full 12-month warranty coverage and pre-shipment functional testing, ensuring your critical control infrastructure stays protected against unplanned downtime.

In petrochemical refineries, power generation plants, and metallurgical facilities, thermocouple signal drift and terminal board failures are among the leading causes of control loop interruptions and spurious trips. The IS200TBTCH1BBB addresses these risks through its ruggedized terminal design, which maintains stable cold-junction compensation and low-noise signal transmission even under sustained vibration, high ambient temperatures, and moisture ingress conditions common to heavy industrial sites.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark VI turbine control cabinet, the IS200TBTCH1BBB serves as the critical interface between field-mounted thermocouples and the I/O processing boards. Signal integrity at this junction is non-negotiable — any degradation in thermocouple termination directly translates to temperature measurement error, which in gas turbine or steam turbine applications can trigger false over-temperature trips or, worse, mask genuine thermal excursions that threaten equipment integrity.

To build a fully protected control loop around the IS200TBTCH1BBB, site engineers typically pair it with the GE IS200VTURH1BEC turbine I/O board, which processes the thermocouple signals upstream, and the GE IS200VCMIH2C VME communication interface module, which manages data exchange across the Mark VI backplane. Power stability for the entire I/O rack is maintained through the GE IS200EPSMG1A power supply module, which provides regulated DC power with surge suppression to protect sensitive analog input circuits from voltage transients common in heavy industrial switchgear environments.

For sites with high electromagnetic interference — such as those adjacent to large variable frequency drives (VFDs), arc furnaces, or high-voltage switchyards — the IS200TBTCH1BBB’s shielded terminal layout works in conjunction with proper cable segregation and the use of shielded thermocouple extension cables. Supplementing the installation with a GE IS200TRLYH1C relay output terminal board in the same cabinet allows safety interlock outputs to be cleanly separated from analog measurement circuits, reducing cross-coupling noise that can cause signal drift on thermocouple channels.

In redundant control architectures, the IS200TBTCH1BBB is often deployed in triplicated TMR (Triple Modular Redundancy) configurations alongside the GE IS200TSVOH1A servo terminal board and GE IS200TBCIH1C contact input terminal board, forming a comprehensive field termination layer that covers temperature sensing, valve actuation feedback, and discrete safety interlock inputs within a single integrated control cabinet. This approach minimizes the number of field wiring interfaces, reducing potential failure points and simplifying maintenance during planned outages.

For communication-layer protection, the GE IS200VSVOH1B servo I/O board and associated terminal boards are configured to share the same UPS-backed power bus, ensuring that a utility power disturbance does not interrupt the thermocouple measurement chain during critical load transitions. Surge protection devices installed at the cabinet entry point further guard the IS200TBTCH1BBB terminals against lightning-induced surges on long thermocouple cable runs from remote field sensors.

Critical Industrial Safety Applications

The GE IS200TBTCH1BBB thermocouple terminal module is deployed across a wide spectrum of safety-critical industrial environments where continuous, accurate temperature monitoring is essential to both process efficiency and personnel safety.

Power Generation: In gas turbine and combined-cycle power plants, the IS200TBTCH1BBB provides the thermocouple termination backbone for exhaust temperature monitoring arrays. Accurate exhaust temperature profiling is essential for combustion optimization, hot-section life management, and over-temperature protection — all of which directly impact plant availability and turbine longevity. A failed or drifting thermocouple terminal board in this application can result in either a spurious unit trip or an undetected thermal event, both of which carry significant operational and safety consequences.

Petrochemical and Refining: In distillation columns, reactor vessels, and fired heaters, thermocouple measurement accuracy is a process safety requirement. The IS200TBTCH1BBB supports the temperature interlock loops that protect against runaway reactions and over-temperature conditions in hazardous area control systems. Its ruggedized construction ensures reliable operation in the high-humidity, corrosive-atmosphere conditions typical of coastal or offshore refinery environments.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mill drives generate extreme levels of electromagnetic interference. The IS200TBTCH1BBB’s shielded terminal design maintains thermocouple signal integrity in these high-EMI environments, supporting the temperature control loops that govern melt quality, casting speed, and cooling water system protection.

Mining and Mineral Processing: In large grinding mill drives, conveyor systems, and crusher control panels, motor winding temperature monitoring via thermocouples is a primary protection mechanism against insulation failure and catastrophic motor burnout. The IS200TBTCH1BBB provides reliable termination for these monitoring circuits in dusty, vibration-intensive mining environments.

Water and Wastewater Treatment: In large pumping stations and treatment plant control systems built on GE Mark VI platforms, the IS200TBTCH1BBB supports temperature monitoring for pump bearings, motor windings, and heat exchanger systems, contributing to the predictive maintenance programs that reduce unplanned outages in critical municipal infrastructure.

Marine and Port Machinery: Ship propulsion control systems and large port crane drives that incorporate GE Mark VI controllers rely on thermocouple terminal boards for engine room temperature monitoring. The IS200TBTCH1BBB’s tolerance for vibration and humidity makes it well-suited to the demanding marine environment, where component reliability directly affects vessel operational safety.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the GE IS200TBTCH1BBB?
All IS200TBTCH1BBB units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with the module’s rated specifications. Our warranty commitment reflects our confidence in the pre-shipment testing process applied to every unit before dispatch.

Q2: What pre-shipment testing is performed on the IS200TBTCH1BBB?
Every IS200TBTCH1BBB unit undergoes a full functional inspection prior to shipment, including visual examination for physical integrity, terminal condition verification, and compatibility checks against GE Mark VI system requirements. This process ensures that units arrive at your site ready for installation without the risk of infant-failure events that can occur with untested surplus components.

Q3: Is the IS200TBTCH1BBB compatible with both Mark VI and Mark VIe control systems?
The IS200TBTCH1BBB is designed for use within the GE Mark VI turbine control platform. Compatibility with Mark VIe systems should be verified against your specific system configuration and I/O board assignments. NINERMAS technical support can assist with compatibility verification based on your system’s I/O module list and terminal board layout prior to purchase.

Q4: Can NINERMAS support long-term or repeat supply of the IS200TBTCH1BBB for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of GE Mark VI series components, including the IS200TBTCH1BBB, to support planned maintenance schedules, emergency replacements, and capital spares programs. We offer consistent supply with stable lead times, making us a reliable long-term partner for facilities that depend on GE Mark VI control systems for continuous production operations.
