GE IS200BPIBG1AEB Retrofit-Compatible Backplane Interface for Legacy Systems

GE IS200BPIBG1AEB Retrofit-Compatible Backplane Interface for Legacy Systems

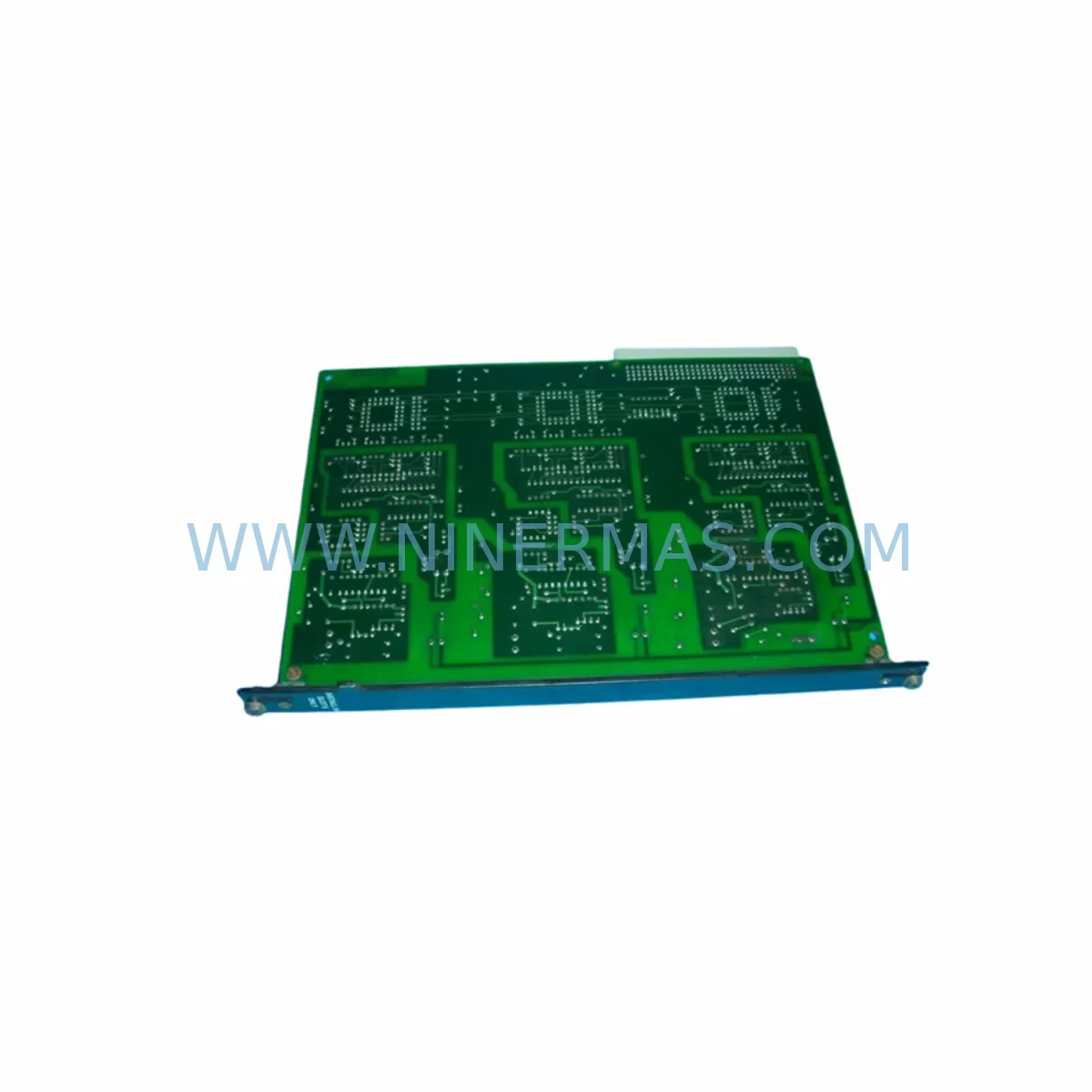

The GE IS200BPIBG1AEB is a backplane interface module designed for the GE Mark VI turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As original Mark VI hardware reaches end-of-life and OEM support windows close, the IS200BPIBG1AEB has become a critical spare for engineers managing legacy turbine control cabinets, retrofit projects, and unplanned outage recovery scenarios.

NINERMAS maintains verified stock of the IS200BPIBG1AEB with full pre-shipment functional testing, documented inspection records, and a 12-month warranty covering defects in materials and workmanship. Each unit is shipped with test documentation and is ready for immediate installation into existing Mark VI racks.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS200BPIBG1AEB in an operating turbine control environment requires careful coordination across multiple hardware and software layers. The backplane interface module sits at the intersection of the controller, I/O subsystem, and communication network — meaning a failed or degraded BPIB can cascade into loss of I/O visibility, spurious trips, or communication faults across the entire Mark VI cabinet.

Before pulling the existing module, engineers should capture a full ToolboxST configuration export and verify that the IS200VCMI Mark VI VME communication interface and adjacent IS200TRLYH1B relay output terminal board are not sharing a common fault condition. In many legacy installations, a degraded BPIB will generate alarms on the IS200VCRH1BBB VME controller that can be misdiagnosed as controller failures rather than backplane interface faults.

Power supply capacity is a frequent oversight in retrofit planning. The Mark VI rack typically draws power from a redundant IS200EPSMG1A power supply module pair. Before installing a replacement IS200BPIBG1AEB, confirm that both PSU rails are within specification — a marginal power supply can cause intermittent BPIB faults that reappear after replacement if the root cause is not addressed.

Terminal wiring on the associated IS200TBCIH1C terminal board should be photographed and documented before any module swap. Mark VI terminal boards use a rear-mount wiring scheme, and incorrect re-termination after a backplane module replacement is a common source of post-retrofit I/O errors. Pay particular attention to analog input signal wiring if the system includes IS200AIAAH1A analog input modules in adjacent slots.

For sites running IONet-based communication between the Mark VI controller and remote I/O panels, verify that the IS200IOCIH1A I/O controller interface retains its network address assignment after the BPIB replacement. In some firmware revisions, a backplane reset triggered by module removal can cause IONet node re-enumeration, which may require a ToolboxST download to restore correct I/O mapping.

HMI integration should also be validated post-replacement. Sites using GE Cimplicity or third-party SCADA systems connected via OPC-DA or OPC-UA should confirm that all Mark VI data points are correctly mapped after the module swap. A brief controlled test sequence — verifying analog inputs, digital outputs, and trip logic — is strongly recommended before returning the unit to automatic control.

For systems that include IS200DSPXH1D digital signal processor boards or IS200EXHSG2A excitation modules, coordinate the BPIB replacement with the excitation and protection engineering teams to ensure that protection relay logic is not inadvertently bypassed during the maintenance window. Proper isolation of the turbine protection system is mandatory before any backplane-level hardware change.

NINERMAS can supply the IS200BPIBG1AEB alongside related Mark VI spare parts including power supply modules, terminal boards, I/O modules, and communication interface cards to support a complete retrofit bill of materials. Consolidated shipment reduces lead time and simplifies incoming inspection at site.

Downtime Control During System Migration

Minimizing turbine downtime during a Mark VI backplane interface replacement requires a structured pre-outage preparation process. The following approach is recommended for sites where the IS200BPIBG1AEB is being replaced as part of a planned maintenance outage or emergency spare deployment:

Pre-Outage Preparation: Export the full ToolboxST project file and store it on an offline engineering workstation. Verify that the replacement IS200BPIBG1AEB has been bench-tested and that the test report matches the target rack slot requirements. Confirm that all adjacent modules — particularly the VME controller and I/O interface cards — are at known-good firmware revisions before the outage window opens.

During the Outage: Follow the Mark VI rack de-energization sequence per the OEM maintenance manual. Remove the failed BPIB using the correct extraction tool to avoid damage to the backplane connector. Seat the replacement module firmly and verify the locking mechanism is engaged before re-energizing the rack. On power-up, observe the module status LEDs and confirm that the BPIB initializes without fault codes before proceeding to ToolboxST verification.

Post-Replacement Verification: Perform a ToolboxST online comparison to confirm that the controller configuration matches the pre-outage export. Verify all I/O points are reading correctly, check communication link status on the IONet segment, and confirm that the HMI is receiving live data from all Mark VI data points. Run a controlled functional test of the turbine protection logic before releasing the unit to operations.

Program Logic Protection: The IS200BPIBG1AEB replacement does not alter the controller program stored in the IS200VCRH1BBB non-volatile memory. However, any ToolboxST download performed during commissioning will overwrite the running configuration — ensure that the correct project version is loaded before initiating any download to the controller.

By following a structured replacement procedure, most IS200BPIBG1AEB swaps can be completed within a 2–4 hour maintenance window, significantly reducing the risk of extended unplanned outages and protecting the continuity of turbine control operations.

Retrofit Support FAQ

Q1: Is the IS200BPIBG1AEB a direct drop-in replacement for earlier BPIB revisions such as IS200BPIBG1A and IS200BPIBG1AAA?
In most Mark VI rack configurations, the IS200BPIBG1AEB is backward-compatible with earlier BPIB revisions. However, customers should verify the rack assembly drawing and ToolboxST hardware configuration to confirm that the revision suffix does not affect slot assignment or firmware compatibility in their specific installation. NINERMAS technical support can assist with compatibility verification prior to order.

Q2: What commissioning steps are required after installing the IS200BPIBG1AEB?
After seating the module, power up the rack and observe the BPIB status LEDs for normal initialization. Connect to the Mark VI controller via ToolboxST and perform an online comparison to verify that the I/O configuration matches the pre-outage baseline. Confirm IONet communication link status and validate all I/O point readings before releasing the turbine to automatic control. No firmware flashing is required at the BPIB module level.

Q3: Does NINERMAS provide pre-shipment testing for the IS200BPIBG1AEB, and what does the 12-month warranty cover?
Yes. Every IS200BPIBG1AEB unit shipped by NINERMAS undergoes functional bench testing prior to dispatch. A test report is available on request. The 12-month warranty covers defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage conditions, or physical mishandling. Warranty claims are processed directly through NINERMAS with a target response time of 2 business days.

Q4: Can NINERMAS supply the IS200BPIBG1AEB from stock for emergency outage recovery?
NINERMAS maintains inventory of the IS200BPIBG1AEB and related Mark VI spare parts to support emergency outage recovery scenarios. Standard lead time for in-stock units is 3–5 business days for international shipment. For urgent requirements, expedited shipping options are available. Contact the NINERMAS sales team directly to confirm current stock availability and lead time before placing an order.
