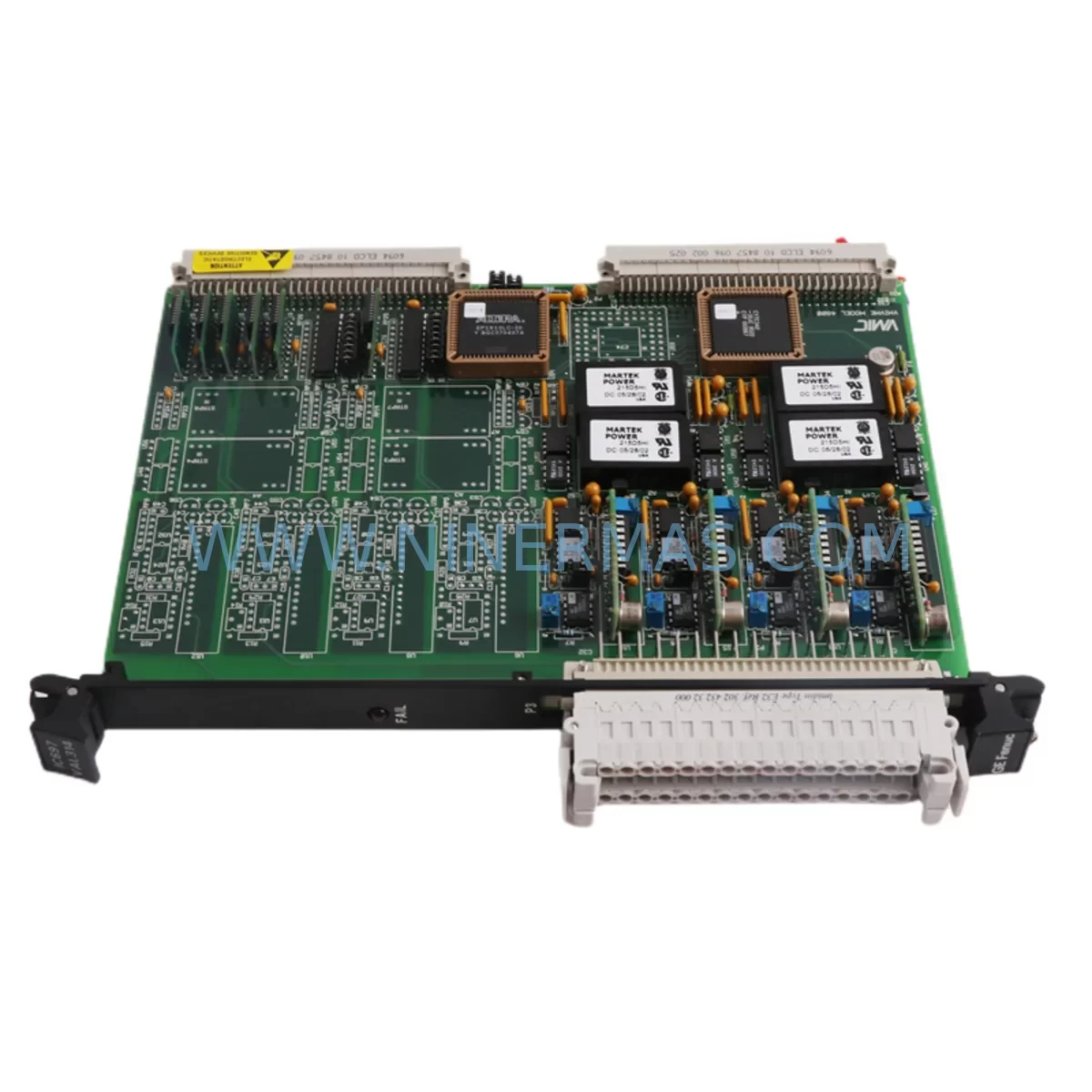

GE IC697VAL314 Safety-Reliable Analog Output Module

GE IC697VAL314 Safety-Reliable Analog Output Module for Critical Control Sites

The GE IC697VAL314 is a high-performance analog output module engineered for the GE Series 90-70 PLC platform, purpose-built to deliver consistent, safety-reliable signal output in the most demanding industrial environments. Designed for continuous production facilities, critical interlock systems, and heavy-duty control cabinets, the IC697VAL314 provides stable 4–20 mA or 0–10 V analog output channels that maintain signal integrity even under severe electromagnetic interference, voltage fluctuation, and mechanical vibration. For process engineers and automation specialists who cannot afford unplanned downtime, this module represents a proven, field-tested solution with a 12-month warranty and guaranteed in-stock availability from NINERMAS.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet architectures — whether managing a petrochemical reactor loop, a power plant auxiliary system, or a continuous mining conveyor — signal integrity at the analog output layer is non-negotiable. The GE IC697VAL314 addresses this directly through its optically isolated output design, which physically separates the field wiring from the backplane logic bus. This isolation prevents ground loops and common-mode noise — two of the most frequent causes of signal drift and spurious actuator movement in high-EMI environments.

When deployed alongside the GE IC697PWR711 power supply module, the IC697VAL314 benefits from a regulated, low-ripple 5 VDC backplane feed that eliminates the micro-voltage fluctuations that can corrupt DAC conversion accuracy. For installations where power redundancy is mandatory, pairing with a GE IC697PWR724 redundant power supply ensures that a single power rail failure does not interrupt analog output continuity to field devices such as control valves, variable frequency drives, or positioners.

On the communication and supervisory side, the GE IC697CMM742 communications coprocessor and IC697BEM731 bus expansion module allow the Series 90-70 rack to maintain high-speed data exchange with SCADA systems and DCS networks without introducing latency spikes that could desynchronize the analog output update cycle. In safety interlock architectures, this timing stability is critical — a delayed output update to a shutdown valve or emergency depressurization actuator can have catastrophic consequences.

For discrete safety channel integration, the GE IC697MDL340 discrete output module and IC697MDL240 discrete input module are commonly installed in the same rack as the IC697VAL314, forming a unified I/O tier that handles both analog process control and digital safety relay commands from a single backplane. This consolidated architecture reduces wiring complexity, minimizes inter-module communication latency, and simplifies cabinet maintenance during planned shutdowns.

In environments with heavy motor loads, welding equipment, or large transformer switching — all of which generate significant conducted and radiated EMI — the IC697VAL314’s built-in TVS (transient voltage suppression) clamping on output lines provides a critical first line of defense against surge-induced output latch-up. Supplementing this with external Phoenix Contact TRABTECH surge protection terminal blocks on field wiring further reduces the risk of output channel damage from lightning-induced transients or capacitor bank switching events.

For long-term spare parts management, NINERMAS maintains verified stock of the IC697VAL314 alongside compatible modules including the GE IC697ALG320 analog input module and IC697ALG440 high-density analog input module, enabling facilities to standardize their Series 90-70 spare parts inventory and reduce the risk of production delays caused by obsolete module sourcing.

Critical Industrial Safety Applications

Petrochemical and Refinery Process Control: In continuous distillation columns, catalytic cracking units, and pipeline compression stations, the IC697VAL314 drives 4–20 mA signals to pneumatic control valve positioners and I/P transducers. Its high output resolution (12-bit) ensures precise flow and pressure regulation, reducing the risk of process excursions that could trigger emergency shutdown systems (ESD). The module’s wide operating temperature range and humidity tolerance make it suitable for both air-conditioned control rooms and field junction boxes in tropical or desert climates.

Electric Power Generation and Substation Automation: In turbine governor control systems, excitation regulators, and automatic voltage regulators (AVR), analog output accuracy directly affects grid frequency stability and reactive power balance. The IC697VAL314’s ±0.1% full-scale accuracy and optical isolation prevent ground potential differences between the control room and switchyard from corrupting the output signal, a common failure mode in high-voltage substation environments.

Mining and Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, coal dust ingress, and wide temperature swings. The IC697VAL314, installed in sealed IP54 or IP65 control enclosures with appropriate cable gland sealing, provides reliable analog output to variable speed drives on conveyor belts, slurry pumps, and ventilation fans. Unplanned stops in these applications carry significant safety and financial consequences, making module reliability and fast spare parts availability from NINERMAS a critical operational requirement.

Water and Wastewater Treatment: Municipal and industrial water treatment plants rely on precise analog output signals to control chemical dosing pumps, aeration blower VFDs, and filter backwash valve actuators. The IC697VAL314’s resistance to humidity and its stable output under varying load impedances ensure that dosing accuracy is maintained even as pump wear changes the loop resistance over time.

Metallurgy and Steel Production: In electric arc furnaces, continuous casting lines, and rolling mill drives, the analog output module must maintain signal stability despite the intense electromagnetic fields generated by high-current bus bars and induction heating systems. The IC697VAL314’s EMI immunity, validated against IEC 61000-4 standards, makes it a dependable choice for these electrically hostile environments.

Port, Marine, and Offshore Applications: Crane control systems, ship engine room automation, and offshore platform process control all demand modules that can withstand salt air corrosion, vibration from diesel generators, and the power quality disturbances common in isolated marine electrical systems. The IC697VAL314’s robust construction and proven Series 90-70 platform compatibility make it a trusted replacement module for aging marine automation systems where OEM support has been discontinued.

Safety and Quality FAQ

Q1: What warranty does the GE IC697VAL314 carry when purchased from NINERMAS?
Every GE IC697VAL314 module supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failures under normal operating conditions and includes technical support for installation and commissioning. NINERMAS will replace or repair any module confirmed defective within the warranty period at no additional cost to the customer.

Q2: What pre-shipment testing is performed on the IC697VAL314?
All IC697VAL314 modules undergo 100% functional testing before dispatch. Testing includes verification of all four analog output channels across the full 4–20 mA and 0–10 V output ranges, backplane communication integrity checks, and isolation resistance measurement. A test report is available upon request for customers with documented quality management requirements.

Q3: Is the IC697VAL314 compatible with all GE Series 90-70 rack configurations?
Yes. The IC697VAL314 is fully compatible with all standard GE Series 90-70 rack models, including the IC697CHS750 (5-slot), IC697CHS782 (9-slot), and IC697CHS790 (9-slot VME) configurations. It is also compatible with the IC697CHS791 and IC697CHS783 rack variants. No firmware modification is required for installation — the module is recognized automatically by the Series 90-70 CPU upon rack power-up.

Q4: Can NINERMAS guarantee long-term supply of the IC697VAL314 for multi-year maintenance contracts?
Yes. NINERMAS maintains a dedicated inventory of GE Series 90-70 modules, including the IC697VAL314, to support customers with long-term maintenance and spare parts agreements. For facilities managing aging GE Series 90-70 installations where OEM production has ceased, NINERMAS provides a reliable alternative supply channel with consistent quality, documented testing, and responsive logistics to minimize the risk of extended production downtime due to spare parts unavailability.
