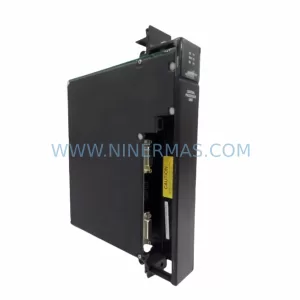

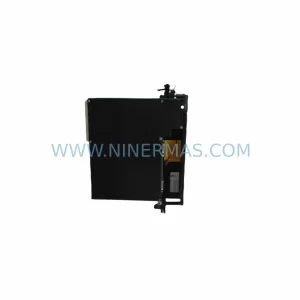

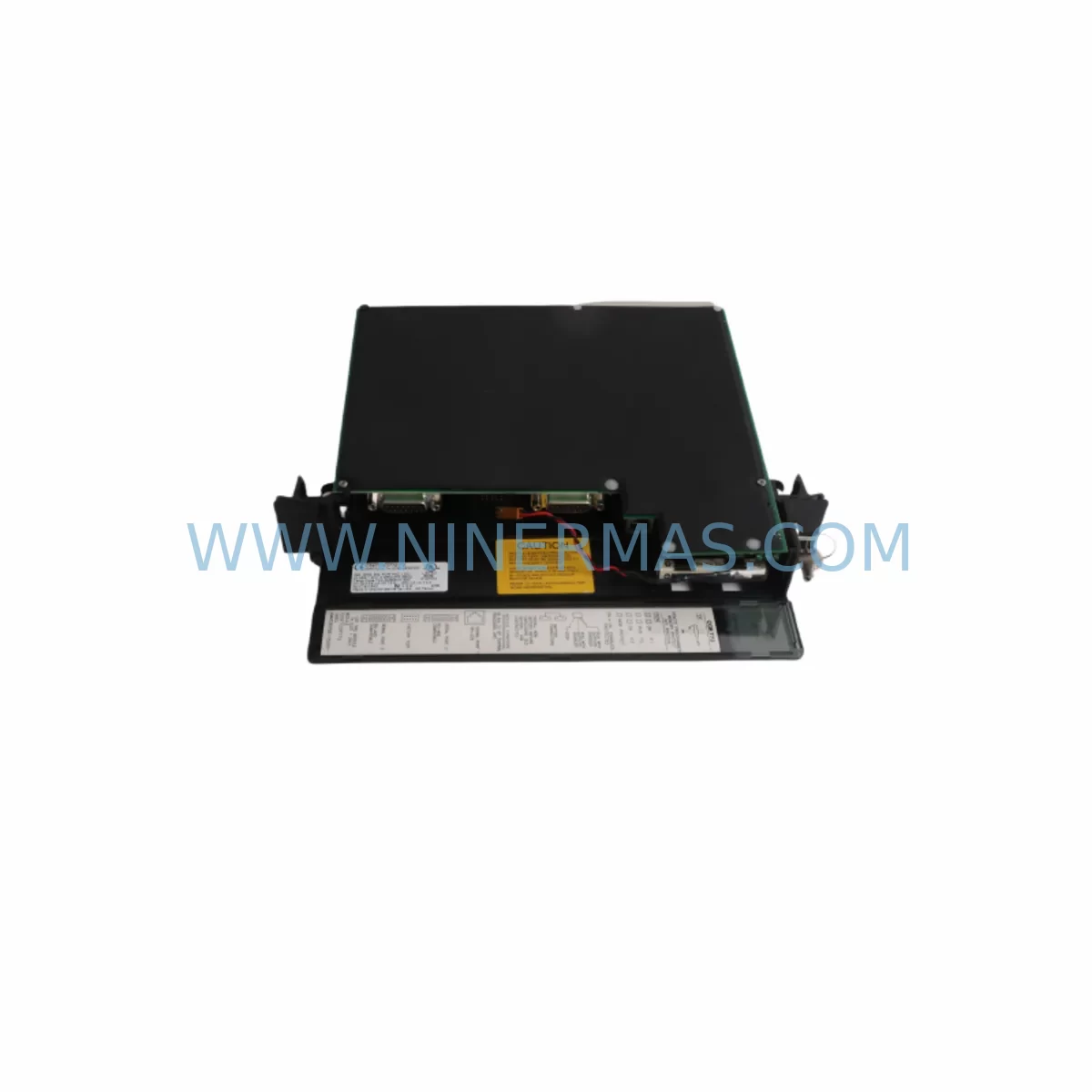

GE IC697CGR772 Retrofit-Compatible Ruggedized CPU for Legacy

GE IC697CGR772 Retrofit-Compatible Ruggedized CPU for Legacy Systems

The GE IC697CGR772 is a ruggedized central processing unit module designed for the GE Fanuc Series 90-70 programmable logic controller platform. Purpose-built for harsh industrial environments — including high-vibration, wide-temperature, and high-humidity applications — this CPU module delivers reliable control performance in legacy automation systems that cannot be easily replaced wholesale. For plant engineers managing aging control infrastructure, the IC697CGR772 represents a proven, drop-in compatible solution that extends the operational life of existing Series 90-70 racks without requiring a full system redesign.

As GE Fanuc’s Series 90-70 platform reaches end-of-life status across many production facilities, the IC697CGR772 has become a critical spare part for maintenance teams responsible for keeping legacy lines operational. Whether you are managing a scheduled overhaul, responding to an unplanned CPU failure, or executing a phased modernization program, sourcing a verified replacement IC697CGR772 with documented compatibility is essential to minimizing downtime and protecting your existing program logic investment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IC697CGR772 in an active production environment requires careful pre-planning across several interdependent system layers. Before removing the existing CPU, maintenance engineers should perform a full program backup using Logicmaster 90-70 or Proficy Machine Edition, storing the ladder logic, configuration data, and I/O table to a secure offline location. If the existing system uses an IC697MEM715 battery-backed memory module, verify that the battery is functional and that the stored program is current before proceeding.

The Series 90-70 rack — typically an IC697CHS750 (9-slot) or IC697CHS782 (5-slot) chassis — must be inspected for backplane connector condition prior to installing the replacement IC697CGR772. Corroded or damaged VME backplane pins are a common cause of intermittent CPU faults in aging installations and should be addressed during the retrofit window. The power supply module, commonly an IC697PWR711 or IC697PWR724, should also be load-tested to confirm it can support the ruggedized CPU’s current draw alongside the installed I/O complement.

On the I/O side, the IC697CGR772 is fully compatible with the standard Series 90-70 discrete and analog I/O modules, including the IC697MDL340 (24VDC input) and IC697MDL940 (relay output) families. No I/O module address reassignment is required for a direct CPU swap, provided the rack configuration and slot assignments remain unchanged. However, if the retrofit is being combined with an I/O expansion — for example, adding an IC697BEM731 Bus Expansion Module to extend the I/O network — the new I/O addresses must be reflected in the updated program before go-live.

For systems communicating with upstream SCADA platforms or HMI panels via the SNP or SNPX protocol, the serial port parameters on the replacement IC697CGR772 must be configured to match the existing baud rate, parity, and station address settings. If the facility is also migrating from a legacy IC697CMM711 communications coprocessor to a more modern Ethernet interface such as the IC697CMM742, this protocol migration should be planned as a separate phase to avoid compounding retrofit risk. HMI screen tag mappings tied to specific PLC register addresses should be validated against the restored program before resuming production.

Where the retrofit involves replacing a failed CPU in an emergency scenario, having a pre-configured and tested IC697CGR772 spare on the shelf — with the program pre-loaded and verified — is the most effective strategy for minimizing mean time to repair (MTTR). NINERMAS maintains in-stock inventory of the IC697CGR772 with pre-shipment functional testing, supporting rapid deployment for both planned maintenance and emergency breakdown scenarios.

Downtime Control During System Migration

Controlling downtime during a Series 90-70 CPU replacement begins well before the maintenance window opens. The most effective approach is to stage the replacement IC697CGR772 in a bench test environment, loading the backed-up program and verifying correct I/O table configuration, communication parameters, and fault handling routines before the unit is brought to the plant floor. This offline validation step eliminates the most common sources of extended downtime: program upload errors, communication mismatches, and I/O configuration discrepancies.

During the physical swap, the sequence should follow a defined lockout/tagout procedure with the rack power supply — IC697PWR711 or equivalent — de-energized before the CPU module is removed from slot 1. The replacement IC697CGR772 should be seated firmly into the VME backplane, with the module locking tabs engaged before power is restored. On power-up, the CPU will perform a self-diagnostic sequence; engineers should monitor the RUN/STOP/FAULT LED indicators and confirm that the unit transitions to RUN mode without fault conditions before releasing the system to production.

If the existing program was stored on an IC697MEM715 memory module, the CPU will automatically load the program from memory on power-up, further reducing commissioning time. For systems without a memory module, the program must be downloaded from the programming terminal via the RS-232 SNP port using Logicmaster 90-70 or Proficy Machine Edition. Confirming that the programming cable — typically a IC690ACC901 serial programming cable — is available on-site before the maintenance window begins is a simple but frequently overlooked step that can add unnecessary delay to the restoration process.

Post-restoration, a structured I/O force test should be performed to verify that all field devices are responding correctly through the restored program logic before the system is returned to automatic control. Documenting the completed retrofit — including the replacement module serial number, program version, and commissioning test results — creates a traceable maintenance record that supports future audits and spare parts planning.

Retrofit Support FAQ

Q1: Is the IC697CGR772 a direct drop-in replacement for other GE Series 90-70 CPU modules?
The IC697CGR772 is a ruggedized variant within the Series 90-70 CPU family. It is physically and electrically compatible with the standard Series 90-70 rack and backplane. However, it is specifically designed for extended-temperature and high-vibration environments. When replacing a standard CPU such as the IC697CPX935 or IC697CPU772, the program logic and I/O configuration are fully transferable, but engineers should confirm that the ruggedized variant’s firmware version is compatible with the existing program before deployment.

Q2: What commissioning steps are required after installing the replacement IC697CGR772?
After physical installation, the key commissioning steps are: (1) power-up self-diagnostic confirmation, (2) program download or memory module load verification, (3) communication port parameter configuration matching the existing SCADA/HMI setup, (4) I/O force test across all connected field devices, and (5) a supervised production trial run before returning the system to unattended automatic control. All units supplied by NINERMAS are pre-tested prior to shipment to reduce on-site commissioning time.

Q3: Can I use the IC697CGR772 in a mixed-rack configuration with newer GE PACSystems modules?
The IC697CGR772 is a Series 90-70 platform module and is not directly compatible with the GE PACSystems RX7i or RX3i rack architectures. However, GE’s PACSystems RX7i platform (IC698CPE010 / IC698CPE020) is designed to accept Series 90-70 I/O modules in a mixed-rack configuration, providing a structured migration path for facilities planning a phased upgrade from the 90-70 platform. NINERMAS can advise on compatible migration configurations upon request.

Q4: What warranty and stock availability does NINERMAS offer for the IC697CGR772?
NINERMAS offers a 12-month warranty on all IC697CGR772 units, covering functional defects under normal operating conditions. Units are held in stock and subject to pre-shipment functional testing before dispatch. For long-term spare parts programs or multi-unit procurement commitments, please contact our team directly to discuss inventory reservation and lead-time planning.
