GE IC695CHS012-BA Retrofit Universal Backplane for RX3i

GE IC695CHS012-BA Retrofit-Compatible Universal Backplane for PACSystems RX3i Legacy Systems

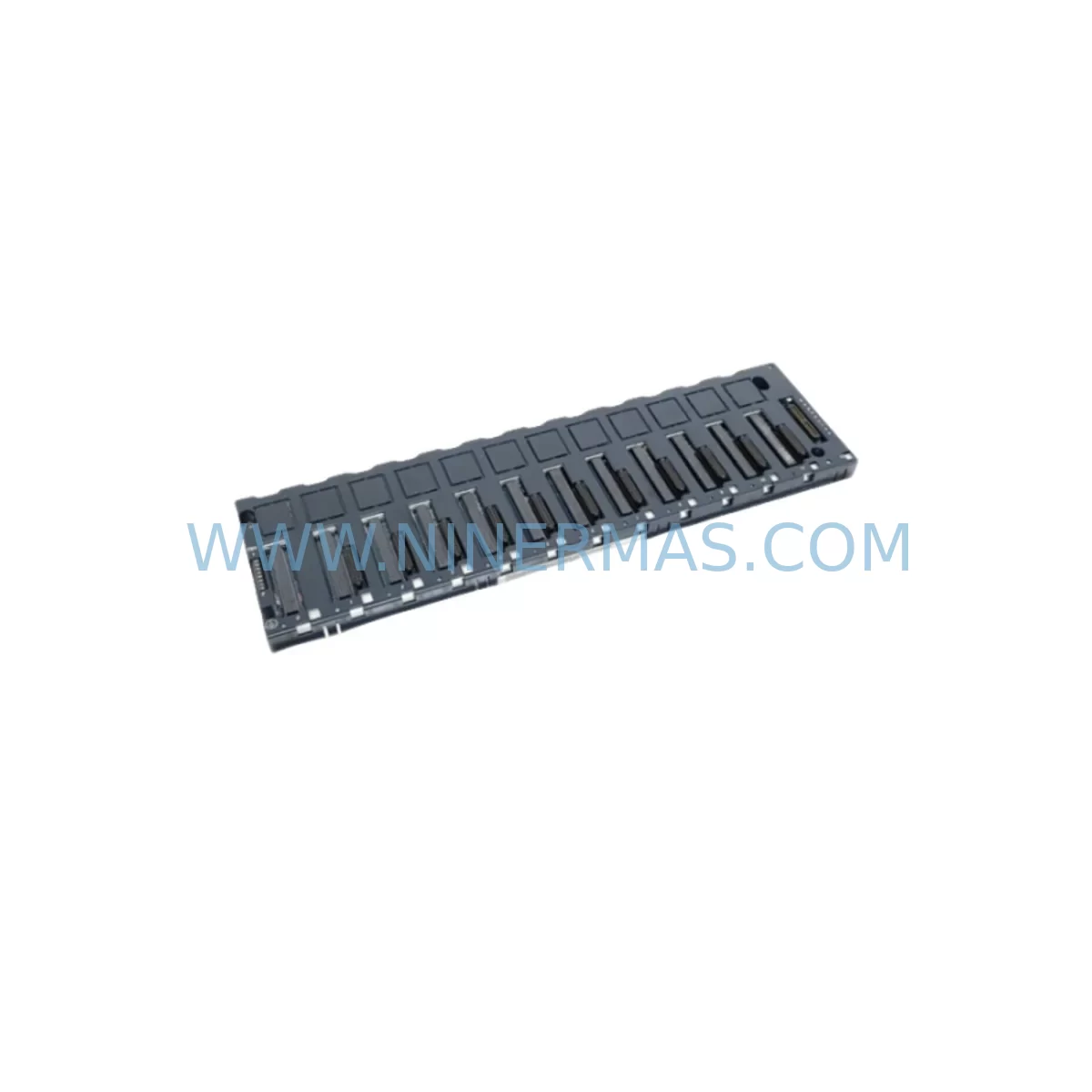

The GE IC695CHS012-BA is a 12-slot Universal Backplane designed for the PACSystems RX3i control platform. As legacy GE Fanuc Series 90-30 and Series 90-70 installations reach end-of-life, the IC695CHS012-BA has become a critical component in retrofit and modernization projects worldwide. Its universal slot architecture accepts a wide range of RX3i I/O, communications, and specialty modules, making it the structural backbone of any RX3i control cabinet upgrade. Whether you are replacing a failed backplane in an active production line or planning a phased migration from an older Series 90-30 rack such as the IC693CHS391 or IC693CHS398, the IC695CHS012-BA provides the physical and electrical foundation required for a smooth transition.

In retrofit scenarios, engineers must verify that the replacement backplane is compatible with the existing RX3i CPU module — typically the IC695CPE302, IC695CPE305, or IC695CPE330 — and that the power supply module, such as the IC695PSA040 or IC695PSD040, can deliver sufficient wattage for the full module complement installed in the new rack. The IC695CHS012-BA supports both AC and DC power supply variants, which simplifies integration into existing control cabinet wiring without requiring panel rewiring. Confirming the power budget before installation is essential: sum the current draw of all installed modules including the CPU, communications modules such as the IC695ETM001 Ethernet interface, and any analog or discrete I/O modules like the IC695ALG600 or IC695MDL664, and verify the total does not exceed the supply rating.

Terminal wiring and backplane slot addressing must be carefully documented before removing the legacy rack. Each module’s slot position determines its I/O address in the PLC program, and any change in slot assignment will require corresponding updates in the application logic loaded on the IC695CPE module. Where possible, maintain the original slot layout from the legacy rack to minimize program modifications and reduce commissioning time. If the original rack used a different slot count — for example, migrating from a 7-slot IC693CHS397 to the 12-slot IC695CHS012-BA — the additional slots can be used to add expansion I/O or communications modules without disrupting existing address assignments.

Communication protocol continuity is another key consideration. Many legacy Series 90-30 systems relied on Genius Bus or SNP serial communications. During migration to the RX3i platform using the IC695CHS012-BA, engineers typically introduce the IC695PBM300 PROFIBUS Master module or the IC695ETM001 for EtherNet/IP connectivity, enabling integration with modern SCADA systems and HMI panels. If the existing HMI — such as a QuickPanel or third-party operator panel — communicates via serial SNP, a protocol gateway or updated driver configuration may be required to maintain screen functionality during the transition period. Updating HMI tag databases to reflect new PLC register addresses is a standard step in any RX3i retrofit project.

Installation space confirmation is mandatory before ordering. The IC695CHS012-BA requires standard DIN rail or panel mounting and occupies more horizontal space than a 7-slot or 10-slot legacy rack. Measure the available cabinet width and depth, accounting for cable management, terminal block clearance, and ventilation requirements. In tight enclosures, the transition from a compact Series 90-30 rack to the 12-slot RX3i backplane may require panel modifications or a new enclosure section. Planning this early prevents costly delays during the physical installation phase.

Pre-shipment testing is performed on every IC695CHS012-BA unit before dispatch. Each backplane undergoes functional verification to confirm slot integrity, backplane bus continuity, and power rail stability. Units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Inventory is maintained in stock to support urgent replacement orders, with typical lead times suitable for both planned maintenance windows and emergency breakdown situations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC695CHS012-BA retrofit begins with a thorough audit of the existing control system. Document every module currently installed in the legacy rack, including part numbers, slot positions, firmware versions, and wiring terminations. For Series 90-30 systems, this typically includes discrete input modules such as the IC693MDL645, analog output modules such as the IC693ALG392, and the legacy CPU module such as the IC693CPU374. Each of these must be mapped to its RX3i equivalent or confirmed compatible before the new backplane is populated.

The IC695CHS012-BA’s universal slot design means that RX3i I/O modules, communications modules, and specialty function modules can be installed in any slot without restriction — a significant advantage over legacy fixed-slot architectures. This flexibility allows engineers to optimize the module layout for cable routing and maintenance access. When adding new capabilities during the retrofit — such as installing an IC695ETM001 for network connectivity or an IC695PBM300 for PROFIBUS integration — the additional slots in the 12-slot backplane provide room for expansion without requiring a second rack or expansion cable.

Signal isolation requirements should be assessed during planning. In environments with high electrical noise, signal isolators may be required between field devices and the RX3i I/O modules. The backplane itself does not provide galvanic isolation between slots, so external isolation barriers or isolated I/O modules should be specified where needed. Programming cables such as the IC690USB901 or IC693CBL316 are required for initial program download and online monitoring during commissioning. Ensure the programming workstation has the current version of Proficy Machine Edition installed and licensed for the target CPU type.

Downtime Control During System Migration

Minimizing production downtime during a backplane replacement requires careful pre-staging and a structured cutover plan. Before the maintenance window begins, pre-configure the IC695CHS012-BA with all required modules installed and addressed. Download the verified application program to the IC695CPE CPU module and perform an offline simulation where possible. Prepare a complete backup of the original PLC program, including all data blocks, configuration files, and HMI project files, stored on a secure offline medium.

During the cutover window, follow a structured sequence: isolate field power, document all terminal wiring before disconnection, remove the legacy rack, install the pre-staged IC695CHS012-BA assembly, reconnect field wiring according to the documented schedule, restore power, and perform a systematic I/O force test to verify each field device before releasing the system to automatic control. For critical loops, consider maintaining manual control at the field device level during the transition to protect process continuity. The 12-slot capacity of the IC695CHS012-BA allows the new rack to be fully pre-wired and tested on the bench before installation, reducing the time the control system is offline to the minimum required for physical swap and wiring reconnection.

After restoration, monitor the system closely during the first production run. Verify all analog scaling values, PID tuning parameters, and communication link statuses match the pre-retrofit baseline. Any discrepancies in HMI display values or alarm setpoints should be investigated and corrected before the system is returned to unattended operation. Retaining the original legacy rack as a cold spare for a defined period after the retrofit provides an additional safety net during the stabilization phase.

Retrofit Support FAQ

Q: Is the IC695CHS012-BA a direct drop-in replacement for Series 90-30 backplanes such as the IC693CHS391?
A: The IC695CHS012-BA is not a direct physical drop-in for Series 90-30 racks due to differences in form factor, slot count, and module connector design. It is the correct replacement backplane for PACSystems RX3i systems and is used in conjunction with RX3i-compatible modules. A full module and wiring migration plan is required when transitioning from Series 90-30 to RX3i.

Q: What commissioning steps are required after installing the IC695CHS012-BA?
A: After physical installation and wiring reconnection, download the application program to the CPU, verify slot addressing matches the program configuration, perform a full I/O force test on all discrete and analog channels, confirm communication link status on all installed network modules, and validate HMI display values against field measurements before releasing to automatic control.

Q: Does each IC695CHS012-BA unit come with a warranty and pre-shipment test?
A: Yes. Every unit is pre-shipment tested for backplane bus continuity, slot integrity, and power rail stability before dispatch. A 12-month warranty is included, covering manufacturing defects and operational failures under normal industrial use conditions. Contact sale@ninermas.com for warranty claims or technical support.

Q: What is the typical lead time and stock availability for the IC695CHS012-BA?
A: Inventory is maintained in stock to support both planned maintenance and emergency breakdown requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and lead time for your order quantity.
