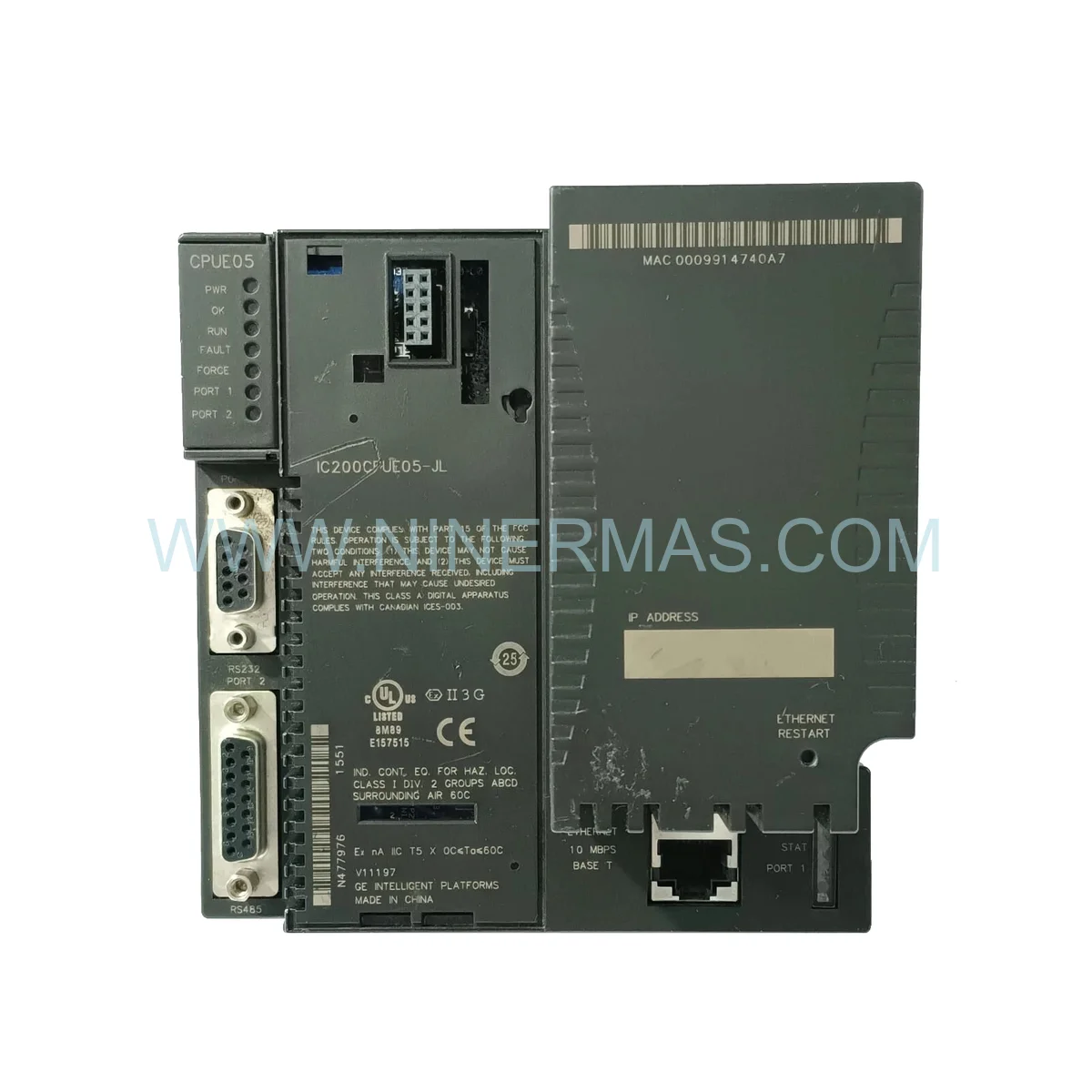

GE IC200CPUE05 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the GE IC200CPUE05 stands out as a cornerstone component in any legacy system modernization initiative. With its 128KB user-configurable memory, integrated 10/100 Mbps Ethernet port, and dual serial communication channels, the GE IC200CPUE05 delivers the processing headroom and connectivity bandwidth required to breathe new life into aging VersaMax architectures — extending operational lifespan while dramatically improving throughput and diagnostic visibility.

One of the most compelling advantages of deploying the IC200CPUE05 in a retrofit context is its backward compatibility within the VersaMax I/O ecosystem. Existing carrier bases, I/O modules, and expansion cables can be retained without modification, meaning your hardware investment is preserved while the control intelligence is upgraded. This seamless integration capability eliminates the need for full panel redesigns, reducing both engineering hours and capital expenditure during the migration phase.

From a risk management perspective, the IC200CPUE05 dramatically lowers the barriers to system modernization. Its drop-in form factor, familiar IEC 61131-3 programming environment, and embedded web diagnostics allow retrofit teams to execute phased upgrades with minimal production downtime — transforming what was once a high-risk cutover into a controlled, incremental performance enhancement journey.

Upgrade Highlights & Compatibility

• ✅ Legacy Compatibility: Direct replacement within VersaMax carrier infrastructure — no new racks, no rewiring, no panel modifications required
• Performance Enhancement: 0.2ms/1K Boolean scan time vs. older CPU variants, delivering measurable cycle time reductions in high-speed control loops
• ✅ Dual-Protocol Communication: Simultaneous Modbus TCP + SRTP over Ethernet alongside RS-232/RS-485 serial — bridges legacy field devices to modern SCADA/HMI networks
• Expanded Memory Architecture: 128KB configurable memory supports complex migration programs, dual-mode operation, and recipe-based production changeovers
• ✅ Future-Proofing: Embedded web server enables remote diagnostics and firmware updates — aligning legacy hardware with Industry 4.0 connectivity standards
• Hot-Swap I/O Support: Replace peripheral modules without CPU shutdown, enabling zero-downtime maintenance during live production runs

Modernization Use Cases & Success Stories

DCS Migration — Chemical Processing Plant: A regional chemical manufacturer operating a 15-year-old distributed control system faced escalating spare parts costs and obsolete HMI software. By deploying the IC200CPUE05 as the new CPU backbone within the existing VersaMax I/O infrastructure, the retrofit team achieved a 40% reduction in scan cycle time and established direct Modbus TCP connectivity to the new SCADA platform — all without replacing a single I/O carrier or field instrument.

TSI System Upgrade — Power Generation Facility: A turbine supervisory instrumentation (TSI) retrofit project required a CPU capable of handling high-frequency vibration data polling alongside standard process I/O. The IC200CPUE05’s 128KB memory and optimized scan engine provided the computational capacity to consolidate previously separate monitoring loops into a unified control program, reducing panel footprint by 30% and eliminating inter-system communication latency.

Legacy PLC Replacement — Automotive Assembly Line: An automotive Tier-1 supplier needed to replace an end-of-life CPU without halting production. The IC200CPUE05’s compatibility with existing VersaMax I/O modules enabled a weekend cutover with zero new hardware procurement beyond the CPU itself — a textbook example of hardware upgrade with minimal migration risk.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | **IC200CPUE05** | | User Memory | 128KB configurable (program + data) | | Scan Performance | 0.2ms per 1K Boolean logic | | Ethernet Interface | 10/100 Mbps RJ45 — Modbus TCP, SRTP | | Serial Ports | RS-232 / RS-485 (software configurable) | | Max I/O Capacity | 2,048 discrete + 512 analog points | | Programming Standards | IEC 61131-3: LD, FBD, ST | | Operating Temperature | 0°C to +60°C | | Power Consumption | 5W @ 24V DC (typical) | | Certifications | UL, CE, CSA, RoHS | | Memory Retention | Lithium battery backup (5+ year life) | | Lifecycle Status | Active — Current Production | | Retrofit Compatibility | Full VersaMax I/O ecosystem | | Dimensions | 90mm — 87mm — 58mm |

Supply Chain & Deployment Support

• Original & Factory Sealed: Every IC200CPUE05 unit is sourced from authorized channels with full factory traceability documentation — no refurbished or counterfeit risk
• Expedited Global Logistics: Priority air freight and DDP shipping options available for time-critical retrofit projects across North America, Europe, Southeast Asia, and the Middle East
• Technical Support for Legacy Hardware: Our engineering team specializes in obsolete and end-of-life PLC platforms — providing configuration guidance, compatibility verification, and migration planning support
• 12-Month Warranty: Comprehensive coverage against manufacturing defects, with advance replacement options for qualified retrofit projects
• Volume & Project Pricing: Dedicated quotation support for multi-unit retrofit programs and long-term maintenance contracts

Retrofit FAQ (Upgrade Guide)

Q: Is the IC200CPUE05 physically compatible with existing VersaMax carrier bases from older CPU generations?
A: Yes. The IC200CPUE05 uses the same mechanical form factor and backplane connector as earlier VersaMax CPU modules, allowing direct installation into existing carrier bases without panel modifications or additional mounting hardware.

Q: How does the IC200CPUE05 handle communication between legacy serial field devices and modern Ethernet-based SCADA systems?
A: The module’s dual-port architecture — RS-232/RS-485 serial plus 10/100 Mbps Ethernet — enables simultaneous legacy device polling and modern network communication. This makes it an ideal protocol bridge during phased migration projects where not all field devices are upgraded simultaneously.

Q: Can existing ladder logic programs from older VersaMax CPUs be migrated to the IC200CPUE05 without full rewrite?
A: In most cases, yes. Programs developed in GE’s Machine Edition or Proficy Logic Developer for VersaMax platforms are largely portable to the IC200CPUE05. The expanded 128KB memory provides additional headroom for migration-phase dual-mode logic without requiring program restructuring.

Q: What are the recommended spare part substitution options if IC200CPUE05 units are needed for an obsolete system running older VersaMax CPUs?
A: The IC200CPUE05 is the recommended performance upgrade path for systems previously running IC200CPU001 or IC200CPU005 variants. Its enhanced memory and communication capabilities make it a functional superset replacement, requiring only minor program adjustments for memory reference remapping.

Q: Does the IC200CPUE05 support integration with third-party DCS platforms via standard industrial protocols?
A: Yes. The embedded Ethernet port supports Modbus TCP and SRTP protocols natively, enabling integration with most major DCS and SCADA platforms including Wonderware, iFIX, and Ignition without additional gateway hardware.

Q: What is the recommended approach for minimizing production downtime during an IC200CPUE05 retrofit installation?
A: Best practice involves pre-loading and bench-testing the migration program offline, scheduling the physical swap during a planned maintenance window, and leveraging the module’s embedded web diagnostics for rapid post-installation verification — typically achieving full cutover in under 2 hours for standard VersaMax configurations.
