GE DS215TCQAG1BZZ01A Safety-Reliable Analog I/O Board for Critical Control

GE DS215TCQAG1BZZ01A Safety-Reliable Analog I/O Board for Critical Control

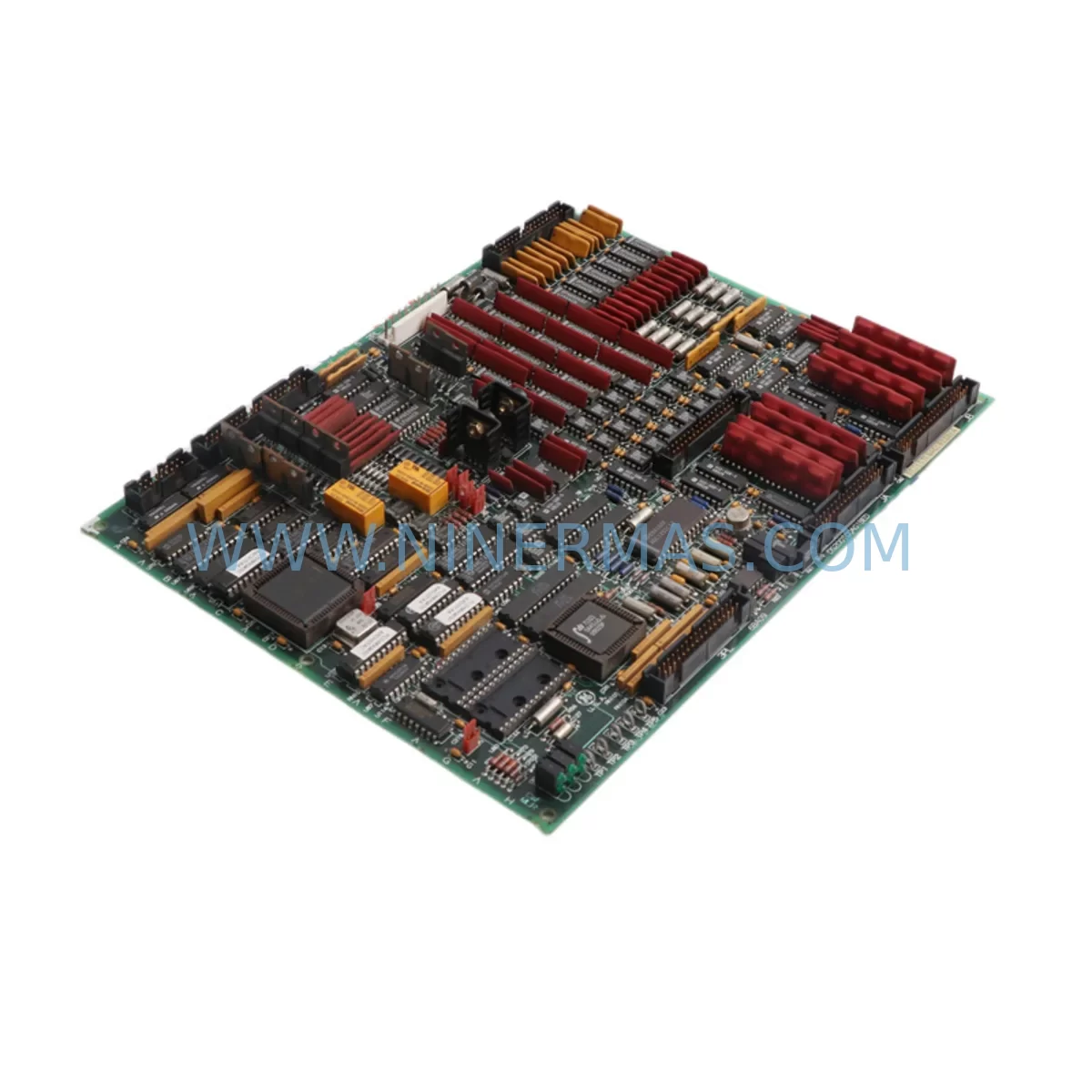

The GE DS215TCQAG1BZZ01A is a high-integrity Analog I/O Board engineered for the GE Mark V Turbine Control System, one of the most widely deployed safety-critical control platforms in power generation, petrochemical, and heavy industrial environments. Designed to operate continuously under demanding field conditions, this board serves as a core signal interface between field instrumentation and the Mark V controller, ensuring accurate, stable, and uninterrupted analog signal transmission across all critical control loops.

At NINERMAS, every DS215TCQAG1BZZ01A unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent replacement needs, minimizing unplanned downtime at your facility.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark V turbine control cabinet, the DS215TCQAG1BZZ01A does not operate in isolation — it is part of a tightly integrated safety and control architecture. Signal integrity on this board directly affects the reliability of the entire turbine protection chain. When analog signals from thermocouples, pressure transmitters, or speed sensors drift or are interrupted due to a failed I/O board, the consequences can range from nuisance trips to dangerous undetected faults.

To build a robust, fault-tolerant control cabinet around the DS215TCQAG1BZZ01A, site engineers typically deploy it alongside complementary Mark V boards and protection components. The DS200TCQAG1BDD and DS215TCQAG1BZZ01B variants serve as functional equivalents or revision upgrades in the same I/O slot family, providing flexibility during emergency replacements. The DS200TCDAG1AAA diagnostic board works in conjunction with the analog I/O layer to monitor signal health and flag anomalies before they escalate into control failures.

On the power supply side, the DS200VPBLG1AFF power supply board provides regulated DC voltage to the Mark V I/O racks. Voltage fluctuations or ripple from an aging power board can induce signal drift on analog channels — making the power supply a critical companion component to inspect and replace alongside the DS215TCQAG1BZZ01A. Similarly, the DS200SDCCG1AFB speed and dynamics control card interfaces with the analog layer during turbine acceleration and load control sequences, where signal accuracy is paramount.

For communication integrity, the DS200SLCCG3AAA serial link control card manages data exchange between the Mark V controller and HMI or DCS systems. A degraded communication card can mask analog I/O faults, making it essential to maintain both boards in verified condition. In high-EMI environments such as generator halls or arc furnace facilities, adding DS200TCQCG1A series shielded I/O modules and ensuring proper grounding of the IS200TSVOH1A servo control board further reduces the risk of signal contamination affecting the analog measurement chain.

Surge protection at the field terminal level — using DIN-rail mounted surge arrestors rated for the analog signal range — is also recommended when the DS215TCQAG1BZZ01A is installed in outdoor substations or coastal facilities where lightning-induced transients are a recurring threat. Combining these protective measures with a documented spare parts strategy that includes the DS215TCQAG1BZZ01A as a critical-level spare ensures that your maintenance team can restore control loop integrity within the shortest possible window.

Critical Industrial Safety Applications

The DS215TCQAG1BZZ01A is deployed across a wide range of safety-critical industrial environments where continuous, accurate analog signal processing is non-negotiable:

Power Generation: In gas turbine and steam turbine power plants, this board processes analog feedback from exhaust temperature thermocouples, inlet guide vane position sensors, and fuel control valves. Any signal interruption can trigger an unplanned turbine trip, causing megawatt-scale generation loss and grid instability. Maintaining a verified spare DS215TCQAG1BZZ01A on-site is standard practice at ISO-certified power stations.

Petrochemical and Refinery Operations: In continuous process plants handling flammable or toxic media, the Mark V system — with the DS215TCQAG1BZZ01A at its analog interface — provides the signal backbone for compressor anti-surge control, fired heater fuel-air ratio management, and emergency shutdown (ESD) interlock monitoring. Signal drift on an analog I/O board in these applications can lead to process excursions with serious safety consequences.

Mining and Mineral Processing: Large grinding mills, conveyor drives, and slurry pump stations in mining operations rely on analog feedback for load monitoring and overload protection. The DS215TCQAG1BZZ01A’s tolerance for vibration and dust-laden environments makes it suitable for deployment in these harsh conditions, where standard commercial-grade boards would fail prematurely.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use analog I/O boards to monitor flow rates, chemical dosing levels, and pump pressures. Reliable analog signal processing is essential for maintaining regulatory compliance and preventing treatment failures that could affect public health.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference. The DS215TCQAG1BZZ01A’s industrial-grade EMI shielding ensures stable analog signal transmission even in proximity to high-current switching equipment, protecting the integrity of temperature and position control loops.

Port and Marine Applications: Ship propulsion control systems and port crane drives that incorporate GE Mark V architecture benefit from the DS215TCQAG1BZZ01A’s robust construction, which withstands the humidity, salt air, and vibration characteristic of marine environments.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the DS215TCQAG1BZZ01A?
Every DS215TCQAG1BZZ01A supplied by NINERMAS carries a 12-month warranty covering functional defects under normal operating conditions. If the board fails within the warranty period due to a manufacturing or quality issue, we will provide a replacement or full refund. Our warranty terms are documented and provided with each shipment.

Q2: Is the DS215TCQAG1BZZ01A tested before shipment?
Yes. All units undergo pre-shipment functional verification at our facility. We check board-level power integrity, signal channel continuity, and component condition before dispatch. A test report is available upon request for critical-site procurement requirements.

Q3: Is this board compatible with all GE Mark V configurations?
The DS215TCQAG1BZZ01A is designed for the GE Mark V Turbine Control System and is compatible with standard Mark V I/O rack configurations. For specific firmware revision compatibility or slot assignment requirements, we recommend cross-referencing your Mark V system documentation or contacting our technical team at sale@ninermas.com before ordering.

Q4: Can NINERMAS support long-term or repeat supply of this part?
Yes. NINERMAS maintains ongoing inventory of DS215TCQAG1BZZ01A and related Mark V spare parts to support planned maintenance programs, annual outage kits, and emergency replacement needs. We can arrange blanket purchase agreements for facilities that require guaranteed stock availability over a 12–36 month horizon.
