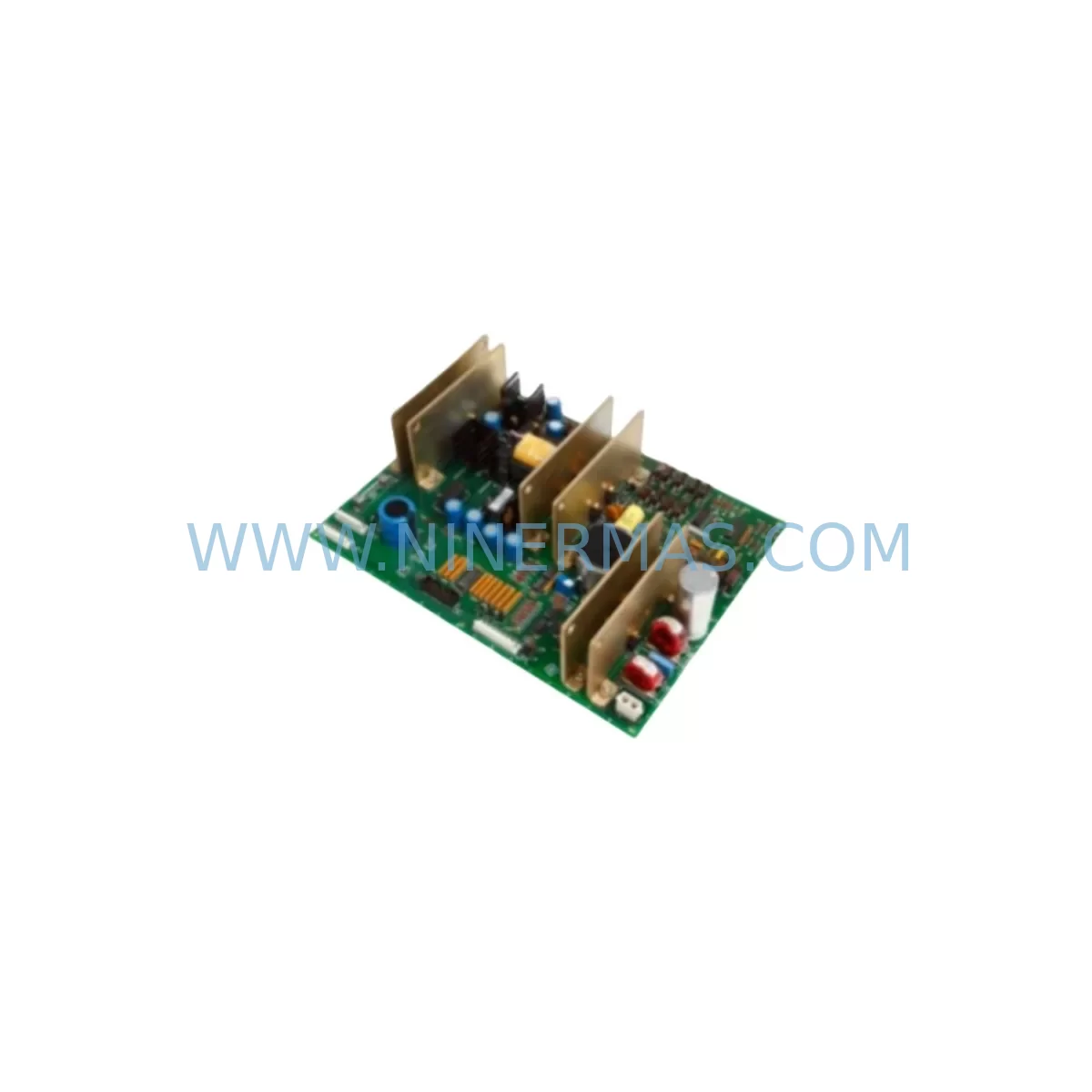

GE DS200TBPAG1CC Retrofit-Compatible Terminal I/O Module

GE DS200TBPAG1CC Retrofit-Compatible Terminal I/O Module for Legacy Systems

The GE DS200TBPAG1CC is a ruggedized terminal board I/O module engineered for the GE Mark V turbine control platform and the broader DS200 Series control architecture. As legacy Mark V systems approach end-of-life and OEM support windows close, plant engineers and automation maintenance teams increasingly rely on verified retrofit-compatible spare parts like the DS200TBPAG1CC to sustain operational continuity without committing to a full control system overhaul. This module serves as a direct replacement and upgrade-compatible component for aging terminal I/O assemblies in gas turbine, steam turbine, and combined-cycle power generation control cabinets.

The DS200TBPAG1CC functions as a field terminal interface board, providing the critical junction between field wiring — thermocouples, RTDs, discrete I/O signals, and analog process variables — and the Mark V controller backplane. Its ruggedized construction is rated for harsh industrial environments, including high-vibration turbine enclosures, elevated ambient temperatures, and electrically noisy control rooms. When the original terminal board degrades, develops intermittent contact faults, or sustains damage during maintenance, the DS200TBPAG1CC provides a form-fit-function replacement that preserves existing field wiring terminations and minimizes re-engineering effort.

Before committing to a retrofit installation, engineers should verify several critical compatibility parameters. Power supply capacity within the Mark V cabinet must be confirmed — the DS200 series draws regulated 5 VDC and ±15 VDC from the backplane power distribution bus, and aging DS200PCCAG1B or DS200PCCAG1A power supply modules should be load-tested prior to introducing replacement I/O boards. Terminal wiring continuity must be validated against the original loop drawings; field cables connected to the TB (terminal board) positions must be re-landed precisely to preserve signal integrity for thermocouple cold-junction compensation and RTD linearization circuits.

Backplane interface compatibility is equally important. The DS200TBPAG1CC connects to the Mark V TCCA or TCCB controller cards via the DS200 series backplane ribbon and edge connector system. Engineers replacing this terminal board must confirm that the adjacent DS200TCQAG1B or DS200TCQAG1A I/O processor card firmware revision is compatible with the replacement board’s hardware revision level. Mismatched hardware-firmware combinations can produce spurious diagnostic alarms or prevent the controller from completing its self-test sequence during startup.

Module address configuration is handled through DIP switch settings on the DS200TBPAG1CC board itself. These address settings must match the original board’s configuration as documented in the site-specific Mark V application software. Failure to replicate the original address map will cause the CIMPLICITY HMI or third-party SCADA system to lose point association for the affected I/O channels, requiring a software re-mapping exercise that extends commissioning time. Where HMI screen updates are required, operators should coordinate with the control system programmer to update CIMPLICITY point database entries before returning the unit to automatic control mode.

Communication link integrity must also be assessed during the retrofit. The Mark V platform uses a proprietary ARCNET-based communication backbone connecting the R, S, and T controller triplex voting panels. Replacing a terminal board in one panel requires verifying that the ARCNET segment remains intact and that the replacement board does not introduce ground loops or impedance mismatches that could degrade communication reliability. Where communication protocol migration to Modbus RTU, Modbus TCP/IP, or DNP3 is part of a broader modernization program, the DS200TBPAG1CC can serve as the field-side anchor while upstream communication gateway modules — such as the DS200SDCIG2A serial data communication interface — handle protocol translation.

Installation space confirmation is a practical prerequisite often overlooked in retrofit planning. The DS200TBPAG1CC occupies a defined slot position within the Mark V TCCA panel enclosure. Engineers should measure available rail depth, verify that adjacent modules — including the DS200DSPAG1A digital signal processor board and associated I/O expansion cards — are not obstructed, and confirm that the replacement board’s connector orientation aligns with the existing backplane without requiring cable extension harnesses.

Downtime planning for DS200TBPAG1CC replacement should account for a controlled shutdown sequence, field wiring documentation, board swap, address verification, power-up self-test, and functional loop checks across all affected I/O channels. With a pre-tested, pre-configured replacement board sourced from verified inventory, experienced maintenance teams typically complete the physical swap within a two-to-four-hour maintenance window. Pre-shipment functional testing of the DS200TBPAG1CC against a reference Mark V backplane is standard practice at NINERMAS, ensuring that the module arrives site-ready and reduces the risk of extended outages caused by infant-failure defects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DS200TBPAG1CC retrofit begins with a thorough audit of the existing Mark V control cabinet. The terminal board sits at the intersection of field instrumentation and the control processor, making it one of the most wiring-intensive components to replace. Maintenance planners should prepare a complete loop list for all signals terminating on the affected board — including thermocouple inputs, RTD inputs, 4–20 mA analog signals, and 24 VDC discrete I/O — before scheduling the outage window.

The retrofit scope typically extends beyond the DS200TBPAG1CC itself. Adjacent components that should be inspected and potentially replaced in the same maintenance window include the DS200TCQAG1B I/O processor card, which handles signal conditioning and analog-to-digital conversion for the terminal board’s input channels. If the existing TCQAG1B shows signs of capacitor aging or EPROM data retention issues, replacing it concurrently with the terminal board eliminates a second planned outage. Similarly, the DS200DSPAG1A digital signal processor board and the DS200PCCAG1B power conditioner card should be load-tested and replaced if they exhibit voltage ripple or regulation drift.

For plants undertaking a broader I/O expansion or control system modernization, the DS200TBPAG1CC replacement can be coordinated with the addition of DS200IOCAG1B I/O controller cards to extend the available channel count without replacing the entire Mark V panel. Where the existing DS200SDCIG2A serial data communication interface is being upgraded to support Ethernet-based SCADA connectivity, the terminal board replacement provides a natural opportunity to re-label and re-document all field terminations to the new I/O map.

Signal isolation requirements should be reviewed during retrofit planning. Where field instruments share common ground references with the control system, signal isolators — particularly for thermocouple and millivolt-level analog inputs — may be required to prevent ground loop interference after the new terminal board is installed. The installation of DIN-rail mounted signal isolators between the field junction box and the DS200TBPAG1CC termination points is a low-cost measure that significantly improves long-term signal quality and reduces nuisance alarms.

Programming cable access is required during commissioning to verify I/O channel assignments and perform loop calibration. The Mark V programming interface uses a dedicated Mark V programming cable connected to the TCCA panel’s serial port. Engineers should confirm that the site laptop running the GE Toolbox software is available and that the Toolbox version is compatible with the installed Mark V software revision before the outage begins. Having a pre-configured spare DS200TBPAG1CC with verified address settings on the shelf — rather than sourcing it reactively after a failure — is the single most effective strategy for minimizing unplanned downtime in aging turbine control systems.

Downtime Control During System Migration

Minimizing turbine control system downtime during a DS200TBPAG1CC replacement requires disciplined pre-outage preparation. The most effective approach is to pre-configure and bench-test the replacement board before the maintenance window opens. At NINERMAS, each DS200TBPAG1CC unit undergoes pre-shipment functional testing against a reference Mark V backplane, verifying that all I/O channels respond correctly, that the board passes the Mark V self-test diagnostic sequence, and that DIP switch address settings are confirmed against the customer’s site documentation.

During the outage, the recommended sequence is: controlled turbine shutdown and lockout/tagout, field wiring photography and labeling, original board removal, replacement board installation with address verification, power restoration, Mark V self-test completion, and systematic loop check of all I/O channels before returning to automatic control. This sequence, when executed by a prepared team with a pre-tested replacement board, consistently achieves a two-to-four-hour total outage duration for a single terminal board replacement.

Protecting the original program logic is critical. The Mark V application software — including setpoints, alarm limits, control constants, and sequence logic — resides in the TCCA controller cards, not in the terminal board itself. Replacing the DS200TBPAG1CC does not alter the application software, but engineers should maintain a current backup of the Mark V application database on a secure offline medium before any hardware maintenance activity. If the replacement board triggers unexpected diagnostic alarms during startup, the ability to compare the current I/O configuration against the pre-maintenance backup significantly accelerates fault isolation.

Field control continuity during the transition can be maintained by coordinating the terminal board replacement with the plant’s scheduled maintenance outage rather than performing it reactively after a failure. Plants that maintain a verified spare DS200TBPAG1CC in local inventory — supported by NINERMAS’s 12-month warranty and pre-shipment test certification — are consistently able to restore turbine control within a single shift, compared to multi-day outages experienced by plants that source replacement boards reactively from the spot market.

Retrofit Support FAQ

Q1: Is the DS200TBPAG1CC a direct drop-in replacement for the original GE Mark V terminal board?
The DS200TBPAG1CC is designed as a form-fit-function replacement for the original Mark V TCCA panel terminal board. Field wiring termination points are preserved, and the board uses the same DS200 series backplane connector standard. Engineers should verify the hardware revision level against the installed DS200TCQAG1B I/O processor card firmware to confirm compatibility before installation.

Q2: What pre-shipment testing does NINERMAS perform on the DS200TBPAG1CC?
Each DS200TBPAG1CC unit shipped by NINERMAS undergoes functional testing against a reference Mark V backplane, including I/O channel verification, self-test diagnostic sequence completion, and DIP switch address confirmation. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q3: How do I verify wiring compatibility before installing the DS200TBPAG1CC?
Refer to the original GE Mark V wiring diagrams for the TCCA panel and compare terminal block assignments against the DS200TBPAG1CC terminal layout. Photograph all existing field wiring before removal. Confirm that thermocouple, RTD, analog, and discrete signal cables are correctly re-landed on the replacement board. Where signal isolators are required for ground loop prevention, install them between the field junction box and the terminal board before powering up.

Q4: What is the typical lead time and inventory availability for the DS200TBPAG1CC?
NINERMAS maintains verified inventory of the DS200TBPAG1CC to support urgent spare parts requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For plants with critical spare parts programs, NINERMAS can provide consignment inventory arrangements and long-term supply agreements to ensure DS200TBPAG1CC availability throughout the remaining operational life of the Mark V control system. Contact sale@ninermas.com or +0086 187 5021 5667 for current stock status and pricing.
