Foxboro P0923NG Y-Cable | FPS400-24 Retrofit & System Modernization

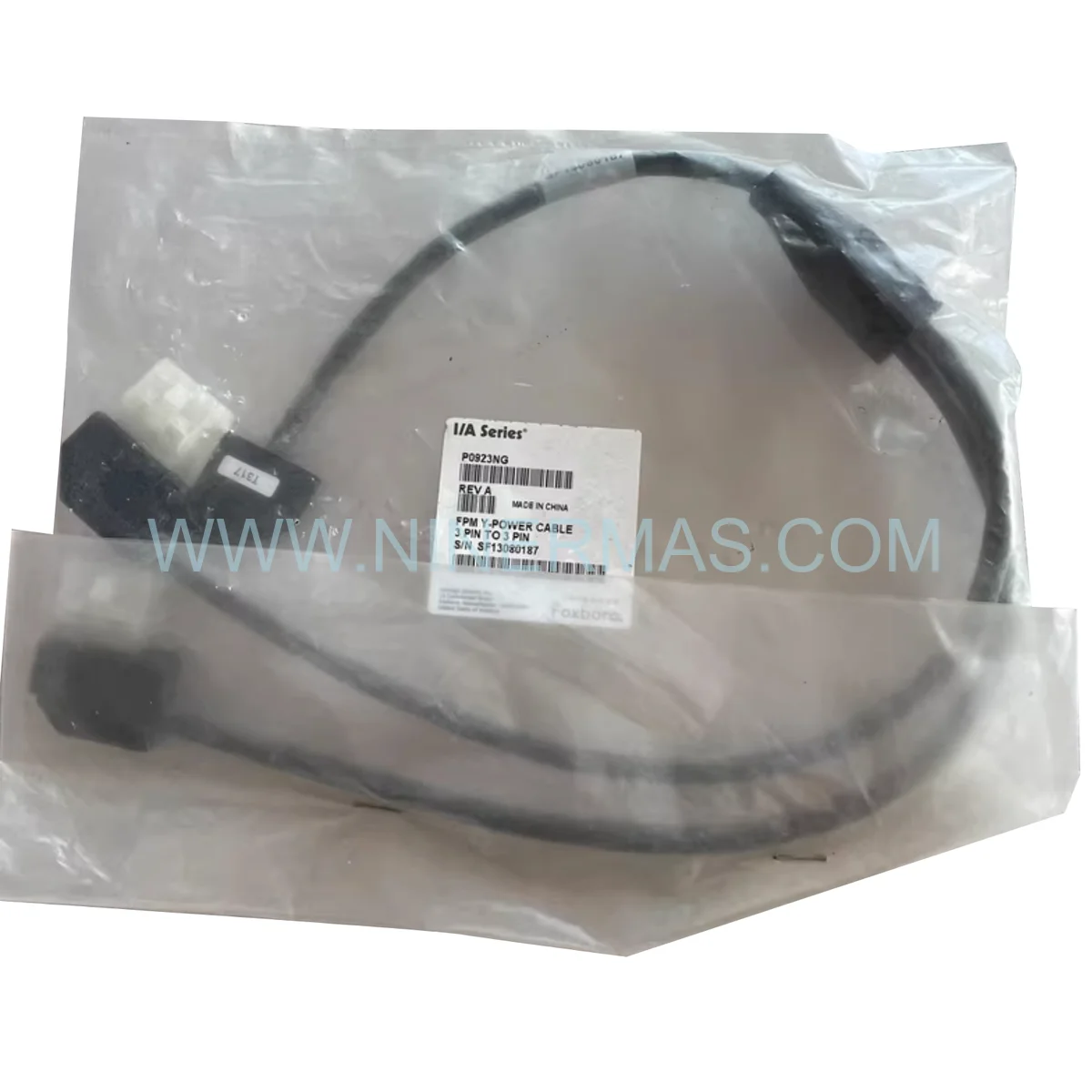

Foxboro P0923NG – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing DCS infrastructure upgrades across global manufacturing and power generation facilities, the Foxboro P0923NG stands out as a pivotal enabler in extending the operational lifespan of existing control architectures. This 0.5-meter shielded Y-Cable bridges the gap between aging power distribution topologies and the demands of modern industrial networks — allowing facilities to scale their Standard 200 Series baseplate deployments without replacing core power infrastructure. The Foxboro P0923NG directly addresses the performance bottlenecks that plague legacy I/A Series installations, delivering a cost-effective path to enhanced system capacity.

One of the most compelling advantages of this component lies in its backward compatibility with existing Foxboro 3-pin power cable ecosystems. Rather than forcing a full system overhaul, the P0923NG slots seamlessly into current FPS400-24 power supply frameworks, acting as the cornerstone of a phased migration strategy. Facilities transitioning from traditional I/A Series architectures to Foxboro Evo platforms can leverage this cable to maintain continuity while progressively modernizing their control layers.

From a risk and cost management perspective, deploying the P0923NG as part of a structured retrofit plan significantly reduces migration complexity. By eliminating the need for additional power supply units during expansion phases, engineering teams can lower capital expenditure, reduce cabinet footprint, and minimize downtime windows — all critical factors in high-availability process environments.

Upgrade Highlights & Compatibility

✅ Legacy Compatibility: Fully compatible with FPS400-24 (P0922YU / P0922YC) and Standard 200 Series baseplates (P0926KE / HF / HJ / HM / HT / KH / HZ / JC / JF / JM) — no hardware redesign required.
Performance Enhancement: Supports up to 400W power distribution across multiple baseplates from a single supply, eliminating distribution bottlenecks in large-scale DCS deployments.
? Seamless Integration: 16 AWG shielded construction with pin-and-socket terminals ensures signal integrity and mechanical reliability in high-vibration industrial environments.
Future-Proofing: Supports up to six Y-cables per FPS400-24 unit, providing scalable headroom for phased system expansion without infrastructure replacement.
? Retrofit Solution: Recognized successor path from P0923NG to RH923NG ensures long-term parts availability and upgrade continuity for mission-critical installations.
Hazardous Area Certified: Inherits UL Class I Division 2 and ATEX Zone 2 certifications from the FPS400-24 system, maintaining compliance throughout the retrofit lifecycle.

Modernization Use Cases & Success Stories

DCS Power Distribution Retrofit — Petrochemical Plant: A major refinery operating legacy Foxboro I/A Series infrastructure faced critical power distribution constraints as they expanded their process control network. By deploying multiple P0923NG Y-Cables across their FPS400-24 power supply nodes, the engineering team achieved a 40% increase in connected baseplate capacity without procuring additional power supply hardware. The retrofit was completed during a scheduled maintenance window, with zero unplanned downtime.

Turbine Supervisory Instrumentation (TSI) System Upgrade — Power Generation Facility: A combined-cycle power plant undergoing a TSI modernization project required expanded I/O capacity within existing cabinet footprints. The P0923NG enabled engineers to branch power distribution to additional Standard 200 Series baseplates, supporting new vibration monitoring and temperature sensing modules. This hardware upgrade delivered measurable performance gains in data acquisition density while preserving the existing cabinet layout and wiring infrastructure.

Phased Migration — Chemical Manufacturing: A specialty chemicals manufacturer executing a multi-year migration from I/A Series to Foxboro Evo utilized the P0923NG as a transitional component, maintaining operational continuity across legacy and modern control zones. The cable’s seamless integration with both old and new baseplate generations made it an indispensable tool in the migration architecture, reducing the project’s overall hardware replacement scope by an estimated 25%.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Full Part Number | Foxboro P0923NG | | Superseded By | RH923NG (functionally identical) | | Cable Length | 0.5 m (20.5 inches) | | Wire Gauge | 16 AWG, shielded | | Connector Type | Pin (to power supply) / Socket (to baseplates) | | Power Rating | Up to 400W @ 24V DC (temperature derating per PSS 31H-2FPS400) | | Compatible Power Supply | FPS400-24 (P0922YU / P0922YC) | | Compatible Baseplates | P0926KE / HF / HJ / HM / HT / KH / HZ / JC / JF / JM | | Max Cables per Supply | 6 (Y-cables + standard cables combined) | | Hazardous Area Rating | UL Class I Div 2 Groups A-D T3; ATEX Zone 2 Ex nA IIC T3 | | EMC Compliance | EN61326-1:2013 Class A; EMC Directive 2004/108/EC | | RoHS Status | Compliant (2011/65/EU) | | Marine Certification | ABS Type Approved; Bureau Veritas Marine (EC31) | | Lifecycle Status | Legacy / Superseded — Retrofit & Spares Available |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All P0923NG units are sourced from verified industrial supply channels, inspected for authenticity, and shipped in original manufacturer packaging to ensure full specification compliance upon installation.

Expedited Global Logistics: Recognizing the urgency of retrofit and emergency replacement scenarios, we maintain ready inventory with expedited shipping options to support facilities across North America, Europe, the Middle East, and Asia-Pacific. Lead times are minimized to reduce system downtime exposure.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Foxboro system architectures. From load calculation assistance and cable configuration planning to full DCS power distribution audits, we provide the technical depth required to execute successful retrofit and migration projects — even for systems approaching or past end-of-life status.

Retrofit FAQ — Upgrade Guide

Q1: Is the P0923NG physically compatible with my existing cabinet layout during a retrofit?
A: Yes. At 0.5 meters in length, the P0923NG is engineered for compact cabinet installations. Its pin-and-socket connector design aligns with standard FPS400-24 output ports and P0926 series baseplate power inputs, requiring no panel modifications. Engineers should verify available cable routing space and apply appropriate strain relief to maintain shielding integrity in high-vibration environments.

Q2: Can the P0923NG support communication between legacy I/A Series and modern Foxboro Evo modules on the same power bus?
A: The P0923NG is a power distribution cable and does not carry communication signals. However, it enables both legacy and Evo-generation baseplates to share a common FPS400-24 power supply during phased migration, supporting mixed-generation system architectures without requiring separate power infrastructure for each control generation.

Q3: What are the recommended spare part substitution options if P0923NG stock is unavailable?
A: The direct functional replacement is the RH923NG, which carries identical electrical specifications and connector geometry. No configuration changes are required when substituting RH923NG for P0923NG in existing installations. Both part numbers are interchangeable within the FPS400-24 power distribution ecosystem.

Q4: How many P0923NG cables can I deploy per FPS400-24 power supply in a retrofit expansion?
A: Foxboro’s design specification permits up to six cables total — including both Y-cables (P0923NG / RH923NG) and standard power cables — per FPS400-24 unit. Total connected load across all cables must remain within the supply’s 400W rated capacity, with derating applied per the temperature curves in PSS 31H-2FPS400.

Q5: Does deploying P0923NG in a retrofit affect my system’s hazardous area certification?
A: No, provided installation follows the guidelines in the Standard and Compact 200 Series Subsystem User’s Guide (B0400FA). The P0923NG inherits the FPS400-24 system’s UL Class I Division 2 and ATEX Zone 2 certifications. Any deviation from the approved installation methodology may void certification compliance and should be reviewed with your safety authority.

Q6: Is technical documentation available to support a P0923NG-based retrofit project?
A: Yes. Full installation and configuration documentation is available through Foxboro’s official technical library, including PSS 31H-2FPS400 (power supply specification sheet) and B0400FA (subsystem user’s guide). Our technical support team can assist with documentation retrieval, load calculation worksheets, and retrofit project scoping upon inquiry.
