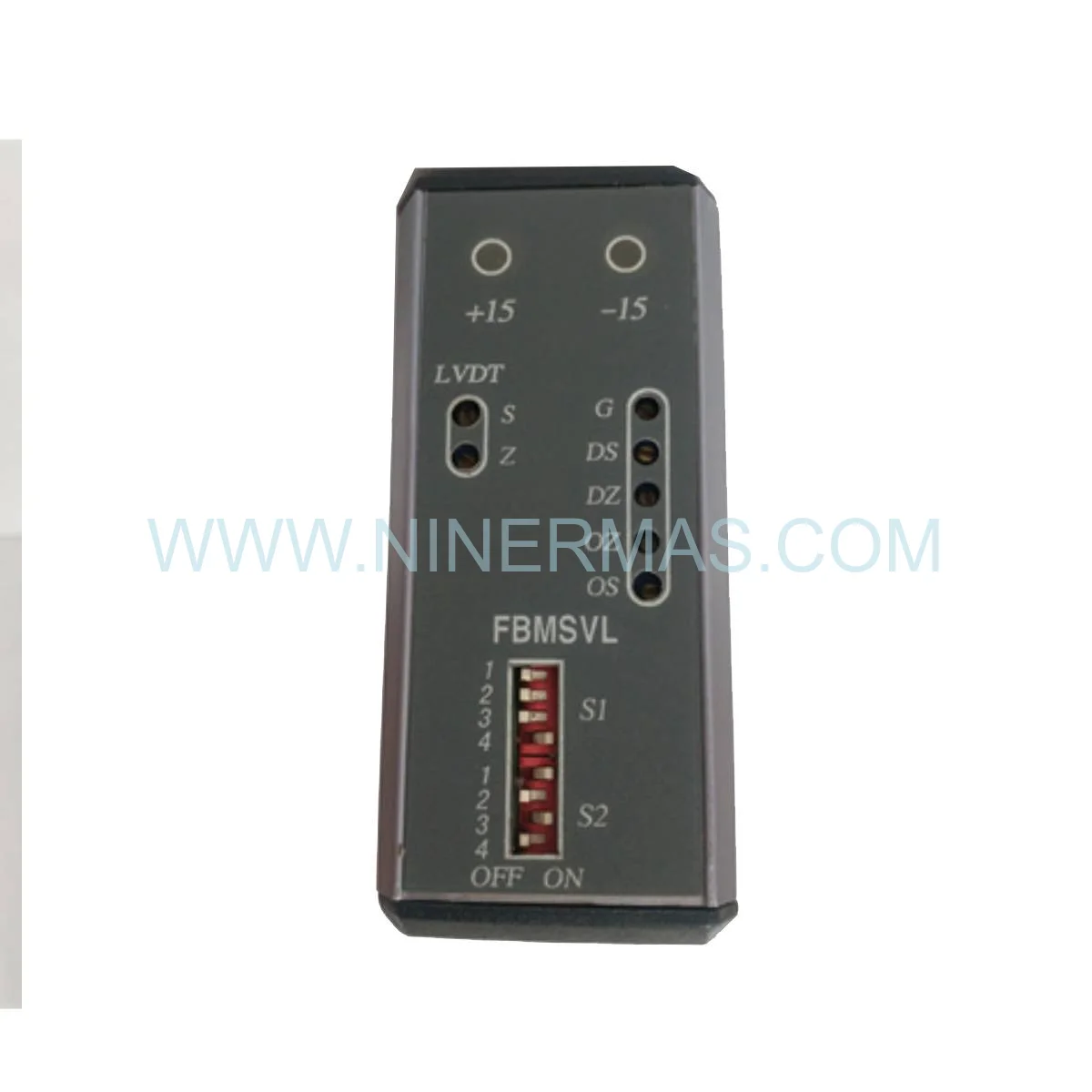

Foxboro FBMSVL Servo Valve Positioner | New & Original in Stock

Foxboro FBMSVL | Reliable Automation Component for Mission-Critical Turbine Control

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-availability turbine control infrastructure, the Foxboro FBMSVL stands as a cornerstone I/O module for sustaining system uptime in Foundation Fieldbus-based distributed control architectures. The FBMSVL directly addresses the challenge of servo valve positioning accuracy within Foxboro I/A Series DCS environments — a function that is non-negotiable in power generation, petrochemical, and heavy industrial facilities where even milliseconds of control deviation translate into costly production losses. Its role in process optimization is not supplementary; it is foundational to operational excellence.

Deployed across demanding industrial environments — from high-humidity coastal power stations to dust-laden mining facilities — the Foxboro FBMSVL demonstrates robust durability under thermal cycling, vibration, and electromagnetic interference. During installation, engineers must ensure proper baseplate seating, verify Fieldbus segment termination resistance (nominally 100Ω per end), and confirm 24 VDC supply stability within the 18-32 VDC operating band. Grounding discipline is critical: shield continuity from the servo valve amplifier back to the FBM baseplate eliminates common-mode noise that can degrade positioning resolution.

As a mission-critical spare, the FBMSVL is irreplaceable in any I/A Series turbine control bill of materials. EOL and legacy module availability constraints make proactive inventory management essential — a single unplanned outage caused by an unavailable module can dwarf the cost of maintaining a qualified spare on the shelf. System integration continuity depends on it.

Key Operational Features

Redundancy-Ready Architecture — Supports simplex and redundant I/A Series configurations with bumpless failover, ensuring high availability during processor switchover events.
Foundation Fieldbus H1 Communication — 31.25 kbit/s digital backbone eliminates analog wiring runs, reducing signal degradation and simplifying system integration across large-scale plant networks.
Dual Servo Valve Control Channels — Independent 4-20 mA outputs enable primary and backup valve actuation from a single module, supporting redundant hydraulic circuit designs.
Comprehensive Valve Health Diagnostics — Continuous monitoring of response time, positioning accuracy, and servo amplifier drift enables predictive maintenance scheduling before failures impact production.
Seamless Integration with I/A Series Ecosystem — Mounts on standard FBM baseplates, shares common power and network infrastructure, and configures natively within Foxboro Control Core Services (CCS).
Industrial Certification — FM, CSA, and CE approved for deployment in classified and general industrial areas.

Maintenance & Performance Benchmarks

The FBMSVL is engineered to adapt across industrial network architectures ranging from small single-segment Fieldbus installations (up to 32 devices per H1 segment) to multi-segment, multi-drop topologies spanning large refinery or power plant complexes. Its onboard diagnostics generate NAMUR NE107-compliant status signals — Good, Uncertain, Bad — that integrate directly into I/A Series alarm management workflows, enabling maintenance teams to prioritize corrective actions without manual polling.

Performance benchmarks confirm sub-10ms control loop execution times when paired with Foxboro CP60 or CP270 control processors, meeting the dynamic response requirements of steam turbine governor and gas turbine fuel control applications. Predictive algorithms flag servo amplifier drift exceeding ±0.5% of span, hydraulic response degradation indicative of fluid contamination, and mechanical binding patterns consistent with actuator wear — all before threshold violations trigger process alarms.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Foxboro FBMSVL unit dispatched from our facility ships in Original Factory Packaging, preserving ESD protection, calibration integrity, and traceability documentation from point of manufacture to your receiving dock. For in-stock units, same-day dispatch is available on orders confirmed before the daily logistics cutoff — a critical capability when unplanned outages demand immediate response.

Our global supply network specializes in EOL (End-of-Life) and legacy automation module sourcing, maintaining verified inventory of discontinued Foxboro I/A Series components that are no longer available through standard distribution channels. Worldwide express logistics partnerships ensure delivery to North America, Europe, the Middle East, and Asia-Pacific within 3-7 business days under standard expedite terms. All units are accompanied by inspection reports and, where applicable, factory calibration certificates.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the FBMSVL on an I/A Series baseplate?
A: Ensure the FBM baseplate is de-energized before module insertion. Align the module connector with the baseplate slot and apply firm, even pressure until the locking tab engages. Verify 24 VDC supply is within the 18-32 VDC operating band before powering up. Confirm Fieldbus segment termination (100Ω at each physical end) and validate module status LEDs indicate normal operation prior to enabling control outputs.

Q2: Which firmware versions are compatible with the FBMSVL, and how do I verify compatibility?
A: The FBMSVL is compatible with Foxboro I/A Series software releases V8.x through the current supported version. Firmware compatibility is verified through the Control Core Services (CCS) Device Catalog — the engineering environment will flag version mismatches during device commissioning. Contact Foxboro technical support for firmware upgrade procedures if your system runs pre-V8 software.

Q3: How does the FBMSVL behave during a Fieldbus segment communication failure?
A: The module executes configurable fail-safe logic — typically holding the last valid output position or driving to a predefined safe-state value. Fail-safe behavior is defined during CCS configuration and should align with your process hazard analysis (PHA) requirements. The module generates a Bad status signal to the control processor, triggering operator alarm notification.

Q4: Can the FBMSVL drive servo valves from manufacturers other than Foxboro?
A: Yes. The module outputs industry-standard 4-20 mA control signals compatible with most third-party servo valve amplifiers. Verify that the target amplifier’s input impedance, voltage compliance, and current range are within the FBMSVL output specifications before integration.

Q5: What is the warranty claim process if a unit develops a fault within the warranty period?
A: Contact our technical support team with the unit serial number, purchase order reference, and a description of the observed fault. We will issue an RMA authorization within 24 business hours. Defective units are evaluated at our facility; confirmed warranty claims receive a replacement module shipped within 3-5 business days at no additional cost.

Q6: Is online (hot-swap) replacement supported without interrupting turbine control?
A: Hot-swap replacement is supported in redundant I/A Series configurations. The redundant module assumes full control authority while the faulted FBMSVL is extracted and replaced. In simplex configurations, a planned control transfer to manual or backup systems is required prior to module replacement to maintain turbine operational continuity.
