Fisher-Rosemount DH7010X1-A1 Retrofit-Compatible Safety Power Converter

Fisher-Rosemount DH7010X1-A1 Retrofit-Compatible Safety Power Converter for Legacy System Modernization

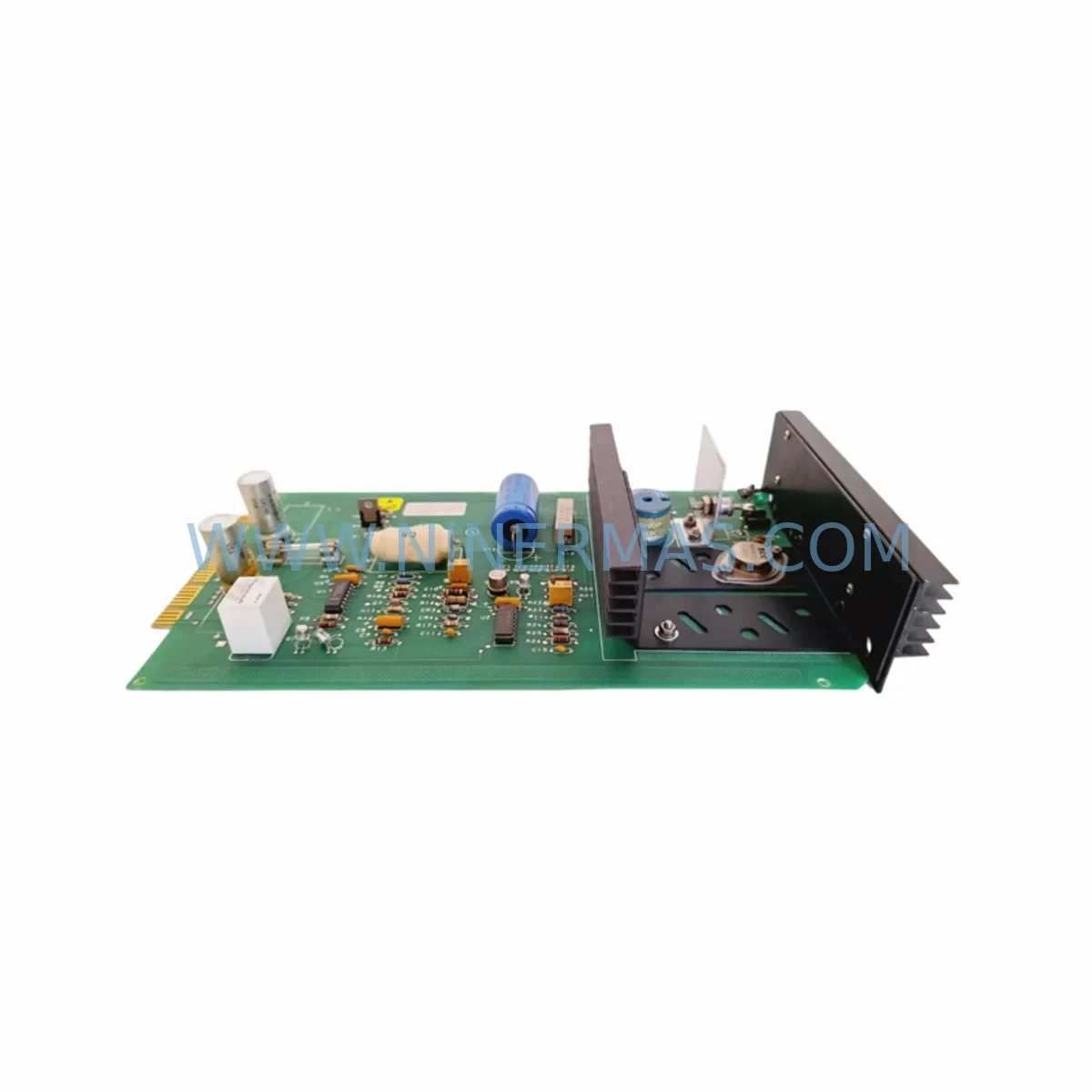

The Fisher-Rosemount DH7010X1-A1 is a ruggedized safety power converter module engineered for demanding industrial control environments. As legacy DeltaV and Fisher-Rosemount distributed control system (DCS) installations approach end-of-life, the DH7010X1-A1 remains a critical spare part for facilities that must maintain operational continuity without committing to a full platform migration. NINERMAS maintains verified stock of this module with a 12-month warranty, supporting procurement teams, system integrators, and maintenance engineers across global industrial sites.

Whether you are managing a phased retrofit of an aging control cabinet, replacing a failed power supply rail in a safety-instrumented system (SIS), or extending the lifecycle of a brownfield automation line, the DH7010X1-A1 provides a direct, drop-in replacement path that minimizes engineering rework and reduces unplanned downtime risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the DH7010X1-A1 into an existing automation architecture requires a structured pre-installation review. The first step is a power budget audit of the control cabinet. Many legacy DeltaV installations share a common 24 VDC bus across multiple I/O carriers, and adding or replacing a power converter module without verifying the total load can introduce voltage sag that affects adjacent modules — including DeltaV M-Series I/O cards, HART multiplexers, and fieldbus segment couplers.

Terminal block wiring should be documented and photographed before removal of the legacy module. In many brownfield sites, field wiring labels have degraded over years of operation, and re-identification during a live retrofit window is a common source of delay. Where the existing installation uses Phoenix Contact or Weidmüller terminal blocks, confirm that the conductor cross-section and ferrule type are compatible with the DH7010X1-A1 screw terminal torque specification.

Backplane interface compatibility is the next critical checkpoint. The DH7010X1-A1 is designed for specific carrier card generations within the Fisher-Rosemount DeltaV ecosystem. If the target rack uses an older DeltaV S-Series carrier or a mixed-generation backplane, verify that the module firmware revision is aligned with the controller node version running in the system. Mismatched firmware between the DeltaV MD Plus Controller and a replacement I/O or power module is a known source of diagnostic alarms that can delay restart after maintenance.

For sites migrating from legacy PROVOX DCS or RS3 control systems to a DeltaV platform, the DH7010X1-A1 often appears in the power distribution layer of the new rack assembly. In these migration projects, the power converter module must be sized to support not only the current I/O load but also planned I/O expansion — particularly if DeltaV CHARM I/O cards or wireless THUM adapters are being added to the same cabinet during the upgrade window.

Communication link continuity is equally important. Where the DeltaV node communicates over a DeltaV Control Network (DCN) or a redundant Ethernet backbone, the power converter replacement must be completed within a maintenance window that accounts for controller failover time. Redundant controller pairs — such as the DeltaV MD Controller with redundancy module — can maintain process control during a single-node power interruption, but this must be confirmed in the system’s redundancy configuration before work begins.

HMI screen continuity is another consideration that is frequently overlooked during power module replacements. If the DeltaV node hosting the DH7010X1-A1 also serves as the I/O source for live process graphics on an Emerson DeltaV Operate workstation, operators should be briefed on expected alarm states during the swap window. Pre-staging a replacement module on the bench, verifying its diagnostic LED behavior on a test rack, and confirming module recognition in DeltaV Diagnostics before the live swap significantly reduces the risk of extended downtime.

Finally, for sites that use AMS Device Manager for HART device management, confirm that the power converter replacement does not interrupt the HART communication path to field instruments. In some cabinet layouts, the DH7010X1-A1 sits upstream of a HART interface module (HIM) or a signal isolator barrier, and a power interruption to this module will temporarily drop HART device visibility in AMS — which may trigger nuisance alerts in the asset management system.

Downtime Control During System Migration

Minimizing downtime during a power converter module replacement on a live DeltaV system requires preparation at three levels: documentation, staging, and execution sequencing.

Documentation: Before the maintenance window opens, export the current DeltaV module configuration from DeltaV Explorer and save a backup of the controller database. Capture the existing wiring layout with photographs and confirm the module address assignment. For safety-instrumented loops, verify that the SIS bypass procedure is in place and that the safety system is in a known safe state before de-energizing the power converter.

Staging: Pre-configure the replacement DH7010X1-A1 on a bench test rack where possible. Confirm that the module powers up correctly, that its diagnostic LEDs indicate a healthy state, and that it is recognized by a DeltaV controller in a test environment. This eliminates the risk of discovering a configuration issue during the live maintenance window. NINERMAS ships all units with pre-dispatch testing documentation to support this staging process.

Execution Sequencing: During the live swap, follow a strict sequence: isolate the field wiring, de-energize the slot, extract the legacy module, insert the DH7010X1-A1, re-terminate field wiring per the documented layout, re-energize, and confirm module recognition in DeltaV Diagnostics before restoring process control. For redundant controller configurations, execute the swap on the standby node first, confirm healthy operation, then perform a controlled switchover before replacing the active node’s power converter. This approach keeps the process running throughout the maintenance activity and limits the exposure window to the switchover event only.

Where the retrofit involves simultaneous replacement of multiple modules — for example, replacing both the power converter and an adjacent DeltaV I/O card or a fieldbus H1 card — sequence the work to restore power distribution first, confirm bus stability, then proceed with I/O module replacement. This prevents cascading diagnostic alarms that can obscure the root cause of any issue encountered during the maintenance window.

Retrofit Support FAQ

Q1: Is the DH7010X1-A1 a direct drop-in replacement for the original Fisher-Rosemount power converter in my DeltaV rack?
In most cases, yes — the DH7010X1-A1 is designed for like-for-like replacement within compatible DeltaV carrier generations. However, you should verify the backplane revision, carrier card part number, and controller firmware version before installation. NINERMAS technical support can assist with compatibility confirmation based on your system’s existing module list.

Q2: What commissioning steps are required after installing the DH7010X1-A1?
After physical installation and field wiring re-termination, power up the module and confirm recognition in DeltaV Diagnostics. Check that the module address is correctly assigned in DeltaV Explorer and that no diagnostic alarms are active. For safety-rated loops, perform a functional test of the SIS circuit per your site’s safety validation procedure before returning the loop to service. All units shipped by NINERMAS include pre-dispatch test documentation to support your commissioning records.

Q3: Does NINERMAS provide stock availability and lead-time guarantees for the DH7010X1-A1?
Yes. NINERMAS maintains verified inventory of the DH7010X1-A1 and can confirm stock availability and estimated dispatch lead time upon inquiry. For critical spare parts programs and long-term procurement commitments, contact our sales team at sale@ninermas.com to discuss volume pricing and reserved stock arrangements.

Q4: What warranty coverage applies to the DH7010X1-A1 supplied by NINERMAS?
All DH7010X1-A1 modules supplied by NINERMAS are covered by a 12-month warranty from the date of dispatch. Each unit undergoes pre-shipment functional testing, and test documentation is included with the shipment. In the event of a warranty claim, NINERMAS will arrange replacement or repair in accordance with our standard warranty terms. Contact sale@ninermas.com for warranty support.
