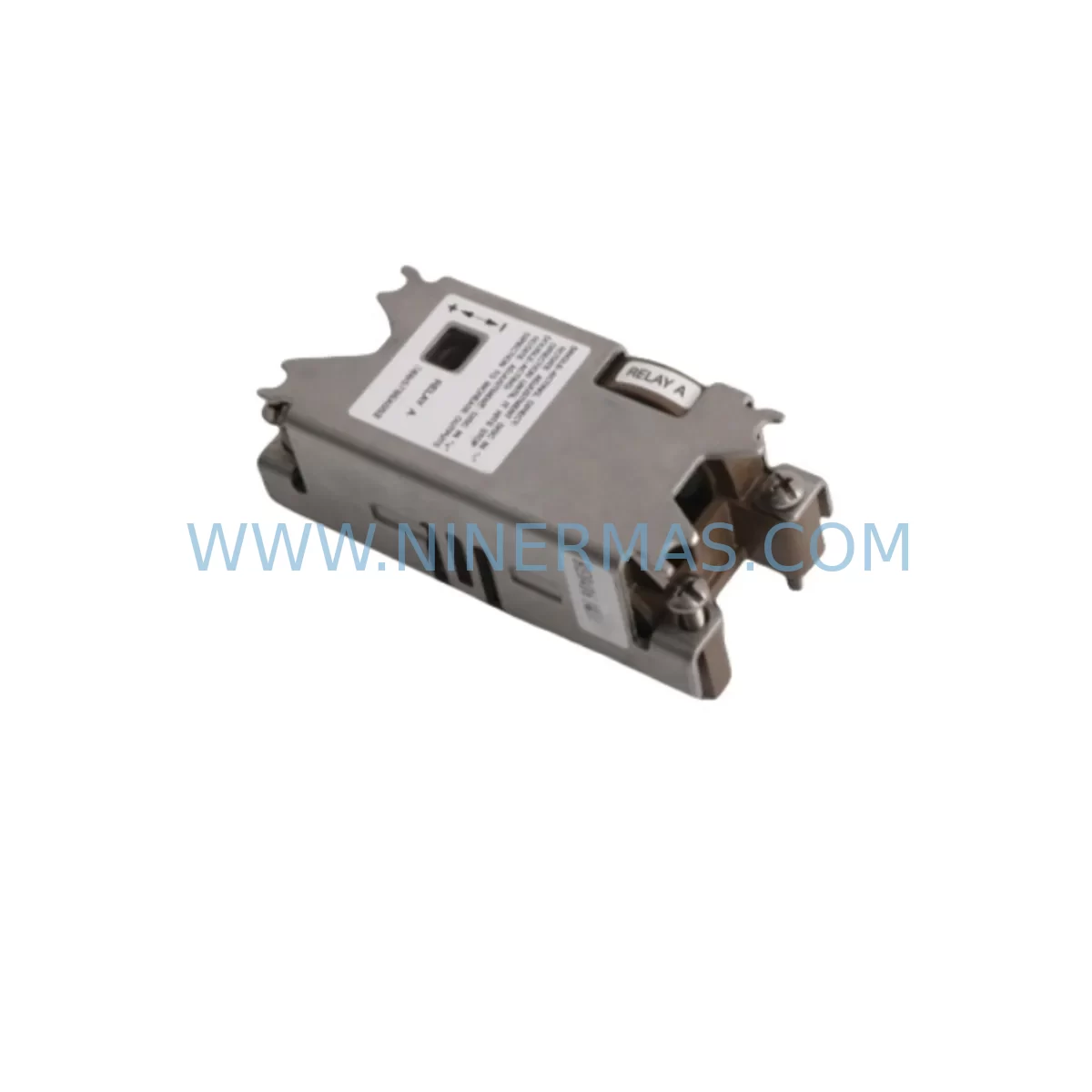

Fisher 38B5786X112 Safety-Reliable DVC Relay for Critical Control

Fisher 38B5786X112 Safety-Reliable DVC Relay for Critical Control

The Fisher 38B5786X112 is a precision-engineered digital valve controller relay designed as a direct replacement and upgrade solution for the Fisher DVC6200 series. In critical industrial environments where control loop integrity is non-negotiable, this relay delivers the signal fidelity, mechanical robustness, and long-term operational stability that safety-critical sites demand. Whether deployed in continuous process manufacturing, hazardous area valve control, or high-availability interlock systems, the 38B5786X112 is engineered to minimize unplanned downtime, prevent spurious valve actuation, and maintain reliable positioner performance under the most demanding field conditions.

Sourced directly from Fisher’s proven DVC6200 platform, this relay component maintains full compatibility with the DVC6200, DVC6200 HW1, DVC6200 HW2, and DVC6200f digital valve controllers. Its precision-machined internal geometry ensures consistent pneumatic output response, reducing the risk of signal drift that can compromise valve positioning accuracy in tight control loops. For facilities operating under IEC 61511 functional safety requirements or ISA-84 safety instrumented system standards, maintaining genuine OEM relay components is a critical element of SIL validation and proof-test compliance.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered safety instrumented system or critical control cabinet, no single component operates in isolation. The Fisher 38B5786X112 relay functions as the pneumatic output heart of the DVC6200 digital valve controller, and its reliable operation directly depends on — and supports — the integrity of the surrounding control architecture.

On the signal input side, the DVC6200 assembly receives its 4–20 mA command from a safety-rated I/O module or a dedicated SIS logic solver. Any signal instability introduced by a degraded relay can propagate upstream, causing nuisance trips or, more critically, masking genuine process deviations. Replacing a worn relay with a genuine Fisher 38B5786X112 restores the tight signal-to-position correlation that modern APC and SIS systems depend on.

Power supply quality is equally critical. In control cabinets where the DVC6200 shares a 24 VDC bus with other field instruments — such as Fisher FIELDVUE DVC6010 positioners, Rosemount 3051 pressure transmitters, or Rosemount 848T temperature transmitters — voltage sags or surge events can stress relay internals over time. Pairing the 38B5786X112 replacement with a quality DIN-rail mounted surge protection device and a redundant 24 VDC power supply module significantly reduces the risk of relay fatigue from transient overvoltage events.

In high-EMI environments — common in motor control centers, variable frequency drive (VFD) panels, and arc furnace control rooms — the DVC6200’s internal relay is exposed to radiated and conducted interference. Proper cable segregation between the instrument signal cables and power cables, combined with the use of shielded twisted-pair wiring for the 4–20 mA loop, protects the relay’s pneumatic output from erratic behavior caused by induced noise. Where HART communication is used for remote diagnostics via a Fisher DVC6200 HART communicator or an AMS Device Manager workstation, maintaining clean signal integrity at the relay level is essential for accurate valve signature analysis and predictive maintenance scheduling.

For facilities using Foundation Fieldbus or PROFIBUS PA architectures, the DVC6200f variant — also compatible with the 38B5786X112 relay — integrates directly into segment-based control topologies. In these installations, the relay’s consistent pneumatic response is critical to maintaining the deterministic control timing that fieldbus systems require. Segment power conditioners, fieldbus terminators, and redundant H1 linking devices all contribute to protecting the relay from bus-level disturbances.

In safety shutdown valve (SSV) and emergency shutdown (ESD) applications, the DVC6200 is often paired with a solenoid valve manifold and a partial stroke testing (PST) device. The 38B5786X112 relay must perform flawlessly during PST cycles to validate valve operability without triggering a full process shutdown. A degraded or counterfeit relay can produce inconsistent PST results, leading to false pass/fail indications that undermine the SIL verification process. Using a genuine OEM relay ensures that PST data collected by the Fisher ValveLink software or Emerson AMS Suite accurately reflects true valve health.

Critical Industrial Safety Applications

The Fisher 38B5786X112 relay and its host DVC6200 digital valve controller platform are deployed across the most demanding industrial sectors globally.

In petrochemical and refinery operations, the DVC6200 with a genuine 38B5786X112 relay controls feed valves, pressure control valves, and emergency isolation valves in hydrocarbon processing units. The relay’s ability to maintain precise pneumatic output under high ambient temperatures — common in fired heater areas and heat exchanger banks — is critical to preventing runaway reactions and unplanned unit shutdowns.

In power generation facilities — including coal-fired, gas turbine, and nuclear auxiliary systems — the DVC6200 manages steam control valves, feedwater control valves, and turbine bypass valves. The 38B5786X112 relay’s mechanical precision ensures that valve positioning errors remain within the tight tolerances required for boiler drum level control and turbine speed governing.

In mining and mineral processing operations, where dust ingress, vibration from crushing and grinding equipment, and wide ambient temperature swings are constant challenges, the sealed DVC6200 assembly with a fresh 38B5786X112 relay provides the environmental robustness needed for slurry control valves, flotation cell level valves, and tailings pond discharge valves.

In water and wastewater treatment plants, the DVC6200 controls dosing valves, filter backwash valves, and effluent discharge valves. The relay’s corrosion-resistant construction and compatibility with instrument air systems makes it well-suited for the humid, chemically aggressive atmospheres found in chlorination and ozone treatment facilities.

In metallurgical and steel production environments — blast furnace top gas control, converter gas recovery, and continuous casting cooling water systems — the 38B5786X112 relay must withstand intense radiated heat, heavy vibration, and aggressive airborne particulates. Its robust internal construction and OEM-grade material specifications ensure reliable service life in these extreme conditions.

In port and marine terminal applications, including LNG loading arms, crude oil transfer manifolds, and ballast water control systems, the DVC6200 with a genuine relay operates in salt-laden, high-humidity environments where corrosion and moisture ingress are primary failure modes. The IP66-rated assembly provides the protection needed for reliable long-term service in these coastal and offshore installations.

Safety and Quality FAQ

Q1: What warranty does the Fisher 38B5786X112 carry when purchased from NINERMAS?
All Fisher 38B5786X112 relays supplied by NINERMAS COMPANY LIMITED are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides full after-sales support, including replacement coordination and field troubleshooting guidance throughout the warranty period.

Q2: What pre-shipment inspection and testing is performed on each unit?
Every Fisher 38B5786X112 relay undergoes a 100% pre-shipment functional verification before dispatch. This includes visual inspection for physical integrity, dimensional verification of pneumatic port geometry, and confirmation of part number and revision markings against Fisher’s OEM specifications. Units are individually packaged with anti-static and moisture-barrier protection to maintain condition during international transit.

Q3: Is the 38B5786X112 compatible with all DVC6200 hardware revisions?
The Fisher 38B5786X112 relay is designed for use with the DVC6200 series digital valve controllers, including the HW1 and HW2 hardware revisions and the DVC6200f Foundation Fieldbus variant. If you are uncertain about compatibility with a specific hardware revision or a modified DVC6200 assembly, please contact our technical team at sale@ninermas.com with your controller’s nameplate data for confirmation before ordering.

Q4: Can NINERMAS support long-term and emergency supply requirements for the 38B5786X112?
Yes. NINERMAS maintains dedicated inventory of the Fisher 38B5786X112 and other critical DVC6200 series spare parts to support both planned maintenance schedules and emergency breakdown situations. We offer expedited shipping for urgent requirements and can provide multi-unit supply agreements for facilities with high relay consumption rates. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
