FEI DSGS/HT 1078728 PXMV1-24 L26CPU-CM Service-Ready Spare

FEI DSGS/HT 1078728 PXMV1-24 L26CPU-CM Service-Ready Spare: Encoder Interface Card for Industrial Maintenance

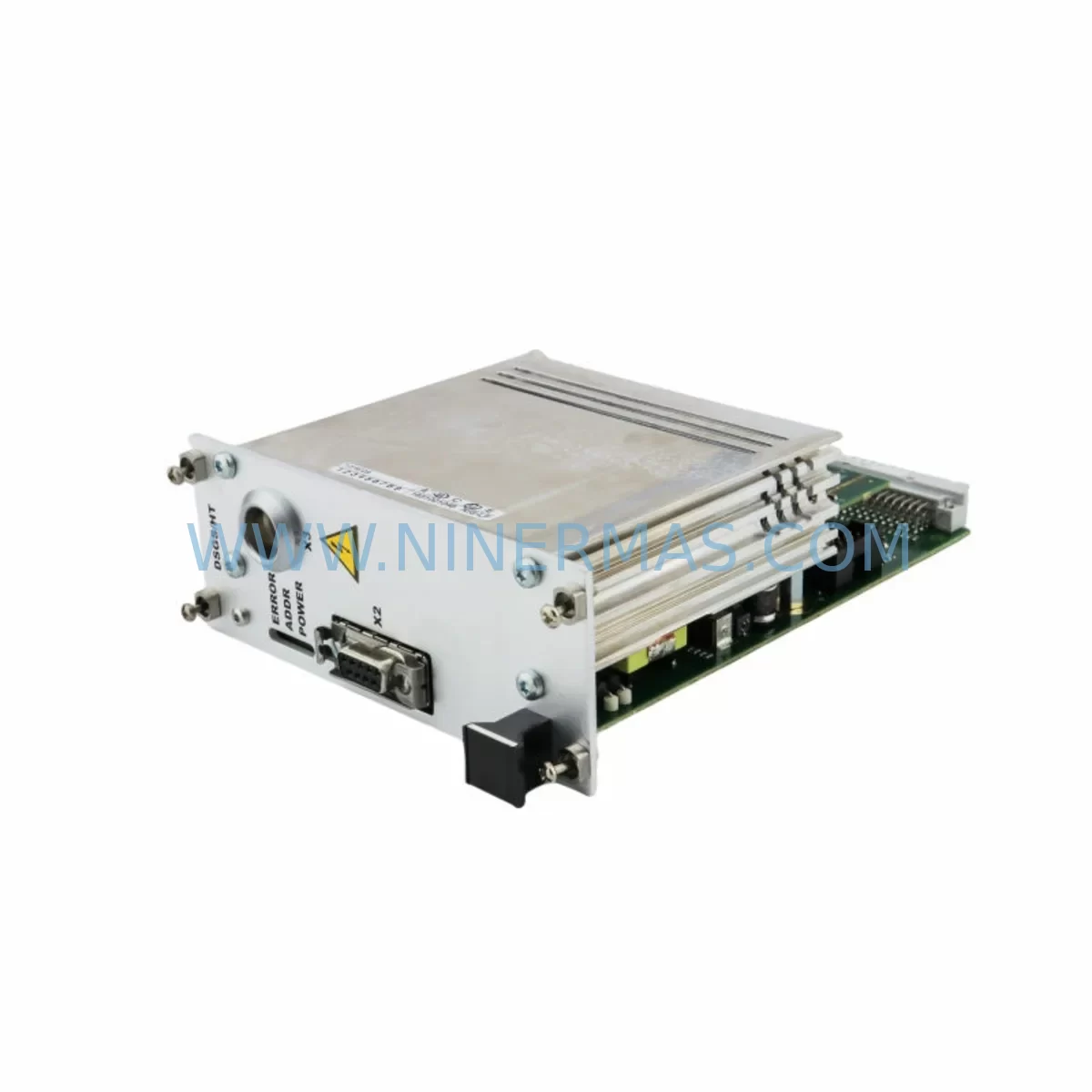

The FEI DSGS/HT 1078728 PXMV1-24 L26CPU-CM is an original encoder interface card engineered for precision signal processing in servo-driven and motion-controlled industrial systems. Designed to interface encoder feedback signals between servo drives and the CPU/controller module, this card is a critical component in maintaining closed-loop position and velocity control across CNC machining centers, automated assembly lines, robotic workcells, and high-precision manufacturing equipment. When this card fails or degrades, the entire axis or motion sequence is compromised — resulting in unplanned downtime, production loss, and potential safety incidents.

At NINERMAS, we maintain service-ready stock of the FEI 1078728 PXMV1-24 L26CPU-CM to support maintenance engineers and procurement teams who cannot afford extended lead times on end-of-life or hard-to-source components. Every unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring you receive a verified, field-deployable spare — not a shelf-aged unknown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FEI DSGS/HT 1078728 PXMV1-24 L26CPU-CM encoder interface card is rarely an isolated event. In a well-structured maintenance plan, this replacement should trigger a broader inspection of the surrounding electrical and control architecture to prevent cascading failures and ensure the system returns to full operational integrity.

During a scheduled or emergency replacement of this encoder interface card, maintenance engineers should simultaneously inspect the PXMV1-24 backplane for damaged connector pins, oxidation, or mechanical stress — a faulty backplane can cause intermittent encoder signal loss even after a card swap. The L26CPU-CM controller module itself should be verified for firmware version compatibility with the replacement card, as mismatched firmware can cause axis faults or communication errors on startup.

On the power supply side, the 24 VDC cabinet power supply module feeding the backplane should be load-tested; voltage ripple or sag under load is a common root cause of encoder interface card failures that goes undetected until a card is replaced and the fault recurs. Inline fuse holders and miniature circuit breakers on the 24 VDC rail should be inspected and replaced if showing signs of thermal stress or contact degradation.

The encoder cable assembly connecting the servo motor to the interface card is another high-priority inspection item. Shielded encoder cables subjected to repeated flexing, cable drag chains, or proximity to high-voltage conductors are prone to intermittent open circuits or shield degradation — symptoms that mimic encoder card failure. Verify cable continuity, shield grounding, and connector seating at both the motor and card ends.

For systems using signal isolators or encoder signal splitters to distribute feedback to multiple controllers or monitoring systems, these components should be tested for signal integrity. A degraded isolator can introduce phase shift or signal attenuation that causes position errors even when the primary encoder card is functioning correctly.

If the system includes a Profibus DP or EtherCAT communication module for drive-to-controller communication, verify that the network topology and termination resistors are intact after any card removal and reinsertion — physical disturbance during maintenance can loosen bus connectors and introduce communication faults. Similarly, any I/O expansion modules on the same backplane should be reseated and their diagnostic LEDs checked post-replacement.

For systems with HMI panels displaying axis position or encoder status, confirm that the HMI is correctly reading the restored encoder feedback after replacement — this validates end-to-end signal integrity from motor to operator interface. Finally, review the relay output modules associated with axis enable and drive ready signals; these are often overlooked but are essential for confirming that the drive and controller handshake correctly after a card replacement.

Maintaining a spare inventory that includes the FEI 1078728 encoder interface card alongside the PXMV1-24 backplane, L26CPU-CM controller, encoder cables, 24 VDC power supply, and communication modules ensures that your team can execute a complete cabinet restoration within a single maintenance window — minimizing mean time to repair (MTTR) and protecting production continuity.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the control cabinet following your site LOTO (Lockout/Tagout) procedure. Confirm 0 VDC on the backplane power rail before handling any cards.

Step 2 — Documentation: Photograph the existing card orientation, cable routing, and connector positions before removal. Record the firmware version displayed on the L26CPU-CM if accessible.

Step 3 — Card Removal: Release the retention latch on the PXMV1-24 backplane slot. Carefully extract the faulty DSGS/HT 1078728 card using the card ejector handles — avoid flexing the PCB or touching signal traces.

Step 4 — Inspection: Inspect the backplane connector for bent pins or contamination. Clean with isopropyl alcohol if required. Inspect the encoder cable connector for pin damage or corrosion.

Step 5 — Installation: Insert the replacement FEI DSGS/HT 1078728 PXMV1-24 L26CPU-CM card into the correct backplane slot. Engage the retention latch firmly. Reconnect the encoder cable, ensuring the connector is fully seated and the locking mechanism is engaged.

Step 6 — Power-Up & Verification: Re-energize the cabinet. Monitor the L26CPU-CM diagnostic LEDs and the HMI for axis status. Perform a manual jog or homing cycle to verify encoder feedback is correctly received and position data is accurate.

Step 7 — System Validation: Run a full production cycle at reduced speed to confirm stable operation before returning the line to full production rate. Log the replacement in your maintenance management system (CMMS) with the part number, serial number, and date.

This workflow supports a direct replacement of legacy or end-of-life encoder interface cards without requiring system reconfiguration, preserving compatibility with existing servo drives, CPU modules, and HMI configurations — reducing downtime to the minimum achievable window.
