FDK CR14250SE Safety-Reliable PLC Battery for Critical Sites

FDK CR14250SE Safety-Reliable PLC Battery for Critical Control Sites

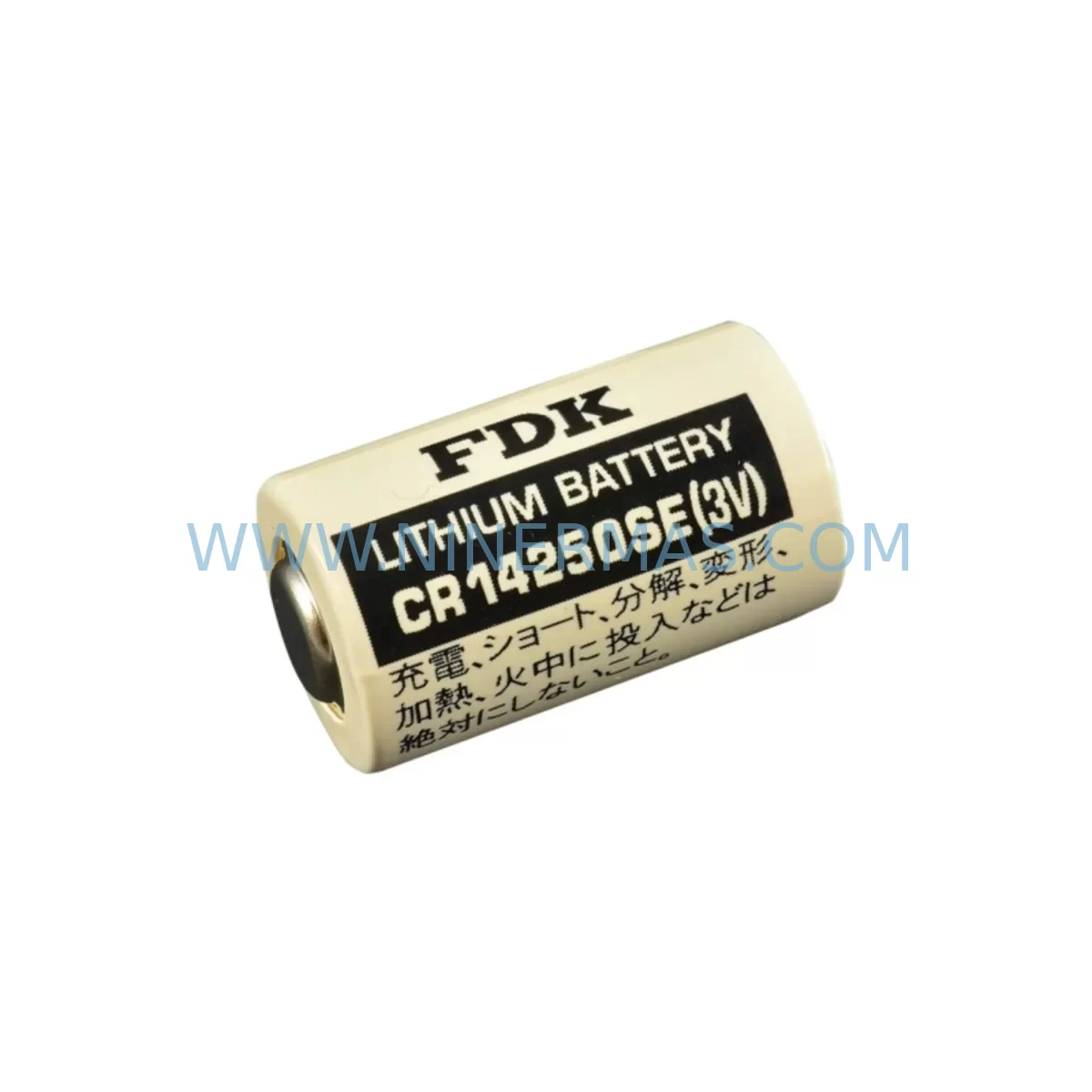

In continuous production environments where unplanned downtime carries severe operational and financial consequences, the integrity of PLC memory backup power is non-negotiable. The FDK CR14250SE is a 3V lithium manganese dioxide battery in the 1/2 AA (CR14250) form factor, engineered to deliver long-term, safety-reliable memory retention for programmable logic controllers, CNC systems, and distributed control systems deployed across critical industrial sites. With a nominal voltage of 3.0V, a capacity of approximately 850mAh, and an operating temperature range of -20°C to +70°C, this battery is purpose-built to sustain SRAM, clock, and parameter data through power interruptions, scheduled shutdowns, and emergency trips without signal drift or data corruption.

NINERMAS maintains verified stock of the FDK CR14250SE with full traceability, pre-shipment electrical testing, and a 12-month warranty — ensuring that your spare parts inventory is ready when a critical replacement is needed, not weeks later.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A control cabinet in a petrochemical plant, power substation, or continuous casting line is only as reliable as its weakest component. When the FDK CR14250SE fails silently — a common failure mode for aged lithium cells — the PLC loses its program, parameter set, or real-time clock data the moment mains power is interrupted. The result is an unplanned restart sequence, potential mis-sequencing of safety interlocks, and hours of recovery time. Proactive replacement on a defined maintenance cycle eliminates this risk entirely.

In a typical Mitsubishi Q-Series control cabinet, the CR14250SE is mounted directly on the Q02CPU or Q06HCPU module, retaining ladder logic and device memory during power-off states. Alongside it, the Q61P or Q62P power supply module conditions incoming AC to stable 5V/24V DC rails; any voltage sag or surge that trips the PSU makes the battery the sole guardian of program integrity. Pairing a fresh CR14250SE with a verified Q61P spare in your maintenance kit closes this risk loop completely.

For Omron CJ-Series and CS-Series installations, the battery is housed in a dedicated cassette such as the CJ1W-BAT01 or CS1W-BAT01. These cassettes are hot-swap capable on supported CPU modules, but the underlying cell — equivalent to the CR14250SE — must still be within its service life. In high-humidity or coastal environments where condensation accelerates cell degradation, annual replacement is strongly recommended. The CJ1W-PA202 power supply unit and CJ1W-ID211 input modules in the same rack depend on the CPU retaining its I/O configuration; a depleted backup battery can cause the entire rack to boot in default state, triggering nuisance trips on connected field instruments.

Siemens S7-300 and S7-400 systems use a similar 3V lithium cell — the 6ES7971-0BA02 for S7-300 or the 6ES7971-1AA00 for S7-400 — which shares the same CR14250 electrochemical platform. Where OEM Siemens cells are on extended lead time, the FDK CR14250SE with solder tabs provides a technically equivalent replacement when fitted by a qualified maintenance technician. In S7-400 racks with redundant CPUs and IM 460 interface modules, both CPU slots require independent battery backup; a single depleted cell in one slot can cause asymmetric failover behavior during a rack power cycle.

In Allen-Bradley ControlLogix and CompactLogix architectures, the 1756-BA2 lithium battery serves the same memory-retention function. For legacy installations where the 1756-BA2 is discontinued or on allocation, the CR14250SE cell is the industry-standard replacement core. Maintaining a buffer stock of three to five cells per control room — alongside spare Ethernet communication modules such as the 1756-EN2T and surge protection devices on 24VDC field loops — forms a complete first-response spare parts kit that covers the most common causes of unplanned PLC downtime.

Beyond the battery itself, a robust control cabinet protection strategy includes: UPS systems on critical CPU racks to bridge momentary mains interruptions; transient voltage surge suppressors (TVSS) on incoming power feeds; shielded cable assemblies on analog signal loops to prevent signal drift in high-EMI environments such as variable frequency drive (VFD) panels; and periodic thermal imaging of terminal blocks and bus bars to detect resistive heating before it causes insulation failure. The FDK CR14250SE is one component in this layered defense — but it is the one most frequently overlooked until a program-loss event forces an emergency shutdown.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: Continuous process units — distillation columns, compressor trains, reactor loops — operate under strict safety instrumented system (SIS) requirements. PLCs managing emergency shutdown (ESD) sequences must retain their logic and interlock configurations at all times. A depleted CR14250SE in the ESD PLC CPU is a latent failure that only manifests during a power interruption — precisely when reliable logic execution is most critical. Scheduled battery replacement, documented in the plant’s preventive maintenance (PM) system, is a recognized best practice under IEC 61511 functional safety management.

Electric Power Generation and Substation Automation: Substation RTUs and protection relay coordination systems rely on battery-backed PLCs to maintain sequence-of-events (SOE) records and protection settings through grid disturbances. In hydroelectric and thermal power plants, the control room PLC cabinets managing turbine governor logic and excitation systems require verified backup battery integrity as part of annual outage maintenance. The FDK CR14250SE, with its low self-discharge and wide temperature tolerance, is well-suited to substation environments where ambient temperatures can swing significantly between seasons.

Mining and Mineral Processing: Conveyor control systems, crusher automation, and flotation cell management in underground and open-cut mines operate in high-dust, high-vibration environments. The solder-tab (SE) construction of the CR14250SE provides superior mechanical retention compared to clip-in cells, reducing the risk of intermittent contact loss due to vibration. In longwall mining operations where PLC-controlled roof support systems must respond reliably to sensor inputs, memory backup integrity is a direct safety requirement.

Water and Wastewater Treatment: SCADA-connected PLCs managing pump stations, dosing systems, and UV disinfection units in water treatment facilities operate continuously with minimal on-site staffing. Remote monitoring reduces the frequency of site visits, making battery life and reliability especially important. A CR14250SE replacement cycle aligned with the facility’s annual maintenance shutdown ensures that program data is never at risk between visits.

Metallurgy, Port Cranes, and Marine Vessel Automation: Electric arc furnace (EAF) control systems, port container crane PLCs, and shipboard automation panels all share a common requirement: the control system must retain its configuration and interlock logic through power cycling, emergency stops, and shore-power transitions. In marine environments, the sealed construction of the CR14250SE provides resistance to salt-air corrosion that can degrade unprotected battery contacts over time.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide on the FDK CR14250SE?
All FDK CR14250SE batteries supplied by NINERMAS carry a 12-month warranty from the date of shipment. If a cell exhibits premature voltage drop or capacity failure within the warranty period under normal storage and installation conditions, NINERMAS will arrange a replacement or credit. Warranty claims require the original invoice and a brief description of the failure mode.

Q2: How is each battery tested before shipment?
Every batch of CR14250SE cells undergoes open-circuit voltage (OCV) measurement prior to dispatch. Cells must read ≥3.0V OCV to pass. Batches are also checked for physical integrity — no leakage, no deformation, no damaged solder tabs. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q3: Is the FDK CR14250SE compatible with my specific PLC model?
The CR14250SE is compatible with a wide range of PLC and CNC platforms that specify a 3V, 1/2 AA lithium cell with solder tabs, including Mitsubishi Q-Series and FX-Series CPUs, Omron CJ/CS-Series CPUs (via battery cassette), Fanuc Series 0i/16i/18i/21i CNC controllers, Yaskawa MP2000-Series machine controllers, and various Siemens S7-300 derivative modules. Always verify the OEM battery specification (voltage, capacity, and terminal type) against your equipment manual before installation. NINERMAS technical support can assist with compatibility confirmation.

Q4: Can NINERMAS guarantee long-term supply of the CR14250SE?
NINERMAS maintains ongoing procurement relationships with authorized distributors in the FDK supply chain and holds buffer stock of high-demand industrial battery SKUs including the CR14250SE. For customers with planned maintenance programs requiring annual or biennial battery replacement across multiple PLCs, NINERMAS can discuss blanket order arrangements to lock in availability and pricing. Contact our team at sale@ninermas.com to discuss your long-term supply requirements.
