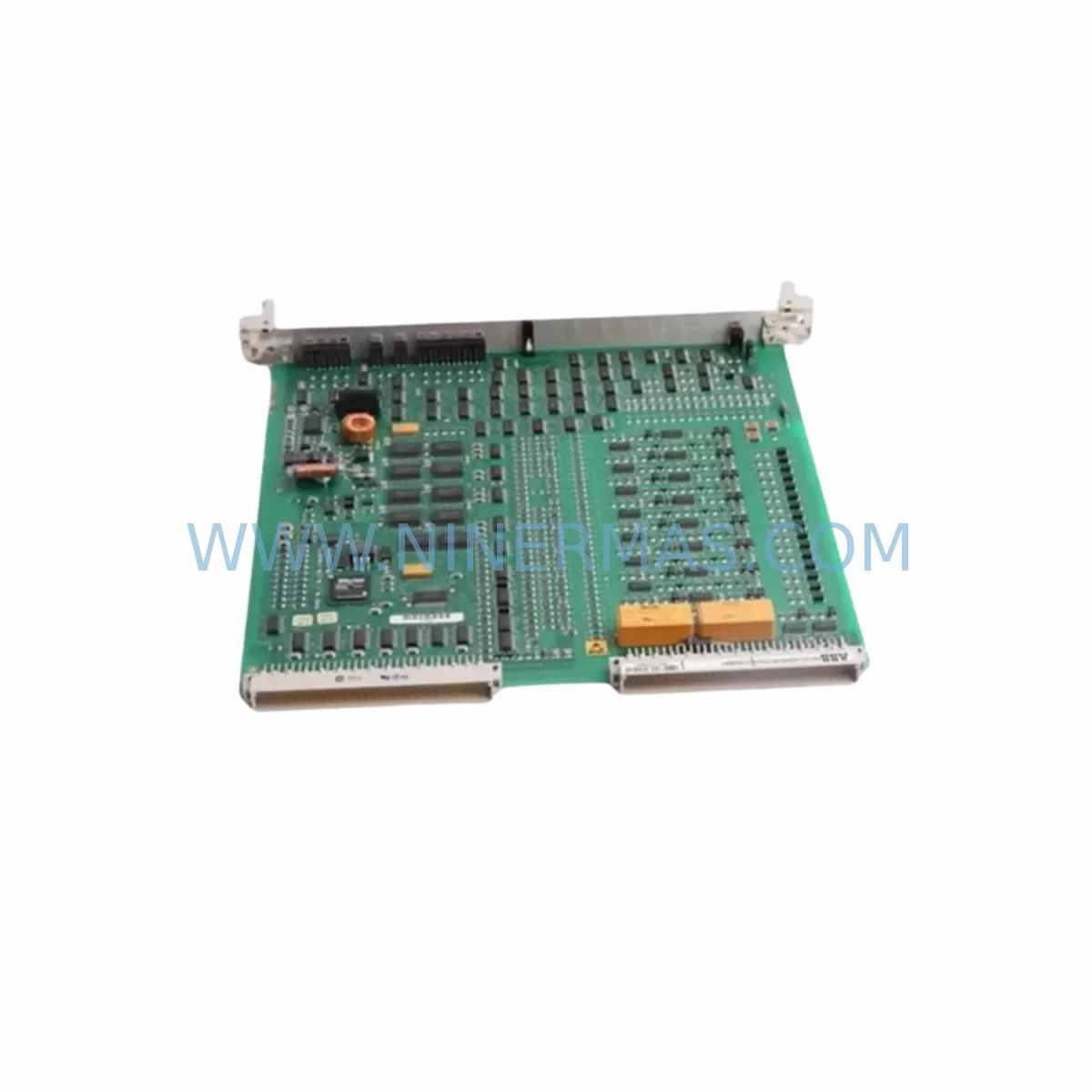

The EXTT 3402091100 (also referenced as 640-34020910XD-1EA and 640-34020910XD-2EA) is a ruggedized safety PLC module engineered for continuous operation in harsh industrial environments. Sourced as an original spare part, this module is a critical component in safety-rated control architectures where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled annual overhaul, responding to an emergency fault isolation event, or building a proactive spare parts inventory for a legacy automation system, the EXTT 3402091100 delivers the compatibility, reliability, and certified performance that maintenance and procurement engineers demand.

At NINERMAS, every unit undergoes pre-shipment functional verification before dispatch. We maintain long-term stock commitments on this SKU to support multi-site procurement programs, ensuring your facility is never left waiting on a critical safety component. All units are backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the EXTT 3402091100 in a live safety PLC system is rarely an isolated task. Experienced maintenance engineers know that a module fault in a safety-rated rack is often a symptom of broader stress across the control cabinet. Before returning the system to service after installing a replacement 3402091100, a structured inspection of adjacent components is strongly recommended to prevent repeat failures and reduce the risk of a second unplanned shutdown.

Begin with the 24VDC power supply rail feeding the safety PLC rack. Voltage ripple or transient spikes are a leading cause of premature module failure in ruggedized environments. If the existing power supply is approaching its rated service life, consider stocking a replacement unit alongside the 3402091100. Next, inspect the backplane and rack connector for the EXTT 3402 series — oxidized or mechanically stressed backplane connectors can cause intermittent communication faults that mimic module failure and are frequently overlooked during fault isolation.

Check all I/O wiring terminations at the terminal blocks connected to the module’s input and output channels. Loose or corroded terminals in harsh environments are a common source of spurious safety trips. If your cabinet uses Phoenix Contact or Weidmüller push-in terminal blocks, inspect the spring-clamp contacts for fatigue, particularly on high-cycle signal lines. For systems using signal isolators between field sensors and the PLC I/O, verify that the isolator output range still matches the module’s input specification — drift in aging isolators can cause false fault conditions.

Review the safety relay outputs downstream of the 3402091100. Safety relays from the EXTT 3402 series or compatible third-party units (such as Pilz PNOZ or Schmersal SRB series) should be tested for contact resistance and response time as part of the same maintenance window. If the system includes a communications module — PROFIBUS DP, PROFINET, or Modbus RTU — confirm that the network address configuration and baud rate settings are preserved after the module swap, as some safety PLC platforms reset communication parameters on module replacement.

For facilities running HMI panels connected to the EXTT safety PLC, verify that the HMI tag database correctly reflects the new module’s I/O mapping before restarting the production line. Finally, if your system uses fused terminal blocks or miniature circuit breakers on the 24VDC distribution rail, check fuse continuity and breaker trip history — a nuisance trip on a branch circuit is often the first warning sign of an impending module failure that maintenance teams miss during routine rounds.

Building a consolidated spare parts kit around the EXTT 3402091100 — including a matched power supply module, a set of terminal block inserts, a spare communications module, and at least one safety relay — is a best practice for facilities with long lead times on automation components or remote sites where emergency procurement is impractical.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the system’s diagnostic software or the module’s onboard LED indicators to confirm that the 3402091100 is the source of the fault. Document the fault code and timestamp before powering down.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the safety PLC rack and verify zero-energy state before opening the cabinet.

Step 3 — Module Removal: Disconnect field wiring at the terminal block (label all connections before removal). Release the module from the backplane connector using the ejector lever if equipped. Note the slot position for reinstallation.

Step 4 — Compatibility Verification: Confirm that the replacement EXTT 3402091100 matches the hardware revision of the failed unit. Check the firmware version requirement in the system documentation. If the system requires a specific firmware load, contact your system integrator before powering up.

Step 5 — Installation: Seat the replacement module firmly into the backplane slot. Reconnect field wiring per the original labeling. Torque terminal screws to specification.

Step 6 — Functional Test: Re-energize the rack and run the system’s self-test or diagnostic routine. Verify that all I/O channels report correctly on the HMI and that no residual fault codes remain.

Step 7 — Return to Service: Document the replacement in the maintenance log, including the new module’s serial number, installation date, and pre-shipment test certificate reference. Update your spare parts inventory to trigger a reorder for the consumed unit.

This workflow is designed to minimize mean time to repair (MTTR) and ensure that the replaced system meets its original safety integrity level before resuming production.

Spare Parts Support FAQ

Q1: What is the expected service life of the EXTT 3402091100, and when should I plan a proactive replacement?
The EXTT 3402091100 is designed for long-cycle industrial service, but safety PLC modules in harsh environments should be evaluated every 5–7 years or after any significant fault event. Proactive replacement is recommended when the module shows intermittent diagnostic faults, elevated error counts in the system log, or when the surrounding system is undergoing a major overhaul. Maintaining at least one spare unit on-site eliminates the risk of extended downtime while waiting for procurement.

Q2: How do I verify compatibility before installing the replacement module in my existing EXTT 3402 series rack?
Match the hardware revision number printed on the module label to the revision specified in your system’s bill of materials or the original commissioning documentation. Confirm the firmware version requirement with your system integrator. If you are replacing a module in a safety-rated loop, a functional validation test must be performed after installation before returning the system to service. NINERMAS can provide the module’s hardware revision and test certificate upon request before shipment.

Q3: Does NINERMAS offer long-term supply agreements for the EXTT 3402091100 to support multi-year maintenance contracts?
Yes. NINERMAS maintains dedicated stock commitments for critical industrial spare parts including the EXTT 3402091100. We support annual blanket purchase orders, scheduled release programs, and multi-site procurement contracts. Contact our sales team at sale@ninermas.com to discuss volume pricing, reserved stock arrangements, and lead-time guarantees tailored to your maintenance schedule.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. To initiate a warranty claim, contact sale@ninermas.com with your order reference, the module’s serial number, and a description of the fault. NINERMAS will arrange return shipping and provide a replacement or credit within the agreed service window.
