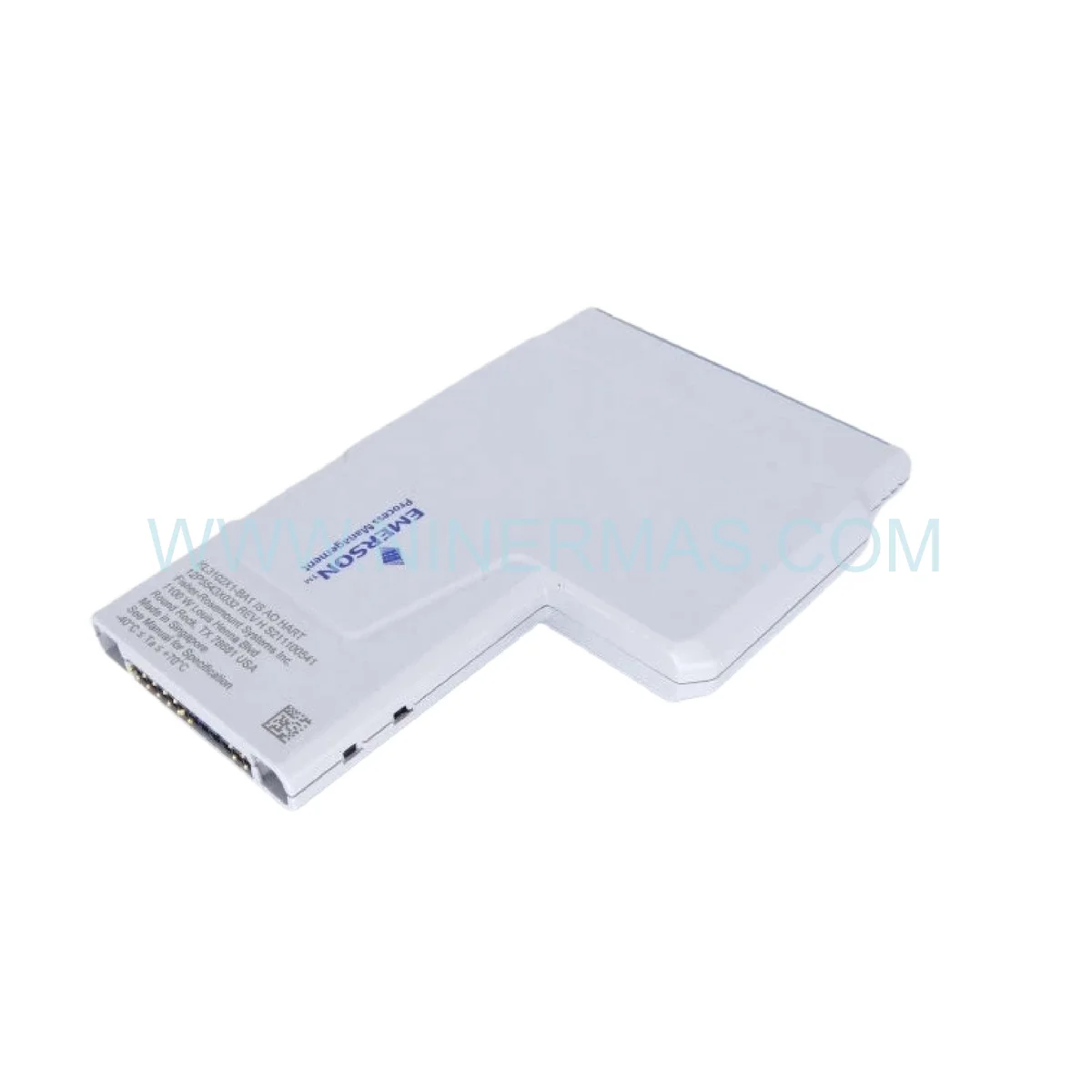

Emerson SE4308T01 (KL3102X1-BA1) IS AO HART CHARM | DeltaV Certified

Emerson SE4308T01 (KL3102X1-BA1) – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Emerson SE4308T01 (KL3102X1-BA1) represents a cornerstone asset in maintaining industrial system integrity across safety-critical distributed control architectures. As an Intrinsically Safe Analog Output CHARM engineered for Emerson DeltaV platforms, the SE4308T01 (KL3102X1-BA1) delivers certified 4-20 mA HART v7 output with galvanic isolation rated to 375V DC peak — a specification that directly underpins Safety Integrity compliance in Zone 1 and Division 1 hazardous environments. Its role in lifecycle management extends beyond signal transmission: it serves as a verified interface node between the control layer and field actuators, ensuring that asset optimization strategies remain grounded in traceable, standards-compliant data.

Within the Industrial 4.0 framework, long-term compatibility is a non-negotiable dimension of asset lifecycle planning. The SE4308T01 (KL3102X1-BA1) supports DeltaV v11.3.1 and later controller families — including SD Plus, SX, SQ, MQ, MX, and PK variants — ensuring forward compatibility as control system architectures evolve. Its 16-bit D/A resolution and sub-one-second HART update rates sustain System Performance benchmarks across extended operational cycles, reducing the risk of process deviation and unplanned downtime. The module’s factory-calibrated-for-life design eliminates periodic recalibration as a maintenance variable, directly contributing to Compliance Standards adherence over the full asset lifecycle.

As a certified original component, the SE4308T01 (KL3102X1-BA1) carries full manufacturer traceability and Original Documentation support — attributes that are indispensable when auditing safety systems against IEC 61511, IEC 61508, or regional regulatory frameworks. Its deployment as a genuine OEM module ensures that system safety cases remain uncompromised, and that any future lifecycle review or third-party audit can reference an unbroken chain of compliance evidence.

Compliance & Safety Benchmarks

• ✅ FM/CSA (North America): Class I, Div 2, Groups A-D, T4; Zone 2, AEx/Ex ec [ia Ga] IIC T4 Gc; Field Circuits: Class I, II, III, Div 1, Groups A-G, T4
• ✅ ATEX (Europe): II 3(1) G Ex ec [ia Ga] IIC T4 Gc; II 3 G (1D) Ex ec [ia IIIC Da] IIC Gc — full Standard Adherence for European hazardous area installations
• ✅ IECEx (International): II 3(1) G Ex ec [ia Ga] IIC T4 Gc — globally recognized certification enabling cross-border project deployment without re-certification overhead
• ✅ Marine / Offshore: DNV Marine Certificate, IACS E10 — validated for offshore platform environments where environmental durability and Certification continuity are mandatory
• Cybersecurity: Achilles CIOC Level 1 (v13.3.1) and CIOC2 Level 2 (v14.3) — addressing the growing intersection of operational technology security and Compliance Standards in connected industrial environments
• ✅ EMC Durability: EN 61326-1 electromagnetic compatibility compliance with built-in surge protection, ensuring signal fidelity in electrically noisy industrial environments
• Environmental Resilience: ISA-S71.04-1985 Class G3 conformal coating; operating range -40°C to 70°C; vibration resistance 1 mm peak-to-peak (2-13.2 Hz), 0.7g (13.2-150 Hz)

Vertical Industry Integration & Optimization

The SE4308T01 (KL3102X1-BA1) is engineered to address the precise control and compliance demands of industries where process deviation carries significant safety and financial consequences.

Semiconductor Manufacturing: Ultra-clean process environments require analog output modules with exceptional resolution and zero-drift characteristics. The 16-bit D/A converter and ±0.25% accuracy (0-60°C) of the SE4308T01 (KL3102X1-BA1) support precise gas flow control, chemical delivery setpoints, and thermal management in diffusion and deposition processes — where even minor output deviations can compromise wafer yield and batch integrity.

Pharmaceutical & Bioprocessing: GMP-regulated facilities demand full audit trails and validated instrumentation. The HART v7 pass-through capability enables AMS Suite integration for continuous device health monitoring, supporting 21 CFR Part 11 and EU Annex 11 documentation requirements. The factory-calibrated-for-life design eliminates recalibration events as a GMP compliance risk factor.

Chemical & Petrochemical Processing: In Zone 1 classified reactor and distillation environments, the intrinsically safe output of the SE4308T01 (KL3102X1-BA1) enables direct control of pneumatic valve actuators, variable speed drives, and damper positioners without the need for external safety barriers — simplifying loop architecture while maintaining full Safety Integrity compliance. HART diagnostics provide real-time actuator health data, supporting predictive maintenance strategies that reduce unplanned shutdowns.

Oil & Gas / Offshore Platforms: DNV Marine and IACS E10 certification positions the SE4308T01 (KL3102X1-BA1) as a validated solution for offshore control systems where environmental extremes, vibration, and corrosive atmospheres demand proven Durability. Its hot-swap capability supports maintenance operations without process interruption — a critical Asset Optimization feature in continuous production environments.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Every Emerson SE4308T01 (KL3102X1-BA1) unit is dispatched in Factory Sealed Condition, preserving the integrity of all certification markings, anti-tamper seals, and Original Documentation packages. This ensures that the compliance chain of custody remains intact from manufacturer to installation point — a critical requirement for safety system audits and insurance validation in regulated industries.

• Rapid Global Logistics: Expedited shipping to North America, Europe, Middle East, and Asia-Pacific regions, with full export documentation including ATEX/IECEx control drawings (12P6523, 12P6123) and HART device description files provided upon request
• 12-Month Quality Guarantee for Legacy Systems: Extended warranty coverage supports lifecycle continuity for DeltaV installations operating beyond standard support windows, providing a structured path for Asset Optimization without full system replacement
• Technical Support: Application engineering assistance for loop design, HART configuration, IS barrier coordination, and DeltaV system integration — delivered by specialists with direct experience in hazardous area instrumentation compliance
• Documentation Package: Complete installation instructions, safety data sheets, and certification documentation available to support commissioning, third-party inspection, and regulatory submission requirements

Expert Technical FAQ

Q1: What installation compliance requirements apply to the SE4308T01 (KL3102X1-BA1) in ATEX Zone 1 environments?
Installation must conform to EN 60079-14 (Electrical installations design, selection, and erection) and the applicable ATEX control drawing. The SE4308T01 (KL3102X1-BA1) carries II 3(1) G Ex ec [ia Ga] IIC T4 Gc certification, permitting Zone 2 installation of the CHARM itself with Zone 1 field circuits. All cable entries, gland selections, and earthing arrangements must comply with the certified installation documentation. ATEX control drawing 12P6523 must be referenced during engineering design.

Q2: How does the SE4308T01 (KL3102X1-BA1) maintain Safety Integrity in high-vibration offshore environments?
The module is validated to DNV Marine Certificate and IACS E10 standards, with mechanical robustness confirmed at 1 mm peak-to-peak (2-13.2 Hz) and 0.7g (13.2-150 Hz). The automatic baseplate keying system prevents mechanical displacement during vibration events, and the conformal coating (ISA-S71.04-1985 Class G3) provides protection against salt-laden and corrosive atmospheres typical of offshore platform installations.

Q3: What firmware and DeltaV version compatibility must be verified before deploying the SE4308T01 (KL3102X1-BA1)?
The SE4308T01 (KL3102X1-BA1) requires DeltaV v11.3.1 or later with SD Plus, SX, SQ, MQ, MX, or PK controller families. Prior to deployment, the DeltaV Electronic Marshalling configuration must be validated to confirm CHARM type recognition and HART pass-through activation. Firmware version alignment with the DeltaV system release notes should be confirmed through Emerson’s official compatibility matrix to ensure Compliance Standards are maintained post-upgrade.

Q4: Can the SE4308T01 (KL3102X1-BA1) be replaced in service without process shutdown?
Yes. The hot-swap architecture supports partial ejection to a locked intermediate position, enabling field replacement without de-energizing the baseplate or interrupting adjacent CHARM channels. This capability is a key Asset Optimization feature for continuous process industries where planned shutdown windows are constrained. Replacement procedures must follow the Original Documentation guidelines to maintain certification validity.

Q5: How does HART v7 integration with AMS Suite support lifecycle management objectives?
HART v7 pass-through enables full bidirectional communication between the DeltaV host and HART-capable field devices, providing access to device health parameters, calibration status, and secondary process variables within Emerson AMS Suite. This integration supports predictive maintenance scheduling, reduces unplanned intervention frequency, and generates the audit-ready device history records required for Lifecycle Management documentation under IEC 61511 functional safety management frameworks.

Q6: What environmental adaptability certifications confirm suitability for chemical processing applications?
The SE4308T01 (KL3102X1-BA1) is rated for -40°C to 70°C ambient operation with ISA-S71.04-1985 Class G3 conformal coating, providing resistance to hydrogen sulfide, chlorine, and other corrosive airborne contaminants common in chemical processing environments. IECEx certification (II 3(1) G Ex ec [ia Ga] IIC T4 Gc) confirms suitability for Group IIC gases including hydrogen — the most demanding flammable gas classification — ensuring System Performance is maintained across the full range of chemical industry hazardous area conditions.
