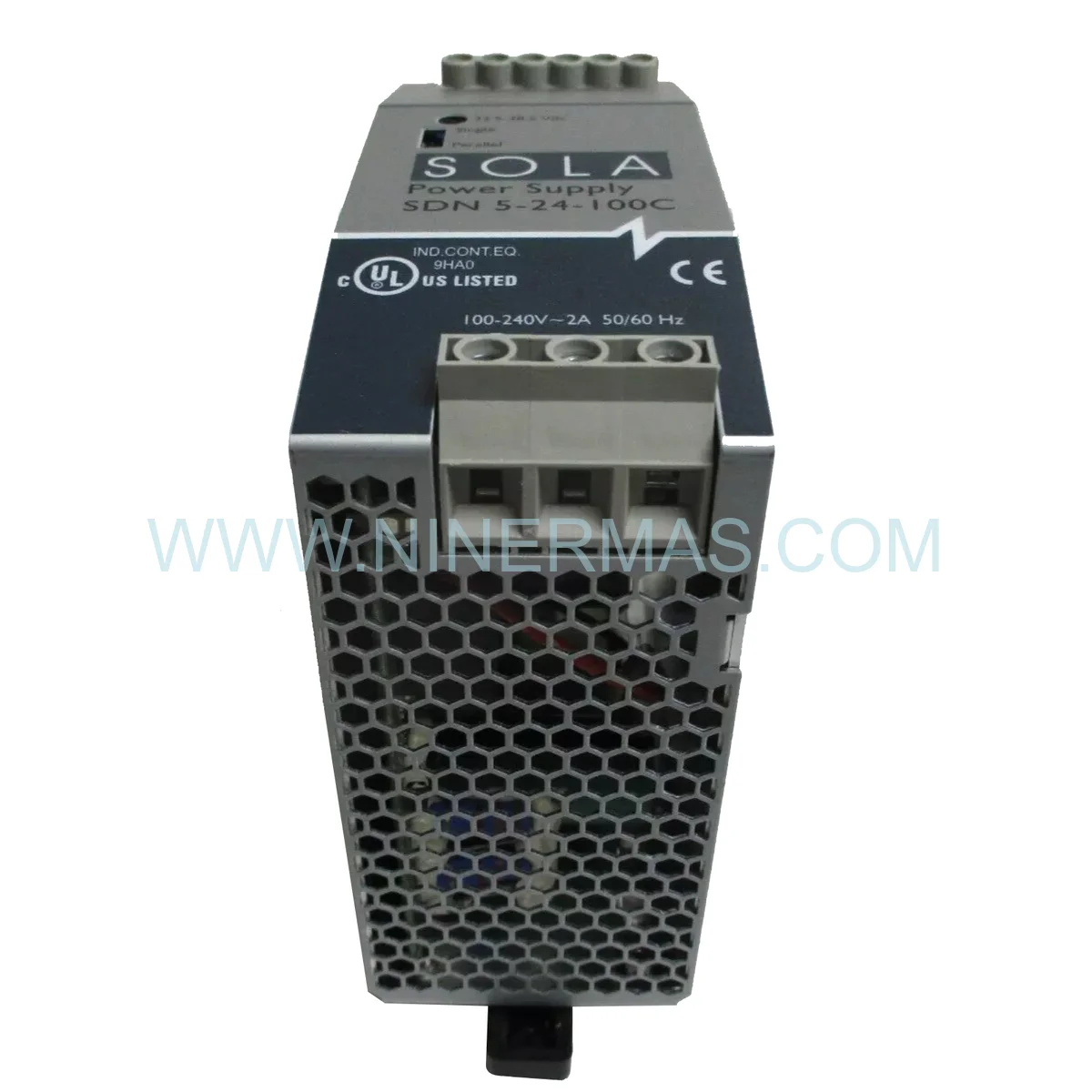

Emerson SDN5-24-100C | DIN Rail Power Supply for System Retrofit

Emerson SDN5-24-100C – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, the Emerson SDN5-24-100C stands out as a mission-critical enabler in any modernization roadmap. Whether you are migrating aging relay-logic panels to modern PLC-based architectures or reinforcing an existing DCS backbone, this 24VDC/5A DIN rail power supply delivers the stable, regulated power foundation that keeps both legacy field devices and new-generation controllers operating in harmony. The Emerson SDN5-24-100C bridges the gap between yesterday’s infrastructure and tomorrow’s performance targets — without forcing a full system teardown.

One of the most persistent challenges in retrofit projects is backward compatibility: new power supplies must coexist with legacy wiring standards, older terminal block layouts, and mixed-voltage field buses. The SDN5-24-100C addresses this directly through its universal AC/DC input range (85-264VAC / 90-375VDC), allowing it to slot into virtually any existing cabinet without rewiring the incoming supply. Its compact 50mm DIN rail footprint means it can replace older, bulkier units in space-constrained enclosures — a decisive advantage when cabinet real estate is frozen by legacy mechanical constraints.

From a migration risk and cost perspective, deploying the SDN5-24-100C as the power backbone of a retrofit project dramatically reduces both. Its fanless convection cooling eliminates a common failure mode in aging power supplies, while the 5-year manufacturer warranty and proven SolaHD lineage provide the long-term reliability assurance that project owners and plant managers demand. The result: lower unplanned downtime, reduced spare-parts complexity, and a faster return on the modernization investment.

Upgrade Highlights & Compatibility

• Universal Input Compatibility: 85-264VAC or 90-375VDC — integrates into legacy single-phase and DC-bus systems without input rewiring
• ✅ PowerBoost Technology: Delivers 1.5 nominal current (>7.5A) for up to 4 seconds — handles high-inrush legacy contactors and solenoids during system startup
• Adjustable Output Voltage: 23.5-28.5VDC field-adjustable — fine-tunes to match legacy device voltage tolerances without additional regulators
• ✅ Seamless Integration: Dual output terminals enable daisy-chain wiring to existing distribution blocks, preserving legacy panel wiring topology
• Future-Proofing via Redundancy: Compatible with SDN-C Redundancy Module for N+1 configurations — scales from single-unit retrofit to mission-critical redundant architecture
• ✅ Global Hazardous Area Certifications: ATEX, IECEx, UL/CSA Div 2 / Zone 2 — qualifies for direct replacement in classified-area legacy installations worldwide
• Performance Enhancement: >88% efficiency vs. typical 70-75% in older linear supplies — reduces heat load and cabinet cooling requirements post-retrofit

Modernization Use Cases & Success Stories

DCS Power Infrastructure Upgrade — Petrochemical Plant:
A regional petrochemical facility operating an aging Honeywell TDC 3000 DCS faced chronic power supply failures causing unplanned shutdowns. By replacing end-of-life linear power supplies with the SDN5-24-100C across 14 marshalling cabinets, the plant achieved zero power-related shutdowns in the 18 months post-retrofit. The universal input range eliminated the need to modify existing transformer taps, and the 3-LED diagnostic system gave maintenance teams instant fault visibility — a capability entirely absent in the legacy units.

Turbine Supervisory Instrumentation (TSI) System Modernization — Power Generation:
A combined-cycle power plant modernizing its Bently Nevada 3300 Series TSI system required a power supply capable of supporting both the legacy vibration monitoring modules and the new digital communication gateways being added in parallel. The SDN5-24-100C’s low ripple output (<100mVpp) proved essential: TSI vibration sensors are highly sensitive to DC noise, and the clean output prevented false alarm triggers during the parallel-run commissioning phase. The PowerBoost feature also handled the inrush from simultaneously energizing multiple legacy sensor loops during system restart sequences.

PLC Migration — Automotive Body Shop:
An automotive manufacturer migrating from obsolete Allen-Bradley SLC 500 racks to CompactLogix L3x controllers retained the existing 24VDC field wiring infrastructure. The SDN5-24-100C replaced aging SolaHD SDN series predecessors on a 1:1 DIN rail footprint basis, requiring no cabinet modifications. The retrofit was completed during a scheduled weekend maintenance window — a direct result of the drop-in mechanical compatibility and identical terminal assignments.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All SDN5-24-100C units are sourced as genuine Emerson SolaHD OEM product — factory sealed, fully traceable, and covered by the 5-year manufacturer warranty. No gray-market or refurbished units. Retrofit projects demand component authenticity; counterfeit or reconditioned power supplies introduce failure risk that undermines the entire modernization investment.

Expedited Global Logistics: Stocked inventory enables same-day or next-day dispatch to North America, Europe, Middle East, and Asia-Pacific. For time-critical retrofit windows — planned shutdowns, turnarounds, or emergency replacements — expedited air freight options are available to minimize project schedule risk.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in legacy system compatibility assessment. Whether you need to verify that the SDN5-24-100C can replace a specific obsolete predecessor model, or require guidance on integrating it into an existing redundancy architecture, technical consultation is available pre-sale and post-installation. Documentation packages including installation manuals, dimensional drawings, and certification certificates are provided with every order.

Retrofit FAQ — Upgrade Guide

Q1: Will the SDN5-24-100C physically fit in the same DIN rail slot as my existing legacy power supply?
The SDN5-24-100C mounts on standard 35mm DIN rail (EN 50022) with a 50mm width profile. Most legacy SolaHD SDN series predecessors share the same or similar DIN rail mounting standard. However, depth (111mm) and height (123mm) should be verified against your cabinet’s available clearance. If panel mounting is required instead of DIN rail, the optional SDN-PMBRK3 bracket enables direct panel installation with only 2-4mm additional depth.

Q2: Can the SDN5-24-100C communicate with both legacy analog field devices and new digital control networks simultaneously?
The SDN5-24-100C is a DC power supply — it does not participate in data communication protocols. Its role is to provide clean, stable 24VDC power to both legacy analog devices (sensors, transmitters, solenoids) and modern digital controllers (PLCs, DCS I/O modules, gateways) simultaneously. The low ripple output (<100mVpp) and tight regulation (<±2%) ensure that mixed analog/digital loads on the same 24VDC bus do not interfere with each other — a common concern during parallel-run migration phases.

Q3: What is the recommended spare-part replacement strategy for obsolete legacy power supplies?
For legacy power supplies that are end-of-life (EOL) or no longer supported by the original manufacturer, the SDN5-24-100C serves as a direct performance upgrade replacement. We recommend a 1:1 replacement strategy for critical control loops, plus a minimum 10% spare inventory for unplanned failures during the transition period. For high-criticality applications, configure two SDN5-24-100C units with the SDN-C Redundancy Module to eliminate single-point-of-failure risk entirely.

Q4: How does the PowerBoost feature benefit retrofit projects with legacy inductive loads?
Legacy industrial environments frequently include high-inrush loads — older contactors, pneumatic solenoid valves, and motor starters — that modern switching power supplies can struggle to energize reliably. PowerBoost delivers >7.5A (1.5 nominal) sustained for over 4 seconds while maintaining >20VDC output, ensuring that legacy inductive devices energize cleanly without causing voltage collapse on the 24VDC bus. This eliminates the need to oversize the power supply or add external inrush limiters during retrofit.

Q5: Is the SDN5-24-100C suitable for hazardous area installations where the legacy unit was also hazardous-area rated?
Yes. The SDN5-24-100C carries ATEX (II 3G, Ex ec nC IIC Gc), IECEx, and UL/CSA Class I Division 2 / Zone 2 certifications — covering the most common hazardous area classifications in oil & gas, chemical, and petrochemical facilities. Verify that the specific hazardous area classification of your installation matches the SDN5-24-100C’s certification scope before deployment. For Zone 1 or Division 1 applications, consult our technical team for appropriate alternative solutions.

Q6: What documentation is available to support the engineering change order (ECO) process for replacing a legacy power supply?
We provide a complete documentation package: installation and operation manual, dimensional drawings (DXF/PDF), full certification certificates (ATEX, IECEx, UL, CSA, ABS, DNV-GL), wiring diagrams, and product datasheets. This package is designed to support the ECO and management-of-change (MOC) documentation requirements typical in regulated industries such as oil & gas, pharmaceuticals, and power generation.
