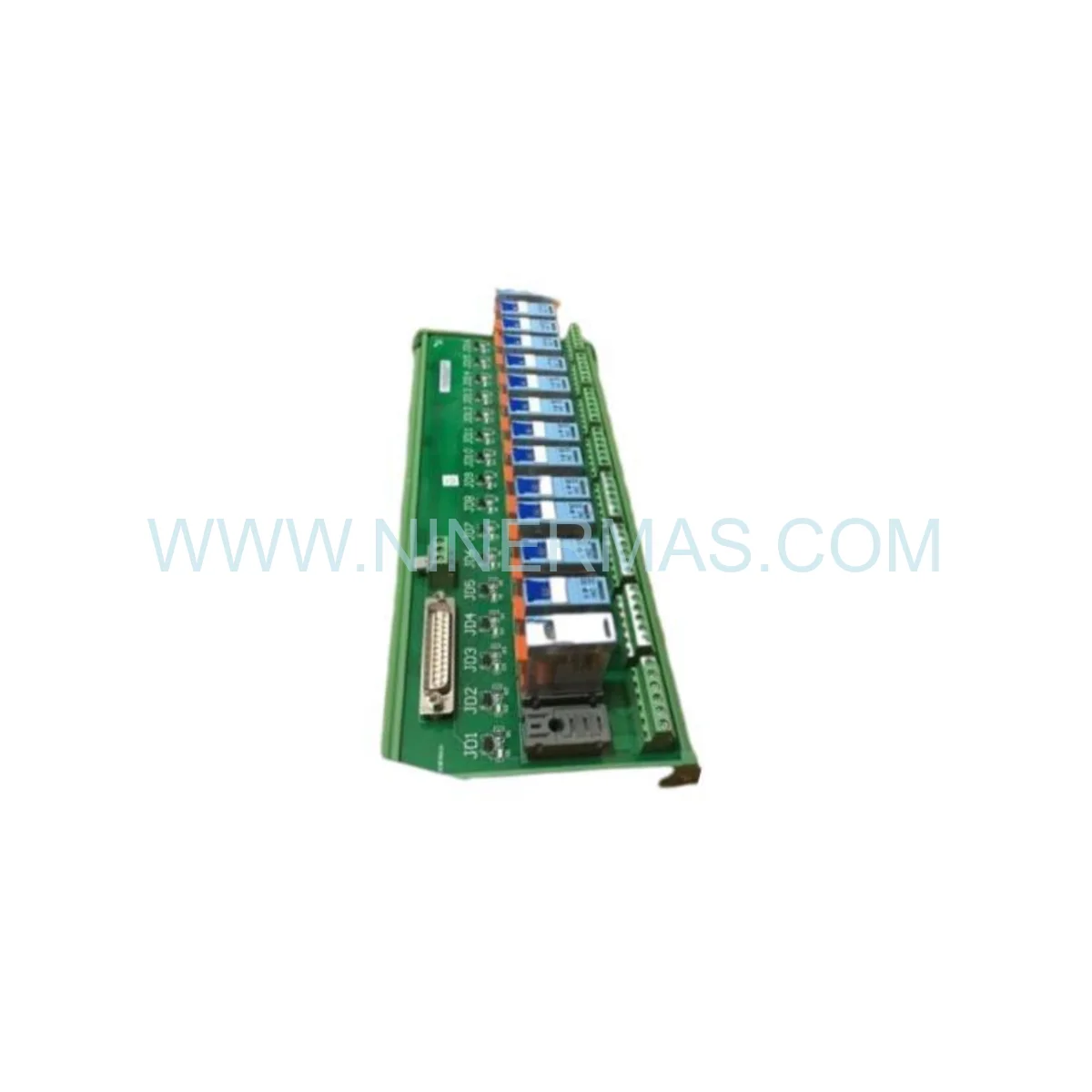

Emerson R-S108V01-16-24VDC-C5-1 Relay Output Module | New & Original

Emerson R-S108V01-16-24VDC-C5-1 | Reliable Automation Component for Ovation DCS

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the R-S108V01-16-24VDC-C5-1 stands as a cornerstone I/O module within Emerson Ovation distributed control architectures. Its 16-channel relay output design directly contributes to system availability by enabling high-density discrete switching without expanding the controller footprint — a decisive advantage in mission-critical applications where uptime is non-negotiable and process optimization demands zero tolerance for unplanned outages.

Deployed across demanding industrial environments — from petrochemical refineries to power generation turbine halls — the R-S108V01-16-24VDC-C5-1 demonstrates exceptional durability under thermal cycling, vibration, and electromagnetic interference. During installation, engineers should verify backplane seating torque, confirm 24VDC supply stability within the 16-30VDC operating band, and validate channel-to-logic isolation integrity prior to commissioning. Proper grounding of the I/O base is essential to preserve the 1500VAC isolation rating and prevent nuisance trips in high-noise environments.

As a critical spare component, maintaining at least one unit of the R-S108V01-16-24VDC-C5-1 in your on-site inventory is a recognized best practice for operational excellence. End-of-life and legacy module availability constraints make proactive sourcing essential — production line stoppages caused by relay output failures can translate to losses far exceeding the cost of a reserve module.

Key Operational Features

16 Independent Relay Output Channels — High-density switching for motors, valves, alarms, and auxiliary equipment with full electrical isolation per channel
Redundancy & High Availability — Hot-swap capability allows module replacement without controller shutdown, ensuring seamless integration into live Ovation systems
Form C (SPDT) Contacts — 2A @ 30VDC / 125VAC contact rating supports a broad range of field device loads
Comprehensive Channel Diagnostics — Per-channel LED status indicators and module health reporting enable rapid fault isolation
SIL 2 Compatible Architecture — Relay contact outputs support hard-wired safety system logic per IEC 61508 requirements
Auto-Discovery via Ovation Backplane — Plug-in configuration through Ovation Developer Studio; no external programming tools required

Maintenance & Performance Benchmarks

The R-S108V01-16-24VDC-C5-1 is engineered to adapt across varying scales of industrial network architecture — from single-loop skid-mounted controllers to multi-node, plant-wide Ovation DCS networks spanning thousands of I/O points. Its backplane communication protocol ensures deterministic scan times regardless of network load, a critical factor in process optimization for time-sensitive control loops.

Maintenance intervals should align with Emerson’s recommended PM schedule: inspect relay contact resistance annually using a calibrated milliohmmeter, verify isolation resistance quarterly under rated voltage, and review diagnostic logs monthly for early indicators of contact degradation. MTBF exceeds 500,000 hours under standard operating conditions, positioning this module as a benchmark for automation components in continuous-service environments. System integration with historian and asset management platforms (e.g., Emerson AMS) enables predictive maintenance workflows that further extend service life.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every R-S108V01-16-24VDC-C5-1 unit dispatched by our team is shipped in original factory packaging with full traceability documentation, ensuring authenticity and protecting module integrity during transit. For urgent maintenance scenarios, same-day dispatch is available for in-stock units — a critical capability when production continuity is at stake.

We maintain a dedicated global supply chain for EOL (End-of-Life) and legacy Ovation modules, providing procurement solutions for facilities operating older DCS generations where OEM availability has been discontinued. Our worldwide express logistics network covers major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific, with full customs documentation support for cross-border shipments.

Engineering Support & FAQ

Q1: What are the installation steps for the R-S108V01-16-24VDC-C5-1 in an existing Ovation system?
Power down the I/O base slot (if hot-swap is not confirmed active), align the module with the backplane connector, and seat firmly until the locking tab engages. Power up and verify auto-discovery in Ovation Developer Studio. Assign channel tags and validate relay contact continuity using the built-in diagnostic display before enabling control outputs.

Q2: Which Ovation firmware versions are compatible with this relay output module?
The R-S108V01-16-24VDC-C5-1 is compatible with Ovation firmware versions 3.x and above. For legacy 2.x environments, consult Emerson’s compatibility matrix or contact our engineering team for version-specific validation support prior to installation.

Q3: Can this module be used in SIL 2 safety system applications?
Yes. The hard-wired relay contact architecture supports SIL 2 logic implementation per IEC 61508 when integrated with a certified safety instrumented system (SIS). Consult your functional safety engineer to confirm the complete safety loop design and proof-test interval requirements.

Q4: How does the hot-swap feature work, and are there any precautions?
The Ovation platform supports hot-swap on designated I/O bases. Before removal, confirm the slot is configured for hot-swap in Developer Studio and that field outputs are in a safe state (de-energized or held by redundant logic). Insert the replacement R-S108V01-16-24VDC-C5-1 and allow 15-30 seconds for backplane re-initialization before re-enabling outputs.

Q5: What is the warranty process for this module?
All units carry a 1-year warranty from the date of shipment. In the event of a confirmed hardware defect, contact our technical support team with the purchase order reference and fault description. We will arrange advance replacement dispatch to minimize your downtime, followed by return and inspection of the defective unit.

Q6: Is documentation (datasheet, wiring diagram) available for the R-S108V01-16-24VDC-C5-1?
Yes. Full technical documentation including the module datasheet, I/O base wiring diagram, and Ovation Developer Studio configuration guide is available upon request. Contact our engineering support team after placing your order and documentation will be provided within 24 hours.
