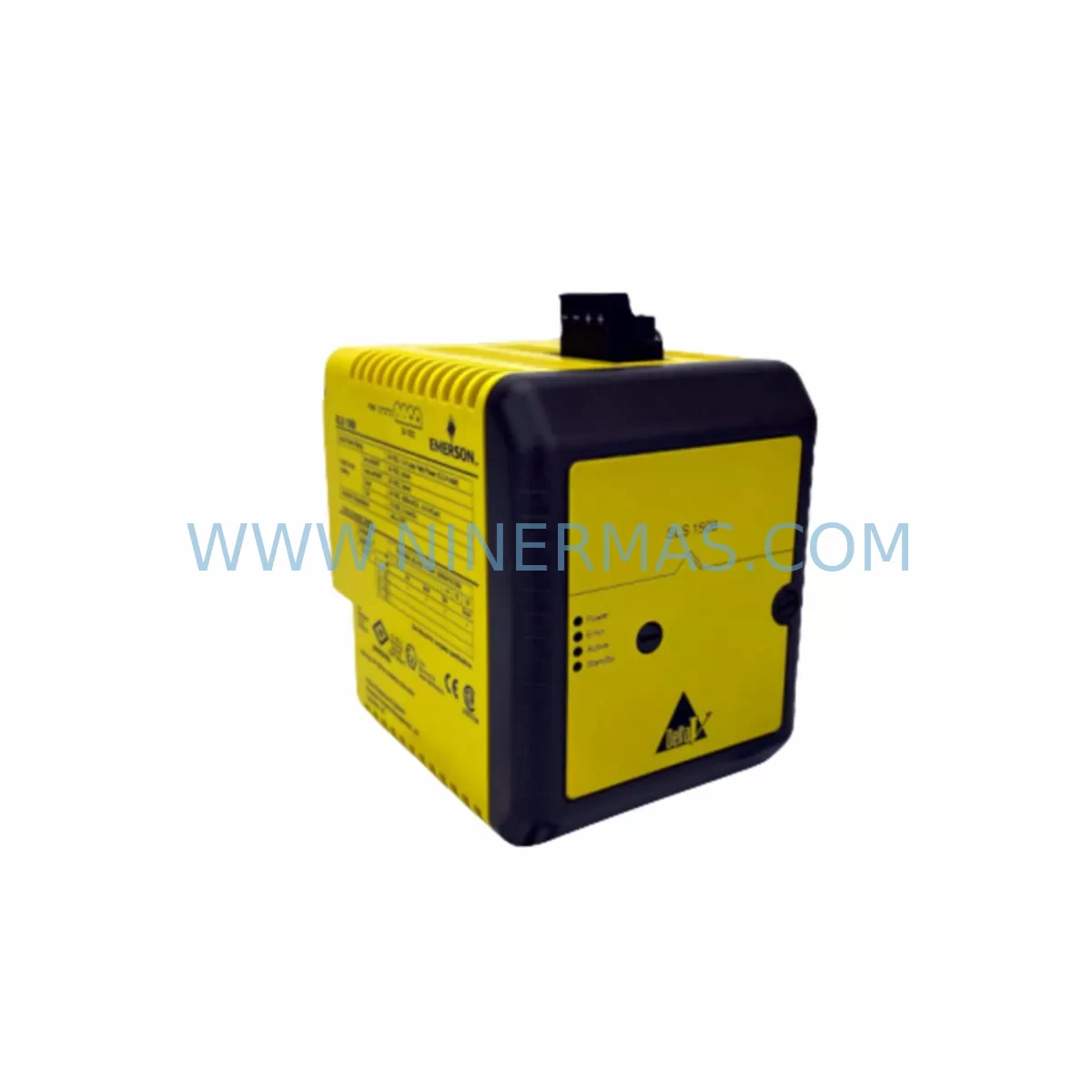

The Emerson KJ2201X1-BA1 (also referenced as 12P3162X212, series designation SLS1508) is a Safety Logic Solver module engineered for deployment in the most demanding industrial control environments. As a core component of Emerson’s DeltaV SLS Series safety instrumented system platform, this module delivers deterministic, fail-safe logic execution that underpins safety instrumented functions (SIFs) across continuous process industries. Whether installed in a high-density control cabinet alongside DeltaV M-Series I/O modules, or integrated into a dedicated safety loop with redundant power supplies such as the KJ3221X1-BA1, the KJ2201X1-BA1 is built to maintain control integrity under conditions of high electromagnetic interference, voltage fluctuation, mechanical vibration, and elevated ambient temperature.

In critical interlock and emergency shutdown (ESD) architectures, signal integrity is non-negotiable. The KJ2201X1-BA1 addresses this by providing robust input signal conditioning that suppresses transient noise and prevents spurious trips caused by signal drift or surge events. When paired with Emerson’s CHARM I/O modules or conventional DeltaV analog input cards, the SLS1508 logic solver ensures that field sensor data — from pressure transmitters, temperature elements, and flow switches — is processed with the determinism required by IEC 61511 safety lifecycle standards. This directly reduces the risk of unplanned shutdowns, false activations, and dangerous undetected failures in safety loops.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in a safety-instrumented control cabinet requires more than a single high-integrity module — it demands a coordinated architecture of complementary components, each contributing to overall system availability and fault tolerance. The KJ2201X1-BA1 SLS logic solver is most effective when deployed as part of a layered protection strategy within the DeltaV SLS chassis.

At the power layer, redundant DC power supply modules — such as the Emerson KJ3221X1-BA1 power supply card — ensure that the SLS logic solver continues to operate without interruption during primary supply failures or voltage sag events common in heavy industrial facilities. Upstream, a quality 24VDC DIN-rail power supply with active PFC and surge protection rating of at least 2kV line-to-earth provides the first line of defense against grid-borne transients.

On the I/O side, Emerson DeltaV CHARM I/O modules (such as the KJ3002X1-BA1 CHARM I/O card) interface directly with field instruments — pressure switches, solenoid valve feedback contacts, and gas detection sensors — feeding validated digital and analog signals into the KJ2201X1-BA1 for logic processing. Where legacy 4–20mA loops are involved, Emerson KJ1501X1-BA2 analog input modules provide the signal conditioning layer that prevents current loop noise from propagating into the safety logic layer.

For communication integrity, the SLS backplane relies on the Emerson DeltaV SLS Controller module to maintain deterministic scan cycles and watchdog supervision. In high-EMI environments — such as those found near variable frequency drives (VFDs), large motor starters, or arc furnace control panels — the addition of ferrite core suppressors and shielded twisted-pair field wiring further reduces the risk of communication anomalies between the SLS controller and its I/O subsystem.

Surge protection at the field terminal level, using DIN-rail mounted surge protective devices (SPDs) rated for 24VDC signal circuits, prevents lightning-induced or switching transient damage to the KJ2201X1-BA1’s input channels. This is particularly critical in outdoor or exposed field junction boxes connected to the control room via long cable runs. Complementing this, Emerson KJ4001X1-BA1 series termination assemblies provide organized, labeled field wiring termination that reduces installation errors — a common root cause of nuisance trips in newly commissioned safety loops.

Finally, for facilities operating under functional safety management systems, maintaining a documented spare parts inventory that includes the KJ2201X1-BA1, its associated SLS backplane modules, and critical I/O cards ensures that mean time to repair (MTTR) targets are met without compromising the proof test interval of the safety instrumented function.

Critical Industrial Safety Applications

The Emerson KJ2201X1-BA1 SLS1508 logic solver is deployed across a broad spectrum of high-consequence industrial environments where control system failure carries significant safety, environmental, or financial risk.

In petrochemical and refinery operations, the module serves as the logic execution core for high-integrity pressure protection systems (HIPPS), burner management systems (BMS), and compressor anti-surge control loops. Its deterministic scan time and high diagnostic coverage make it suitable for SIL 2 safety functions protecting against overpressure events in distillation columns, reactor vessels, and pipeline isolation systems.

In thermal and combined-cycle power generation, the KJ2201X1-BA1 is integrated into turbine protection systems and boiler safety shutdown circuits, where it monitors critical parameters — shaft vibration, bearing temperature, steam pressure — and executes trip logic within the required response time to prevent catastrophic equipment damage.

In underground and surface mining operations, the module supports conveyor interlock systems, ventilation fan safety controls, and methane detection shutdown circuits. Its resistance to vibration and dust ingress (when properly housed in IP54 or higher enclosures) makes it a reliable choice for harsh mine-site control rooms.

In water and wastewater treatment facilities, the SLS1508 logic solver manages chemical dosing interlock systems, pump protection circuits, and overflow prevention logic — applications where a spurious trip can disrupt municipal water supply and where a dangerous undetected failure can result in regulatory non-compliance.

In metallurgical and steel production environments, the module is used in electric arc furnace (EAF) safety systems, ladle transfer interlock circuits, and fume extraction emergency shutdown systems — all characterized by extreme electromagnetic noise, high ambient temperatures, and continuous 24/7 operational demands.

In port and marine terminal operations, the KJ2201X1-BA1 supports loading arm emergency release systems (ERS), jetty fire and gas detection interlock panels, and ship-shore link safety circuits — environments where rapid, reliable logic execution is essential to prevent hydrocarbon releases during tanker loading operations.
