Emerson KJ2003X1-BB1 12P3439X032 Safety-Reliable I/O Carrier

Emerson KJ2003X1-BB1 12P3439X032 Safety-Reliable I/O Carrier for Critical Control Sites

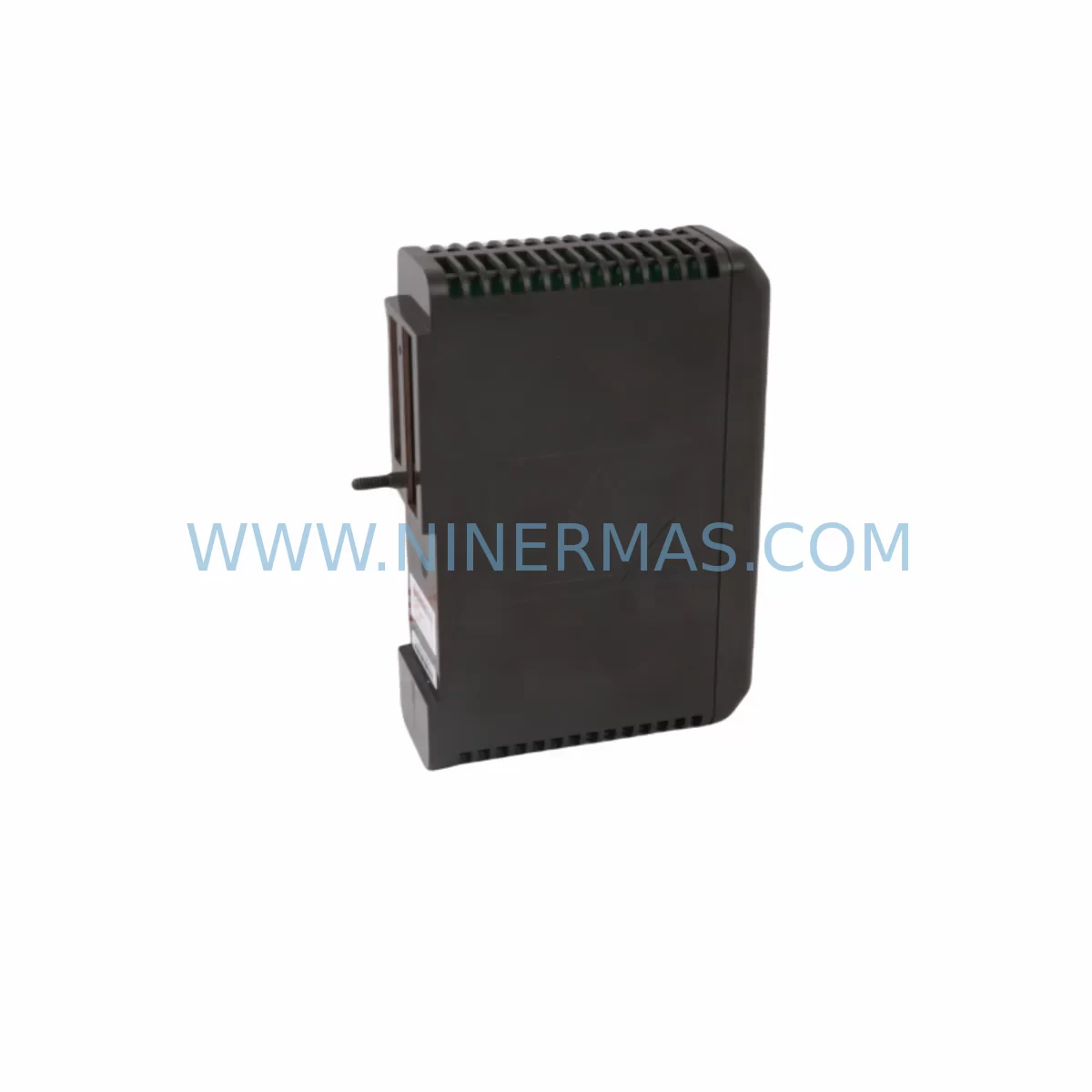

The Emerson KJ2003X1-BB1 12P3439X032 is a DeltaV Series I/O carrier module engineered for continuous, uninterrupted operation in the most demanding industrial control environments. Designed to serve as the structural and electrical backbone of DeltaV I/O subsystems, this carrier provides the mechanical mounting, backplane power distribution, and field signal routing that safety-critical control loops depend on. Whether deployed in a petrochemical distributed control system, a power generation interlock cabinet, or a water treatment SCADA panel, the KJ2003X1-BB1 12P3439X032 delivers the structural integrity and signal fidelity that modern process safety demands.

At NINERMAS, every unit of the KJ2003X1-BB1 12P3439X032 undergoes pre-shipment functional testing to verify backplane continuity, connector integrity, and module seating performance before dispatch. This quality assurance step is non-negotiable for components destined for safety instrumented systems (SIS), emergency shutdown (ESD) panels, and high-availability DCS architectures where a single point of failure can trigger unplanned shutdowns or process hazards.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a fully integrated DeltaV control cabinet, the KJ2003X1-BB1 12P3439X032 carrier module is the foundation upon which the entire I/O subsystem is built. Its role in risk reduction begins at the hardware level: by providing a mechanically stable, electrically isolated carrier rail, it prevents the signal cross-talk, ground loops, and intermittent contact faults that are among the leading causes of spurious trips and control loop instability in process plants.

When paired with Emerson KJ3002X1-BA1 analog input modules, the carrier ensures that 4–20 mA HART signals from field transmitters — pressure, temperature, flow, and level — are routed with full shielding integrity to the DeltaV controller. This is critical in applications where signal drift or noise injection can cause a safety interlock to activate unnecessarily, triggering costly unplanned shutdowns in continuous production units such as ethylene crackers or ammonia synthesis loops.

For digital output control — including solenoid valve actuation in ESD systems — the carrier supports Emerson KJ4001X1-BA1 DO modules, which rely on the backplane’s stable power bus to deliver consistent 24 VDC switching without voltage sag during simultaneous multi-channel actuation. In high-load scenarios such as compressor surge control or turbine trip systems, this power stability is a direct safety requirement.

The carrier also accommodates Emerson KJ3222X1-BA1 HART multiplexer modules, enabling asset management and valve diagnostics without interrupting the live control loop — a key feature for facilities operating under IEC 61511 functional safety management programs. Alongside the carrier, the Emerson KJ1501X1-BA2 DeltaV controller module manages the scan cycle and redundancy switchover logic, while the Emerson PSAX400 power supply module provides the regulated 24 VDC rail that feeds the entire I/O carrier assembly.

In cabinets exposed to high electromagnetic interference — common in arc furnace facilities, variable frequency drive (VFD) rooms, and high-voltage switchgear areas — the carrier’s shielded backplane architecture works in conjunction with Emerson KJ2005X1-MQ1 I/O marshalling components to suppress conducted and radiated noise before it reaches the controller. Surge protection devices such as the Phoenix Contact TRABTECH series are commonly installed upstream of the carrier’s field terminal blocks to protect against lightning-induced transients and switching surges on long cable runs from remote field instruments.

For redundant DeltaV architectures, the carrier supports hot-standby I/O configurations when used with Emerson KJ2003X1-BA1 redundant carrier extensions, ensuring that a single module failure does not interrupt the control loop. This redundancy strategy is standard practice in nuclear auxiliary systems, offshore platform control rooms, and LNG terminal safety systems where continuous availability is a regulatory requirement.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The KJ2003X1-BB1 12P3439X032 is widely deployed in crude distillation unit (CDU) control systems, where it supports the I/O subsystems managing furnace temperature interlocks, column pressure relief logic, and feed pump protection circuits. In these environments, the carrier’s resistance to hydrocarbon vapor atmospheres and its stable backplane power distribution are essential for maintaining SIL 2-rated safety loops without nuisance trips.

Power Generation and Grid Substations: In coal-fired, gas turbine, and combined-cycle power plants, the carrier module supports DeltaV-based turbine control and boiler management systems. Its ability to maintain signal integrity in the presence of high-frequency switching noise from generator excitation systems and bus protection relays makes it a preferred choice for plant engineers responsible for grid stability and unit availability.

Mining and Mineral Processing: Underground and surface mining operations rely on DeltaV systems for conveyor interlock control, ventilation fan management, and crusher protection. The KJ2003X1-BB1 12P3439X032 carrier provides the I/O infrastructure for these systems in environments characterized by heavy dust loading, mechanical vibration from crushing and grinding equipment, and wide ambient temperature swings between day and night shifts.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use DeltaV I/O systems to manage chlorination dosing, pump station control, and effluent quality monitoring. The carrier’s corrosion-resistant construction and stable backplane connectivity support reliable operation in high-humidity pump rooms and chemical dosing areas where moisture ingress is a persistent concern.

Metallurgy and Steel Production: Electric arc furnace (EAF) and basic oxygen furnace (BOF) control systems generate extreme electromagnetic interference that can corrupt I/O signals and cause false trips. The KJ2003X1-BB1 12P3439X032, with its shielded backplane architecture, is used in these facilities to maintain control loop integrity for oxygen lance positioning, scrap charging sequences, and ladle transfer automation.

Port Logistics and Marine Terminals: Ship-to-shore crane control systems and bulk material handling terminals use DeltaV-based automation for load management, anti-sway control, and emergency stop logic. The carrier module supports the I/O subsystems in these applications, where salt air corrosion, vibration from heavy machinery, and variable power quality from shore power connections present ongoing reliability challenges.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the KJ2003X1-BB1 12P3439X032?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, backplane connector failures, and power bus faults identified under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch within agreed lead times.

Q2: What pre-shipment testing is performed on this carrier module?
Each KJ2003X1-BB1 12P3439X032 unit undergoes a documented pre-shipment inspection that includes backplane continuity testing across all I/O module slots, connector seating force verification, power bus voltage distribution checks, and visual inspection for mechanical damage, corrosion, or contaminated contacts. Test records are available upon request for quality-critical procurement programs.

Q3: Is this carrier module compatible with all DeltaV I/O module types?
The KJ2003X1-BB1 12P3439X032 is designed for use within the Emerson DeltaV S-series and M-series I/O subsystem architecture. It is compatible with standard DeltaV analog input (AI), analog output (AO), discrete input (DI), discrete output (DO), and HART-enabled I/O modules. Compatibility with specific controller revisions and I/O module generations should be verified against the DeltaV hardware compatibility matrix for your installed system version.

Q4: Can NINERMAS support long-term spare parts supply for this module?
Yes. NINERMAS maintains stock of the KJ2003X1-BB1 12P3439X032 as part of our long-term spare parts program for Emerson DeltaV systems. We support lifecycle extension programs for plants operating legacy DeltaV hardware beyond the original manufacturer’s active production period, providing tested replacement units with documented quality assurance to support planned maintenance shutdowns and emergency breakdown recovery.
