Emerson KJ2002X1-CA1 12P1509X102 DeltaV M5+ Spare Part

Emerson KJ2002X1-CA1 12P1509X102 DeltaV M5+ Spare Part: Spare Replacement & Downtime Risk Control

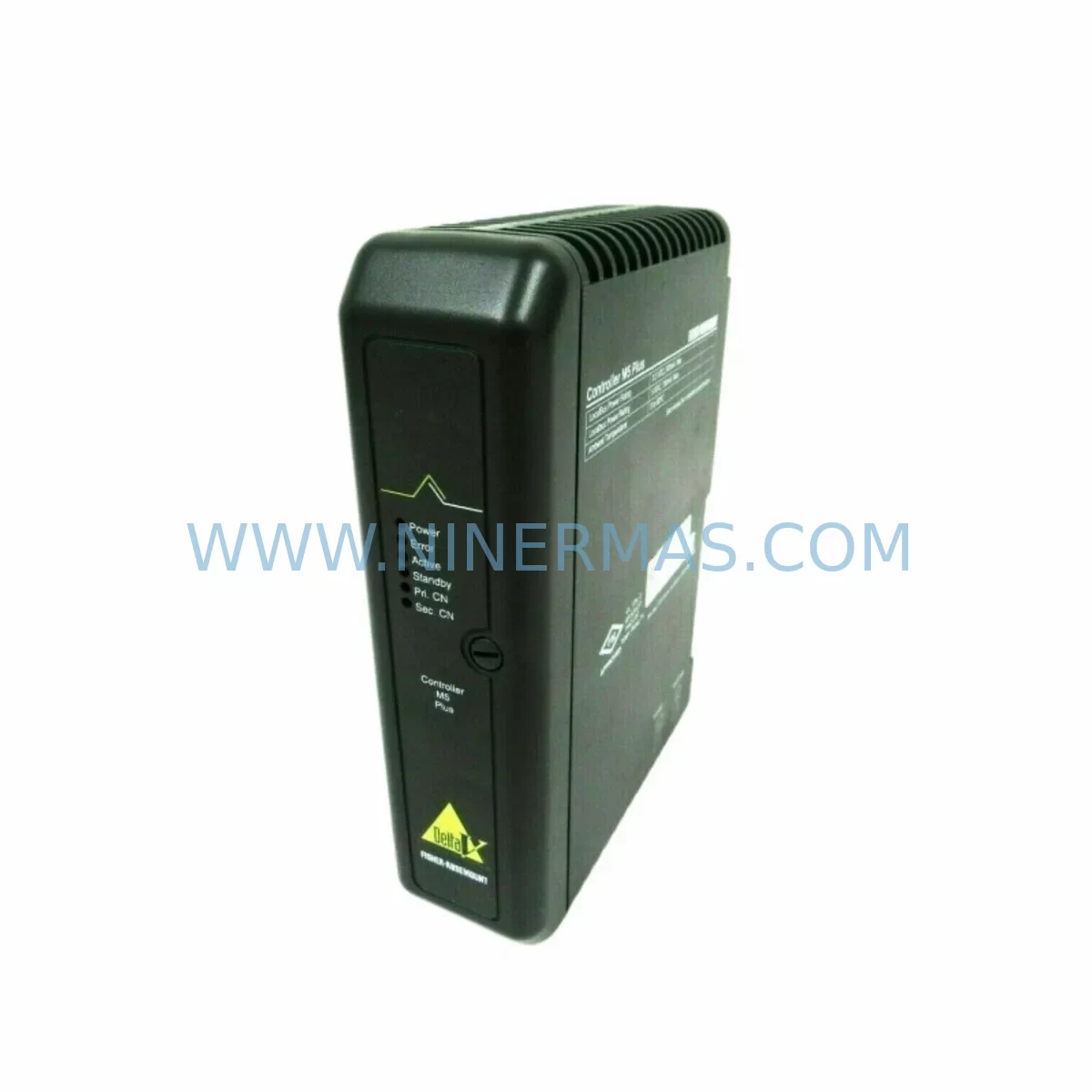

The Emerson KJ2002X1-CA1 12P1509X102 is a service-ready controller module designed for the DeltaV M5+ distributed control system. As a critical component in process automation environments — including oil & gas, chemical processing, power generation, and pharmaceutical manufacturing — this module plays a central role in maintaining continuous loop control, I/O communication, and system integrity. When this module fails or degrades, the consequences can include unplanned shutdowns, production loss, and extended recovery time. Sourcing a verified, tested replacement from a reliable spare parts supplier is the fastest path back to full operation.

At NINERMAS, every KJ2002X1-CA1 12P1509X102 unit is inspected, functionally tested, and shipped with a 12-month warranty. Our inventory is maintained to support both emergency replacement orders and long-term MRO procurement planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KJ2002X1-CA1 12P1509X102 controller module is rarely an isolated task. In a DeltaV M5+ system, the controller module interfaces directly with the backplane, power infrastructure, and field I/O — meaning a thorough replacement procedure must account for the health of surrounding components to prevent repeat failures and ensure stable resumption of control.

During routine control cabinet inspections and annual shutdowns, maintenance engineers should treat the KJ2002X1-CA1 replacement as a trigger for a broader system health check. Begin by verifying the DeltaV M5+ controller carrier (KJ2002X1-BA1), which houses the module and provides the backplane connection. A damaged or corroded carrier can cause intermittent faults even after a new controller is installed.

Next, inspect the DeltaV redundant power supply modules — typically the KJ1501X1-BA2 or equivalent — that feed the controller chassis. Voltage instability or ripple from an aging power supply is a common root cause of controller module degradation. Replacing the controller without verifying power quality is a missed opportunity to prevent the next failure.

For sites running CHARM I/O (KHA) or traditional S-series I/O cards, confirm that all I/O module firmware versions are compatible with the replacement controller. Mismatched firmware between the controller and I/O subsystem can cause communication errors that mimic hardware faults. Check the DeltaV Electronic Marshalling cabinets and associated CHARM baseplates for signs of moisture ingress or terminal oxidation.

Communication integrity is equally important. The DeltaV Control Network (DCN) switches and associated network interface cards should be verified for proper link status after the controller swap. In redundant controller configurations, confirm that the secondary controller module — often a paired KJ2002X1-CA1 — is synchronized and ready for automatic failover before returning the primary to service.

Procurement engineers building annual MRO spare parts lists for DeltaV M5+ systems should also consider stocking DeltaV workstation interface cards, terminal blocks and field wiring connectors, and signal isolators for analog I/O loops. These low-cost components are frequently overlooked until they cause a fault that delays restart. Including them in the same procurement cycle as the KJ2002X1-CA1 reduces lead time risk and simplifies inventory management.

For older DeltaV installations approaching end-of-support, the KJ2002X1-CA1 12P1509X102 is also a key component in system life extension strategies. Rather than committing to a full DCS migration, many facilities choose to maintain a buffer stock of critical controller modules, I/O cards, and power supplies to extend operational life by 5–10 years while a migration is planned and budgeted.

Site Replacement Workflow

When a KJ2002X1-CA1 12P1509X102 fault is confirmed — whether through DeltaV diagnostics, a hardware alarm, or physical inspection — follow a structured replacement workflow to minimize downtime and ensure system compatibility:

1. Fault Isolation: Use DeltaV Diagnostics or the DeltaV Explorer to confirm the fault is isolated to the controller module and not to the carrier, power supply, or network infrastructure. Document the fault code and timestamp for maintenance records.

2. Compatibility Verification: Confirm the replacement KJ2002X1-CA1 12P1509X102 matches the hardware revision and firmware baseline of the installed system. Contact NINERMAS with your system version details if verification support is needed before ordering.

3. Safe Removal: Follow Emerson’s documented hot-swap or cold-swap procedure for the M5+ platform. In redundant configurations, transfer control to the secondary controller before removing the primary. Ensure proper ESD precautions are observed throughout.

4. Module Installation & Commissioning: Seat the replacement module firmly into the carrier. Allow the DeltaV system to auto-download the controller configuration. Verify all I/O assignments, loop statuses, and alarm states before returning to automatic control.

5. Post-Replacement Verification: Monitor the system for a minimum of 30 minutes post-restart. Confirm redundancy status if applicable, and log the replacement in the site CMMS for future PM scheduling.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios. Having a pre-tested, warranted spare on-site eliminates the sourcing delay that typically accounts for the majority of unplanned downtime duration.

Spare Parts Support FAQ

Q1: Is the KJ2002X1-CA1 12P1509X102 a direct drop-in replacement for the original Emerson module?
Yes. The KJ2002X1-CA1 12P1509X102 supplied by NINERMAS is compatible with the DeltaV M5+ controller carrier and backplane. Each unit is tested prior to shipment to confirm functional performance. We recommend verifying hardware revision compatibility with your installed system before installation, and our technical team can assist with this confirmation.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional defects identified under normal operating conditions. If the module fails to perform as specified within the warranty period, NINERMAS will provide a replacement or repair at no additional cost. The warranty period begins from the confirmed shipment date.

Q3: How should I manage long-term spare parts inventory for a DeltaV M5+ system?
For critical DCS infrastructure, we recommend maintaining a minimum of one spare KJ2002X1-CA1 controller module per redundant pair, alongside spares for power supply modules, I/O cards, and network components. NINERMAS supports long-term supply agreements and can reserve inventory for facilities with multi-year maintenance contracts.

Q4: Can NINERMAS support emergency orders with fast delivery?
Yes. NINERMAS maintains stock of high-demand DeltaV spare parts including the KJ2002X1-CA1 12P1509X102 to support emergency procurement. Contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and arrange expedited shipment.
