Emerson KC4011X1-BD1 Retrofit Serial Card for Legacy Systems

Emerson KC4011X1-BD1 Retrofit Serial Card for Legacy Systems

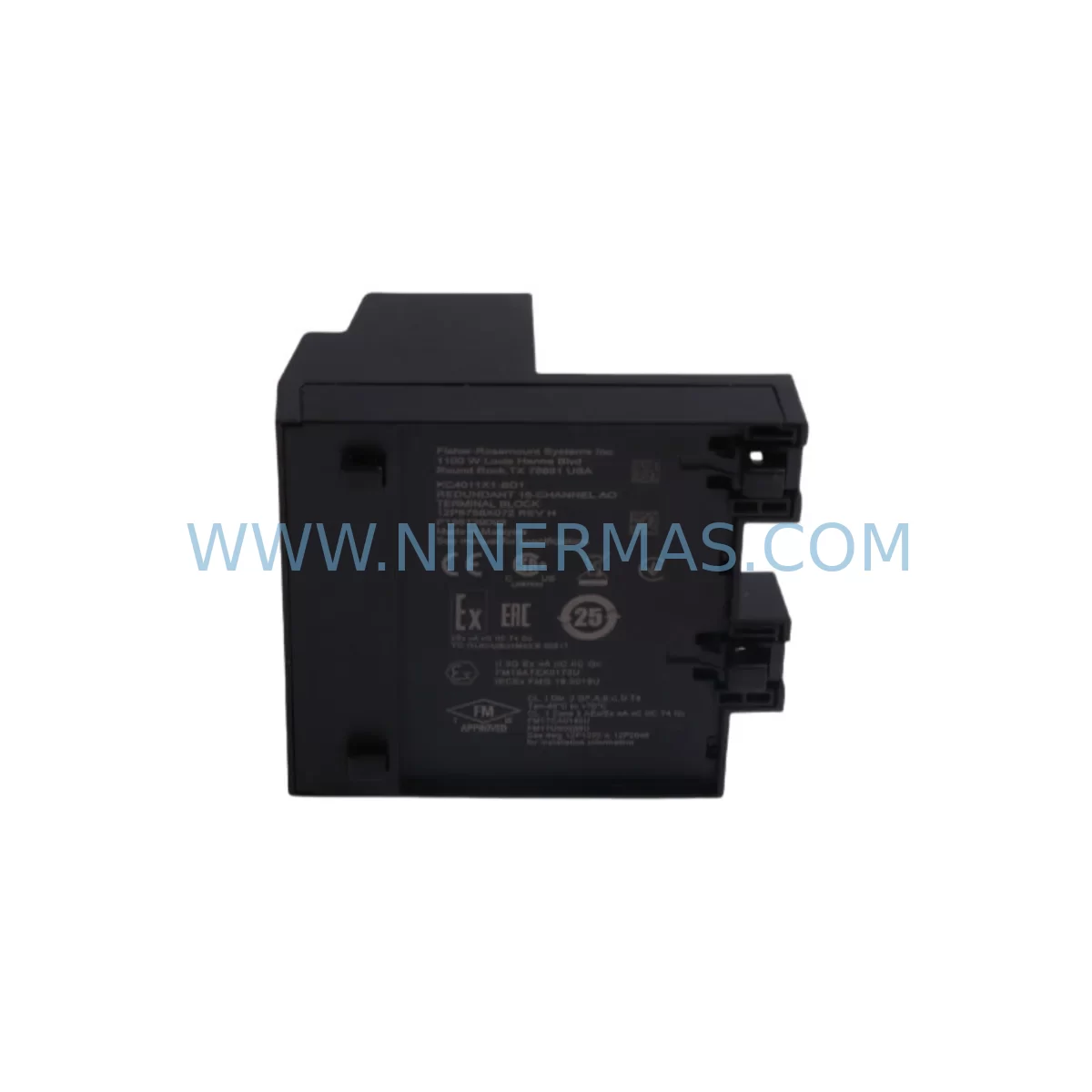

The Emerson KC4011X1-BD1 (also catalogued as 12P6758X072) is a DeltaV Serial Interface Module engineered for process automation environments where legacy serial communication infrastructure must be preserved, extended, or migrated to a modern control architecture. As industrial facilities face the end-of-life reality of first- and second-generation DeltaV hardware, the KC4011X1-BD1 has become a critical retrofit component — enabling engineers to maintain serial communication links between field devices, remote I/O nodes, and the DeltaV controller network without requiring a full system overhaul.

NINERMAS maintains verified stock of the KC4011X1-BD1 sourced from original Emerson supply channels. Each unit undergoes pre-shipment functional testing and is covered by a 12-month warranty, supporting procurement teams that require documented traceability and quality assurance for critical infrastructure upgrades.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the KC4011X1-BD1 into an existing DeltaV control system requires a structured approach that accounts for both hardware compatibility and software configuration continuity. The retrofit process typically begins with a site survey of the existing control cabinet, where engineers must document the current carrier configuration — most commonly a KJ3221X1-BA1 eight-slot carrier or a KJ3243X1-BA1 two-slot carrier — and confirm that an available slot exists for the new serial interface module.

Power budget verification is the next critical step. The DeltaV backplane distributes power across all installed modules, and adding the KC4011X1-BD1 requires confirming that the KJ3001X1-BG1 power supply module has sufficient headroom. In high-density cabinets where KJ2003X1-BA1 analog input modules, KJ2005X1-MQ1 HART multiplexer modules, and KJ4001X1-CG1 digital output modules are already installed, the power margin can be tight. Engineers should calculate the total load before proceeding.

Terminal wiring adaptation is frequently required when replacing an older serial interface card. The KC4011X1-BD1 uses the standard DeltaV terminal block pinout, but field wiring from legacy MODBUS RTU devices or third-party serial instruments may have been terminated to a non-standard adapter. In these cases, a wiring diagram review against the original as-built documentation is essential before powering the new module.

For facilities running DeltaV with an integrated PROVOX migration path, the KC4011X1-BD1 often serves as the communication bridge between the new DeltaV controller and legacy PROVOX field devices still operating on RS-485 serial links. This is a common scenario in refinery and chemical plant upgrades where full I/O replacement is deferred to a later phase. The SE4012S1 serial expansion module is sometimes deployed alongside the KC4011X1-BD1 to extend the number of available serial ports in the same cabinet.

HMI screen updates must also be planned as part of the retrofit. When the KC4011X1-BD1 replaces a failed or discontinued serial card, the DeltaV Operate HMI may display communication fault alarms until the module is re-commissioned and the serial link is re-established. Engineers should prepare updated faceplates and alarm suppression logic in advance to avoid nuisance alarms during the cutover window. The VE5009 DeltaV workstation is typically used for online configuration changes during live system retrofits.

Programming cable compatibility should be confirmed before the maintenance window begins. The KJ4001X1-CA1 controller module and associated programming tools must be accessible to re-download the module database after the KC4011X1-BD1 is installed. In some older DeltaV installations, the programming cable interface is shared across multiple controllers, and scheduling conflicts can extend the commissioning window unexpectedly.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any DeltaV serial interface retrofit. The KC4011X1-BD1 supports hot-swap installation in DeltaV systems configured for redundant communication paths, but in single-path serial configurations, a brief controlled shutdown of the affected serial loop is unavoidable. The recommended approach is to schedule the replacement during a planned maintenance window and to pre-stage the new module with its configuration loaded offline using DeltaV Simulate.

Before removing the existing serial interface card, engineers should export the full module configuration from DeltaV Explorer and save a backup of the controller database. This ensures that if the replacement module requires a firmware update or address reassignment, the original logic can be restored without re-engineering. The DeltaV system’s built-in diagnostic tools can be used to verify serial link integrity immediately after the KC4011X1-BD1 is installed, reducing the time required for post-installation verification.

Field device communication continuity is maintained by pre-configuring the KC4011X1-BD1 with the same MODBUS node addresses and baud rate settings as the module it replaces. This eliminates the need to reconfigure downstream field devices — a significant time saving in large installations where dozens of MODBUS RTU instruments may be connected to a single serial loop. The total controlled downtime for a standard KC4011X1-BD1 replacement is typically 15 to 45 minutes, depending on cabinet access and the complexity of the serial network topology.

Post-installation, a structured loop check should be performed to confirm that all field devices are communicating correctly before the process unit is returned to automatic control. NINERMAS provides technical documentation support for KC4011X1-BD1 installations, including wiring diagrams and commissioning checklists, to help maintenance teams complete the retrofit efficiently and safely.

Retrofit Support FAQ

Q1: Is the KC4011X1-BD1 a direct replacement for the KC4011X1-BA1 and KC4011X1-BC1?
Yes. The KC4011X1-BD1 is the current production revision of the DeltaV Serial Interface Module and is backward compatible with earlier KC4011X1 variants. No hardware modification is required. After installation, re-download the module configuration from the DeltaV database to restore serial communication parameters.

Q2: What wiring changes are needed when installing the KC4011X1-BD1 in an existing DeltaV cabinet?
In most cases, no wiring changes are required if the existing terminal block and field wiring are intact. Verify that the RS-232 or RS-485 field wiring is correctly terminated to the DeltaV serial terminal block. If the original installation used a non-standard adapter, consult the as-built wiring documentation before proceeding.

Q3: Does NINERMAS provide pre-shipment testing for the KC4011X1-BD1?
Yes. Every KC4011X1-BD1 unit shipped by NINERMAS undergoes functional testing prior to dispatch. A test certificate is available upon request. All units are covered by a 12-month warranty from the date of shipment, providing assurance for critical spare parts procurement.

Q4: What is the typical lead time and stock availability for the KC4011X1-BD1?
NINERMAS maintains inventory of the KC4011X1-BD1 to support urgent maintenance requirements. Standard orders are processed within 1–3 business days. For large-quantity or long-term supply agreements, contact our sales team to discuss dedicated stock allocation and extended supply commitments.
