Emerson EPXPNS001-ADAH | PROFINET IRT Retrofit & System Modernization

Emerson EPXPNS001-ADAH — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

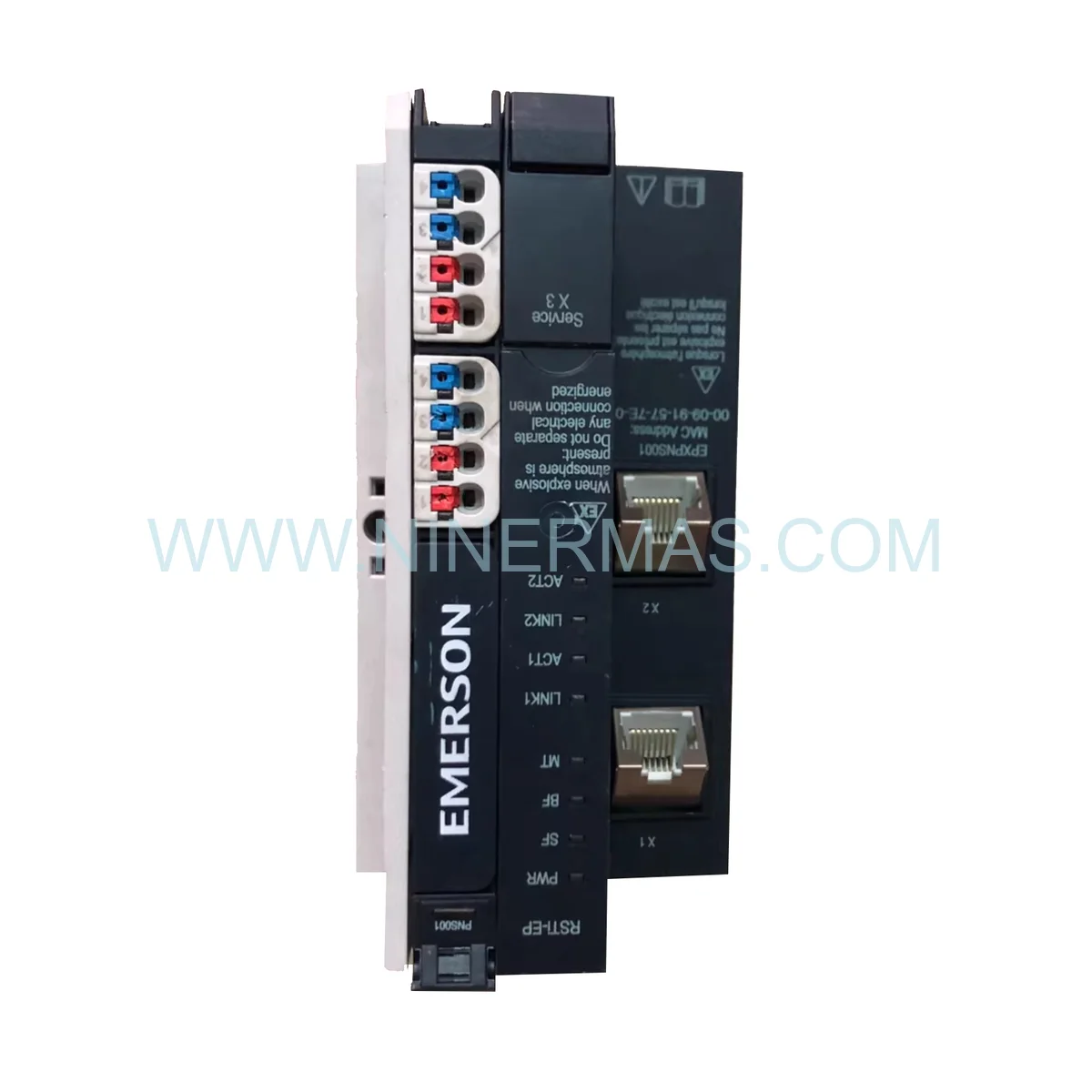

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the EPXPNS001-ADAH stands out as a pivotal enabler in modernizing aging distributed control architectures. This RSTi-EP Slice I/O PROFINET IRT Network Adapter from Emerson delivers deterministic, high-speed communication at up to 100 Mbps, dramatically extending the operational lifespan of existing plant control systems while bridging the gap between legacy field devices and modern PROFINET Version 2.3 Class C networks. The EPXPNS001-ADAH is not merely a replacement part — it is the architectural cornerstone of a phased system migration strategy.

One of the most compelling advantages of this adapter in a retrofit context is its backward-compatible design philosophy. Supporting up to 64 active RSTi-EP modules — including Digital I/O, Analog I/O, Specialty, and Safety modules — it allows engineers to incrementally migrate subsystems without wholesale replacement of existing field wiring or cabinet infrastructure. Its configurable PROFINET I/O update rates (1 ms to 512 ms) and MRP ring topology support ensure that legacy system timing constraints are respected during the transition phase, preserving process continuity.

From a total cost of ownership perspective, deploying the EPXPNS001-ADAH as the network head of a modernized RSTi-EP slice I/O station significantly reduces migration risk. The built-in web server for diagnostics and firmware updates, combined with spring-style wiring technology, minimizes commissioning time and eliminates the need for specialized tooling — translating directly into reduced downtime and lower engineering labor costs during cutover.

Upgrade Highlights & Compatibility

• ✅ PROFINET IRT (Isochronous Real-Time) — Class C compliance ensures sub-millisecond synchronization for motion-critical and process-critical retrofit applications
• Legacy Compatibility — Integrates seamlessly with existing PACSystems RX3i, RSTi, and third-party PROFINET controllers without re-engineering the entire control layer
• ✅ Scalable Migration Path — Supports up to 64 RSTi-EP I/O modules per station, enabling phased hardware upgrades without production shutdowns
• Future-Proofing — MRP ring redundancy, configurable data formats (Motorola/Intel), and MicroUSB configuration interface align with Industry 4.0 and IIoT readiness requirements
• ✅ Performance Enhancement — 100 Mbps fieldbus + 48 Mbps RSTi-EP system bus dual-speed architecture eliminates legacy bottlenecks in high-density I/O environments
• Hazardous Area Certified — FM/cFM Class I Div 2, ATEX II 3G, DNV-GL, and Lloyd’s Register certifications support retrofit projects in offshore, petrochemical, and marine environments

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing Plants: Aging Modbus RTU-based distributed control systems in continuous chemical processing facilities face increasing maintenance costs and spare parts scarcity. By deploying the EPXPNS001-ADAH as the PROFINET gateway head for new RSTi-EP I/O stations, retrofit teams have achieved a 40-60% reduction in field wiring rework while maintaining full compatibility with existing PACSystems RX3i controllers. The adapter’s fast start-up capability (<500 ms with up to 10 modules) ensures minimal process interruption during hot-cutover scenarios.

Turbine Supervisory Instrumentation (TSI) Upgrades: In power generation facilities where TSI systems rely on proprietary legacy backplanes, the EPXPNS001-ADAH enables a non-invasive upgrade path. Its support for daisy-chain, star, and MRP ring topologies allows engineers to design redundant communication paths around existing conduit runs, dramatically reducing civil works costs. PROFINET IRT’s deterministic timing has been validated in turbine protection applications where scan cycle jitter must remain below 1 ms.

Offshore Platform Control Modernization: With DNV-GL and Lloyd’s Register marine certifications, the EPXPNS001-ADAH is uniquely positioned for offshore platform retrofit projects where equipment must meet stringent marine environmental standards. Its operating range of -20°C to +60°C and ATEX II 3G certification make it suitable for Zone 2 hazardous area installations without additional enclosure engineering.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | **EPXPNS001-ADAH** | | Fieldbus Protocol | PROFINET Version 2.3 Class C (IRT + RT) | | Max. I/O Modules Supported | 64 active RSTi-EP modules per station | | Fieldbus Transfer Rate | Up to 100 Mbps | | RSTi-EP System Bus Rate | Up to 48 Mbps | | PROFINET I/O Update Rate | Configurable: 1 ms — 512 ms | | Network Redundancy | MRP Client mode (ring topology, bumpless 32 ms) | | Configuration Interface | MicroUSB 2.0 + Built-in Web Server | | Network Ports | 2 — RJ-45 with integrated switch | | Supply Voltage | 20.4 V — 28.8 V DC | | Operating Temperature | -20°C to +60°C | | Hazardous Area Rating | FM/cFM Class I Div 2 Groups A-D; ATEX II 3G | | Marine Certifications | DNV-GL, Lloyd’s Register | | Hardware Version | 02.00.00 | | Firmware Version | 02.05.03 | | Dimensions (W D H) | 52 — 76 — 120 mm | | Weight | 220 g | | Wiring Technology | Spring-style (0.14-1.5 mm², AWG 26-16) | | Fast Start-up | <500 ms ( 10 modules) |

Supply Chain & Deployment Support

• Original & Factory Sealed: All EPXPNS001-ADAH units are sourced as genuine Emerson factory-sealed components with full traceability documentation, ensuring authenticity for critical retrofit and compliance-sensitive installations.
• Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit timelines. Express air freight to major industrial hubs in North America, Europe, the Middle East, and Asia-Pacific is available with typical lead times of 3-7 business days.
• Technical Support for Obsolete & Legacy Hardware: Our engineering team provides pre-sales compatibility assessments, retrofit architecture reviews, and post-delivery commissioning guidance — ensuring your EPXPNS001-ADAH integration proceeds without costly delays or rework.
• Documentation Package: Full technical datasheets, hardware/firmware version compatibility matrices, and GSDML files for PROFINET configuration are available upon request.

Retrofit FAQ — Upgrade Guide

Q1: Is the EPXPNS001-ADAH physically compatible with existing RSTi-EP DIN rail installations?
Yes. The EPXPNS001-ADAH uses the standard RSTi-EP mechanical form factor (52 — 76 — 120 mm) and DIN rail mounting system. It can be installed in existing cabinet layouts without modification to rail spacing or enclosure dimensions, making it ideal for in-place retrofit scenarios where physical space is constrained.

Q2: Can the EPXPNS001-ADAH communicate with legacy PROFIBUS or Modbus-based controllers during a phased migration?
The EPXPNS001-ADAH is a native PROFINET IRT device and does not directly support PROFIBUS DP or Modbus RTU. However, in a phased migration architecture, it is typically deployed alongside a protocol gateway or as part of a new PACSystems controller segment, while legacy fieldbus segments remain operational. This parallel-run approach is the recommended migration strategy to minimize production risk.

Q3: What is the recommended spare parts strategy for facilities running EPXPNS001-ADAH in critical applications?
For facilities with high availability requirements (99.9%+ uptime), we recommend maintaining a minimum of one cold-standby EPXPNS001-ADAH unit per production line. Given the adapter’s role as the PROFINET network head, its failure would isolate the entire RSTi-EP I/O station. Pairing with MRP ring topology further reduces single-point-of-failure risk at the network level.

Q4: How does the EPXPNS001-ADAH support IIoT integration in a modernized control architecture?
The built-in web server provides real-time diagnostics, module status, and parameter access via standard Ethernet — enabling integration with SCADA, MES, and cloud-based IIoT platforms without additional hardware. This capability is particularly valuable in retrofit projects where adding dedicated IIoT gateways would require significant additional engineering effort.

Q5: Are there alternative models if the EPXPNS001-ADAH is not available for immediate delivery?
The EPXPNS001 (standard version without the -ADAH hardware/firmware revision designation) may be considered as an interim alternative in non-IRT applications. However, for IRT-class deterministic performance and the specific hardware revision 02.00.00 / firmware 02.05.03 feature set, the EPXPNS001-ADAH is the definitive specification. Contact our team for availability and cross-reference validation before substitution in safety-critical applications.

Q6: What commissioning tools are required to configure the EPXPNS001-ADAH in a new PROFINET network?
Configuration can be performed via the MicroUSB 2.0 interface using a standard PC and the Emerson PAC Machine Edition (PME) engineering software, or via the built-in web server over Ethernet. The GSDML device description file is required for integration with third-party PROFINET controllers (e.g., Siemens TIA Portal). No proprietary hardware tools are needed, significantly reducing retrofit commissioning costs.
