Emerson A6500-RC1 Service-Ready Spare Part for Industrial Maintenance

Emerson A6500-RC1 Service-Ready Spare Part for Industrial Maintenance

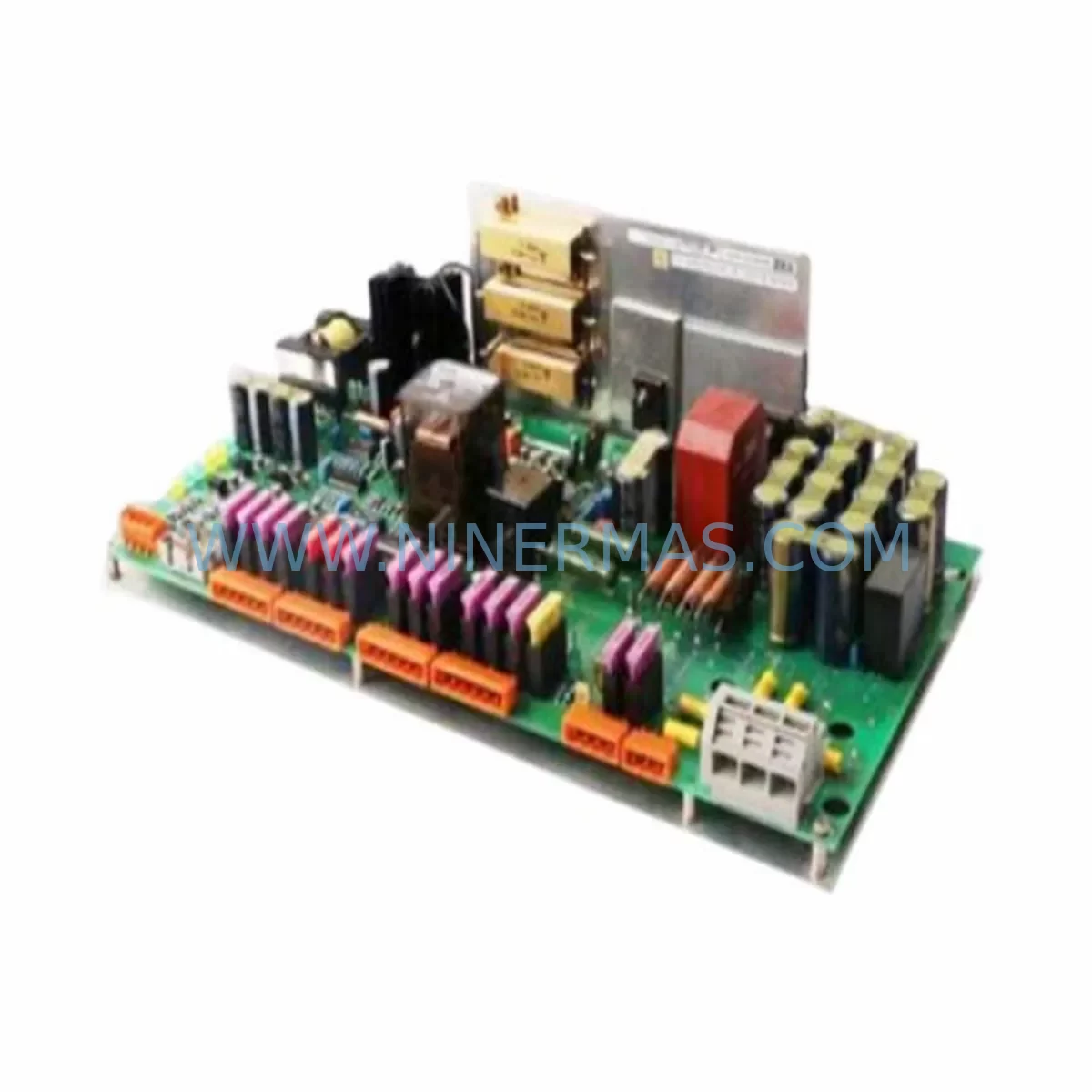

The Emerson A6500-RC1 is a redundancy control card designed for use within the Emerson Ovation Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, water treatment, and continuous manufacturing facilities worldwide. As aging Ovation systems enter extended lifecycle phases, maintaining a verified, service-ready stock of the A6500-RC1 is a critical element of any plant’s spare parts strategy.

Unplanned downtime caused by a failed redundancy card can cascade rapidly across a control loop, triggering process shutdowns, safety interlocks, and costly production losses. The A6500-RC1 directly governs controller redundancy switching — when the primary controller experiences a fault, this card manages the bumpless transfer to the standby unit. Without a healthy A6500-RC1 in place, your redundancy architecture is effectively disabled, leaving the system exposed to single-point failure risk.

At NINERMAS, every A6500-RC1 unit is sourced from verified supply channels, inspected against original Emerson specifications, and tested prior to shipment. Each unit ships with a 12-month warranty, full traceability documentation, and is packaged in anti-static ESD-safe materials to prevent transit damage. We support urgent same-day dispatch for critical breakdown orders and maintain long-term supply agreements for procurement teams managing multi-year maintenance contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the A6500-RC1, the scope of inspection should extend well beyond the card itself. The redundancy card operates as part of a tightly integrated controller assembly, and a thorough site review during the same maintenance window significantly reduces the risk of repeat callouts.

Begin by verifying the health of the Emerson A6500-PS1 or A6500-PS2 power supply module that feeds the controller chassis. A degraded power supply is a common root cause of intermittent redundancy faults and may have contributed to the A6500-RC1 failure in the first place. Check output voltage rails under load and inspect capacitor condition if the unit has been in service for more than five years.

Next, inspect the Ovation controller backplane for signs of corrosion, bent connector pins, or thermal stress on the card edge connectors. The A6500-RC1 relies on clean backplane communication to execute bumpless transfer; any impedance on the bus can cause false redundancy alarms or delayed switchover. While the backplane is accessible, also verify the seating and firmware revision of the A6500-CP1 or A6500-CP2 main processor card — redundancy card firmware must be compatible with the processor revision.

For I/O integrity, audit the Ovation I/O modules connected downstream of the controller — particularly any A6500-DI, A6500-DO, A6500-AI, or A6500-AO series I/O cards that interface with field instruments. A redundancy switchover stress-tests the entire I/O scan cycle; marginal I/O cards that were previously stable may exhibit faults immediately after a switchover event.

Communication infrastructure should also be reviewed. Inspect the Ovation network interface card (NIC) and associated Ethernet switch ports on the plant control network. Redundancy switchover generates a brief burst of network traffic; overloaded or misconfigured switch ports can cause temporary loss of HMI visibility during the transition. If the system uses serial communication modules for legacy field device integration (e.g., Modbus RTU or HART pass-through), verify that these modules are not generating CRC errors that could mask a deeper wiring fault.

At the field wiring level, check terminal blocks and marshalling panels for loose terminations, especially on 24 VDC control circuits and analog signal loops. Vibration over time loosens screw terminals, and a loose connection on a critical input can trigger nuisance alarms that are incorrectly attributed to the redundancy card. Inspect signal isolators and barriers on intrinsically safe loops — these components age independently and can introduce signal drift that complicates fault diagnosis.

Finally, if the plant operates an Emerson Ovation HMI workstation running Ovation Operator Station software, confirm that the HMI is correctly configured to display redundancy status and that alarm setpoints for controller health are active. A well-configured HMI provides the earliest warning of a developing redundancy issue, giving maintenance teams time to schedule a planned replacement rather than responding to an emergency shutdown.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the standby controller is healthy and redundancy is in a faulted (not failed) state. Document the current primary/standby assignment. Download a configuration backup from the Ovation Engineering Workstation before touching any hardware.

Step 2 — Isolate and remove: Follow your site’s LOTO (Lockout/Tagout) procedure for the controller chassis. The A6500-RC1 is a hot-swap capable module in most Ovation configurations — verify this against your specific system revision before proceeding. If hot-swap is confirmed, the card can be replaced without shutting down the primary controller, eliminating process interruption entirely.

Step 3 — Install the replacement A6500-RC1: Insert the new card firmly into the backplane slot, ensuring the card edge connector is fully seated. The module’s LED indicators will cycle through a self-test sequence. Allow 60–90 seconds for the redundancy handshake to complete and for the Ovation system to recognize the new card.

Step 4 — Verify redundancy restoration: Confirm on the Ovation HMI that the redundancy status has returned to “Redundant — OK.” Perform a manual switchover test if your site procedures permit, to validate that bumpless transfer is functioning correctly with the new card installed.

Step 5 — Update maintenance records: Log the replacement in your CMMS with the new card’s serial number, installation date, and warranty expiry (12 months from NINERMAS ship date). Schedule the next inspection at the 12-month mark or at the next annual shutdown, whichever comes first.

This workflow applies to legacy Ovation system upgrades as well. If your site is migrating from an older A6500-series controller to a newer Ovation OCR1100 platform, the A6500-RC1 remains relevant during the transition period when mixed-generation hardware is operating in parallel. Maintaining a stock of both old and new redundancy cards during a phased migration prevents gaps in your spare parts coverage.

Spare Parts Support FAQ

Q1: Is the A6500-RC1 still available as a new original part, or only as refurbished stock?
NINERMAS sources A6500-RC1 units from verified industrial surplus and authorized distribution channels. Units are inspected, tested, and certified to original Emerson specifications. Where new-old-stock (NOS) units are available, these are prioritized. All units are covered by NINERMAS’s 12-month warranty and undergo pre-shipment functional testing. If your procurement policy requires a specific condition classification (new, refurbished, or tested-used), please specify this at the time of inquiry.

Q2: How do I confirm compatibility between the A6500-RC1 and my specific Ovation controller revision?
Compatibility depends on the firmware revision of your Ovation controller processor card and the Ovation software version running on your Engineering Workstation. Provide NINERMAS with your controller model number (e.g., OCR400 or OCR1100), the existing redundancy card part number if visible, and your Ovation software version. Our technical team will cross-reference this against known compatibility matrices and advise on any firmware alignment requirements before shipment.

Q3: What is included in the 12-month warranty, and what does it cover?
The NINERMAS 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and DOA (Dead on Arrival) units. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside the specified environmental parameters. In the event of a warranty claim, NINERMAS will arrange return logistics and provide a replacement unit or full refund at our discretion. Warranty period begins from the confirmed ship date.

Q4: Can NINERMAS support long-term supply agreements for the A6500-RC1 as part of a multi-year maintenance contract?
Yes. NINERMAS offers long-term supply agreements (LTSAs) for critical spare parts including the A6500-RC1. Under an LTSA, we reserve stock allocation, lock in pricing for the contract period, and guarantee delivery lead times. This is particularly valuable for power generation and water utility operators who must maintain regulatory compliance for spare parts availability. Contact our sales team at sale@ninermas.com to discuss volume commitments and contract terms.
