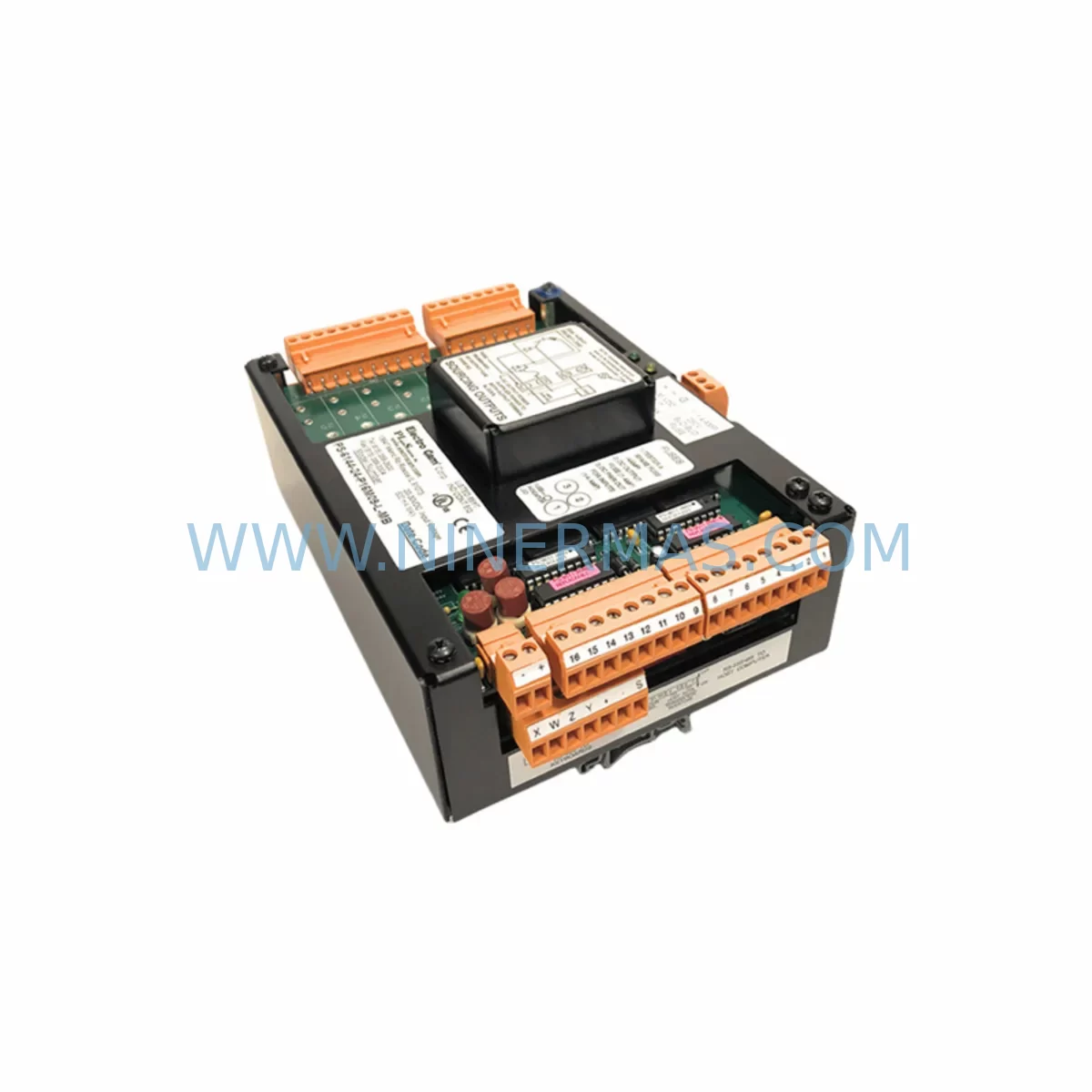

ELECTRO PS-6144-24-P16M09 Retrofit-Compatible Power Supply

ELECTRO PS-6144-24-P16M09 Retrofit-Compatible Power Supply for Legacy Automation Systems

The ELECTRO PS-6144-24-P16M09 is a 24 VDC rack-mounted power supply module engineered for the ELECTRO Series 6000 control platform. As original ELECTRO production lines transition toward next-generation architectures, the PS-6144-24-P16M09 remains a critical spare for facilities operating legacy programmable logic controllers, distributed I/O racks, and multi-slot backplane assemblies that were commissioned in the 1990s and early 2000s. NINERMAS maintains verified in-stock inventory of this module with a 12-month warranty on every unit shipped, supporting procurement teams that require long-lead-time assurance for planned shutdowns, emergency replacements, and lifecycle extension programs.

Industrial sites running ELECTRO Series 6000 racks frequently encounter the PS-6144-24-P16M09 as the sole power source for a populated backplane carrying analog input modules, digital output modules, and high-speed counter cards. When this supply reaches end-of-life or fails unexpectedly, the entire rack loses power, halting production. Sourcing a verified replacement from a stocked distributor like NINERMAS eliminates the multi-week lead time associated with factory-direct orders for discontinued components and allows maintenance teams to restore operations within a single planned maintenance window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the PS-6144-24-P16M09 begins well before the physical swap. Maintenance engineers should pull the rack’s original wiring diagram and confirm the AC input voltage range — typically 100–240 VAC auto-ranging — against the site’s panel feed. The terminal block layout on the PS-6144-24-P16M09 mirrors earlier ELECTRO power supply variants, so existing wire labels and ferrule sizes generally transfer without modification. However, if the cabinet was originally wired with an older PS-6144-24-P08M06 or a PS-6144-24-P12M08, the terminal pitch may differ by one position; always cross-reference the physical terminal map before energizing.

The backplane itself is a passive Series 6000 rack — available in 4-slot, 8-slot, and 16-slot configurations — and the power supply occupies the leftmost dedicated slot. When the rack also houses an ELECTRO CP-6143-A central processor module, the CPU’s battery-backed RAM retains the user program during the power supply swap, provided the battery module BM-6100 is serviceable. Engineers should verify battery voltage before beginning work; a depleted BM-6100 will cause program loss on power restoration, requiring a program download from the programming terminal via the MPI or PROFIBUS programming cable PG-6000-USB.

I/O modules seated in the rack — such as the SM-6321 digital input module, SM-6322 digital output module, and SM-6331 analog input module — do not require reconfiguration after a like-for-like power supply replacement. Their slot addresses are hardware-determined by backplane position and are read automatically by the CPU on startup. However, if the retrofit is part of a broader migration from a Series 6000 rack to a newer distributed I/O architecture using ET-200 remote I/O stations over PROFIBUS-DP, the engineering team must update the hardware configuration in the programming software, reassign I/O addresses, and perform a full I/O force test before releasing the line.

HMI panels connected to the Series 6000 controller — whether a legacy TP-270 touch panel or a more recent KTP-700 Basic — communicate over MPI or PROFIBUS and do not require screen updates for a power supply replacement. However, if the retrofit coincides with a controller upgrade, HMI project migration must be planned separately, including tag remapping and alarm reconfiguration. Signal isolators such as the PHOENIX CONTACT MINI MCR-SL series are often inserted between field sensors and the SM-6331 analog input module during retrofits to protect the new hardware from legacy wiring noise.

Installation space is rarely a constraint for a direct PS-6144-24-P16M09 replacement, as the module dimensions are fixed to the Series 6000 form factor. For cabinet upgrades where the rack is being relocated to a new enclosure, engineers should confirm DIN rail depth, ventilation clearance above and below the rack, and cable management channel width before committing to a panel layout. A pre-shipment functional test report is available from NINERMAS upon request for every PS-6144-24-P16M09 unit.

Downtime Control During System Migration

Minimizing unplanned downtime during a PS-6144-24-P16M09 replacement requires a structured pre-outage checklist. Before the scheduled maintenance window, the site engineer should upload the current PLC program from the CP-6143-A to a laptop running the appropriate programming software, creating a timestamped backup stored both locally and on a network share. This step is non-negotiable: even with a functional BM-6100 battery module, a verified program backup eliminates recovery risk if the CPU enters a fault state during power cycling.

During the outage, the sequence is: isolate AC feed to the cabinet, discharge residual voltage on the bus capacitors (allow 60 seconds after isolation), remove the failed PS-6144-24-P16M09 by releasing the front-panel locking lever, seat the replacement module firmly until the backplane connector engages, reconnect the AC terminal block, and restore power. Total hands-on time for a practiced technician is under 15 minutes. The rack will perform a self-test on power-up; the CPU’s RUN/STOP LED should transition to RUN within 10–15 seconds if the program is intact and all I/O modules are healthy.

For facilities that cannot tolerate any control interruption, a hot-standby architecture using a redundant CPU pair and a redundant power supply configuration is the long-term solution. In the interim, maintaining a stocked spare PS-6144-24-P16M09 on the shelf — sourced from NINERMAS with a 12-month warranty — is the most cost-effective insurance against an unplanned outage. NINERMAS supports long-term spare-parts programs with committed stock allocation for critical SKUs, allowing procurement teams to lock in availability 12–24 months in advance.

Retrofit Support FAQ

Q1: Is the PS-6144-24-P16M09 a direct replacement for earlier ELECTRO Series 6000 power supplies?
A: Yes. The PS-6144-24-P16M09 is mechanically and electrically compatible with the Series 6000 backplane and replaces earlier variants such as the PS-6144-24-P08M06 and PS-6144-24-P12M08 in most applications. Confirm output current capacity against your rack’s total module load before installation.

Q2: What commissioning steps are required after installation?
A: After seating the module and restoring AC power, verify that the CPU transitions to RUN mode, all I/O modules show green status LEDs, and the HMI displays live process values. Perform a short I/O force test on critical outputs before releasing the line to production. No firmware flashing or address configuration is required for a like-for-like replacement.

Q3: Does NINERMAS provide pre-shipment testing for this module?
A: Yes. Every PS-6144-24-P16M09 unit shipped by NINERMAS undergoes a functional power-on test and output voltage verification before dispatch. A test report is available upon request. All units carry a 12-month warranty from the date of shipment.

Q4: Can NINERMAS support long-term inventory commitments for this SKU?
A: Yes. NINERMAS offers spare-parts lifecycle programs for critical discontinued SKUs including the PS-6144-24-P16M09. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss stock reservation, lead-time guarantees, and multi-unit procurement pricing.
