DYNAX AT200-LP Retrofit-Compatible Control Module

DYNAX AT200-LP Retrofit-Compatible Control Module: Seamless Legacy System Upgrade

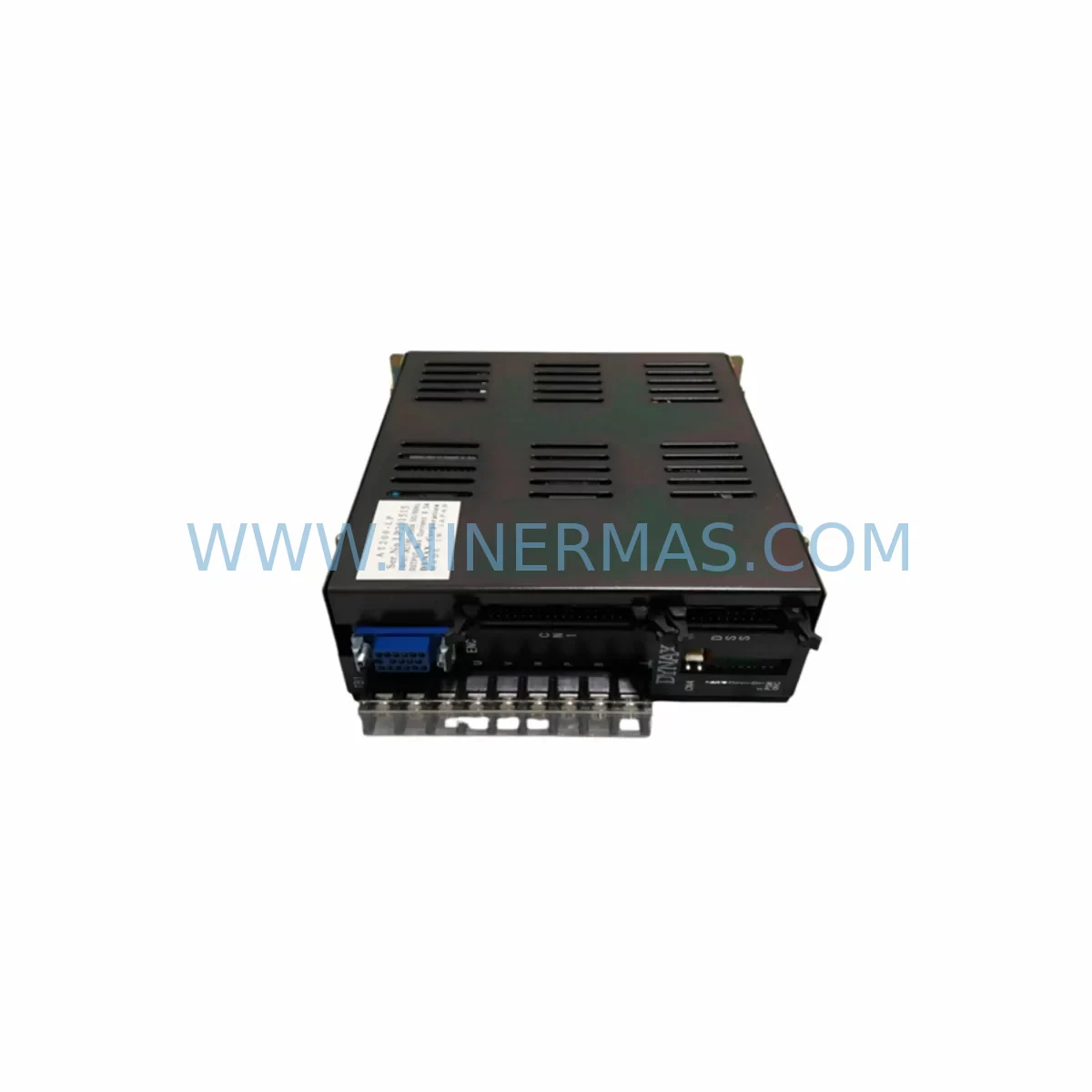

The DYNAX AT200-LP is a ruggedized control module engineered for demanding industrial environments and purpose-built to support legacy system modernization. Whether you are replacing a discontinued controller, upgrading an aging control cabinet, or migrating from an obsolete communication architecture, the AT200-LP delivers the electrical compatibility, mechanical form factor, and signal integrity required for a smooth, low-risk retrofit. NINERMAS maintains verified in-stock inventory of the AT200-LP with a 12-month warranty on every unit shipped.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DYNAX AT200-LP into an existing control architecture begins well before the physical swap. Start by auditing the control cabinet layout: measure available rail space, confirm the depth clearance for the module body, and identify the nearest 24 VDC power distribution point. If the existing 24 VDC power supply is already loaded near capacity — a common situation in legacy panels that have accumulated add-on modules over the years — plan to install a supplementary power supply module before commissioning the AT200-LP.

Terminal wiring is the next critical checkpoint. Legacy systems often use non-standard wire labeling or field-modified terminal blocks. Before disconnecting any field wiring, photograph the existing terminal layout and cross-reference each wire against the AT200-LP terminal assignment diagram. Pay particular attention to analog input channels, where signal polarity and shielding practices directly affect measurement accuracy. If the legacy system used a signal isolator or signal conditioner between field instruments and the controller, verify whether the AT200-LP’s input impedance is compatible or whether the isolator should be retained in the new configuration.

For systems that relied on a rack-mounted backplane — common in modular PLC architectures — confirm that the AT200-LP’s backplane connector matches the existing rack chassis slot. In many AT-series retrofit scenarios, the rack chassis and backplane bus terminator can be reused, significantly reducing the scope of the upgrade. If the rack is also being replaced, consider sourcing a compatible rack chassis and power supply module at the same time to avoid a second maintenance window.

Communication protocol migration deserves careful pre-planning. If the legacy system communicated over a proprietary serial bus and the new control platform uses Modbus RTU, PROFIBUS DP, or EtherNet/IP, a protocol gateway or communication converter will be required. Map the existing data register addresses and I/O variable names before modifying the PLC program. Where the system includes an HMI panel — whether a standalone operator terminal or a SCADA workstation — update the tag database to reflect any address changes introduced by the AT200-LP before switching over, so that HMI screens remain functional immediately after cutover.

I/O expansion is another common driver for AT200-LP retrofits. Aging systems frequently reach their original I/O limits as production lines evolve. The AT200-LP can serve as a replacement module within an expanded I/O rack alongside additional digital input modules, digital output modules, and analog input/output modules. When expanding I/O, update the PLC program’s I/O configuration table and perform a full I/O scan test in offline simulation mode before connecting live field devices.

Finally, if the retrofit involves replacing a programming cable or updating the engineering workstation software to communicate with the AT200-LP, ensure the programming environment version is compatible with the module firmware. Retain a verified backup of the original PLC program on a separate storage medium before making any program changes — this is the single most important step for protecting existing control logic during a retrofit.

Downtime Control During System Migration

Minimizing production downtime during an AT200-LP retrofit requires a structured cutover plan. Begin by scheduling the physical swap during a planned maintenance window, ideally when the production line is already offline for routine servicing. Prepare the replacement module, all required tools, terminal documentation, and a laptop loaded with the updated PLC program before entering the panel — every minute of unplanned delay in a live environment increases risk.

Where the process allows, perform a parallel run: install the AT200-LP alongside the legacy module and verify communication, I/O scanning, and HMI data integrity before cutting over field wiring. This approach is particularly valuable in systems where the legacy module is still partially functional, as it allows side-by-side comparison of output values and alarm states without interrupting the process.

For systems where a parallel run is not feasible, prepare a detailed step-by-step cutover checklist that covers: power isolation, terminal disconnection sequence, module removal, AT200-LP installation, terminal reconnection, power restoration, communication link verification, I/O scan confirmation, HMI screen validation, and sign-off by the responsible engineer. Assign a dedicated technician to monitor field instruments during the first 30 minutes of operation after cutover to catch any wiring discrepancies before they affect the process.

Protect the original control program by storing a verified backup on at least two separate media before the cutover date. If the retrofit requires program modifications — such as updated I/O addresses or revised communication parameters — test the modified program in an offline simulation environment and obtain engineering sign-off before loading it to the live controller. This discipline ensures that if an unexpected issue arises during commissioning, the team can restore the original program and return to the previous operating state within minutes rather than hours.

Retrofit Support FAQ

Q1: Is the DYNAX AT200-LP a direct drop-in replacement for my existing legacy module?
The AT200-LP is designed as a retrofit-compatible replacement for discontinued AT-series and compatible legacy control modules. In most cases, the mechanical form factor, terminal layout, and electrical interface allow direct substitution. However, we recommend verifying the power supply voltage, terminal pinout, and communication protocol against your existing system documentation before installation. NINERMAS technical support can assist with compatibility verification prior to order.

Q2: What pre-shipment testing does NINERMAS perform on the AT200-LP?
Every DYNAX AT200-LP unit shipped by NINERMAS undergoes functional verification prior to dispatch, including power-on testing, I/O channel verification, and communication interface check. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery. If a unit exhibits any defect within the warranty period, NINERMAS will arrange replacement or repair at no additional cost.

Q3: Can the AT200-LP be used in a system that has already been partially upgraded to a newer communication protocol?
Yes, provided the communication interface of the AT200-LP matches the protocol used by the upgraded segment of your system. In mixed-protocol environments — for example, where part of the system has migrated to Modbus TCP while legacy segments still use RS-485 serial — a protocol gateway can bridge the two networks. NINERMAS can advise on suitable gateway options based on your specific architecture.

Q4: What is the typical lead time and stock availability for the AT200-LP?
NINERMAS maintains dedicated inventory of the DYNAX AT200-LP to support urgent retrofit and spare-parts requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity procurement or long-term spare-parts programs, NINERMAS offers stock-commitment arrangements to guarantee supply continuity over a 12-month or multi-year horizon. Contact our sales team to discuss your specific volume and scheduling requirements.
