Danfoss 130B6016 DT/7 Service-Ready Spare Part for Industrial Maintenance

Danfoss 130B6016 DT/7 Service-Ready Spare Part for Industrial Maintenance

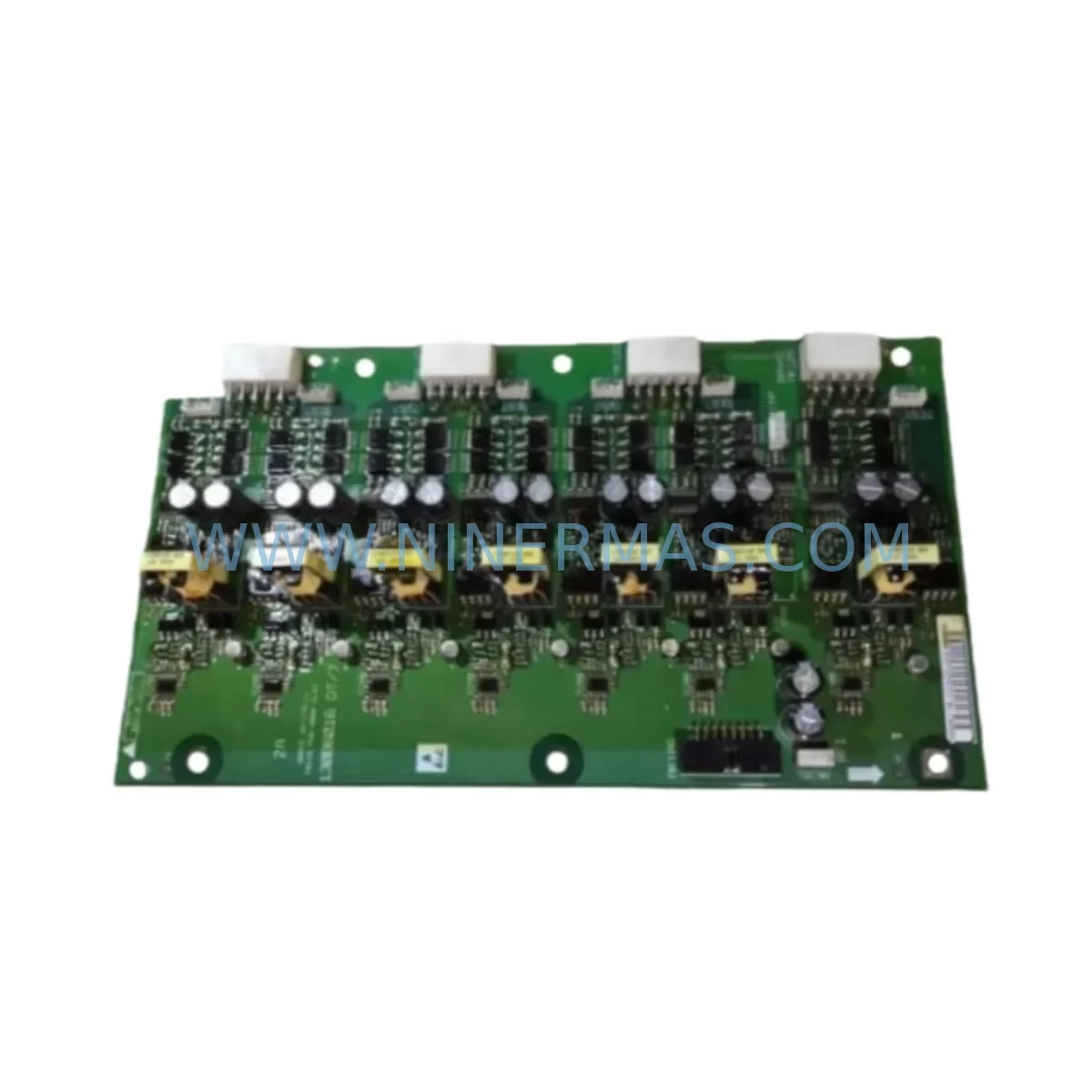

The Danfoss 130B6016 DT/7 is an original control card designed for the Danfoss VLT series of variable frequency drives (VFDs). In industrial environments where unplanned downtime translates directly into production loss and revenue impact, having a verified, service-ready spare on hand is not optional — it is a core element of any responsible maintenance strategy. This component serves as the central processing and signal management board within the VLT drive platform, governing motor control logic, I/O communication, and parameter management across a wide range of industrial applications including conveyor systems, pump stations, HVAC installations, compressor lines, and automated production cells.

The 130B6016 DT/7 is engineered to meet the demanding requirements of continuous industrial operation. Whether you are managing a scheduled annual overhaul, responding to an emergency fault condition, or building out a preventive maintenance spare parts inventory, this control card provides the compatibility, reliability, and traceability that maintenance engineers and procurement teams require. Each unit supplied by NINERMAS is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty — giving your team the confidence to proceed with replacement without extended lead-time risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a VLT drive control card such as the 130B6016 DT/7 is identified as the root cause of a drive fault — whether through diagnostic fault codes, parameter loss, or communication failure — the replacement process should be treated as an opportunity to audit the surrounding electrical system. Experienced maintenance engineers understand that a failed control card rarely exists in isolation; adjacent components are often subject to the same thermal cycling, voltage transients, and environmental stress that caused the original failure.

During the replacement of the 130B6016 DT/7, your team should inspect and, where appropriate, replace or test the following associated components: the Danfoss VLT power card (which interfaces directly with the control card and is subject to DC bus voltage stress), the 24V internal power supply module that feeds the control logic, and the gate drive card responsible for IGBT switching signals. If the drive is integrated into a fieldbus network, verify the integrity of the FC communication option card (such as the Profibus, DeviceNet, or EtherNet/IP option module) and confirm that the RS-485 termination resistors and shielded communication cables are undamaged.

On the I/O side, inspect the digital input terminal block wiring for signs of insulation breakdown or loose terminations, and verify that analog input signal cables are properly shielded and grounded. If the drive controls a motor through an output filter or dV/dt reactor, check those passive components for signs of overheating. The brake resistor connection and associated wiring should also be verified if dynamic braking is part of the application.

For cabinet-level maintenance, inspect the control panel (LCP — Local Control Panel) for display integrity and keypad response, as LCP faults are sometimes misdiagnosed as control card failures. Check the EMC filter and input fuses or circuit breakers for continuity and correct rating. If the installation includes a Danfoss VLT I/O option module for expanded digital or relay outputs, verify its seating and connector integrity during the control card swap. Relay output modules and signal isolators in the same control cabinet should be inspected for contact wear and calibration drift, particularly in high-cycle applications.

For facilities managing aging VLT installations — particularly those running drives manufactured more than eight to ten years ago — it is advisable to maintain a structured spare parts kit that includes the 130B6016 DT/7 control card alongside a spare LCP panel, a set of input/output terminal blocks, a replacement fan assembly for the drive heatsink, and at minimum one spare power card. This approach significantly reduces mean time to repair (MTTR) and supports production continuity without dependence on emergency procurement lead times.

Site Replacement Workflow

Replacing the Danfoss 130B6016 DT/7 in the field follows a structured procedure that minimizes risk to the drive, the connected motor, and the wider control system. Before beginning, ensure the drive is fully de-energized and that DC bus voltage has discharged to a safe level — this typically requires a minimum of four minutes after mains disconnection for standard VLT frame sizes. Upload the existing drive parameter set using the LCP copy function or a PC-based tool such as MCT 10 Set-up Software before removing the old control card, as parameter data may not be retained during the swap.

Remove the LCP panel and any option modules installed in slots A, B, or C before extracting the control card. The 130B6016 DT/7 is secured by a retaining clip system — release the clips carefully to avoid damaging the connector interface on the power card below. Install the replacement card, reseat all option modules, and reconnect the LCP. On first power-up, restore the saved parameter set and verify that all I/O assignments, motor data, and fieldbus node addresses are correctly loaded. Perform a no-load test run before reconnecting the mechanical load, and confirm that all fault history codes have been cleared and that the drive responds correctly to start/stop commands from the control system.

This workflow applies equally to direct like-for-like replacement of the 130B6016 DT/7 and to cross-version upgrades where an older DT revision is being replaced with the current DT/7 variant. In cross-version scenarios, review the Danfoss VLT service bulletin for any parameter mapping differences between revisions before restoring the saved parameter file.

Spare Parts Support FAQ

Q1: Is the 130B6016 DT/7 compatible with all VLT FC-series drive frame sizes?
The 130B6016 DT/7 control card is designed for specific frame sizes within the Danfoss VLT FC-series platform. Compatibility depends on the drive’s power rating and frame designation. Please provide your drive’s full nameplate data — including frame size, power rating, and existing control card revision — when placing your order so our technical team can confirm direct compatibility before shipment.

Q2: What pre-shipment testing is performed on the 130B6016 DT/7 before dispatch?
Every 130B6016 DT/7 unit supplied by NINERMAS undergoes functional verification prior to dispatch. This includes power-on testing, communication interface checks, and visual inspection for physical damage or component anomalies. Units that do not pass inspection are not shipped. A test report is available upon request for customers with quality assurance documentation requirements.

Q3: Can NINERMAS support long-term or blanket order procurement for the 130B6016 DT/7?
Yes. NINERMAS supports long-term supply agreements and blanket purchase orders for the 130B6016 DT/7 and related Danfoss VLT spare parts. This is particularly valuable for facilities managing multiple VLT drive installations or operating in industries where spare parts availability is a critical risk factor. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs.

Q4: What does the 12-month warranty cover for the 130B6016 DT/7?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical mishandling, or use outside the component’s specified operating parameters. In the event of a warranty claim, NINERMAS will arrange for inspection and, where the claim is validated, provide a replacement unit or credit. Our team will work with you to minimize any disruption to your maintenance schedule during the claims process.
