DALSA VA2-03-C11-1 Safety-Reliable Vision for Critical Sites

DALSA VA2-03-C11-1 Safety-Reliable Vision for Critical Control Sites

The DALSA VA2-03-C11-1 is a ruggedized, high-performance machine vision appliance engineered for deployment in the most demanding industrial environments. Designed to deliver consistent, accurate visual inspection and process monitoring in continuous production lines, critical interlock systems, and high-electromagnetic-interference (EMI) control cabinets, this vision module represents a cornerstone of safety-driven automation strategy. Where unplanned downtime, signal drift, or control interruption can result in catastrophic consequences — in petrochemical plants, power generation facilities, mining operations, or metallurgical processing lines — the VA2-03-C11-1 provides the visual intelligence and operational resilience that safety engineers and maintenance teams depend on.

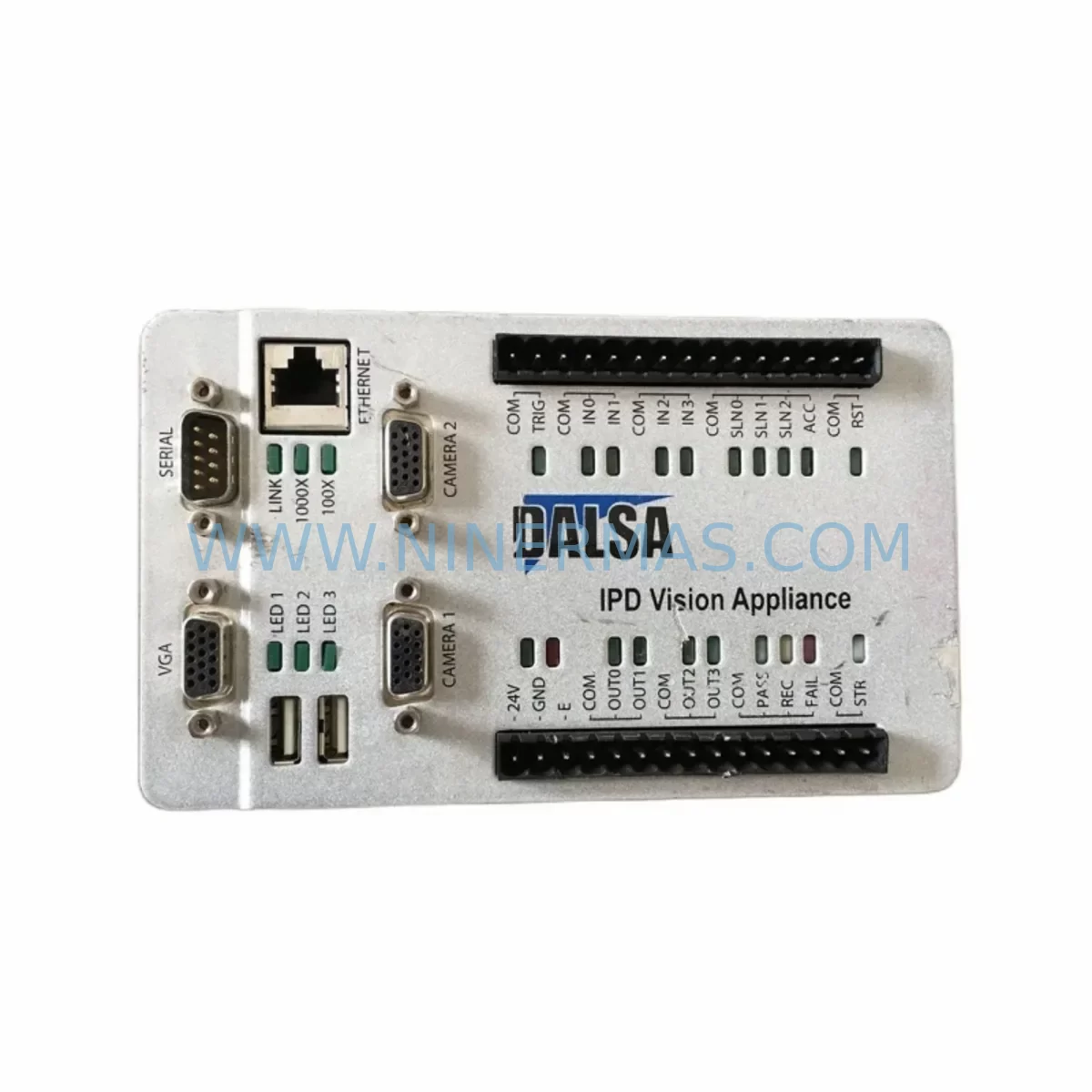

Built on Teledyne DALSA’s proven Vision Appliance (VA) platform, the VA2-03-C11-1 integrates a compact, fanless design with industrial-grade optics and onboard image processing. Its sealed enclosure and robust construction make it inherently resistant to dust ingress, moisture, vibration, and thermal cycling — conditions that routinely compromise standard vision hardware. The result is a vision system that maintains calibration integrity and inspection accuracy across extended operational cycles without requiring frequent recalibration or manual intervention.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the DALSA VA2-03-C11-1 within a safety-critical control cabinet architecture requires a holistic approach to risk reduction. The vision module does not operate in isolation — its reliability is directly influenced by the quality and stability of the surrounding control infrastructure. In high-stakes environments, the VA2-03-C11-1 is most effective when integrated alongside a robust suite of complementary industrial components.

Power supply stability is foundational. Pairing the VA2-03-C11-1 with a Phoenix Contact QUINT 24VDC power supply ensures clean, regulated power delivery even during grid fluctuations or surge events, preventing the image processor from experiencing brownout-induced resets that could cause false rejection signals or missed defect detections. For applications where power redundancy is mandatory, a Weidmuller PRO MAX redundancy module provides seamless switchover without interrupting the vision cycle.

Network communication integrity is equally critical. The VA2-03-C11-1’s GigE Vision output must traverse a deterministic, low-latency network. A Hirschmann RS20 managed industrial Ethernet switch, configured with VLAN segmentation and QoS prioritization, ensures that vision data packets are not delayed or dropped due to competing traffic from SCADA systems or HMI terminals. In facilities where the control network interfaces with a Siemens S7-1500 PLC or an Allen-Bradley 1756 ControlLogix system, proper EtherNet/IP configuration ensures that inspection pass/fail signals are delivered to the safety PLC within the required cycle time.

Safety interlock integrity depends on the reliability of the entire signal chain. Where the VA2-03-C11-1 feeds inspection results into a safety relay circuit, a Pilz PNOZ X safety relay or equivalent SIL-rated device should be used to process the output signal, ensuring that a vision system fault does not inadvertently allow a non-conforming product to pass through a critical checkpoint. Signal conditioning modules from Weidmuller or Phoenix Contact can further isolate the vision system’s I/O from high-voltage control circuits, preventing ground loops and EMI-induced signal corruption.

For applications involving the companion DALSA VA2-03-C21-1 (higher resolution variant) or the DALSA VA2-07-C11-1 (wide-field variant), the same cabinet architecture applies, enabling a scalable multi-camera inspection system with a unified communication backbone. Rittal climate control units installed within the control cabinet maintain the thermal environment within the VA2-03-C11-1’s specified operating range, preventing heat-related processing errors during peak production periods.

Critical Industrial Safety Applications

The DALSA VA2-03-C11-1 is deployed across a broad spectrum of safety-critical industrial sectors where visual inspection and process monitoring directly impact operational safety and product integrity.

In petrochemical and refinery facilities, the VA2-03-C11-1 monitors valve positions, seal integrity, and pipeline joint conditions in areas where human access is restricted due to hazardous atmospheres. Its IP67-rated enclosure and EMC compliance make it suitable for Zone 2 adjacent installations where explosive dust or vapor may be present.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the vision module performs continuous inspection of conveyor systems, turbine blade surfaces, and electrical insulator conditions, providing early warning of mechanical degradation before it escalates to a forced outage.

In underground mining operations, the VA2-03-C11-1 is used for conveyor belt tear detection, ore grade classification, and personnel safety zone monitoring. Its vibration-resistant design ensures reliable operation despite the constant mechanical shock inherent to mining environments.

In water and wastewater treatment plants, the vision system monitors filtration membrane integrity, chemical dosing equipment, and pump seal conditions, supporting regulatory compliance and preventing contamination events.

In metallurgical and steel processing facilities, the VA2-03-C11-1 performs surface defect detection on hot-rolled and cold-rolled products, identifying cracks, inclusions, and dimensional deviations at production line speeds. Its thermal tolerance ensures stable performance in the high-ambient-temperature environment of a rolling mill.

In port and marine logistics, the vision module supports container code reading, cargo damage assessment, and crane positioning verification, reducing the risk of misloaded or damaged cargo entering the supply chain.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DALSA VA2-03-C11-1?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions. NINERMAS provides direct warranty support, including advance replacement for critical applications where extended downtime is not acceptable. Warranty claims are processed with documented failure analysis and traceable repair records.

Q2: What pre-shipment testing is performed on the VA2-03-C11-1?
Every unit dispatched by NINERMAS undergoes a full functional verification test, including image acquisition validation, communication interface testing, and power input range verification. A burn-in cycle is performed to screen for early-life component failures before the unit leaves our facility. A test report is available upon request for quality-critical procurement processes.

Q3: Is the DALSA VA2-03-C11-1 compatible with existing Teledyne DALSA vision software and third-party SCADA systems?
Yes. The VA2-03-C11-1 is compatible with Teledyne DALSA’s iNspect and Sherlock vision software platforms. Its GigE Vision interface and standard industrial communication protocols (Modbus TCP, EtherNet/IP) ensure integration with major SCADA, DCS, and PLC platforms including Siemens, Rockwell Automation, and Schneider Electric systems. Compatibility verification is recommended for legacy control architectures.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the VA2-03-C11-1?
NINERMAS maintains dedicated inventory of the DALSA VA2-03-C11-1 and its compatible variants to support long-term spare parts programs for industrial facilities. We provide procurement planning support, including lead time forecasting and buffer stock recommendations, to ensure that critical vision system components are available when needed — minimizing the risk of extended downtime due to parts unavailability.
