Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the Bently Nevada PWB78434-01C represents far more than a passive interconnect board — it is the structural and communicative backbone of the entire 3300 Series Distributed Control System rack assembly. In rotating machinery protection environments, where milliseconds of signal latency can translate into catastrophic equipment failure, this component serves as the central data highway that binds every monitor module into a coherent, real-time Process Control network. The PWB78434-01C enables synchronized power distribution and high-speed serial communication across up to 24 monitor slots, making it indispensable in any DCS Hardware configuration that demands zero-compromise reliability.

What distinguishes this Revision C assembly from earlier iterations is its enhanced Fieldbus compatibility and improved EMI shielding architecture — two critical upgrades that extend its operational lifespan in electrically noisy industrial environments. Engineers managing Legacy Components within aging 3300 rack systems will find that the PWB78434-01C integrates without firmware modification, offering a seamless upgrade path that avoids costly system-wide replacements. Its multi-layer PCB construction, combined with gold-plated edge connectors, ensures signal integrity even after decades of continuous operation in high-vibration, high-temperature plant conditions.

Original stock of the PWB78434-01C is increasingly scarce. As Bently Nevada transitions its product portfolio, Factory Sealed units of this model have become a Critical Part for Industry Safety — particularly for facilities that cannot afford the downtime associated with full system migration. Securing verified original inventory now is the most cost-effective strategy for long-term maintenance planning.

Key Technical Highlights

Factory Sealed Condition — Every unit ships in original manufacturer packaging, untouched and fully tested.
High-Speed Data Highway — Serial communication backbone supports real-time data acquisition from all connected monitor modules simultaneously.
Redundancy-Ready Architecture — Designed to support redundant power bus configurations, minimizing single-point failure risk in critical SIS environments.
Stability Under Extreme Conditions — Conformal coating and integrated EMI/RFI shielding ensure consistent performance from -30°C to +65°C.
Hot-Swap Capability — Engineered for live rack insertion, enabling maintenance without full system shutdown — a decisive advantage in 24/7 production facilities.
Fieldbus Protocol Support — Compatible with standard industrial Fieldbus architectures, enabling integration into modern SCADA and DCS supervisory layers.

Vertical Industry Applications

Petrochemical & Refinery Operations: In high-stakes refinery environments, unplanned downtime on rotating equipment — compressors, pumps, turbines — can cost millions per hour. The PWB78434-01C provides the reliable backplane infrastructure that keeps vibration monitoring systems online continuously, enabling predictive maintenance before failures escalate.

Oil & Gas Offshore Platforms: Offshore installations demand components that withstand salt air, humidity, and mechanical shock. This backplane’s conformal coating and robust PCB construction make it a preferred choice for platform engineers managing remote, hard-to-service machinery protection systems.

Mining & Heavy Industry: Crushing, grinding, and conveyor drive systems generate intense vibration and electrical noise. The PWB78434-01C’s EMI shielding and stable power distribution ensure that monitoring data remains accurate even in the harshest mining environments, reducing false trips and unplanned stoppages.

Power Generation — Steam & Gas Turbines: Turbine protection is non-negotiable in power plants. This backplane module supports the full suite of 3300 Series monitors required for comprehensive turbine health surveillance, from shaft vibration to axial position, all synchronized through a single, reliable data backbone.

Marine Propulsion Systems: Vessel operators rely on continuous vibration monitoring to detect early-stage bearing wear and shaft misalignment. The PWB78434-01C’s compact, rack-integrated design fits within space-constrained marine control cabinets while delivering the same industrial-grade performance as land-based installations.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every PWB78434-01C unit supplied through our network undergoes a rigorous multi-stage verification process before dispatch. We source exclusively from authorized distribution channels and certified surplus inventories, ensuring that each component is 100% Original — not refurbished, not counterfeit, not grey-market. Units arrive in Factory Sealed packaging with original manufacturer labels, batch codes, and date stamps intact for full traceability.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship from the date of delivery. Should a unit fail within the warranty period under normal operating conditions, we provide immediate replacement or full refund — no bureaucratic delays. For facilities facing Emergency Repair scenarios, we maintain dedicated fast-track inventory reserves with same-day dispatch capability via DHL Express, FedEx International Priority, and UPS Worldwide Express. Global delivery to major industrial hubs typically completes within 48-72 hours, ensuring your production line returns to full operation with minimal disruption.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the PWB78434-01C I receive is 100% original and not a counterfeit?

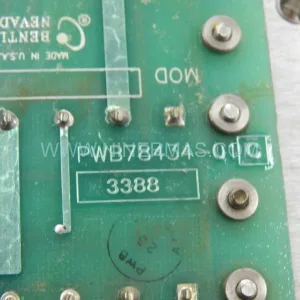

A: Authentic units carry Bently Nevada’s original part label with a traceable batch number and revision marking (“Rev C”) printed directly on the PCB silkscreen. The edge connectors should display uniform gold plating without discoloration or wear marks. We provide a Certificate of Authenticity and, upon request, third-party inspection reports for high-value orders.

Q2: Where can I obtain the official datasheet and installation manual for the PWB78434-01C?
A: The official Bently Nevada technical documentation for the 3300 Series backplane is available through Baker Hughes’s industrial documentation portal. Our technical team can also provide application notes and wiring diagrams upon order confirmation to support your engineering team’s installation planning.

Q3: Is the PWB78434-01C compatible with both older and newer 3300 Series rack configurations?
A: Yes. Revision C maintains full backward compatibility with all 3300 Series rack generations. It can directly replace Revision A and Revision B backplanes without requiring firmware updates, re-addressing, or hardware modifications to existing monitor modules.

Q4: What is the lead time for emergency orders, and which shipping carriers do you use?
A: In-stock units are dispatched within 24 hours of order confirmation. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express. Delivery to most global destinations completes within 2-5 business days. For ultra-urgent requirements, same-day dispatch with overnight courier options is available upon request.

Q5: Can the PWB78434-01C support mixed monitor configurations within the same rack?
A: Absolutely. The backplane is designed to accommodate any combination of 3300 Series monitor types — including vibration, proximity, speed, position, and temperature monitors — within a single rack. The data highway automatically negotiates communication parameters with each installed module.

Q6: Is this component suitable for use in Safety Instrumented Systems (SIS)?
A: The PWB78434-01C is deployed in SIS-adjacent applications where machinery protection monitoring feeds into safety logic solvers. While the backplane itself is a DCS Hardware component rather than a certified SIS element, its MTBF rating of >100,000 hours and redundancy-ready architecture make it a reliable foundation for high-availability safety monitoring configurations.
