Bently Nevada PR6423/13R-040 CON021 Retrofit Proximitor

Bently Nevada PR6423/13R-040 CON021 Retrofit Proximitor: Legacy-Compatible Upgrade for 3300 XL Vibration Monitoring Systems

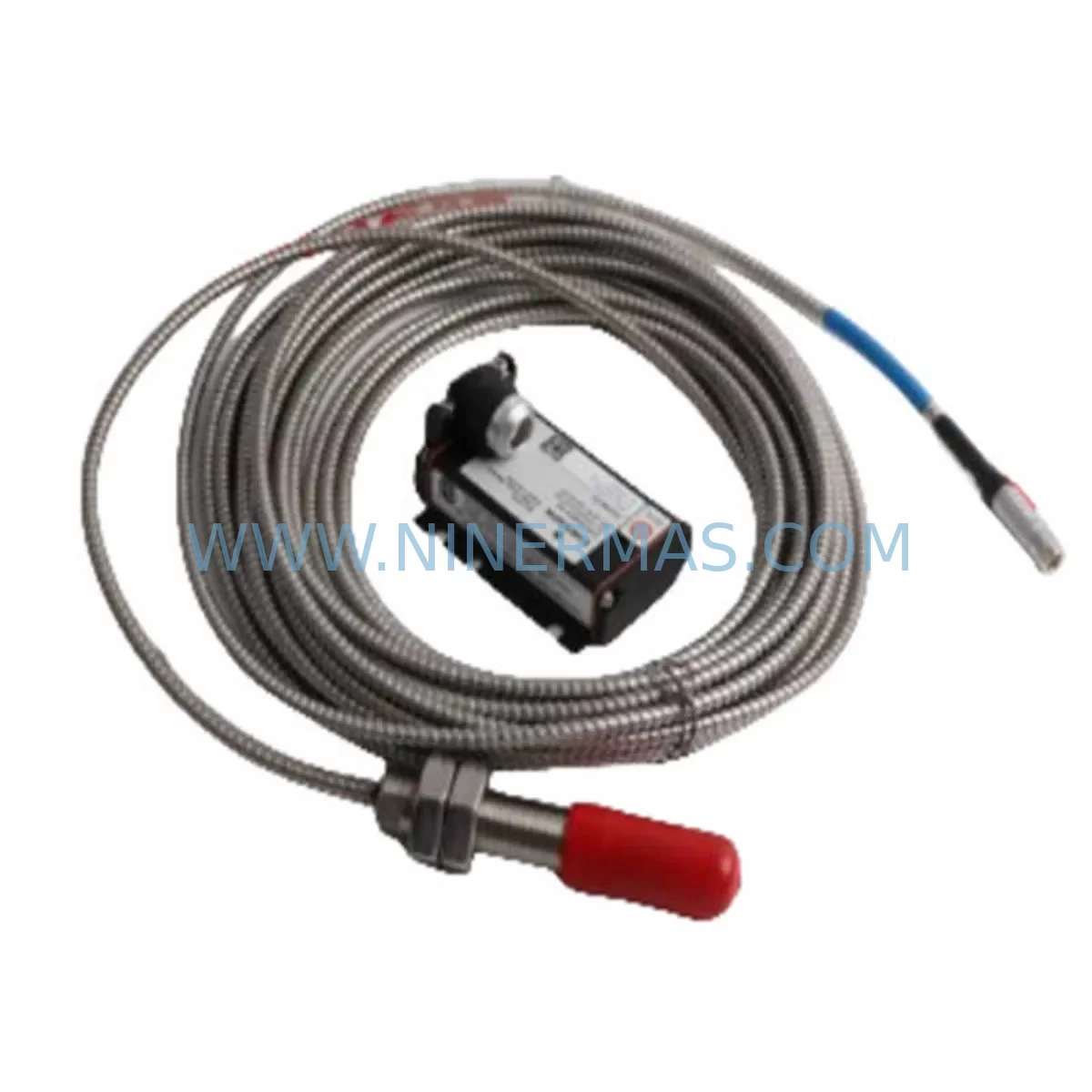

The Bently Nevada PR6423/13R-040 CON021 is a high-precision eddy-current Proximitor designed for continuous shaft vibration and position monitoring in critical rotating machinery. As a retrofit-compatible replacement for aging 3300 XL Series installations, this unit enables plant engineers and reliability teams to extend the operational life of existing monitoring infrastructure without requiring a full system overhaul. Whether you are replacing a failed unit, upgrading a legacy control cabinet, or executing a planned spare parts lifecycle program, the PR6423/13R-040 CON021 delivers the signal conditioning performance and dimensional compatibility required for seamless field installation.

Originally engineered for use with Bently Nevada 3300 XL Series monitor racks, this Proximitor interfaces directly with standard eddy-current probe assemblies and is compatible with the 3300 XL 8mm Proximity Transducer System. The unit outputs a calibrated DC voltage proportional to the gap between the probe tip and the observed shaft surface, providing the analog signal required by vibration monitors such as the 3300/16 Dual Vibration Monitor and the 3300/20 Radial Vibration Monitor. For installations where the original Proximitor has degraded or become unavailable through standard OEM channels, the PR6423/13R-040 CON021 represents a proven, field-validated replacement path.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a Proximitor in an operating plant requires careful coordination across multiple system layers. Before removing the PR6423/13R-040 CON021 from service, maintenance teams should document the existing gap voltage reading at the monitor front panel — typically displayed on the 3300/16 Dual Vibration Monitor or 3300/20 Radial Vibration Monitor — and record the alarm and danger setpoints configured in the monitor. These values will serve as the baseline for post-installation verification.

In many 3300 XL installations, the Proximitor is housed in a field junction box or a dedicated marshalling cabinet alongside other signal conditioning components. Engineers should confirm that the 3300 XL Power Supply (typically a -24 VDC rail) has sufficient capacity to support the replacement unit without affecting adjacent channels. Where multiple Proximitors share a common power bus, a load calculation should be performed before proceeding.

The PR6423/13R-040 CON021 uses a CON021 extension cable — a 5-metre armoured coaxial cable — to connect the probe body to the Proximitor housing. If the existing extension cable shows signs of insulation damage, connector wear, or impedance drift, it is advisable to replace the full probe assembly including the 3300 XL 8mm Proximity Probe and the matching extension cable simultaneously. Replacing only the Proximitor while retaining a degraded cable can introduce measurement error and shorten the service life of the new unit.

For control cabinets undergoing broader modernisation — for example, migrating from a legacy Bently Nevada 3300 Series rack to a newer System 1 condition monitoring platform — the PR6423/13R-040 CON021 can serve as an interim solution, maintaining continuous vibration monitoring on critical machines while the broader migration is planned and staged. In such scenarios, the Proximitor output feeds into the existing 3300/25 Keyphasor Monitor or 3300/46 Position Monitor as applicable, preserving the original signal chain without requiring changes to the DCS or safety system inputs.

Where the plant’s control architecture includes a Bently Nevada 3500 Series rack as the target migration platform, engineers should note that the 3500 system uses its own integrated signal conditioning and does not require a standalone Proximitor. In this case, the PR6423/13R-040 CON021 is best deployed as a like-for-like replacement within the existing 3300 XL infrastructure during the transition period, ensuring uninterrupted machinery protection until the 3500 rack is fully commissioned and accepted.

Signal isolation requirements should also be reviewed during retrofit planning. In installations where the Proximitor output is shared between the vibration monitor and a DCS analogue input card, a signal isolator or signal conditioner may be required to prevent ground loops and protect the monitor from external interference. This is particularly relevant in older control rooms where cable shielding practices may not meet current standards.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern when replacing a Proximitor on a running machine train. For critical rotating equipment — compressors, turbines, pumps — the preferred approach is to schedule the Proximitor replacement during a planned maintenance window, coordinating with operations to arrange a controlled shutdown of the monitored machine. Where a hot-swap is operationally required, the monitor channel should be placed in bypass mode (if supported by the 3300/16 or 3300/20 monitor configuration) before disconnecting the Proximitor, preventing a spurious trip signal from reaching the emergency shutdown system.

Before the replacement unit is connected, the probe gap should be set mechanically to the manufacturer’s recommended value — typically 1.0 mm to 1.5 mm for 8mm probes — using a feeler gauge or dial indicator. Once the PR6423/13R-040 CON021 is wired and powered, the gap voltage should be measured at the monitor terminal and compared against the documented as-found value. A deviation of more than ±0.5 VDC from the expected gap voltage indicates a wiring error, probe gap misalignment, or a probe/cable fault that must be resolved before returning the channel to service.

The original PLC or DCS programme logic does not require modification for a like-for-like Proximitor replacement, as the signal type and scaling remain identical. However, if the replacement is part of a broader I/O migration — for example, adding a Bently Nevada 3500/42M Proximitor I/O module to a new rack — the programme engineer should verify that the analogue input scaling, engineering unit conversion, and alarm logic in the control system reflect the new channel configuration. HMI faceplate displays referencing the vibration channel should also be reviewed to confirm that tag assignments and display ranges remain correct after the migration.

Pre-shipment functional testing is performed on every PR6423/13R-040 CON021 unit prior to despatch. Each unit is powered, loaded, and verified against its output specification before packaging. This reduces the risk of receiving a non-functional unit and supports the goal of completing the replacement within a single maintenance shift.

Retrofit Support FAQ

Q1: Is the PR6423/13R-040 CON021 a direct replacement for the original Bently Nevada unit?
Yes. The PR6423/13R-040 CON021 is a retrofit-compatible replacement for the original Bently Nevada Proximitor of the same part number. It maintains the same electrical interface, output characteristics, and physical form factor, allowing installation without modification to the existing probe, extension cable, or monitor wiring — provided the CON021 (5m) extension cable is in serviceable condition.

Q2: What checks should be completed before and after installation?
Before installation: document the existing gap voltage, alarm setpoints, and OK relay status. Confirm power supply voltage and polarity at the Proximitor terminals. After installation: verify gap voltage is within the linear range (-2 VDC to -18 VDC), confirm the OK LED is illuminated, and check that the monitor displays a valid vibration reading within expected limits. Record as-left gap voltage and setpoint confirmation in the maintenance log.

Q3: Does the unit ship with a functional test certificate, and what does the 12-month warranty cover?
Yes. Each PR6423/13R-040 CON021 is pre-shipment tested and ships with a functional test record. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are supported by our technical team at sale@ninermas.com.

Q4: What is the typical lead time, and do you maintain stock for urgent requirements?
We maintain inventory of the PR6423/13R-040 CON021 to support urgent plant requirements. Standard lead time for in-stock units is 3–7 business days to most destinations. For critical shutdown situations or expedited requirements, please contact us directly at +0086 187 5021 5667 to confirm availability and arrange priority despatch.
