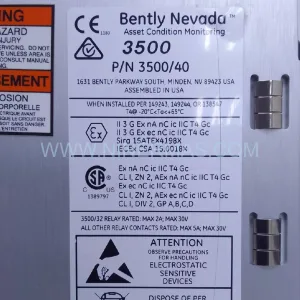

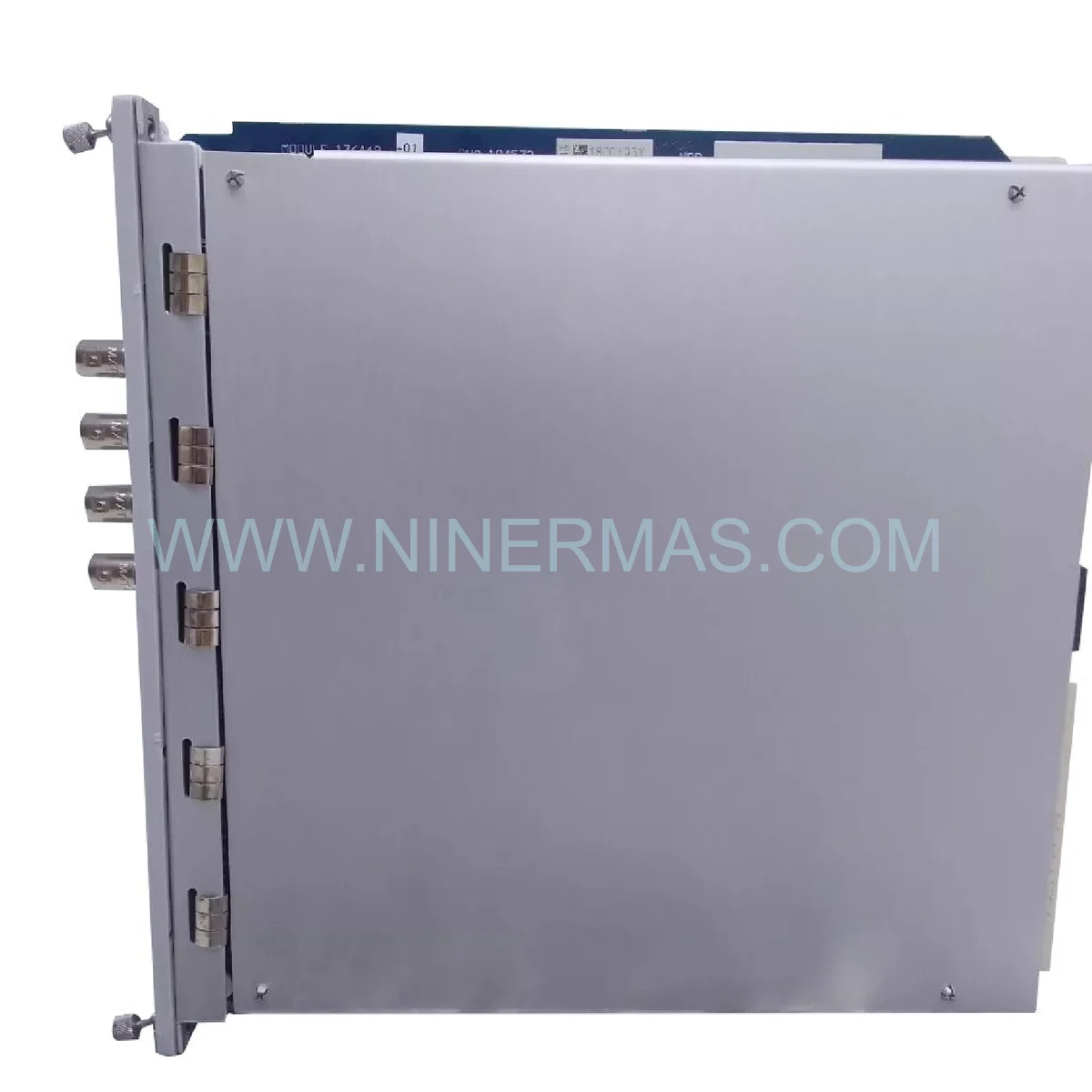

Bently Nevada 3500/40M 176449-01 Proximitor Monitor
Verify the part, confirm the platform family, and move straight into quotation with the right commercial details.
RFQ Ready
- SKU3500/40M 176449-01
- CategoryTSI & Rotating Machinery Monitoring
- BrandBently Nevada
- SupportAvailability, lead time, condition, and shipping coordination
How Buyers Usually Use This Page
- Confirm the exact part number and platform family before sending the quote request.
- Use direct email when quantity, condition, and destination are already defined internally.
- Switch to the broader brand or category archive when you need alternates nearby.
Series Navigation
Move through the most common platform families behind this part.
Product RFQ
Send this part directly for quotation.
Include quantity, required condition, destination country, and target delivery timing. Current reference: Bently Nevada 3500/40M 176449-01 Proximitor Monitor with SKU 3500/40M 176449-01.
Bently Nevada 3500/40M 176449-01 Proximitor Monitor Overview
The Bently Nevada 3500/40M Proximitor Monitor (176449-01) paired with the 125680-01 I/O module delivers precision vibration monitoring for critical rotating machinery. This 4-channel monitor accepts proximity transducer inputs and continuously compares dynamic vibration signals against user-configured alarm setpoints, ensuring optimal equipment protection and operational reliability.
Technical Specifications
- Model: 3500/40M 176449-01
- I/O Module: 125680-01 (4-channel)
- Input Type: Proximity transducer (eddy current sensors)
- Channels: 4 independent monitoring channels
- Measurement Range: Radial vibration, thrust position, differential expansion
- Compliance: API 670 machinery protection standards, ISO 20816 vibration severity
- Power Supply: 24 VDC via 3500 rack backplane
- Operating Temperature: -30 °C to +65 °C (-22 °F to +149 °F)
- Communication: Proprietary protocol via 3500 rack
- Mounting: Standard 3500 rack slot installation
Key Applications
Engineered for demanding industrial environments, the 3500/40M Proximitor Monitor excels in:
- Steam and gas turbine vibration monitoring
- Compressor shaft displacement measurement
- Pump bearing condition surveillance
- Generator rotor eccentricity detection
- Fan and blower imbalance monitoring
- Motor thrust position tracking
Advanced Features & Benefits
Multi-Parameter Monitoring: Simultaneously tracks radial vibration, axial position, and differential expansion across four channels, providing comprehensive machinery health insights.
Configurable Alarm Logic: User-defined Alert and Danger setpoints with adjustable time delays prevent nuisance trips while ensuring rapid response to genuine fault conditions.
Hot-Swappable Design: Field-replaceable modules enable maintenance without system shutdown, minimizing downtime and production losses.
Buffered Data Output: Continuous waveform capture supports root cause analysis and predictive maintenance strategies.
Common Technical Questions
Q: Is this monitor compatible with 3300 XL proximity probes?
A: Yes, the 3500/40M accepts standard 8mm and 11mm proximity probes from the Bently Nevada 3300 XL and 3300 NSv series with appropriate extension cables.
Q: Can I retrofit this into an existing 3500 rack?
A: Absolutely. The 3500/40M is backward-compatible with legacy 3500 racks and integrates seamlessly with System 1 condition monitoring software.
Q: What’s the difference between 176449-01 and other 3500/40M variants?
A: The 176449-01 designation specifies the internal firmware version and I/O module pairing. This configuration supports four full-scale channels with enhanced diagnostic capabilities.
Q: Does this include factory calibration certificates?
A: Yes, each unit ships with traceable calibration documentation and conforms to OEM specifications for immediate deployment.
Warranty & Support
Every Bently Nevada 3500/40M Proximitor Monitor includes a 12-month manufacturer warranty covering defects in materials and workmanship. Our technical support team provides installation guidance, configuration assistance, and troubleshooting resources to ensure optimal system performance.
Related Products
| Product | Description | Link |
|---|---|---|
| 3500/42 Proximitor/Seismic Monitor | Dual-channel monitor for combined vibration and seismic measurements | View Product |
| 3500/40M 176449-01 Proximitor Monitor | Standard 4-channel proximitor monitor for vibration analysis | View Product |
| 3500/40-01-00 Proximitor Monitor | Enhanced 4-channel monitor with advanced diagnostics | View Product |
Why Choose Industrial Control Hub?
We specialize in premium OEM-quality instrumentation for critical machinery protection. Every product undergoes rigorous quality assurance testing, ships with complete documentation, and is backed by expert technical support. Our global logistics network ensures fast delivery to your facility, minimizing lead times for urgent replacements.
