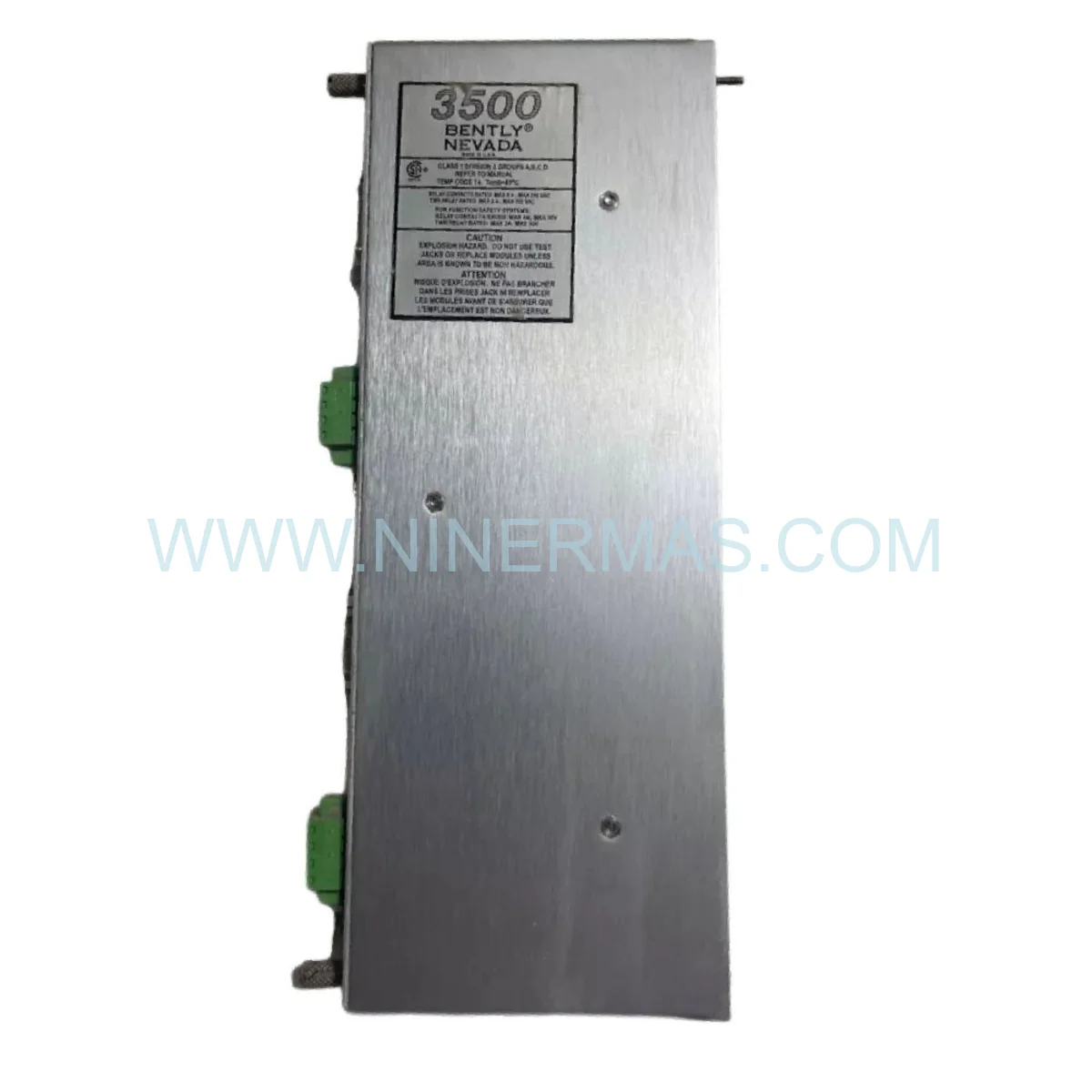

Bently Nevada 3500/25 126648-02 | Isolated Keyphasor I/O Module — Original Spare Parts

Bently Nevada 3500/25 126648-02 — Isolated Keyphasor I/O Module | Original Spare Parts

As a procurement manager sourcing critical components for turbomachinery protection systems, you need parts that perform without compromise. The Bently Nevada 3500/25 126648-02 is a factory-sealed, dual-channel Isolated Keyphasor I/O Module engineered for precision phase reference measurement within the Bently Nevada 3500 Series rack-based monitoring framework. This unit is 100% Brand New and Factory Sealed, sourced directly from authorized supply chains to guarantee authenticity and full compatibility with your existing PLC System and Control Module infrastructure.

Designed to address the most demanding signal integrity challenges in Industrial Automation environments, the 3500/25 126648-02 accepts two independent Keyphasor transducer inputs with full galvanic isolation — channel-to-channel and channel-to-ground — eliminating ground loop interference in electrically noisy plant environments. Whether you are maintaining rotating equipment in Oil & Gas refineries or Power Plants, this Original New module delivers the reliability your operations depend on. It is a proven Spare Parts solution for engineers who cannot afford downtime.

With compliance to API 670 machinery protection standards and seamless integration into the 3500 Series backplane, this module is the definitive choice for facilities requiring uncompromised phase reference accuracy. Contact our team today for pricing and availability.

Typical Application Scenarios

The 3500/25 126648-02 is deployed across a wide range of heavy industries where rotating machinery uptime is mission-critical:

• Oil & Gas: Phase reference monitoring for gas compressors and centrifugal pumps in upstream and downstream facilities, where unplanned shutdowns carry six-figure hourly costs.
• Power Generation: Steam and gas turbine synchronization in combined-cycle power plants, ensuring accurate speed and phase data for protection relay logic.
• Petrochemical Plants: Multi-shaft compressor trains requiring independent Keyphasor channels per rotor stage, supported by the dual-input architecture of this module.
• LNG Terminals: Cryogenic pump and expander monitoring where signal isolation is critical to prevent instrumentation cross-contamination.
• Marine & Offshore Platforms: Harsh-environment turbomachinery protection where the module’s -30°C to +65°C operating range and robust EMI/RFI immunity are essential.

Core Features & Technical Advantages

1. Dual Isolated Keyphasor Inputs: Two fully independent channels accept proximity probe Keyphasor transducer signals simultaneously, enabling redundant or multi-shaft monitoring configurations without additional hardware.
2. Galvanic Isolation Architecture: Channel-to-channel and channel-to-ground isolation eliminates ground loops and cross-talk — a Heavy-duty design requirement for electrically noisy industrial plants.
3. API 670 & ISO 20816 Compliance: Meets international machinery protection standards, ensuring regulatory acceptance in audited facilities worldwide.
4. Precision Signal Conditioning: Advanced analog front-end circuitry delivers clean, conditioned phase reference signals with minimal latency for real-time protection response.
5. Seamless 3500 Series Integration: Communicates via the proprietary Bently Nevada backplane protocol, enabling plug-and-play replacement in existing 3500 rack systems — no reconfiguration of the broader PLC System required.
6. Robust Industrial Build: Rated for continuous operation across a wide temperature range with enhanced EMI/RFI immunity, suitable for demanding plant environments.

Technical Specifications & Selection Guide

Selection Note: If your application requires only a single Keyphasor input channel, consider the 126648-01 variant. For applications demanding extended EMI immunity and dual-channel capability, the 3500/25 126648-02 is the recommended specification.

Logistics & Professional Service

• ✅ 2-Day Express Shipping: In-stock units dispatched within 1-2 business days via DHL, FedEx, or UPS to global destinations.
• ✅ 1-Year Warranty: Every 3500/25 126648-02 unit is covered by a comprehensive 12-month warranty against defects in materials and workmanship.
• ✅ EOL Legacy System Support: We specialize in sourcing End-of-Life (EOL) and obsolete Bently Nevada Control Module components, ensuring your legacy 3500 Series systems remain operational without costly platform migrations.
• ✅ Documentation Package: Datasheet, calibration certificate, and country-of-origin documentation available upon request to satisfy procurement compliance requirements.
• ✅ Global Export Compliance: All shipments handled with full export documentation; experienced in customs clearance for industrial Spare Parts across Asia, Europe, the Americas, and the Middle East.

FAQ — Frequently Asked Questions

Q1: Is the Bently Nevada 3500/25 126648-02 100% original and brand new?
A: Absolutely. Every unit we supply is 100% Original and Brand New, sourced from verified supply chains. We do not sell refurbished, repaired, or counterfeit components. A certificate of authenticity is available upon request.

Q2: What is the price of the 3500/25 126648-02, and do you offer volume discounts?
A: Our listed price reflects current market availability for this Original New module. For orders of 3 or more units, or for long-term blanket purchase agreements, please contact sale@ninermas.com directly — volume pricing and priority allocation are available for qualified procurement programs.

Q3: Can you provide the official Datasheet for the 126648-02?
A: Yes. The official Bently Nevada technical datasheet, installation manual, and wiring diagram for the 3500/25 126648-02 are available upon request. Contact our technical team with your inquiry and we will provide the documentation package within one business day.

Q4: What is the lead time if the unit is not in stock?
A: In-stock units ship within 1-2 business days. For out-of-stock scenarios, our global sourcing network typically locates and delivers the 3500/25 126648-02 within 3-7 business days. Rush procurement options are available for critical plant shutdowns.

Q5: Is this module compatible with all 3500 Series racks?
A: The 3500/25 126648-02 is designed for use within the standard Bently Nevada 3500 Series rack infrastructure. Compatibility with specific rack configurations (e.g., 3500/05, 3500/15 power supplies) should be verified against your system’s slot assignments. Our application engineers can assist with compatibility confirmation.

Q6: Do you provide country-of-origin certificates for import compliance?
A: Yes. Country-of-origin documentation (USA) is available for all 3500/25 126648-02 units, supporting import duty classification and customs clearance requirements in regulated markets.
