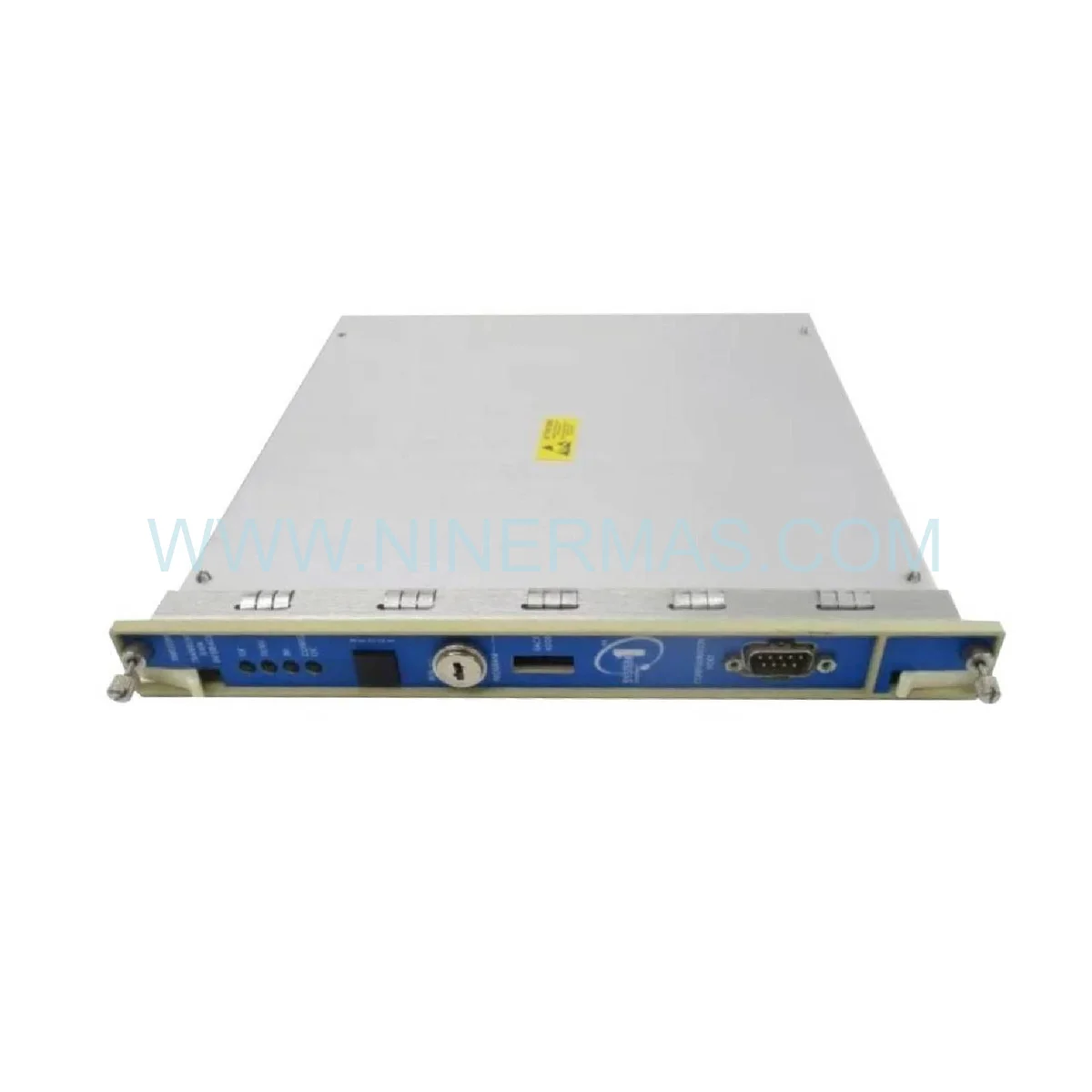

Bently Nevada 3500/22M 288055-01+146031-01 TDI Module — New & Original

Bently Nevada 3500/22M 288055-01+146031-01 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing rotating machinery assets, the Bently Nevada 3500/22M 288055-01+146031-01 stands as a cornerstone module for sustaining system availability in mission-critical protection architectures. Its transient data interface capability enables continuous, high-resolution waveform acquisition across multiple channels simultaneously — a decisive advantage when milliseconds of undetected vibration anomaly can cascade into catastrophic turbomachinery failure. Facilities operating steam turbines, gas compressors, or centrifugal pumps under API 670 compliance mandates rely on this module to maintain the diagnostic fidelity required for predictive maintenance programs and operational excellence.

In harsh industrial environments — including offshore platforms, petrochemical refineries, and power generation stations — the 3500/22M 288055-01+146031-01 demonstrates exceptional durability across an operating temperature range of -30°C to +65°C. Installation within a Bently Nevada 3500 Series rack demands strict attention to rack slot assignment, power sequencing, and communication bus configuration. Field engineers must verify firmware compatibility with the host rack’s System 1 software version prior to commissioning to ensure seamless integration and avoid data acquisition gaps during startup transients.

As production lines grow increasingly dependent on continuous condition monitoring, maintaining a certified spare of this module in your critical parts inventory is no longer optional — it is a fundamental pillar of any robust reliability strategy. EOL and legacy system operators particularly benefit from securing verified original stock to eliminate lead-time risk during unplanned outages.

Key Operational Features

High-Fidelity Transient Capture: Records multi-channel waveform data at full sampling rates during startup, shutdown, and alarm events — enabling root-cause analysis without operational interruption.
Redundancy-Ready Architecture: Designed for integration within redundant 3500 Series rack configurations, supporting high availability requirements in safety-instrumented systems.
Seamless System Integration: Compatible with Bently Nevada System 1 software and standard SCADA platforms via Modbus and proprietary rack interface protocols — minimizing process optimization disruption during upgrades.
API 670 & ISO 20816 Compliance: Meets international machinery protection standards, ensuring regulatory alignment for turbine control and compressor monitoring applications.
Buffered Data Storage: Retains multi-second waveform snapshots across all active channels, guaranteeing no critical transient event is lost during network communication delays.
Rack-Integrated Power Supply: Draws DC power directly from the 3500 Series rack backplane, eliminating external power wiring and reducing I/O module installation complexity.

Maintenance & Performance Benchmarks

The 3500/22M 288055-01+146031-01 is engineered to adapt across industrial network architectures of varying scale — from single-rack installations monitoring a standalone compressor train to enterprise-wide distributed control systems integrating dozens of 3500 Series racks across multiple plant areas.

In small-to-medium installations, the module operates as a dedicated transient recorder feeding data directly to a local System 1 workstation, providing site engineers with immediate access to waveform libraries for trending and alarm correlation. In large-scale architectures, it functions as a distributed I/O module node within a plant-wide process optimization network, transmitting structured data packets to centralized historians for cross-asset performance benchmarking.

Preventive maintenance intervals for this module typically align with annual rack inspection cycles. Key maintenance checkpoints include verifying channel calibration against known reference signals, inspecting backplane connector integrity, and confirming firmware version alignment with the current System 1 release. Mean Time Between Failures (MTBF) data for the 3500 Series platform consistently positions these modules among the most reliable automation components in continuous industrial service.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 3500/22M 288055-01+146031-01 dispatched from our facility is shipped in its original factory packaging, complete with factory calibration documentation and traceability records. For clients operating under strict asset management protocols, we provide full material certification upon request.

Original Factory Packaging: Modules are stored and shipped in ESD-safe, climate-controlled conditions to preserve component integrity from warehouse to installation site.
Same-Day Dispatch: In-stock units are eligible for same-day dispatch upon order confirmation before the daily cut-off time — minimizing downtime exposure for emergency replacement scenarios.
Global Supply for EOL & Legacy Modules: We maintain dedicated inventory of discontinued and end-of-life Bently Nevada automation components, providing a reliable sourcing channel for facilities unable to source through standard OEM distribution.
Worldwide Express Logistics: Partnered with DHL, FedEx, and UPS for priority international freight — with typical delivery windows of 3-7 business days to major industrial hubs globally.
Export Documentation: Full commercial invoice, packing list, and certificate of origin provided for customs clearance in all major import jurisdictions.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 3500/22M 288055-01+146031-01 in an existing 3500 rack?
A: Power down the rack following the approved lockout/tagout procedure. Insert the module into the designated slot per the rack configuration drawing. Reconnect power and verify the module’s LED status indicators confirm normal operation. Launch System 1 software to validate channel recognition and configure acquisition parameters per the site’s machinery protection specification.

Q2: Which firmware versions are compatible with this TDI module?
A: The 3500/22M 288055-01+146031-01 is compatible with Bently Nevada System 1 software v5.0 and later releases. It is strongly recommended to verify the host rack’s firmware baseline against the module’s hardware revision prior to installation to avoid communication handshake failures.

Q3: Can this module be used in a hot-swap configuration without shutting down the entire rack?
A: The 3500 Series platform supports certain hot-swap operations depending on rack configuration and safety system classification. Consult the Bently Nevada 3500 Series Rack Installation & Operation Manual and your site’s safety management system before performing any live module exchange.

Q4: How is the warranty claim process handled for this module?
A: In the event of a warranty claim within the 12-month coverage period, contact our technical support team with the module serial number, purchase order reference, and a description of the observed fault. We will coordinate return merchandise authorization (RMA), expedited replacement dispatch, and root-cause failure analysis documentation as required.

Q5: Is the 3500/22M backward-compatible with Bently Nevada 3300 Series racks?
A: No. The 3500/22M 288055-01+146031-01 is designed exclusively for the 3500 Series rack architecture and is not electrically or mechanically compatible with 3300 XL Series systems. Customers migrating from 3300 to 3500 platforms should consult our engineering team for a full system integration assessment.

Q6: What diagnostic data can be extracted from the module during a machinery trip event?
A: Upon a trip or alarm event, the module retains buffered multi-channel waveform snapshots captured at full sampling resolution. This data — accessible via System 1 — includes time-domain vibration waveforms, spectral analysis data, and event timestamps, providing the complete dataset required for post-trip root-cause analysis and insurance or regulatory reporting.
