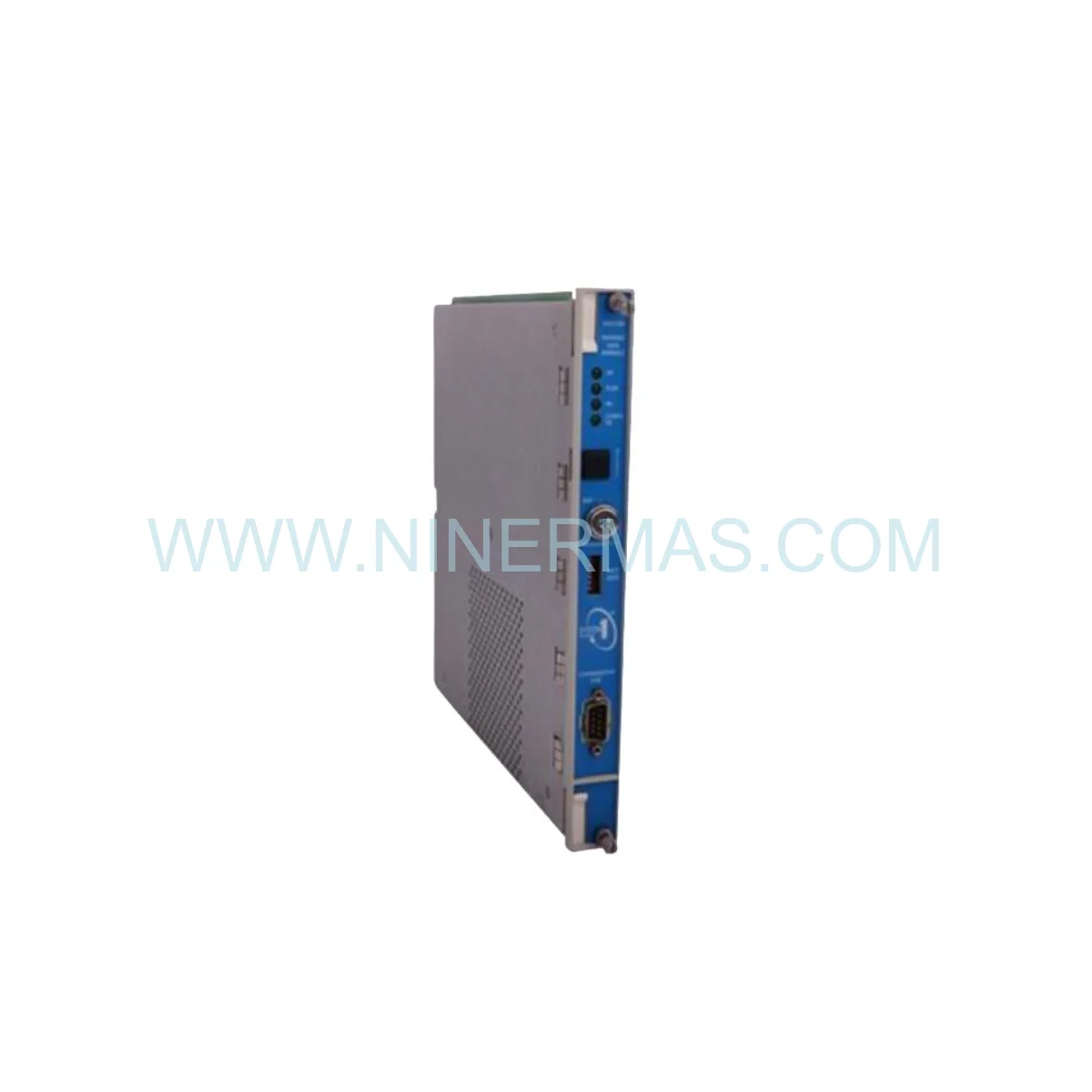

Bently Nevada 3500/22-01-03-00 TDI Module — New & Original in Stock

Bently Nevada 3500/22-01-03-00 Transient Data Interface Module | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Bently Nevada 3500/22-01-03-00 is a cornerstone asset in any mission-critical rotating machinery protection architecture. Its primary function — high-fidelity transient waveform capture — directly elevates system availability by enabling engineers to detect incipient faults during startup, coast-down, and load-change events before they escalate into unplanned outages. Deploying the 3500/22-01-03-00 within a 3500 Series rack transforms a reactive maintenance posture into a proactive, data-driven reliability program, a fundamental shift that measurably reduces mean time between failures (MTBF) across turbomachinery assets.

Engineered for harsh industrial environments, this module operates reliably across a wide thermal range (-30°C to +65°C) and is rated for the electromagnetic interference levels typical of power generation floors and petrochemical compression trains. During installation, technicians should verify rack slot compatibility, confirm Ethernet TCP/IP network segmentation for System 1 connectivity, and validate firmware revision alignment with the host rack’s Interface Module. Proper torque on the module ejector handle and a clean backplane connector are non-negotiable steps that prevent intermittent communication faults in high-vibration environments.

As production lines grow increasingly dependent on continuous condition monitoring, maintaining a certified spare of the 3500/22-01-03-00 in your critical-parts inventory is no longer optional — it is an operational imperative. Lead times for legacy and end-of-life automation components can stretch weeks; a pre-positioned spare eliminates that risk entirely and keeps your protection system fully operational around the clock.

Key Operational Features

High-Resolution Transient Capture — Multi-channel waveform recording at configurable sampling rates (1 kHz — 40 kHz) for precise fault characterization.
Redundancy-Ready Architecture — Buffered memory design ensures zero data loss during network interruptions, supporting high-availability monitoring topologies.
Seamless System Integration — Native Ethernet TCP/IP interface for direct System 1 software connectivity; no additional gateway hardware required.
Hot-Swap Capability — Module replacement without rack power-down, minimizing maintenance windows and preserving continuous protection coverage.
API 670 & ISO 20816 Compliance — Meets international machinery protection standards, simplifying regulatory audits and insurance documentation.
Operational Excellence by Design — Factory-calibrated to OEM tolerances, ensuring measurement accuracy from day one of deployment.

Maintenance & Performance Benchmarks

The 3500/22-01-03-00 is purpose-built to adapt across diverse industrial network architectures — from single-rack installations protecting a single compressor train to enterprise-scale distributed monitoring networks spanning multiple plant areas. In small-to-medium deployments, the module operates as a standalone transient recorder feeding System 1 on a dedicated LAN segment. In large-scale process optimization environments, it integrates into hierarchical DCS/SCADA architectures via OPC-DA/UA bridges, contributing real-time I/O module data streams to plant-wide asset management platforms.

Benchmark data from field installations consistently demonstrates that facilities leveraging the 3500/22-01-03-00 for transient analysis achieve a 30-45% reduction in diagnostic time following machinery anomalies, compared to systems relying solely on steady-state vibration data. The module’s role in process optimization is therefore both technical and financial: faster root-cause identification translates directly into shorter repair cycles and lower production loss per incident.

Recommended maintenance interval: inspect backplane connector contacts every 24 months or following any rack disturbance. Firmware updates should be applied in accordance with Bently Nevada’s published revision history to maintain compatibility with evolving System 1 releases.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 3500/22-01-03-00 unit dispatched from our facility ships in original factory packaging, preserving ESD protection and mechanical integrity throughout transit. For in-stock orders, same-day dispatch is available upon order confirmation before the daily cut-off, with express courier options covering North America, Europe, the Middle East, and Asia-Pacific within 3-7 business days.

We specialize in global supply chain solutions for EOL (End-of-Life) and legacy automation components — a critical capability when OEM production has ceased and standard distribution channels are exhausted. Our sourcing network spans certified industrial surplus channels, ensuring full traceability and authenticity verification for every unit. Whether you need a single emergency replacement or a multi-unit strategic reserve, our logistics infrastructure supports both scenarios with equal efficiency.

All shipments include commercial invoice, packing list, and certificate of conformance documentation to facilitate smooth customs clearance in regulated markets.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 3500/22-01-03-00?
A: Power down is not required due to hot-swap support. Align the module with the designated rack slot, engage the ejector handles evenly, and seat firmly until the backplane connector is fully engaged. Connect the Ethernet cable to the designated port, then configure the IP address via the rack’s Interface Module. Verify System 1 software recognizes the new TDI node before returning the asset to service.

Q2: Which firmware versions are compatible with this module?
A: The 3500/22-01-03-00 is compatible with System 1 software versions 21.1 and later. Firmware revision compatibility is documented in Bently Nevada’s TDI Release Notes (document number 141536-01). Always cross-reference the host rack’s Interface Module firmware before applying updates to avoid version mismatch faults.

Q3: Can this module operate in a redundant rack configuration?
A: Yes. In redundant 3500 rack architectures, the TDI module participates in the system’s high-availability topology. Data buffering ensures continuity of transient recording during primary-to-secondary rack switchover events, with no loss of waveform data.

Q4: How does the warranty claim process work?
A: Units exhibiting manufacturing defects or performance deviations within the 12-month warranty period are eligible for replacement or repair at no charge. Initiate a claim by contacting our technical support team with the unit serial number, purchase order reference, and a description of the observed fault. Return shipping labels are provided upon claim approval.

Q5: Is the 3500/22-01-03-00 compatible with third-party condition monitoring software?
A: The module communicates natively with Bently Nevada System 1. Integration with third-party platforms (OSIsoft PI, AspenTech, etc.) is achievable via OPC-DA/UA middleware. Consult your system integrator for protocol bridge configuration specific to your plant’s automation architecture.

Q6: What distinguishes the -01-03-00 suffix configuration from other 3500/22 variants?
A: The suffix denotes specific hardware options including I/O configuration, memory allocation, and communication interface variants. The -01-03-00 configuration is optimized for standard Ethernet TCP/IP connectivity with full transient capture capability. Always verify the complete part number — 3500/22-01-03-00 — when ordering to ensure exact form, fit, and function replacement.
