Bently Nevada 3500/15-03-03-01 DC Power Supply | Original & New Spare Parts

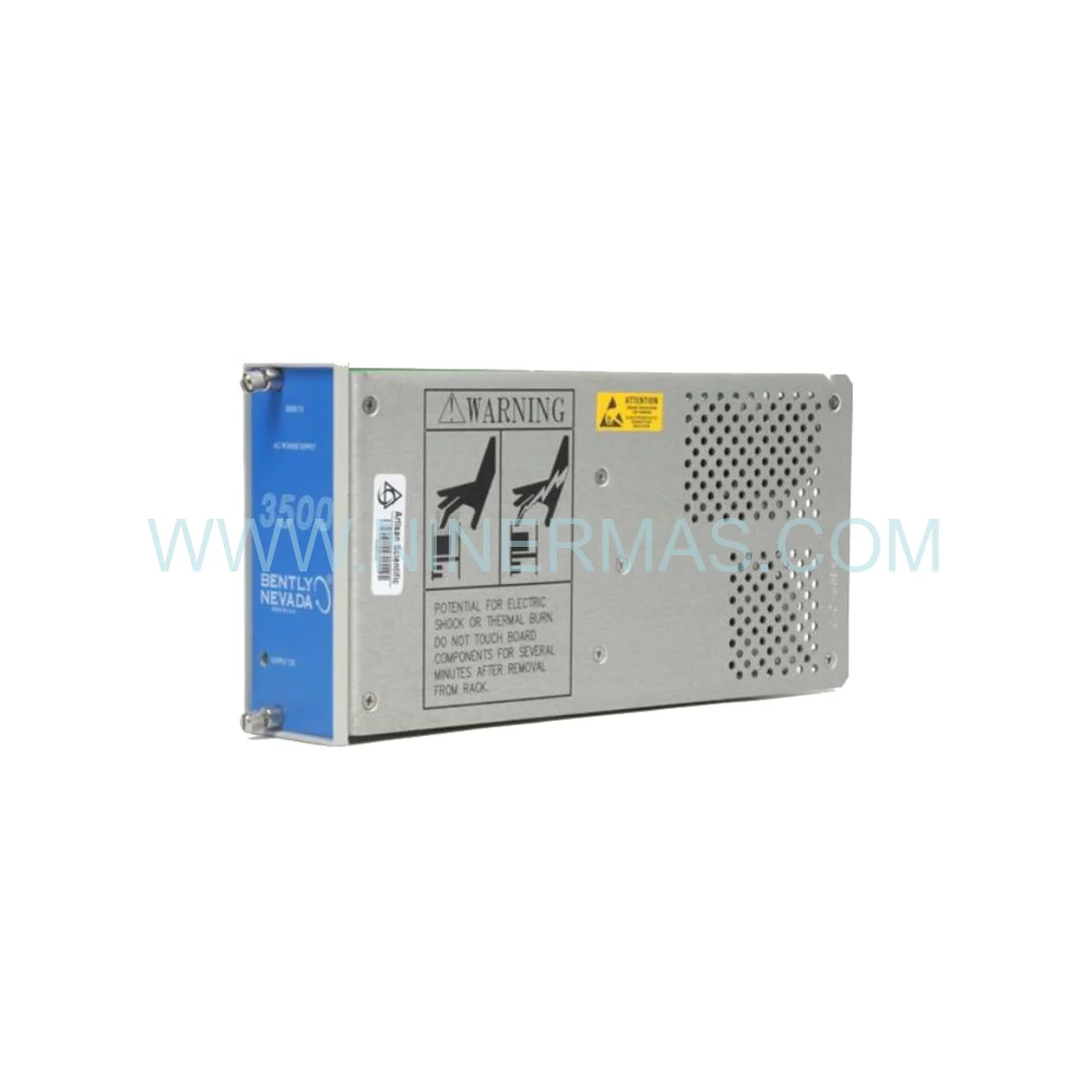

Bently Nevada 3500/15-03-03-01 DC Power Input Module – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager specializing in critical DCS Hardware and Process Control infrastructure, I can confirm that the Bently Nevada 3500/15-03-03-01 occupies a foundational role within the Bently Nevada 3500 Series Distributed Control System rack architecture. This module is the primary power backbone for the entire 3500 rack, delivering regulated multi-rail DC power to all connected monitor modules via the proprietary backplane. Without a functioning power input module, the entire machinery protection system — including vibration, temperature, and process variable monitors — ceases to operate. Its role is not peripheral; it is mission-critical.

The 3500/15-03-03-01 distinguishes itself from earlier power supply variants through its dual redundant input architecture, extended operating temperature range (-30°C to +65°C), and enhanced onboard diagnostics. In environments where Fieldbus-integrated monitoring systems must maintain 99.99% uptime, this module’s asymmetric input tolerance (up to 3V DC differential between inputs) and predictive failover logic provide a measurable reliability advantage over standard single-input alternatives. Its technical compatibility spans all 3500/05 rack configurations — from 2-slot to 17-slot — making it a universal replacement candidate across legacy and current installations.

Original Factory Sealed stock of the 3500/15-03-03-01 is increasingly scarce as Bently Nevada transitions its product portfolio. For facilities operating legacy turbomachinery protection systems, securing genuine OEM units now — rather than waiting for a failure event — is the only strategy that eliminates unplanned downtime risk. This is a Critical Part for Industry Safety, and its availability on the open market cannot be guaranteed indefinitely.

Key Technical Highlights

Dual Redundant DC Inputs: Accepts two independent 18-30V DC sources with automatic load-sharing and sub-1ms failover — zero interruption to connected monitor modules during input loss.
High-Stability Multi-Rail Output: Delivers +5V DC and ±15V DC via backplane with <50 mV peak-to-peak ripple, ensuring signal integrity across all Fieldbus-connected monitor channels.
Extended Temperature Resilience: -01 suffix qualification covers -30°C to +65°C continuous operation — no derating required for arctic pipeline stations or desert petrochemical facilities.
63W Continuous Power Capacity: Supports full 16-module 3500 racks under sustained load with >85% conversion efficiency, minimizing thermal stress on surrounding components.
Brownout Immunity: Sustains operation down to 16V DC input for up to 5 seconds, riding through utility sags without triggering false alarms or system resets.
Fault Logging & Diagnostics: Non-volatile memory records the last 16 power events with timestamp and fault classification — enabling root-cause analysis without external instrumentation.
1500V DC Galvanic Isolation: Input-to-output isolation protects sensitive monitor electronics from ground loops and transient surges common in heavy industrial Fieldbus environments.

Vertical Industry Applications

Petrochemical & Refining: Ethylene crackers, FCC units, and hydrocracker compressor trains rely on continuous vibration monitoring to prevent catastrophic mechanical failures. The 3500/15-03-03-01 ensures the 3500 rack remains energized even during plant-wide power disturbances, directly reducing unplanned shutdown frequency.

LNG Liquefaction & Pipeline Compression: Cryogenic process environments demand components rated for extreme low-temperature operation. This module’s -30°C lower limit and conformal-coated PCBs make it the preferred power solution for compressor protection racks in LNG terminals and remote pipeline stations where system downtime exceeds $2M per day.

Mining & Mineral Processing: High-dust, high-vibration environments in underground and surface mining operations subject control hardware to accelerated degradation. The 3500/15-03-03-01’s IEC 60068-2-6 vibration qualification and sealed construction maintain reliable Process Control even in the harshest extraction environments.

Marine & Offshore Platforms: DNV GL Type Approval and ABS certification make this module suitable for shipboard machinery monitoring and offshore gas compression trains, where salt-spray exposure and motion-induced vibration are constant operational factors.

Power Generation (Gas & Steam Turbines): Combined-cycle power plants and nuclear facilities require uninterrupted turbine protection monitoring for grid stability and regulatory compliance. The module’s seismic qualification option (IEEE 344) and redundant architecture directly support safety-related monitoring continuity.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 3500/15-03-03-01 supplied through our inventory is 100% Original OEM, sourced directly from authorized distribution channels and verified against Bently Nevada’s genuine part authentication criteria. We do not supply refurbished, remanufactured, or third-party compatible substitutes for this safety-critical Legacy Component.

All modules are maintained in Factory Sealed Condition within climate-controlled storage facilities, preserving electrolytic capacitor integrity and conformal coating effectiveness. Each unit ships with a 12-Month Comprehensive Warranty covering manufacturing defects and premature failure under normal operating conditions.

For Emergency Repair scenarios — where a failed power supply module has taken an entire 3500 rack offline — we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for orders confirmed before 14:00 UTC. Customs documentation, commercial invoices, and material certifications are prepared in parallel to eliminate clearance delays at destination ports.

Our global logistics network covers over 80 countries, with established freight lanes to major industrial hubs in the Middle East, Southeast Asia, Europe, and the Americas. For facilities maintaining Maintenance Stock programs, we offer reserved inventory agreements to guarantee availability when scheduled replacement cycles arrive.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How do I verify that a 3500/15-03-03-01 unit is genuine OEM and not a counterfeit or refurbished part?
Authentic Bently Nevada modules carry a holographic serial number label on the module faceplate, a Bently Nevada part number etched on the PCB, and a factory calibration sticker with date code. The -01 suffix specifically indicates enhanced diagnostics firmware — verify this by connecting to the 3500 Rack Configuration Software and confirming the firmware version string matches Bently Nevada’s published release notes for this variant. Any unit lacking these identifiers should be treated as suspect.

Q2: Where can I obtain the official datasheet and installation manual for the 3500/15-03-03-01?
Bently Nevada publishes technical documentation through the Baker Hughes Digital Solutions portal. The relevant documents are the 3500 Rack Configuration System Installation Manual (part number 129766-01) and the 3500/15 Power Supply Module datasheet. We can provide copies of available technical documentation upon request as part of our pre-sales support process.

Q3: Is the 3500/15-03-03-01 compatible with older 3500 rack firmware versions?
The 3500/15-03-03-01 is backward compatible with all 3500/05 rack hardware revisions. However, the enhanced diagnostic features (fault logging, current monitoring, predictive failover) require 3500 Rack Configuration Software version 4.x or later to display correctly. Racks running earlier firmware will still receive full power delivery — only the advanced diagnostic readouts are affected.

Q4: Can the 3500/15-03-03-01 replace earlier power supply variants such as the 3500/15-01-01-00?
Yes. The 3500/15-03-03-01 is a form-fit-function replacement for earlier 3500/15 variants in the same rack slot. The -03-03 designation indicates the dual redundant input configuration, and the -01 suffix adds extended temperature and enhanced diagnostics. Earlier single-input variants are fully superseded by this model in terms of reliability and diagnostic capability.

Q5: What is the typical lead time if the module is not in stock?
For Factory Sealed OEM units from our primary inventory, lead time is 1-3 business days for standard orders and same-day for emergency dispatch. For units sourced through our extended supply chain network, lead time ranges from 5-15 business days depending on origin location. We recommend contacting us directly for real-time stock confirmation before placing time-critical orders.

Q6: Is this module suitable for SIS (Safety Instrumented System) applications?
The 3500/15-03-03-01 powers the Bently Nevada 3500 Series, which is a machinery protection system rather than a certified SIL-rated SIS platform. However, in many facilities it operates in conjunction with SIS infrastructure to provide the vibration and process variable data that feeds safety logic solvers. For SIL-certified power supply requirements within a formal SIS architecture, consult your functional safety engineer for the appropriate IEC 61508-compliant solution.
