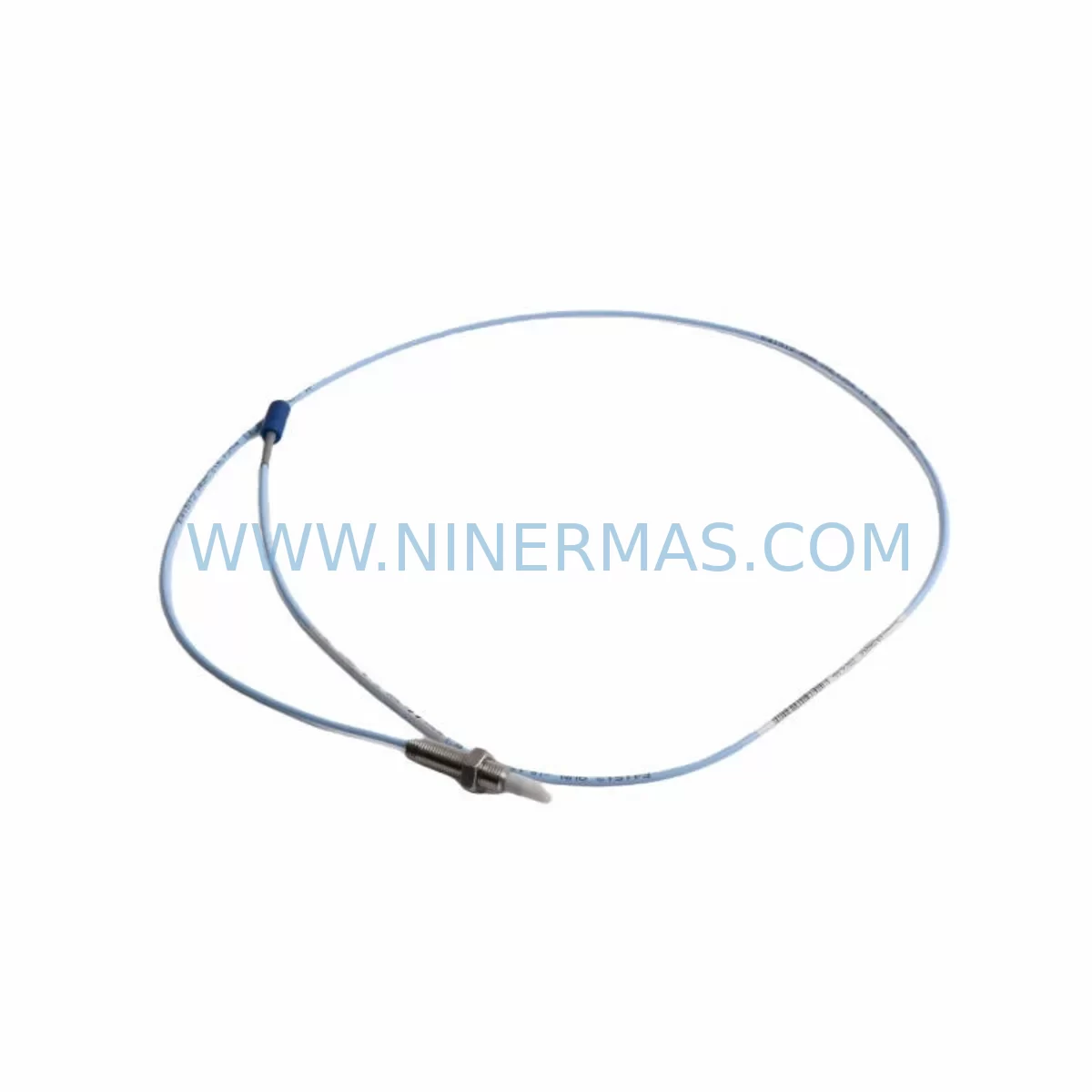

Bently Nevada 330930-065-02-05 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330930-065-02-05 Service-Ready Spare Part for Industrial Maintenance

The Bently Nevada 330930-065-02-05 is a critical service-ready spare part designed for the 3300 NSv Series condition monitoring and vibration measurement platform. For maintenance engineers managing rotating machinery protection systems, this module represents a direct, verified replacement that minimizes unplanned downtime and restores full system functionality without requiring reconfiguration of the broader monitoring architecture. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic spare parts inventory for a turbine hall or compressor train, the 330930-065-02-05 delivers the reliability and compatibility that industrial operations demand.

Sourced as an original Bently Nevada component, this spare part is fully compatible with the 3300 NSv Series rack-based monitoring system — a platform widely deployed in oil and gas, power generation, petrochemical, and heavy manufacturing facilities worldwide. Its role within the system is to support accurate vibration signal acquisition and processing, which is foundational to any predictive maintenance or machinery protection strategy. Procurement engineers can order with confidence knowing that each unit is tested prior to dispatch and backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330930-065-02-05 in a 3300 NSv Series rack, a thorough site inspection should extend beyond the module itself. Maintenance engineers are advised to simultaneously inspect the 3300/20 rack power supply for output voltage stability, as a degraded power supply is a common root cause of premature module failure. The 3300/16 I/O module and associated terminal blocks should be checked for loose wiring, corrosion, or insulation breakdown — particularly in high-vibration or high-humidity environments.

The 3300/46 communications gateway or equivalent Modbus/PROFIBUS interface module should be verified for correct configuration after any module swap, as firmware mismatches can cause false alarms or data loss in the DCS historian. If the system integrates with a System 1 Evolution software platform, confirm that the new module is recognized and that trend data resumes correctly post-replacement.

Proximity probe cables and 3300 XL 8mm proximity transducer assemblies connected to this monitoring channel should be inspected for cable damage, connector integrity, and gap voltage readings within specification. A faulty transducer or cable can mask a healthy module or cause a healthy replacement to generate spurious alarms. Similarly, the 3500/42M Proximitor/Seismic Monitor — if present in adjacent rack slots — should be cross-checked to ensure no cross-channel interference.

For facilities running legacy turbine protection panels, it is also prudent to inspect the 3300/55 Keyphasor module and verify that the reference signal is clean and stable. Keyphasor signal degradation is a frequent but overlooked contributor to erratic vibration readings. Fuse holders and DIN rail terminal strips within the control cabinet should be inspected and torqued to specification during the same maintenance window to avoid nuisance trips after the module is reinstalled.

Procurement teams building a comprehensive spare parts kit for a 3300 NSv-based protection system should consider stocking the 330130-080-01-00 power supply module, 330930-065-02-CN communication card, and relevant 3300 XL transducer assemblies alongside the 330930-065-02-05 to ensure full system recoverability within a single maintenance cycle.

Site Replacement Workflow

Replacing the 330930-065-02-05 in the field follows a structured sequence to minimize downtime and avoid secondary faults. Begin by documenting the current alarm setpoints and channel configuration from the System 1 or local HMI display before powering down the affected rack slot. This ensures that configuration data is preserved and can be restored or verified after the new module is seated.

With the rack slot isolated, remove the faulty module using the appropriate extraction tool and inspect the backplane connector for bent pins or contamination. Seat the 330930-065-02-05 firmly, restore power, and allow the module to complete its self-diagnostic cycle — typically 30 to 60 seconds — before re-enabling the monitoring channel. Verify that gap voltage, direct vibration, and 1X/2X amplitude readings are within expected ranges before returning the machine to service.

For systems where the 330930-065-02-05 is replacing an older or discontinued variant, confirm that the firmware revision is compatible with the existing rack controller. In most 3300 NSv installations, the module is hot-swappable with minimal configuration overhead, making it an ideal candidate for rapid emergency replacement without extended outage windows. This compatibility advantage significantly reduces the risk associated with aging system components and supports long-term extension of legacy machinery protection infrastructure.

Spare Parts Support FAQ

Q1: Is the 330930-065-02-05 a direct drop-in replacement for older 3300 NSv Series modules?
Yes. The 330930-065-02-05 is designed as a direct replacement within the 3300 NSv Series platform. It maintains backward compatibility with existing rack configurations, wiring, and software setpoints in the vast majority of installations. We recommend verifying the firmware revision against your system documentation before installation if your rack controller is running a legacy firmware version.

Q2: What testing is performed before shipment?
Every 330930-065-02-05 unit is function-tested prior to dispatch to verify electrical integrity and operational performance. A test report is available upon request. Units are packaged in anti-static, shock-resistant packaging to ensure they arrive in service-ready condition.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly with replacement or repair options available depending on the nature of the fault.

Q4: Can you support long-term or recurring supply of the 330930-065-02-05?
Yes. NINERMAS maintains stock of the 330930-065-02-05 and can support blanket purchase orders, scheduled deliveries, and emergency spot orders. For facilities with multiple 3300 NSv racks or high-criticality machinery, we recommend establishing a standing supply agreement to eliminate lead time risk during unplanned outages.
