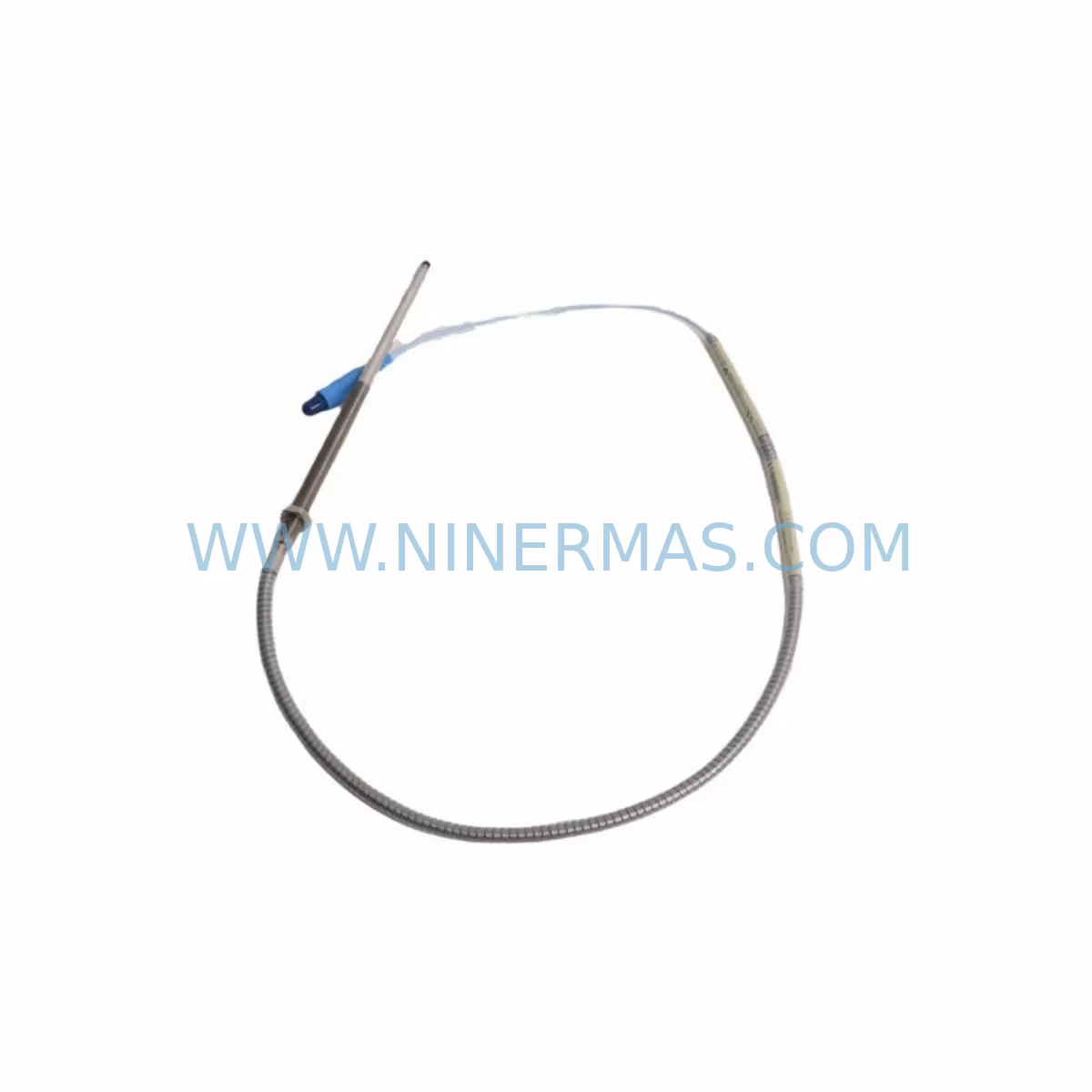

The Bently Nevada 330910-00-03-50-02-00 is a service-ready original spare part from the 3300 XL NSv (Non-contact Shaft Vibration) Proximity Transducer System — one of the most widely deployed vibration monitoring solutions in rotating machinery protection across power generation, oil & gas, petrochemical, and heavy industrial facilities. When a proximity transducer fails or degrades in performance, the consequences extend far beyond a single sensor: the entire vibration monitoring loop — from the transducer tip through the extension cable and into the Proximitor® sensor — must be evaluated to ensure system integrity and prevent unplanned downtime.

For maintenance engineers managing turbine protection panels, compressor monitoring racks, or pump vibration systems, having a verified replacement unit of the 330910-00-03-50-02-00 on the shelf is a fundamental element of any credible spare parts strategy. This unit is compatible with the Bently Nevada 3300 XL system architecture and is designed to integrate directly with the corresponding Proximitor® sensor (such as the 330180 series) and matched extension cables (such as the 330130 series), maintaining the calibrated gap voltage and sensitivity specifications required for accurate shaft displacement measurement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330910-00-03-50-02-00 in the field is rarely an isolated task. Experienced maintenance engineers know that a proximity transducer failure is often a symptom of broader loop degradation, and a thorough site inspection during the replacement window is essential to prevent repeat failures and maximize the value of the planned outage.

Begin by inspecting the matched 330130 series extension cable — the coaxial cable connecting the transducer to the Proximitor® sensor. Cable jacket damage, connector corrosion, or impedance drift caused by heat cycling or mechanical abrasion are common failure modes that will compromise the new transducer’s performance if left unaddressed. Simultaneously, evaluate the 330180 series Proximitor® sensor mounted in the junction box or monitor rack: check for moisture ingress, verify the output voltage at the calibrated gap, and confirm that the sensitivity setting matches the replacement transducer’s specification.

Within the 3500 Monitoring System rack, inspect the associated 3500/42M Proximitor®/Seismic Monitor module for alarm setpoint integrity and channel configuration. If the plant runs a dual-channel redundant configuration, verify that the redundant channel’s transducer — often a companion 330910 series unit — is also within its service life. This is also the right moment to audit the 3500/20 Power Supply module and confirm that the rack’s DC bus voltage is stable, as undervoltage conditions accelerate transducer and Proximitor® degradation.

For facilities operating older 3300 series monitoring racks alongside newer 3500 infrastructure, confirm that the replacement transducer’s calibration curve is compatible with the installed Proximitor® model. Mixed-generation systems are common in plants that have undergone incremental upgrades, and mismatched sensitivity factors are a leading cause of false alarms and missed trips after maintenance events.

Procurement engineers should also consider stocking companion components as part of a structured spare parts kit: 330130-080-00-00 extension cables, 330180-X1-05 Proximitor® sensors, 3500/42M monitor modules, terminal block assemblies for the field junction box, and appropriate M10 locknut and jam nut hardware for transducer mounting. Having these items available on-site eliminates secondary procurement delays during emergency shutdowns and supports a target mean-time-to-repair (MTTR) of under four hours for vibration loop restoration.

For plants with aging infrastructure, the 330910-00-03-50-02-00 also serves as a direct replacement path for earlier 3300 series transducer models, enabling system life extension without requiring a full monitor rack upgrade. This makes it a strategically valuable component for facilities managing long-term asset life plans on rotating machinery that is not yet scheduled for replacement.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the 3500 rack. Bypass the trip function on the affected channel to prevent a spurious shutdown during the replacement procedure.

Step 2 — Transducer Removal: Disconnect the extension cable from the existing 330910 transducer. Using the appropriate spanner, back out the transducer from the mounting bracket. Note the installed gap measurement (typically recorded in the maintenance log) for reference during reinstallation.

Step 3 — Inspection: Inspect the probe tip for physical damage, the mounting threads for corrosion, and the extension cable connector for pin damage or contamination. Replace the extension cable if any anomaly is found.

Step 4 — Installation: Thread the replacement 330910-00-03-50-02-00 into the bracket and set the gap to the specified value (typically 1.0 mm / 40 mil for standard 8 mm probes on AISI 4140 targets). Secure with the jam nut to the specified torque.

Step 5 — Verification: Reconnect the extension cable and Proximitor® sensor. Measure the output voltage at the Proximitor® output terminals. Confirm the reading falls within the linear range (typically –10.0 VDC ± 0.5 V at the nominal gap). Compare against the channel’s baseline trend data.

Step 6 — Reinstatement: Remove the channel bypass, restore alarm and trip setpoints, and confirm the channel is active in the 3500 system display. Document the replacement in the plant CMMS with the new transducer serial number and gap voltage reading.

This workflow minimizes downtime, ensures system compatibility, and provides a complete audit trail for regulatory and insurance compliance purposes.

Spare Parts Support FAQ

Q1: Is the 330910-00-03-50-02-00 compatible with both the 3300 and 3500 Bently Nevada monitoring systems?
The 330910-00-03-50-02-00 is designed for the 3300 XL NSv system and is compatible with the corresponding 3300 XL Proximitor® sensors. Compatibility with 3500 series racks depends on the specific Proximitor® module installed. Always verify the Proximitor® model and sensitivity configuration before installation in a 3500 rack environment.

Q2: What is included with the unit, and how is it tested before shipment?
Each 330910-00-03-50-02-00 unit supplied by NINERMAS is inspected and function-tested prior to dispatch. Units are shipped with protective packaging to prevent tip damage in transit. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and performance deviations from published specifications.

Q3: Can this transducer be used as a long-term stocking spare for a plant with multiple 3300 XL systems?
Yes. The 330910-00-03-50-02-00 is well-suited for centralized spare parts inventory programs covering multiple machines or plant areas. NINERMAS supports long-term supply agreements and can provide quantity pricing for facilities seeking to maintain a defined safety stock level across turbine, compressor, and pump monitoring loops.

Q4: What should I do if the replacement transducer shows an out-of-range gap voltage after installation?
First, verify the physical gap using a feeler gauge and compare against the calibration chart for the specific target material. If the gap is correct but the voltage is still out of range, inspect the extension cable for continuity and the Proximitor® sensor for correct power supply voltage. If all external factors check out, contact NINERMAS technical support — the unit will be evaluated under the 12-month warranty policy.
