Bently Nevada 330908-00-20-70-02-05 Retrofit-Compatible Proximity Probe

Bently Nevada 330908-00-20-70-02-05 Retrofit-Compatible Proximity Probe for Legacy 3300 NSv Systems

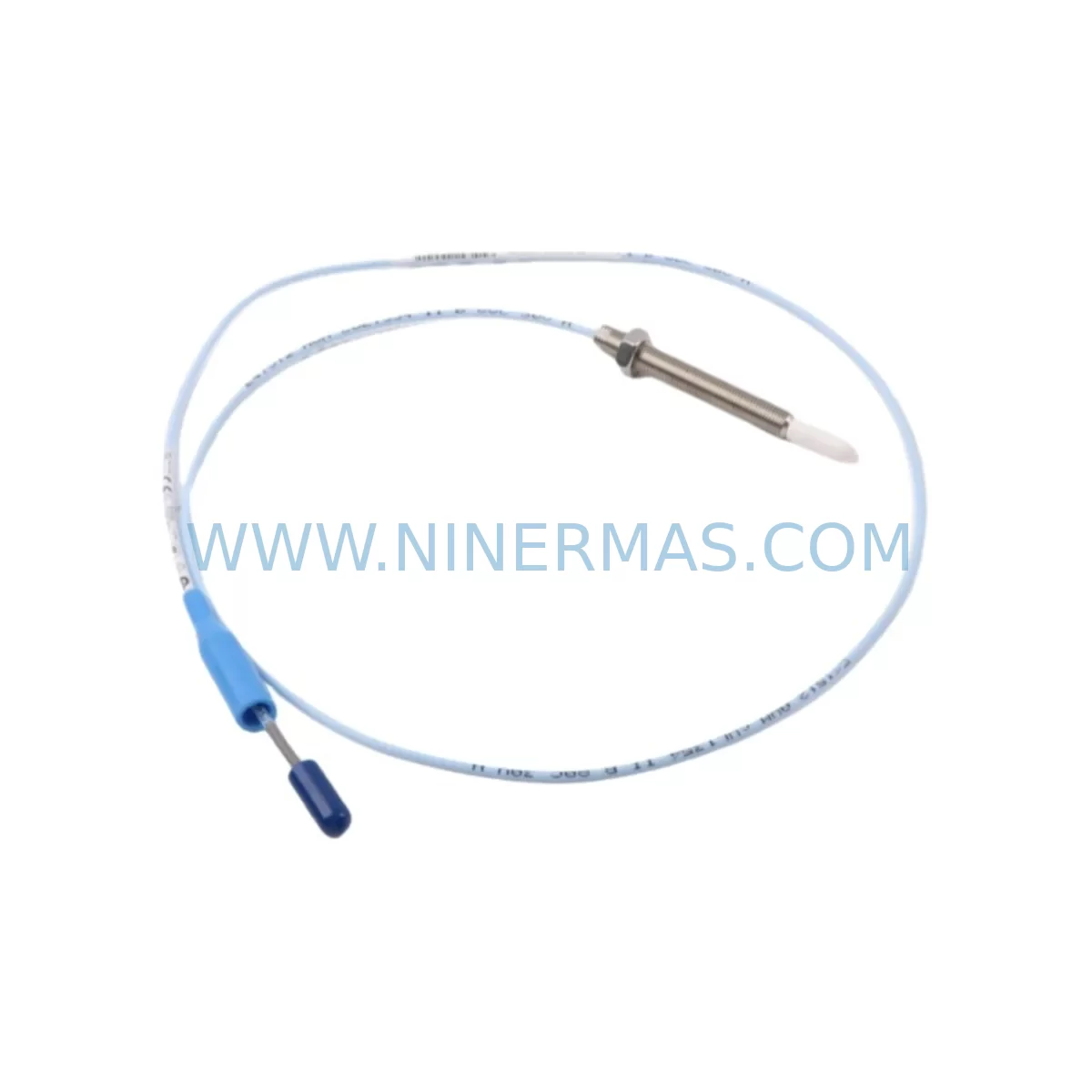

The Bently Nevada 330908-00-20-70-02-05 is a high-precision eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-life and original spare parts become increasingly scarce, this retrofit-compatible unit provides a verified drop-in replacement path for plant engineers managing aging turbomachinery, compressor trains, and critical rotating equipment. Whether you are executing a planned outage upgrade, responding to an unplanned failure, or building a strategic spare inventory, the 330908-00-20-70-02-05 is designed to restore full system functionality with minimal engineering intervention and controlled downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330908-00-20-70-02-05 into an existing vibration monitoring architecture requires a structured pre-installation review. Begin by auditing the current probe system: identify the installed 330130 extension cable length and condition, confirm the paired 3300 XL 8mm proximitor/driver module part number, and verify that the rack-mounted monitor card — typically a 3300/16 or 3500/42M vibration monitor — is configured for the correct gap voltage and sensitivity (200 mV/mil or 7.87 V/mm). If the existing monitor card is a legacy 3300/16 unit, this retrofit may also present an opportunity to evaluate migration to the 3500/42M for enhanced diagnostics and Modbus/TCP communication capability.

On the rack and backplane side, confirm that the 3500 Series rack or legacy 3300 rack has an available I/O slot and that the backplane connector is free of corrosion or mechanical damage. If the control cabinet houses a 3500/20 rack interface module, verify that the system communication link to the DCS or safety system — whether via 4–20 mA analog output, Modbus RTU, or Ethernet/IP — remains intact after the probe swap. For plants running a System 1 Evolution condition monitoring platform, ensure that the channel configuration in the software reflects the new probe sensitivity and gap range before returning the machine to service.

Terminal wiring at the junction box or field terminal block should be inspected during the outage window. The coaxial signal cable from the 330908-00-20-70-02-05 must be routed away from high-voltage power cables to prevent electromagnetic interference. If the existing 330130 extension cable shows signs of jacket degradation or connector wear, replace it concurrently to avoid a repeat outage. Where signal isolation is required between the field device and the monitor rack — particularly in older installations with ground loop issues — a signal isolator or barrier module compatible with the 3300 NSv output range should be inserted in the signal path.

For plants where the proximity probe interfaces with a Bently Nevada 3500/22M transient data interface or a 3500/25 keyphasor module, confirm that the phase reference signal and trigger level settings are not disrupted by the probe replacement. Keyphasor probe replacement — often a 330980 or 330905 series unit — should be scheduled in the same outage if the existing keyphasor probe is also approaching end-of-life, as this avoids a second machine isolation event. Similarly, if the machine train includes a 3500/40M temperature monitor or 3500/60 process variable monitor, verify that the rack communication bus remains stable throughout the probe installation and post-installation functional test.

Downtime Control During System Migration

Minimizing production impact during a proximity probe replacement on critical rotating equipment demands disciplined outage planning. Before the machine is taken offline, complete all pre-work: obtain the replacement 330908-00-20-70-02-05 probe, confirm the paired extension cable and driver are on-site, and prepare the calibration tools — a precision gap gauge, a digital voltmeter, and the Bently Nevada gap calibration procedure document for the 3300 NSv system.

Preserve the existing program logic and alarm setpoints by exporting the current monitor configuration from the System 1 or rack configuration software before the outage begins. This ensures that if a configuration error occurs during recommissioning, the original setpoints — including danger, alert, and OK relay thresholds — can be restored immediately without relying on paper records. For plants using a DCS integration via 4–20 mA or a safety system hardwired interlock, coordinate with the control room to place the affected channel in bypass mode before disconnecting the probe, preventing a spurious trip during the swap.

The physical replacement of the 330908-00-20-70-02-05 probe typically requires 30–60 minutes per measurement point, assuming the probe bracket and target area are accessible. After installation, perform a static gap check with the machine at rest: the gap voltage should read approximately –10 VDC at the nominal air gap specified for the machine. Once the machine is restarted, verify dynamic vibration readings against the pre-outage baseline to confirm the new probe is performing correctly. Document the as-found and as-left gap voltages, vibration amplitude, and phase readings in the plant maintenance management system to support future reliability analysis and spare parts planning.

Maintaining a strategic on-site spare of the 330908-00-20-70-02-05 — along with a matched 330130 extension cable and a spare 3300 XL driver module — reduces mean time to repair (MTTR) for future unplanned failures and supports the plant’s overall spare parts lifecycle management strategy. With a 12-month warranty on every unit shipped, you can stock with confidence.

Retrofit Support FAQ

Q1: Is the 330908-00-20-70-02-05 a direct replacement for my existing 3300 NSv proximity probe?
In most cases, yes. The 330908-00-20-70-02-05 is designed as a retrofit-compatible replacement for the 3300 NSv 8mm proximity probe family. Before installation, confirm the probe length (20 cm), cable length (70 cm), and connector type match your existing installation. Also verify that the paired driver module and extension cable are compatible with this probe variant. If you are replacing a different 330908 suffix variant, contact us with your existing part number for a cross-reference confirmation.

Q2: What commissioning steps are required after installing the 330908-00-20-70-02-05?
After physical installation, perform a static gap calibration with the machine at rest. Adjust the probe gap to achieve approximately –10 VDC output from the driver module at the nominal air gap for your machine. Verify the OK relay on the associated monitor card is energized and that vibration amplitude and phase readings are within expected baseline ranges once the machine is restarted. Update the as-left records in your CMMS and confirm DCS or safety system integration is functioning correctly before releasing the machine to normal operation.

Q3: Can I use this probe with a 3500 Series monitor rack instead of the legacy 3300 rack?
Yes. The 330908-00-20-70-02-05 is compatible with both the legacy 3300 rack monitors and the current-generation 3500 Series monitors, including the 3500/42M vibration monitor. If you are migrating from a 3300 rack to a 3500 rack as part of a broader system upgrade, this probe can be retained in the new architecture, provided the driver module and extension cable pairing are also updated to match the 3500 system requirements.

Q4: What does the 12-month warranty cover, and what is your stock availability?
Every 330908-00-20-70-02-05 unit ships with a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions. Units are inspected and functionally tested before dispatch. We maintain inventory to support both planned maintenance schedules and emergency replacement requirements. Contact us for current lead times and quantity availability to support your spare parts program.
