Bently Nevada 330905-00-21-10-02-05 Retrofit-Compatible Proximity Probe

Bently Nevada 330905-00-21-10-02-05 Retrofit-Compatible Proximity Probe for Legacy Vibration Monitoring Systems

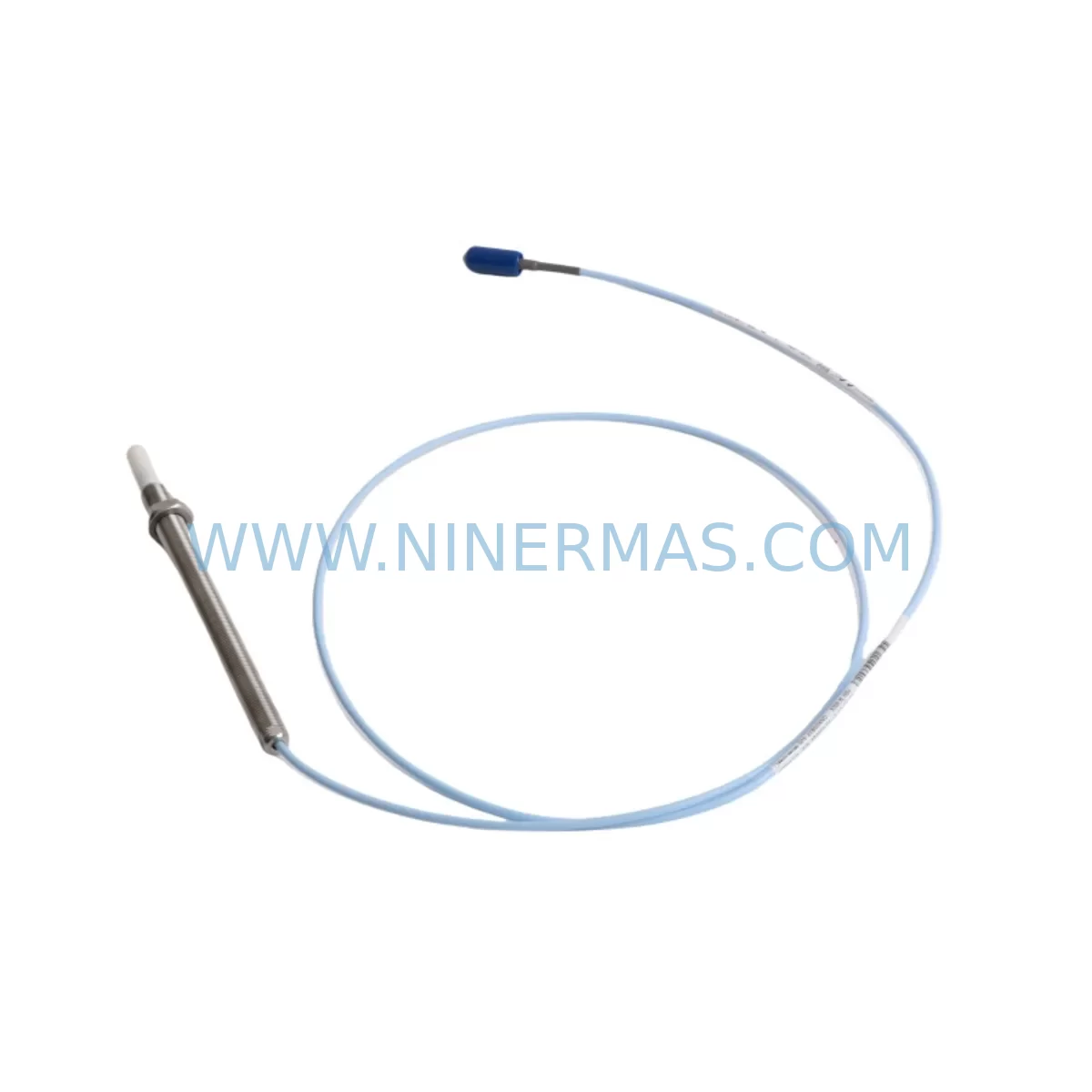

The Bently Nevada 330905-00-21-10-02-05 is a ruggedized proximity probe module engineered for continuous vibration and position monitoring in rotating machinery applications. As original Bently Nevada 3300 Series components reach end-of-life and spare parts become increasingly scarce, this module serves as a direct retrofit solution for facilities operating legacy turbine protection, compressor monitoring, and pump surveillance systems. Whether you are managing a planned upgrade or responding to an unplanned failure, the 330905-00-21-10-02-05 is available from stock with a 12-month warranty and pre-shipment functional testing.

This proximity probe is designed to interface directly with Bently Nevada 3300 Series monitor racks, including the 3300/16 and 3300/20 monitor housings. It maintains signal compatibility with the standard Proximitor sensor chain, allowing engineers to retain existing field wiring, terminal blocks, and cable runs during a like-for-like replacement. The probe tip diameter, thread specification, and cable length conform to the original factory design, minimizing installation time and reducing the risk of dimensional mismatches during a live plant turnaround.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330905-00-21-10-02-05 within an operating plant requires a structured approach that accounts for the full signal chain from probe tip to control room. The probe works in conjunction with a Proximitor sensor — typically the Bently Nevada 330180-91-00 or 330130-080-00-00 — which converts the eddy-current signal into a DC voltage proportional to the gap between the probe tip and the rotating shaft. Before removing the failed probe, technicians should document the existing gap voltage reading and compare it against the original calibration record to establish a baseline for the replacement unit.

At the terminal junction box, confirm that the existing field cable is rated for the –24 VDC Proximitor supply and that the shield drain wire is grounded at one end only to prevent ground loops. If the installation involves a Bently Nevada 3300/16 monitor card, verify that the channel configuration — radial vibration, axial position, or speed — matches the probe orientation before re-energizing the channel. For facilities that have already migrated part of their machinery protection infrastructure to the Bently Nevada 3500 Series, a 3500/42M Proximitor I/O module may be required to bridge the signal format between the legacy probe and the new monitor chassis.

In control cabinets where space is constrained, the physical envelope of the 330905-00-21-10-02-05 cable assembly must be routed without sharp bends that could compromise the coaxial cable impedance. If the original cable conduit is undersized for the replacement assembly, a field splice using a Bently Nevada extension cable — such as the 330130-040-00-00 — can extend the probe-to-Proximitor distance without signal degradation, provided the total cable length remains within the specified range for the selected Proximitor model.

For plants running a distributed control system such as a Honeywell Experion or Emerson DeltaV, the 4–20 mA analog output from the Proximitor feeds directly into an AI module on the DCS I/O rack. Confirm that the DCS channel scaling matches the probe sensitivity factor (typically 7.87 V/mm or 200 mV/mil) so that vibration trend data and alarm thresholds remain accurate after the swap. If the HMI faceplate displays engineering units derived from the Proximitor output, the display scaling in the HMI configuration — whether running on a Wonderware InTouch or FactoryTalk View platform — should be reviewed and validated against the new probe’s calibration certificate before returning the machine to service.

Where the machinery protection system feeds a safety instrumented function, coordinate with the SIS engineer to confirm that the proof-test interval and the diagnostic coverage of the new probe assembly are consistent with the SIL rating of the loop. This is particularly relevant in compressor and turbine applications where the vibration monitor output is wired to a Bently Nevada 3500/32 four-channel relay module that drives an emergency shutdown sequence.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging all replacement components before the maintenance window opens. For the 330905-00-21-10-02-05, this means having the replacement probe, the correct Proximitor unit, and any required extension cables on-site and bench-tested before the machine is taken offline. A bench test using a Bently Nevada calibration fixture or a precision gap simulator confirms that the probe sensitivity and OK relay thresholds are within specification before the unit is installed in the field.

During the replacement, the original program logic in the host PLC or DCS should not be modified. The vibration monitor channel can be placed in bypass mode — using the inhibit function available on the 3300 or 3500 Series monitor — to prevent a spurious trip during the probe swap. Once the new probe is installed and the gap voltage is confirmed, the inhibit is released and the channel is returned to normal monitoring mode. This approach preserves the original control logic, maintains the integrity of the safety shutdown sequence, and avoids the need for a full program download or HMI reconfiguration.

For facilities that cannot tolerate any interruption to the monitoring chain, a temporary portable vibration monitor can be connected to the Proximitor output during the swap to maintain continuous data acquisition. This is particularly valuable in critical machinery applications where the operations team requires uninterrupted vibration trend data for condition monitoring and predictive maintenance records. After the replacement is complete, the portable monitor is disconnected and the permanent system is re-verified against the pre-outage baseline to confirm that vibration levels and alarm margins are unchanged.

Retrofit Support FAQ

Q1: Is the 330905-00-21-10-02-05 a direct replacement for all 330905 variants?
The 330905-00-21-10-02-05 is a specific configuration within the 330905 family, defined by its cable length, connector type, and temperature rating. Before ordering, confirm the last digits of your existing part number against the replacement unit to ensure dimensional and electrical compatibility. NINERMAS can cross-reference your existing tag number or calibration record to confirm the correct replacement configuration.

Q2: What pre-shipment testing is performed on each unit?
Every 330905-00-21-10-02-05 unit shipped by NINERMAS undergoes functional verification including gap voltage output check, OK relay threshold confirmation, and cable continuity test. A test report is available upon request and accompanies the unit for traceability during installation and commissioning.

Q3: Can this probe be used with a Bently Nevada 3500 Series monitor without modification?
The 330905-00-21-10-02-05 is natively compatible with the 3300 Series monitor rack. Integration with a 3500 Series system typically requires the use of a 3500/42M Proximitor I/O module to adapt the signal interface. NINERMAS can advise on the correct I/O module selection based on your existing 3500 chassis configuration.

Q4: What is the warranty coverage and lead time?
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Stock units are available for same-day or next-business-day dispatch. For urgent requirements, contact NINERMAS directly to confirm real-time inventory availability and expedited shipping options.
