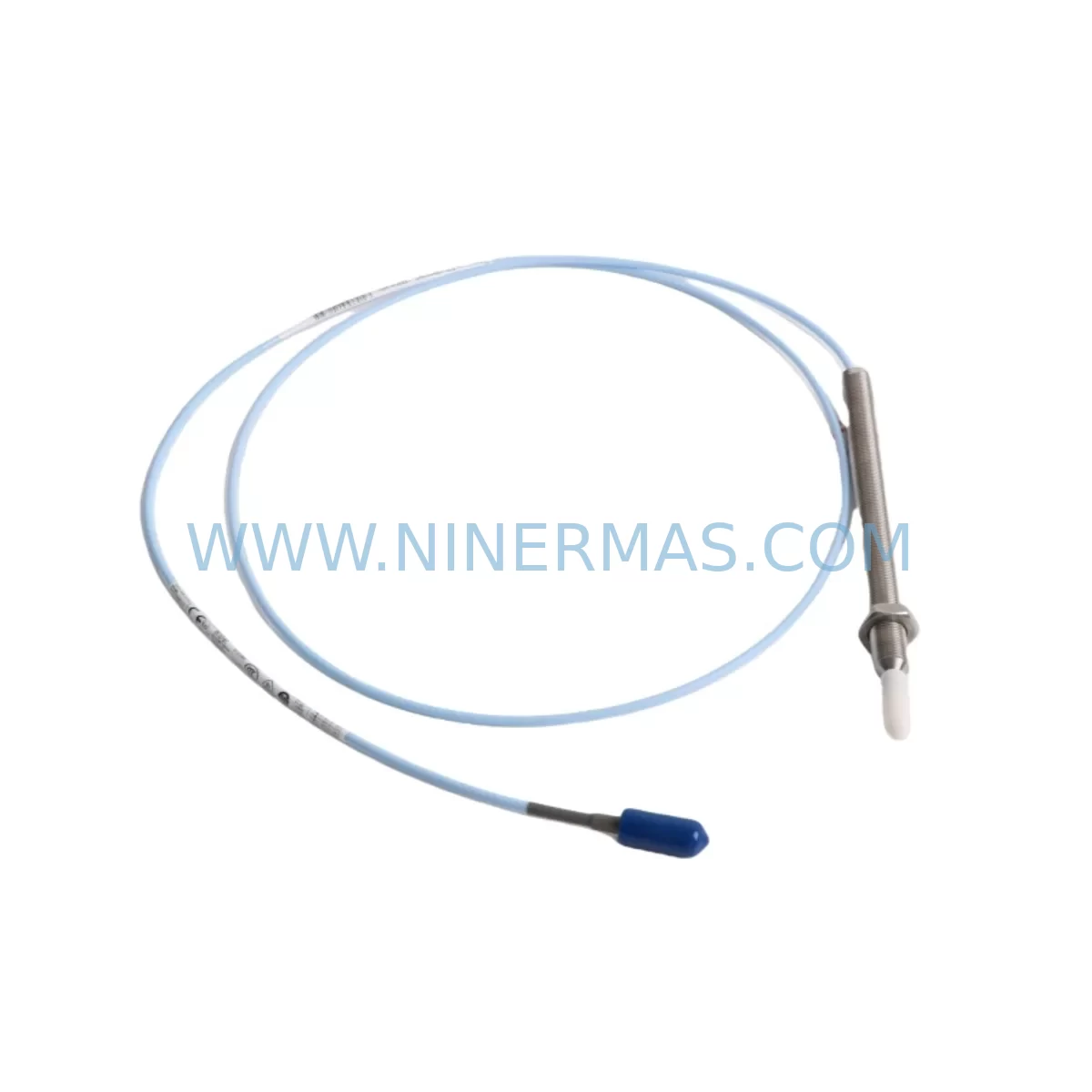

Bently Nevada 330905-00-18-10-02-05 Service-Ready Spare Part

Bently Nevada 330905-00-18-10-02-05 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

The Bently Nevada 330905-00-18-10-02-05 is an original, service-ready spare part designed for the Bently Nevada 3300 NSv (Non-contacting Vibration) monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and generators, this module represents a critical line item in any structured spare parts inventory. Unplanned downtime caused by a failed vibration monitoring channel can cascade into production losses far exceeding the cost of a stocked replacement. Sourcing the 330905-00-18-10-02-05 in advance is a straightforward risk mitigation strategy that experienced reliability teams have long adopted as standard practice.

Whether you are executing a scheduled annual overhaul, responding to a fault alarm during a night shift, or building out a commissioning spare kit for a new installation, the 330905-00-18-10-02-05 delivers the compatibility and signal integrity that the 3300 NSv architecture demands. This is not a substitute or aftermarket equivalent — it is an original Bently Nevada component, tested and verified for direct installation into existing rack configurations without recalibration of adjacent channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault on the 330905-00-18-10-02-05 channel, the replacement workflow rarely ends with a single module swap. The 3300 NSv system is an integrated machinery protection architecture, and a thorough site inspection should accompany any module-level intervention. Before or during replacement of the 330905-00-18-10-02-05, experienced reliability teams will systematically verify the condition of adjacent and dependent components to prevent repeat faults and ensure the monitoring loop is fully restored.

Starting at the transducer end, the 3300 XL 8mm proximity probe and its associated extension cable should be inspected for connector wear, cable jacket damage, and continuity. A degraded probe or a cracked extension cable can introduce signal noise that mimics a module fault, leading to misdiagnosis. The Bently Nevada 3300 XL proximitor (driver) — typically mounted close to the machine — should also be checked for output voltage stability and gap voltage within the linear range specified for the target shaft material.

Moving into the control cabinet, the 3300 series rack power supply module is a common co-failure point. Voltage ripple or a marginal power supply can stress signal conditioning modules and accelerate wear. Inspecting the rack’s internal power distribution and verifying that the 24 VDC or 28 VDC supply rails are within tolerance is a standard step before closing out any module replacement work order. If the facility uses a redundant power supply configuration, both supply modules should be verified independently.

I/O wiring at the terminal block level deserves attention as well. Loose terminations, corroded ferrules, or undersized conductors on the signal input and relay output circuits can introduce intermittent faults that are difficult to reproduce during bench testing. The relay output module associated with the 330905-00-18-10-02-05 channel — often a Bently Nevada 3300/20 or equivalent relay output card — should be tested for contact resistance and proper trip setpoint configuration after the module is replaced.

For facilities running the System 1 condition monitoring software or a DCS integration via the 3500/92 communication gateway, the communication link between the 3300 rack and the supervisory layer should be verified after any module swap. A replaced module may require re-recognition by the host system, and alarm setpoints should be confirmed against the site’s machinery protection philosophy document. If the plant uses a Modbus or Ethernet/IP interface card within the same rack, its configuration should be reviewed to ensure the channel mapping remains intact.

Procurement engineers building or refreshing a spare parts inventory for a 3300 NSv installation should consider stocking the 330905-00-18-10-02-05 alongside complementary items such as the 3300 XL proximitor, extension cables in the appropriate length variants, rack power supply modules, and relay output cards. For older installations where the 3300 series is approaching end-of-active-support status, maintaining a deeper buffer stock — typically two to three units per critical machine train — is a prudent strategy to extend system life without committing to a full platform migration. Long-term supply availability, consistent lead times, and pre-shipment functional testing are the key procurement criteria that distinguish a reliable spare parts supplier from a spot-market vendor.

Site Replacement Workflow

Replacing the 330905-00-18-10-02-05 in a live 3300 NSv rack follows a structured sequence designed to minimize downtime and maintain system integrity throughout the intervention. Before beginning, the maintenance team should confirm that the machine train monitored by the affected channel is either safely shut down or that the plant’s bypass and inhibit procedures are in place to prevent spurious trips during the swap.

Step one is to document the existing configuration: record the gap voltage, alarm setpoints, and any custom scaling factors associated with the channel. This information is typically available from the System 1 database or the site’s machinery protection datasheet. Step two is physical removal — the module is extracted from the rack following the standard Bently Nevada card extraction procedure, taking care not to disturb adjacent modules or their wiring harnesses.

The replacement 330905-00-18-10-02-05 is inserted and seated firmly, and the terminal connections are verified against the as-built wiring diagram. Gap voltage is then measured at the proximitor output and confirmed within the linear range before the channel is taken out of bypass. Final verification includes a live signal check against a known reference — either a calibrated gap or a running machine — to confirm that the replacement module is tracking correctly and that alarm setpoints are active.

This workflow applies equally to planned overhaul replacements and emergency fault responses. The key advantage of stocking an original 330905-00-18-10-02-05 is that the replacement can be completed within a single maintenance window, avoiding the extended downtime associated with emergency procurement from spot-market sources. For aging 3300 series installations where the original modules are no longer in active production, having a verified, tested spare on the shelf is the single most effective strategy for sustaining machinery protection coverage without a full system upgrade.

Spare Parts Support FAQ

Q1: Is the 330905-00-18-10-02-05 compatible with all 3300 NSv rack configurations?
The 330905-00-18-10-02-05 is designed for the Bently Nevada 3300 NSv series. Compatibility depends on the specific rack revision and transducer loop configuration at your site. We recommend confirming your rack revision and proximitor model before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q2: What is included in the 12-month warranty, and what does pre-shipment testing cover?
Every 330905-00-18-10-02-05 shipped by NINERMAS undergoes functional testing prior to dispatch to verify signal conditioning performance and output integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on site.

Q3: How should we manage inventory for this part in a long-term maintenance strategy?
For critical machine trains — turbines, compressors, and large pumps — we recommend maintaining a minimum of two units on the shelf. For facilities with multiple 3300 NSv racks, a pooled spare strategy with a defined replenishment trigger (e.g., reorder when stock drops to one unit) is effective. Given that the 3300 series is a mature platform, lead times from spot-market sources can be unpredictable; maintaining a direct supply relationship with a stocking distributor like NINERMAS ensures consistent availability.

Q4: Can the 330905-00-18-10-02-05 replace older or superseded Bently Nevada module variants?
In many cases, yes — Bently Nevada has issued form-fit-function replacements across the 3300 series lifecycle. However, cross-reference verification against your site’s original bill of materials and the Bently Nevada product change notice history is essential before substituting any module in a certified machinery protection system. NINERMAS can provide cross-reference support and, where applicable, supply the correct superseding part number with full documentation.

—
