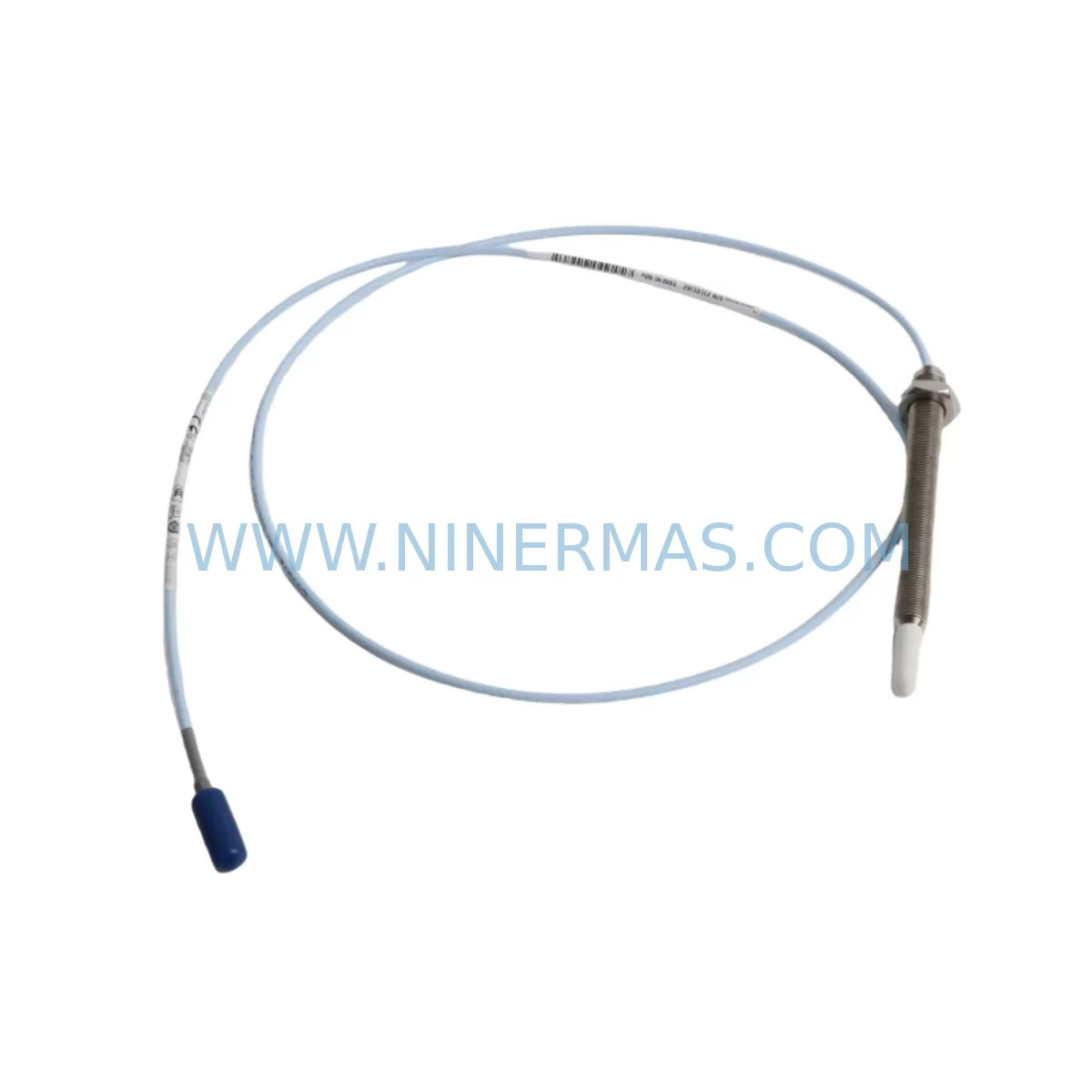

Bently Nevada 330905-00-16-10-02-05 Retrofit-Compatible Ruggedized Probe Module

Bently Nevada 330905-00-16-10-02-05 Retrofit-Compatible Ruggedized Probe Module: Legacy System Compatibility & Smooth Upgrade

The Bently Nevada 330905-00-16-10-02-05 Ruggedized Probe Module is a precision-engineered proximity probe module designed for continuous vibration monitoring in demanding industrial environments. As a retrofit-compatible replacement for discontinued and aging components within the Bently Nevada 3300 Series platform, this module enables maintenance engineers and automation teams to extend the operational life of existing machinery protection systems without requiring a full system overhaul. Whether you are managing a turbine control cabinet, a compressor monitoring rack, or a rotating equipment protection system, the 330905-00-16-10-02-05 delivers reliable signal conditioning and ruggedized performance in legacy installations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 330905-00-16-10-02-05 into an existing machinery protection system, a structured retrofit plan is essential to minimize risk and ensure signal integrity. The first step is to verify the existing backplane slot assignment within the 3300 Series rack. If the rack is shared with other active modules — such as a Bently Nevada 3300/16-24-01-01-00-00 16-Channel Monitor or a 3500/42M Proximitor/Seismic Monitor Module — care must be taken to avoid address conflicts and to maintain the correct channel-to-machine mapping in the System 1 configuration software.

Power supply capacity is a critical checkpoint. The existing Bently Nevada 3300/15 Power Supply or equivalent rack power module must be confirmed to support the additional load introduced by the replacement probe module. In older installations where the power supply has been running near capacity, a parallel power audit is recommended before the new module is seated.

Terminal wiring and cable routing should be reviewed against the original loop drawings. The 330905 series uses a coaxial cable interface, and the cable suffix in the part number (e.g., -16 indicating 16-foot cable length) must match the physical distance between the probe tip and the monitor rack. If the existing cable is damaged or undersized, a compatible Bently Nevada 330130 Extension Cable or 330180 Armored Extension Cable should be sourced as part of the same retrofit kit.

For sites migrating from the 3300 platform toward the newer Bently Nevada 3500 Series, the 330905-00-16-10-02-05 can serve as an interim solution while the full migration is planned. The analog output signal from this probe module can be fed into a 3500/40M Proximitor Monitor using appropriate signal conditioning, allowing the existing probe infrastructure to remain in service during a phased upgrade. This approach is particularly valuable in facilities where continuous operation is required and extended downtime is not acceptable.

I/O mapping and program compatibility must also be verified. If the machinery protection data feeds into a GE Speedtronic Mark VI or a Rockwell Automation ControlLogix controller via a hardwired analog input card, the engineering team should confirm that the new module’s output range (typically -24 VDC gap voltage at 200 mV/mil sensitivity) matches the existing input card scaling. Any mismatch will require a recalibration of the alarm and danger setpoints in the DCS or safety system.

HMI screen updates are often overlooked during probe module replacements. If the facility uses a Wonderware InTouch or FactoryTalk View HMI, the tag bindings for vibration trend displays and alarm banners should be verified after the module swap to ensure that the correct engineering units and scale factors are displayed to operators.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a ruggedized probe module in a live production environment. The recommended approach is to pre-configure and bench-test the 330905-00-16-10-02-05 before the scheduled maintenance window. This includes verifying the gap voltage output with a calibrated voltmeter, confirming the sensitivity curve against the original probe specification, and documenting the as-found versus as-left readings for the maintenance record.

During the physical swap, the original program logic in the connected safety or control system should be placed in a maintenance bypass mode — where permitted by the site’s safety management system — to prevent spurious trips during the reconnection process. Once the new module is seated and the coaxial cable is reconnected, the gap voltage should be re-established at the probe tip before the bypass is lifted. This procedure protects the original control logic and ensures that the machinery protection system returns to full operational status without requiring a program reload or cold restart of the associated controller.

For sites with redundant monitoring channels, the migration can be performed on a hot-standby basis, switching the active monitoring path to the redundant channel while the primary channel module is replaced. This approach effectively reduces the maintenance window to the time required for a single channel swap and verification, typically under two hours for an experienced field technician.

All retrofit work should be documented with before-and-after gap voltage readings, cable continuity test results, and a signed commissioning checklist. This documentation supports the 12-month warranty claim process and provides a traceable maintenance record for future audits.

Retrofit Support FAQ

Q1: Is the 330905-00-16-10-02-05 a direct drop-in replacement for other 330905 variants?
A: The 330905 series shares the same electrical interface and mounting footprint across most variants. The numeric suffixes indicate cable length, connector type, and environmental rating. Confirm that the cable length suffix (-16 = 16 feet) matches your installation before ordering. For non-standard cable lengths, compatible extension cables are available separately.

Q2: What commissioning steps are required after installation?
A: After seating the module and reconnecting the coaxial cable, measure the DC gap voltage at the monitor input. The target gap voltage is typically -10 VDC ± 0.5 VDC at the nominal probe-to-target gap specified in the original loop drawing. Adjust the probe position if necessary, then verify the vibration signal output against a known reference before returning the channel to service.

Q3: Has this module been tested before shipment?
A: Yes. Each unit undergoes functional output verification and visual inspection prior to shipment. A 12-month warranty is included, covering manufacturing defects and functional failures under normal operating conditions. Test reports are available upon request for critical applications.

Q4: What is the stock availability and lead time?
A: We maintain in-stock inventory of the 330905-00-16-10-02-05 to support urgent replacement and planned maintenance schedules. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, please contact our sales team for availability confirmation and volume pricing.
