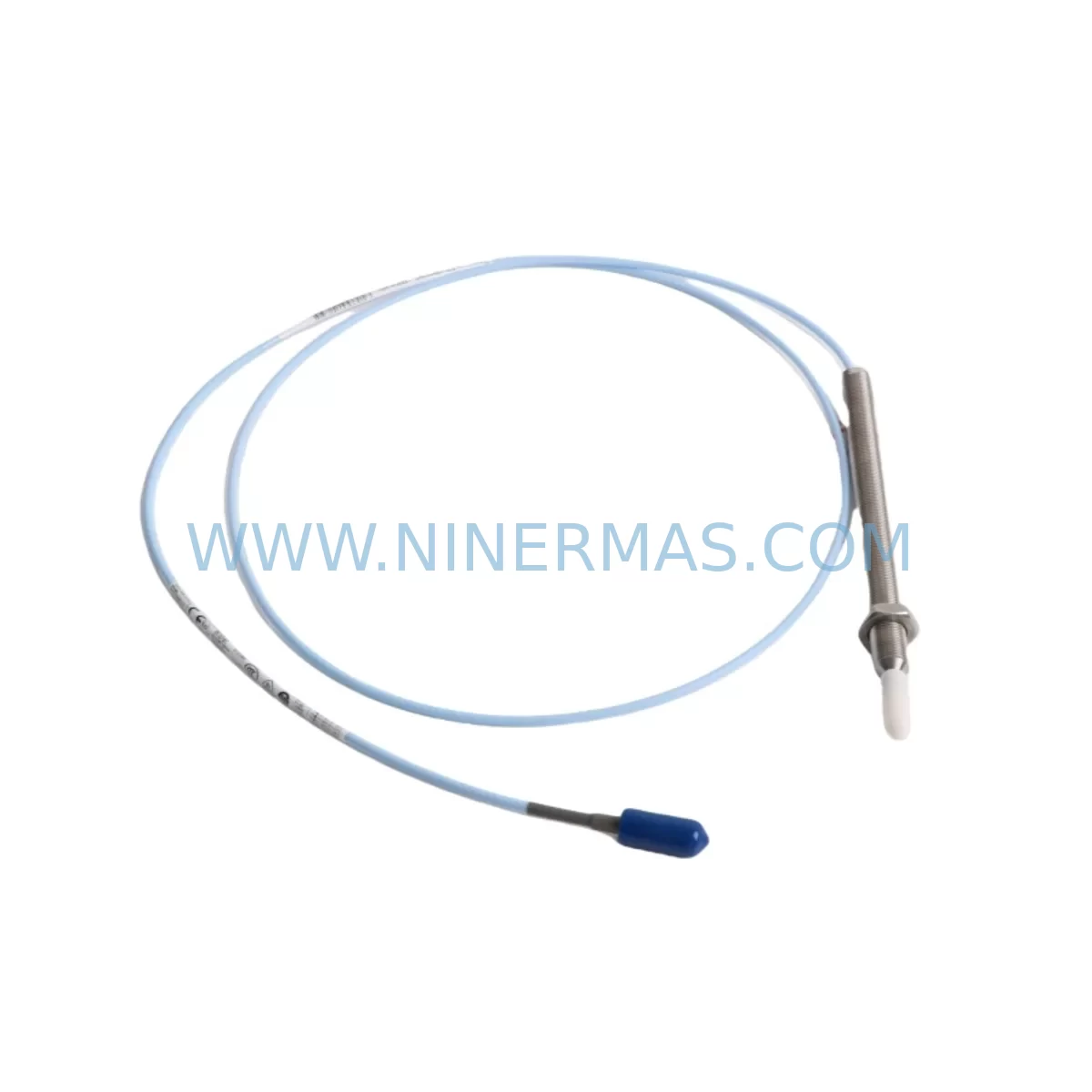

The Bently Nevada 330905-00-12-05-02-00 is a precision eddy-current proximity transducer engineered for the 3300 Series vibration monitoring platform — one of the most widely deployed condition monitoring systems in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy industrial sectors. As original equipment manufacturers phase out legacy components, facilities running aging turbomachinery, compressors, pumps, and gearboxes face increasing pressure to source verified retrofit-compatible replacements that preserve system integrity without triggering full-platform overhauls.

NINERMAS supplies the 330905-00-12-05-02-00 as a direct retrofit replacement for facilities maintaining Bently Nevada 3300 Series monitoring racks. Each unit is pre-shipment tested, dimensionally verified, and backed by a 12-month warranty, ensuring drop-in compatibility with existing field wiring, extension cables, and monitor inputs without requiring program logic changes or HMI reconfiguration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330905-00-12-05-02-00 within an operating facility requires careful coordination across multiple system layers. The transducer interfaces directly with the Bently Nevada 3300/16 Monitor or 3300/20 Monitor housed in a standard 3300 Series rack. Before removal of the legacy probe, engineers should document the existing gap voltage reading — typically between -10 VDC and -18 VDC — to establish a baseline for post-installation verification.

Field wiring typically routes through 330130 Series extension cables or 330180 Series armoured extension cables, both of which are compatible with the 330905-00-12-05-02-00 coaxial connector. If the existing extension cable shows signs of insulation degradation or connector wear, replacement should be scheduled concurrently to avoid signal noise that could trigger false vibration alarms on the monitor channel.

For facilities also managing I/O expansion or control cabinet upgrades, the analog output from the proximity transducer typically feeds into a DCS analog input card — such as those found in Emerson DeltaV or Honeywell Experion systems — or into a PLC analog input module in Siemens S7 or Allen-Bradley ControlLogix platforms. Verifying the input impedance and signal scaling at the receiving card is essential before commissioning the replacement transducer.

In turbomachinery applications, the 330905-00-12-05-02-00 is commonly installed alongside Bently Nevada 330780 velocity transducers for casing vibration measurement and 330500 Series thrust position probes for axial displacement monitoring. A complete rotor dynamics monitoring loop may also include a 3300/55 Keyphasor Module for phase reference, and a 3300/46M Dual Voting Logic Module for trip logic. Confirming that all channel assignments and rack addressing remain consistent after probe replacement prevents inadvertent alarm or trip condition changes in the monitor system.

Where facilities are migrating from the legacy 3300 Series rack to the newer Bently Nevada 3500 Series platform, the 330905-00-12-05-02-00 can serve as an interim transducer during phased migration, provided the appropriate 3500/42M Proximitor/Seismic Monitor input configuration is applied. Signal conditioning differences between platforms should be reviewed with the site instrumentation engineer before finalising the migration schedule.

For control cabinet upgrades involving communication protocol migration — for example, from hardwired relay outputs to Modbus RTU or PROFIBUS DP — the transducer itself remains unchanged; the protocol migration is handled at the monitor or gateway level. However, HMI screen updates referencing channel tag names, engineering units, and alarm setpoints should be validated against the new monitor configuration to ensure operator display accuracy.

Downtime Control During System Migration

Minimising unplanned downtime during proximity transducer replacement is a primary concern for facilities operating continuous processes. The 330905-00-12-05-02-00 is designed for installation during scheduled maintenance windows, with a straightforward removal and re-gapping procedure that experienced instrumentation technicians can complete within a single shift.

To protect existing program logic, the monitor channel should be placed in bypass mode prior to probe removal, preventing spurious trip signals from propagating to the safety system or DCS during the changeover. Most Bently Nevada 3300 Series monitors support per-channel bypass via the front-panel keypad or through the System 1 condition monitoring software, allowing the remaining channels to continue operating normally while the replacement is performed.

Original ladder logic or function block programs in the associated PLC — whether a Siemens S7-300, Allen-Bradley PLC-5, or GE Fanuc Series 90 — do not require modification for a like-for-like transducer replacement, provided the analog signal scaling and tag mapping remain consistent. This significantly reduces commissioning risk and eliminates the need for a full program re-validation cycle.

Post-installation, the gap voltage should be set to the OEM-specified nominal value (typically -12 VDC for standard 5 mm gap applications) using a calibrated digital voltmeter before the channel bypass is released. A short functional test — observing live vibration readings against known baseline values — confirms correct installation before the machine is returned to service. NINERMAS recommends retaining the replaced unit as a documented spare for future reference during warranty claims or failure analysis.

Retrofit Support FAQ

Q1: Is the 330905-00-12-05-02-00 a direct replacement for other 330905 variants?
The 330905-00-12-05-02-00 is a specific configuration within the 330905 family, defined by probe length (12 inches), cable length (5 metres), and connector type. Before ordering, confirm that the probe length, cable length, and connector suffix of your existing unit match this configuration. Other 330905 variants with different suffixes may have different probe or cable lengths and may not be dimensionally interchangeable without modifying the mounting bracket or extension cable.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the transducer gap to achieve the OEM-specified gap voltage (typically -10 to -18 VDC, with -12 VDC as the nominal centre point for most 3300 Series applications). Verify the monitor channel sensitivity setting matches the transducer specification (200 mV/mil or 7.87 V/mm). Release the channel bypass, observe live readings, and confirm alarm and trip setpoints are active before returning the machine to service.

Q3: Does NINERMAS perform pre-shipment testing on this unit?
Yes. Every 330905-00-12-05-02-00 unit supplied by NINERMAS undergoes functional and dimensional verification prior to shipment. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can this transducer be used with Bently Nevada 3500 Series monitors?
The 330905-00-12-05-02-00 is natively compatible with 3300 Series monitors. Use with 3500 Series monitors is possible in some configurations but requires verification of the input module type and sensitivity settings. Contact NINERMAS with your monitor model number and application details for a compatibility assessment before ordering.
