Bently Nevada 330904-00-19-50-02-00 Retrofit-Compatible Proximity Transducer

Bently Nevada 330904-00-19-50-02-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

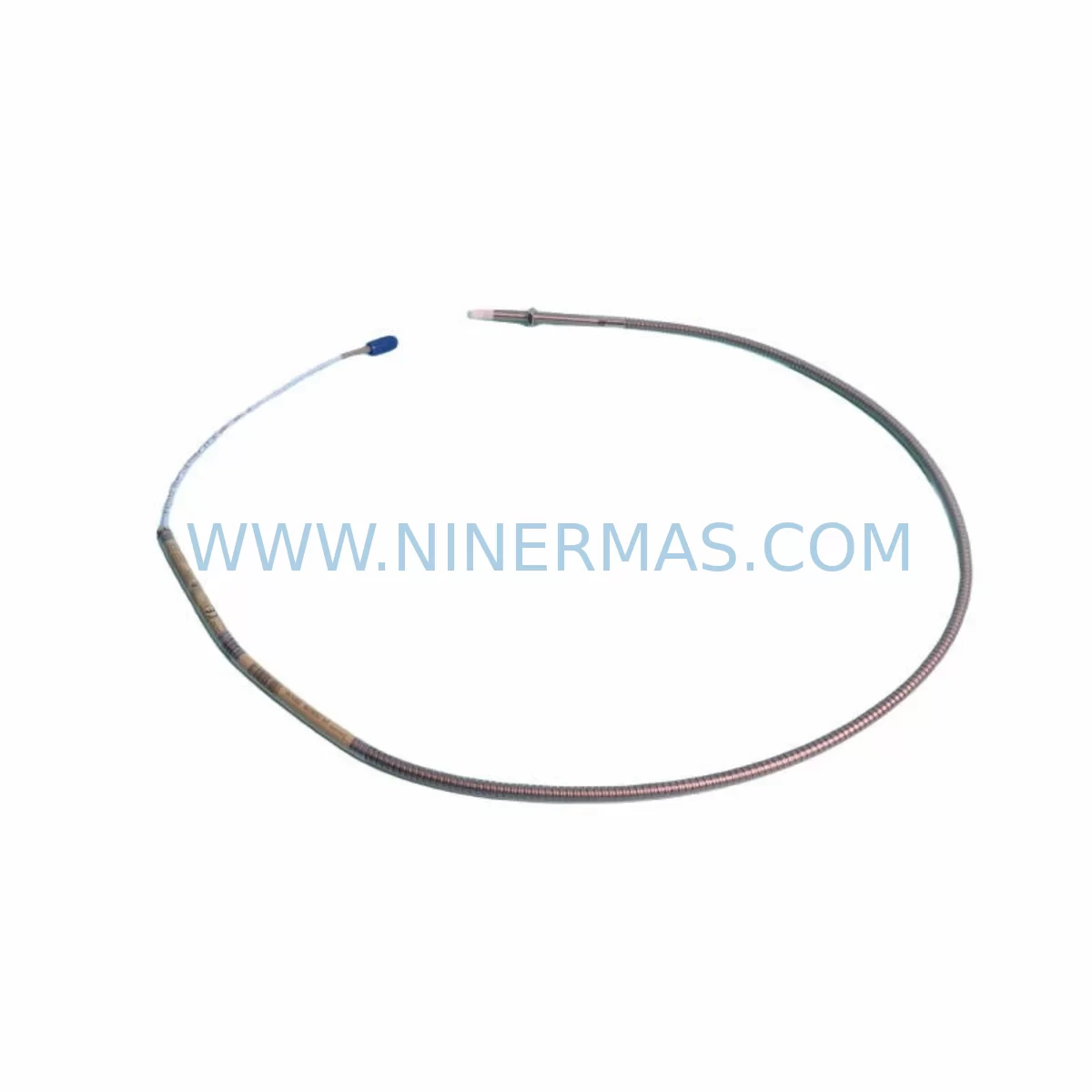

The Bently Nevada 330904-00-19-50-02-00 is a high-precision eddy-current proximity transducer designed for the 3300 XL NSv series, widely deployed in rotating machinery protection and condition monitoring systems across oil & gas, power generation, petrochemical, and heavy industrial facilities. As legacy 3300 series installations approach end-of-life or face discontinued spare parts availability, this transducer serves as a direct retrofit-compatible replacement, enabling facilities to extend the operational life of their existing vibration monitoring infrastructure without requiring a full system overhaul.

When planning a retrofit or spare parts replacement using the 330904-00-19-50-02-00, engineers and maintenance teams must carefully evaluate several critical compatibility parameters. The transducer operates within the standard Bently Nevada 3300 XL NSv signal chain, which means the output voltage range, sensitivity (typically 200 mV/mil or 7.87 V/mm), and gap voltage specifications must be verified against the existing Proximitor® sensor — commonly the 3300 XL 8mm Proximitor® — already installed in the field. Mismatched sensitivity between the transducer and its paired Proximitor can introduce measurement errors that affect vibration alarm setpoints and trip thresholds programmed in the System 1 condition monitoring software or the 3500 Series Machinery Protection System rack.

Terminal wiring compatibility is another key consideration. The 330904-00-19-50-02-00 uses a standard coaxial cable assembly, and field teams should confirm that the existing extension cable — often a 330130 series armored extension cable — is in serviceable condition and that connector terminations at the Proximitor input are clean and properly torqued. In installations where the original cable has been routed through conduit or embedded in insulation, replacing only the transducer tip while retaining the existing extension cable is a common and cost-effective approach, provided the cable length matches the calibrated system range.

Backplane and rack interface requirements should also be reviewed. In 3500 Series racks, the transducer signal feeds into monitor modules such as the 3500/40M Proximitor®/Seismic Monitor or the 3500/42M Proximitor®/Seismic Monitor, and the channel configuration — including OK mode, full-scale range, and transducer type selection — must be confirmed in the rack configuration software before the replacement transducer is commissioned. If the facility is migrating from an older 3300 Series rack to a 3500 Series rack as part of a broader modernization project, the I/O mapping, 4–20 mA output scaling, and relay logic assignments will need to be re-engineered to match the new hardware architecture.

For facilities operating Bently Nevada System 1 software for online condition monitoring, the transducer replacement should be coordinated with a database point verification to ensure that the measurement point associated with this channel retains its historical baseline data and that alarm limits are not inadvertently reset. Where HMI screens in DCS or SCADA platforms display real-time vibration values sourced from the 3500 rack’s Modbus TCP or OPC DA/UA interface, the engineering team should confirm that tag addresses remain consistent after the hardware swap to avoid display anomalies or false alarm conditions.

Installation space confirmation is straightforward for most applications, as the 330904-00-19-50-02-00 maintains the standard 8mm probe body diameter and thread specification (M10 × 1 thread) common across the 3300 XL NSv transducer family. However, in tight bearing housing configurations or where the probe holder has been custom-machined, physical clearance should be verified before the unit is shipped to site. The probe tip-to-target gap should be set to the manufacturer-specified nominal gap (typically 1.0 mm or 40 mils) using a calibrated gap-setting tool, and the gap voltage should be confirmed at the Proximitor output before the system is returned to service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330904-00-19-50-02-00 typically begins well before the unit arrives on site. Maintenance planners should pull the existing loop drawing for the affected measurement point and cross-reference the transducer model, extension cable part number, and Proximitor model to confirm that the replacement assembly will restore the original calibrated system. In many aging installations, the Proximitor sensor — often a 3300 XL 8mm Proximitor® — may itself be approaching the end of its service life, and it is prudent to evaluate whether a simultaneous Proximitor replacement is warranted to avoid a second outage within a short interval.

Where the facility is undertaking a broader control system modernization — for example, migrating from a legacy DCS to a modern distributed control architecture — the vibration monitoring system may need to be re-interfaced. In these scenarios, the 3500 Series rack’s Modbus TCP gateway or the dedicated 3500/92 Communication Gateway module provides the integration path to the new control platform. Engineering teams should map all existing Modbus register addresses for vibration, gap, and OK status signals before the cutover to ensure that the new DCS historian and alarm management system receives data in the expected format.

I/O expansion requirements should also be assessed during the planning phase. If the retrofit is part of a larger project that adds new measurement points — for example, adding axial position monitoring alongside existing radial vibration channels — additional 3500/40M or 3500/42M monitor modules may need to be installed in the existing rack, or a rack expansion using a 3500/05 Rack Interface Module may be required. Signal isolation between the new and existing channels should be verified to prevent ground loops that could corrupt vibration readings across the entire rack.

For facilities that rely on portable data collectors and route-based monitoring alongside the online system, the replacement of the 330904-00-19-50-02-00 should be coordinated with the vibration analyst to update the measurement point database in the condition monitoring software. Baseline spectrum data collected prior to the replacement should be archived and a new baseline established after commissioning to support trend analysis and fault detection going forward.

Programming cable access may be required during commissioning if rack configuration changes are needed. The 3500 rack is configured using Bently Nevada’s Rack Configuration Software (RCS), accessed via a standard RS-232 or USB-to-serial programming cable connected to the 3500/20 Rack Interface Module. Technicians should ensure that the RCS version installed on the configuration laptop is compatible with the firmware version in the rack before attempting any configuration changes.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a proximity transducer in a live machinery protection system. The recommended approach is to schedule the replacement during a planned maintenance window, coordinating with the operations team to confirm that the monitored machine can be safely taken offline for the duration of the swap. Where the 3500 Series rack supports channel bypass functionality, the affected channel should be bypassed in the rack configuration before the transducer is disconnected, preventing a spurious trip signal from reaching the machine protection relay logic during the physical replacement.

The original program logic — including alarm setpoints, time delays, and relay assignments — should be exported from the rack configuration software and saved to a secure backup location before any hardware changes are made. This ensures that if a configuration error occurs during commissioning, the original settings can be restored quickly without requiring the maintenance team to reconstruct the configuration from memory or paper records.

Field continuity during the replacement can be maintained by pre-staging the new 330904-00-19-50-02-00 transducer assembly — including the matched extension cable and any required probe holder adapters — at the work site before the machine is shut down. A pre-installation bench check, including a continuity test of the coaxial cable and a verification of the transducer’s static output voltage using a bench-top power supply and a target disk, can identify any shipping damage or manufacturing defects before the unit is installed in the field, avoiding a second outage if a faulty unit is discovered only after installation.

After installation, the gap voltage should be set and verified at the Proximitor output before the channel bypass is removed and the machine is restarted. The vibration reading should be confirmed to be within the expected baseline range at low speed before the machine is brought to full operating speed, and the OK relay status should be confirmed to be in the healthy state. A post-commissioning data snapshot should be saved in the condition monitoring software to document the as-left system state for future reference.

Retrofit Support FAQ

Q: Is the 330904-00-19-50-02-00 a direct replacement for the original transducer in my 3300 XL NSv system?
A: Yes. The 330904-00-19-50-02-00 is designed as a direct retrofit-compatible replacement within the 3300 XL NSv proximity transducer family. It maintains the same 8mm probe body diameter, M10 × 1 thread specification, 200 mV/mil sensitivity, and nominal gap voltage as the original unit, making it a drop-in replacement in most installations. We recommend verifying the condition of the existing extension cable and Proximitor sensor before installation.

Q: What commissioning steps are required after installing the replacement transducer?
A: After physical installation, set the probe-to-target gap to the nominal 1.0 mm (40 mils) using a calibrated gap-setting tool and verify the gap voltage at the Proximitor output. Confirm that the channel OK status is healthy in the 3500 rack and that the vibration reading is within the expected baseline range. If any rack configuration changes were made during the replacement, export and save the updated configuration file. A post-commissioning data snapshot in System 1 or your condition monitoring platform is also recommended.

Q: Can I use the existing extension cable with the new transducer?
A: In most cases, yes — provided the existing 330130 series extension cable is in good condition, the correct length for the calibrated system range, and the connector terminations are clean and undamaged. If the cable shows signs of insulation damage, connector corrosion, or continuity faults, it should be replaced simultaneously with the transducer to ensure system integrity.

Q: What warranty and supply assurance does NINERMAS provide for this unit?
A: All units supplied by NINERMAS are covered by a 12-month warranty against manufacturing defects and are subject to pre-shipment functional testing to verify output characteristics before dispatch. We maintain inventory of the 330904-00-19-50-02-00 and related 3300 XL NSv series components to support urgent replacement requirements. For stock availability and lead time confirmation, contact our technical sales team directly.
