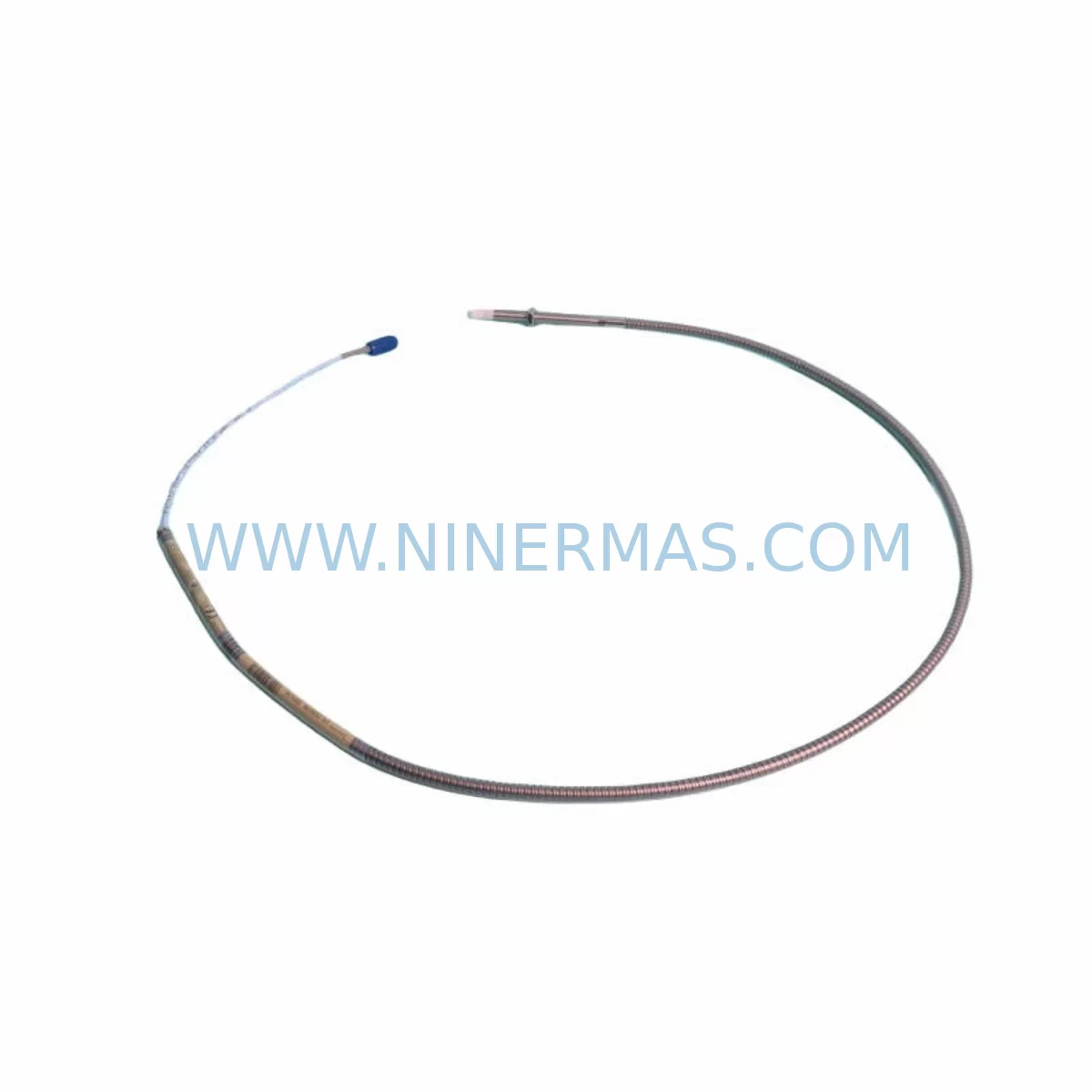

Bently Nevada 330904-00-15-50-02-00 Safety-Reliable Proximity Transducer

Bently Nevada 330904-00-15-50-02-00 Safety-Reliable Proximity Transducer for Critical Control Sites

The Bently Nevada 330904-00-15-50-02-00 is a ruggedized proximity transducer module engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed as a core component of Bently Nevada’s 3300 Series proximity system, this transducer delivers precise, non-contact vibration and position measurement for rotating machinery — making it indispensable in safety-critical control loops where signal integrity and measurement reliability directly impact plant uptime and personnel safety.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, port machinery, and marine propulsion systems — control interruptions caused by sensor failure or signal drift can trigger costly unplanned shutdowns, equipment damage, or dangerous process excursions. The 330904-00-15-50-02-00 is purpose-built to eliminate these risks through its ruggedized construction, stable output characteristics, and proven compatibility with Bently Nevada’s 3300 XL monitoring architecture.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered rotating machinery protection system, the Bently Nevada 330904-00-15-50-02-00 proximity transducer does not operate in isolation — it is the sensing front-end of a complete safety and condition monitoring chain. When paired with the Bently Nevada 3300 XL Extension Cable (330130-045-00-00), the transducer signal is transmitted with minimal attenuation and maximum shielding integrity to the Bently Nevada 3500/42M Proximitor I/O Module, which conditions and digitizes the raw proximity signal for the monitoring rack.

Within the 3500 Series monitoring rack, the conditioned signal feeds into the Bently Nevada 3500/22M Transient Data Interface and the 3500/32 4-Channel Relay Module, enabling both continuous trend monitoring and hard-wired safety relay outputs for turbine trip, compressor shutdown, or pump isolation interlocks. In high electromagnetic interference environments — such as those found near large variable frequency drives, arc furnaces, or high-voltage switchgear — the shielded coaxial design of the 330904-00-15-50-02-00 suppresses induced noise that could otherwise cause false vibration alarms or missed trip events.

For control cabinet power integrity, the proximity system is typically powered through a Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to the Proximitor sensors. Surge protection devices installed at the cabinet entry point — such as DIN-rail mounted transient voltage suppressors rated for the 24 VDC instrument bus — protect the entire sensing chain from lightning-induced surges and switching transients common in outdoor substations and heavy industrial facilities.

In safety instrumented systems (SIS) designed to IEC 61511 requirements, the 330904-00-15-50-02-00 is frequently deployed in voted configurations (1oo2 or 2oo3) alongside redundant Bently Nevada 3500/40M Proximitor Monitor channels, ensuring that a single sensor failure does not compromise the safety function. Communication of machinery health data to the plant DCS or historian is handled via the Bently Nevada 3500/92 Communication Gateway Module, supporting Modbus TCP, OPC-DA, and other industrial protocols without introducing latency that could delay protective action.

For installations in dust-laden, high-humidity, or chemically aggressive atmospheres — such as coal handling conveyors, offshore platforms, or chemical reactor buildings — the IP67-rated probe body of the 330904-00-15-50-02-00 resists ingress that would degrade the sensing gap and cause signal drift. Complementary protection is provided by stainless steel armored conduit, explosion-proof junction boxes, and cable glands rated for the hazardous area classification of the installation zone.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330904-00-15-50-02-00 is widely deployed on centrifugal compressors, process pumps, and steam turbine-driven equipment in refinery and petrochemical complexes. In these facilities, API 670 machinery protection standards mandate continuous radial vibration monitoring with automatic shutdown capability. The transducer’s stable scale factor and low noise floor ensure that incipient bearing wear, rotor imbalance, or seal rub events are detected early — long before they escalate to catastrophic failure and potential hydrocarbon release.

Power Generation: In gas turbine, steam turbine, and large hydro generator applications, shaft vibration monitoring is a primary safety function. The 330904-00-15-50-02-00 provides the high-resolution, low-latency proximity signal required by turbine protection systems to execute sub-100ms trip actions when vibration exceeds danger thresholds, protecting both the generating asset and grid stability.

Mining & Mineral Processing: Ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes in mining operations are subject to extreme vibration, shock loading, and abrasive dust. The ruggedized construction of the 330904-00-15-50-02-00 maintains measurement accuracy in these conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment plants require reliable vibration monitoring to prevent bearing failures that could interrupt water supply or effluent treatment. The IP67 protection of this transducer makes it suitable for wet, humid pump station environments where standard sensors would corrode or fail prematurely.

Metallurgy & Steel: Rolling mill drives, continuous caster pinch rolls, and blast furnace blower trains operate under severe thermal cycling and vibration. The 330904-00-15-50-02-00’s high-temperature probe tip rating and ruggedized cable assembly maintain signal integrity in these thermally aggressive environments, supporting both condition monitoring and safety interlock functions.

Port & Marine: Ship propulsion shafting, thruster drives, and crane hoist gearboxes benefit from the corrosion-resistant, IP67-rated construction of this transducer. In marine classification society-approved machinery monitoring systems, the Bently Nevada 3300 XL proximity system — anchored by the 330904-00-15-50-02-00 — provides the continuous shaft monitoring required for unattended machinery space (UMS) certification.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330904-00-15-50-02-00?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair support to minimize your site downtime.

Q2: How is each unit tested before shipment?
Every 330904-00-15-50-02-00 unit undergoes a full pre-shipment functional verification, including output voltage check, scale factor confirmation, and cable continuity and insulation resistance testing. Units that do not meet Bently Nevada specification are quarantined and not dispatched.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330904-00-15-50-02-00 is fully compatible with Bently Nevada 3300 XL Proximitor monitors and 3500 Series I/O modules. It is also a functional replacement for legacy 330900 and 330903 series probes in the same cable length and gap range configuration, allowing direct substitution without system reconfiguration in most installations.

Q4: Can NINERMAS support long-term and emergency supply requirements?
Yes. NINERMAS maintains stock of the 330904-00-15-50-02-00 and related Bently Nevada 3300/3500 Series components to support both planned maintenance schedules and emergency breakdown replacement. We provide fast quotation response, flexible shipping options, and ongoing supply continuity for critical spare parts programs. Contact us at sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.
