Bently Nevada 330904-00-12-50-02-00 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330904-00-12-50-02-00 Service-Ready Spare Part for Industrial Maintenance

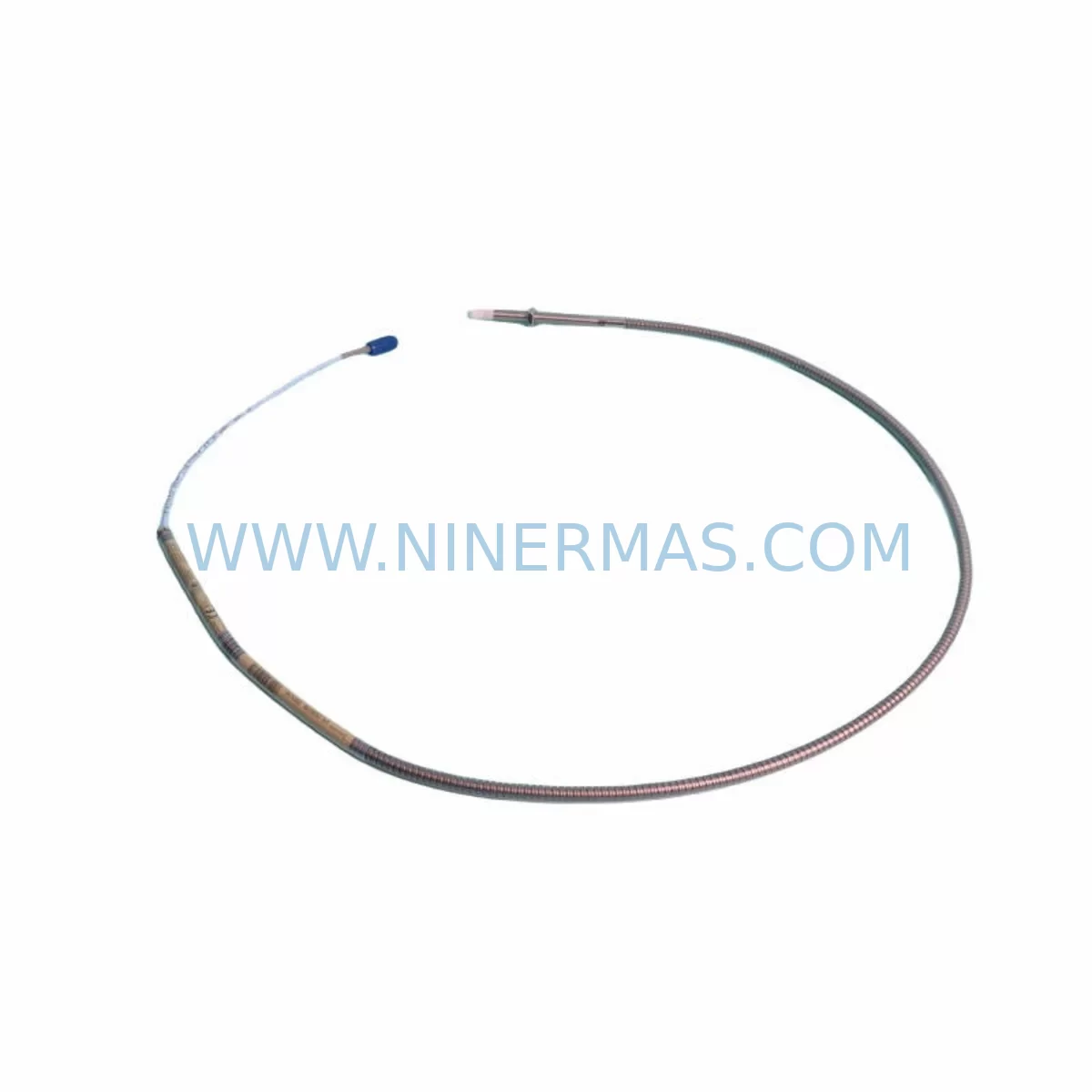

The Bently Nevada 330904-00-12-50-02-00 is an original, service-ready spare part designed for the 3300 XL NSv (Non-contacting Velocity) series — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection systems worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for a critical production line, this module delivers the reliability and compatibility that maintenance engineers and procurement teams depend on.

Sourced directly from verified supply channels, the 330904-00-12-50-02-00 is tested prior to shipment and backed by a 12-month warranty, giving your team the confidence to deploy it in high-availability environments including turbine control panels, compressor protection racks, and rotating equipment monitoring cabinets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330904-00-12-50-02-00 NSv module is flagged during a control cabinet inspection or triggers a fault condition in the 3300 XL monitoring rack, experienced maintenance engineers know that a single-module replacement is rarely the complete picture. A thorough site assessment should accompany any NSv module swap to prevent repeat failures and ensure the integrity of the entire machinery protection loop.

Begin by inspecting the 3300 XL rack backplane for signs of corrosion, loose connector pins, or intermittent contact — backplane degradation is a common root cause of module faults that goes undetected until a replacement module also fails. Simultaneously, verify the condition of the Bently Nevada 3300 XL power supply module (such as the 3300/20 or equivalent), as undervoltage or ripple on the rack supply rail can cause NSv modules to report erroneous readings or trip unexpectedly.

Check all field wiring and signal cables connecting the proximity probes or velocity transducers to the module input terminals. Damaged cable shielding, improper grounding, or excessive cable length can introduce noise that mimics a module fault. Inspect terminal blocks and cable glands for tightness and insulation integrity, particularly in high-vibration or high-temperature environments near rotating equipment.

For systems integrated into a DCS or safety instrumented system (SIS), confirm that the 4–20 mA output signals from the 330904-00-12-50-02-00 are correctly received at the I/O cards of the host controller. Faulty analog input modules or signal isolators in the loop can mask a healthy NSv module or cause nuisance trips. Signal isolators and barriers — particularly those used in hazardous area installations — should be tested for correct output scaling and response time.

During annual shutdowns, it is best practice to also inspect and, where necessary, replace associated I/O terminal assemblies, relay output modules used for alarm and trip actuation, and any communication gateway modules that interface the 3300 XL system with plant-level SCADA or historian platforms. Aging communication modules can introduce latency or data loss that complicates fault diagnosis.

For facilities operating legacy rotating equipment where the 3300 XL system is approaching end-of-support, maintaining a curated spare parts kit — including the 330904-00-12-50-02-00, a spare power supply, at least one I/O module, and a communication interface card — is a proven strategy for extending system life without a full platform migration. This approach is widely adopted in petrochemical, power generation, and heavy manufacturing facilities where control system replacement carries significant capital and operational risk.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the 330904-00-12-50-02-00 from service, document the current channel configuration, alarm setpoints, and trip thresholds stored in the module or the associated 3300 XL configuration software. This ensures that the replacement module is commissioned to identical parameters and avoids inadvertent changes to protection logic.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. For hot-swap capable 3300 XL racks, confirm whether the specific slot supports live replacement without de-energizing the rack. If not, coordinate with operations to place the associated machinery in a safe state before proceeding.

Step 3 — Module removal and inspection: Remove the faulty module and inspect the rack slot connector for bent pins or contamination. Clean as required using approved contact cleaner before inserting the replacement 330904-00-12-50-02-00.

Step 4 — Configuration restore: Using Bently Nevada System 1 software or the applicable configuration tool, restore the saved channel configuration to the new module. Verify that all setpoints, transducer types, and output scaling match the original settings.

Step 5 — Functional test: Apply a known reference signal to the module inputs and confirm that the output readings, alarm relay states, and communication data all respond correctly before returning the machinery to service. This step is critical for compliance with machinery protection standards and insurance requirements.

Step 6 — Documentation: Update your maintenance management system (CMMS) with the replacement date, new module serial number, and test results. This record supports warranty claims and future predictive maintenance scheduling.

Spare Parts Support FAQ

Q1: Is the 330904-00-12-50-02-00 a direct drop-in replacement for all 3300 XL NSv slots?
The 330904-00-12-50-02-00 is designed for the Bently Nevada 3300 XL NSv series. Compatibility depends on your specific rack revision and transducer type. We recommend confirming your rack model and existing module configuration before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment. Warranty claims are supported with replacement or repair, subject to inspection of the returned unit. Damage caused by incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications is excluded.

Q3: How quickly can this spare part be shipped, and do you support urgent breakdown orders?
We maintain stock of high-demand Bently Nevada 3300 XL series modules to support urgent breakdown and planned maintenance requirements. Express shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time for the 330904-00-12-50-02-00.

Q4: Can you supply multiple units for a long-term spare parts agreement?
Yes. NINERMAS supports volume procurement and long-term supply agreements for critical spare parts including the 330904-00-12-50-02-00 and related 3300 XL series components. We work with maintenance and procurement engineers to establish stocking levels aligned with your planned maintenance cycles and equipment criticality ratings.
