Bently Nevada 330904-00-03-10-01-00 Retrofit Proximity Sensor

Bently Nevada 330904-00-03-10-01-00 Retrofit Proximity Sensor: Legacy System Compatible Upgrade

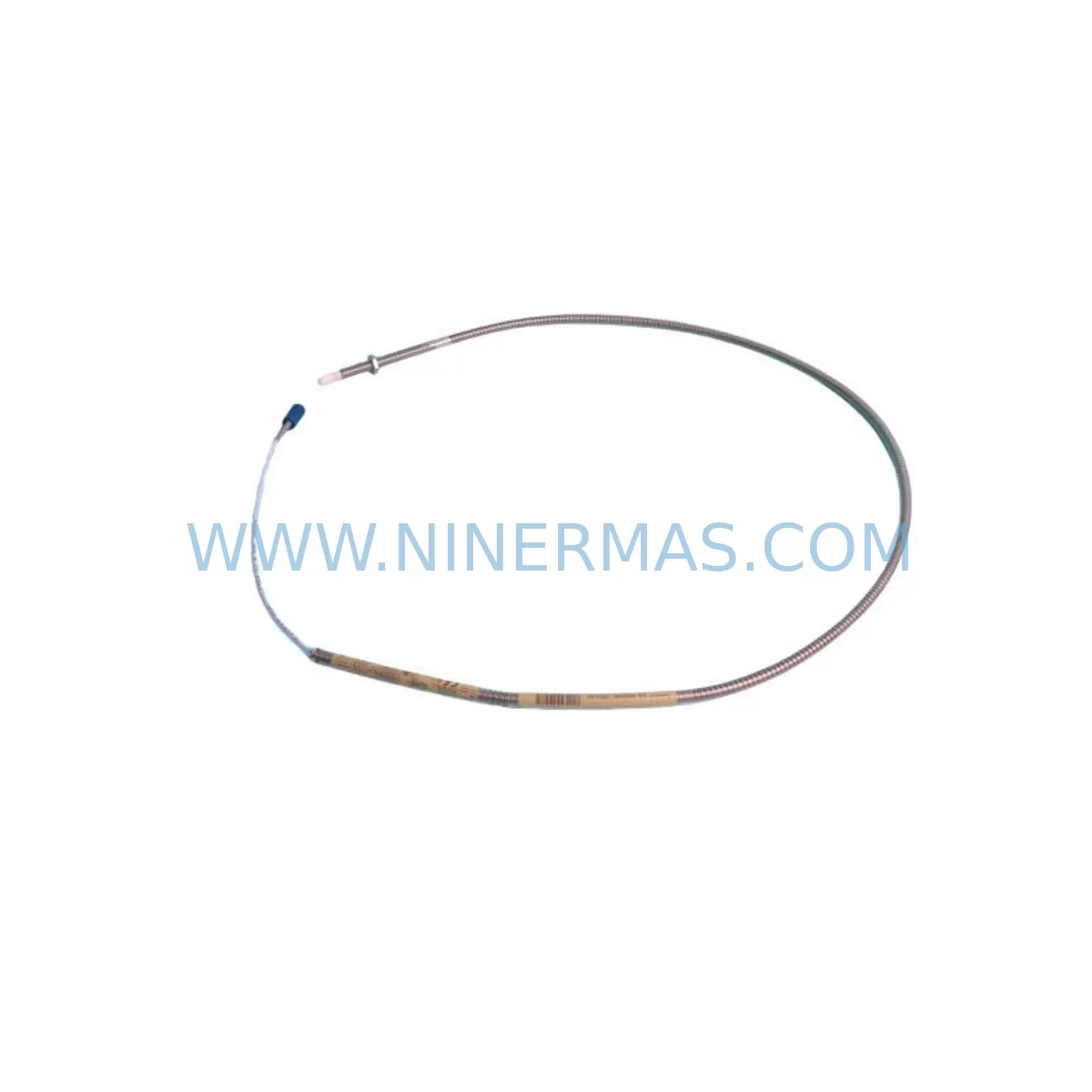

The Bently Nevada 330904-00-03-10-01-00 is a ruggedized proximity sensor engineered for demanding industrial environments, widely deployed in rotating machinery protection and vibration monitoring systems. As legacy 3300 XL and earlier 3300 series monitoring platforms reach end-of-life, the 330904-00-03-10-01-00 remains a critical retrofit-compatible component for facilities seeking to extend the operational life of existing control architectures without committing to a full system overhaul. NINERMAS maintains verified in-stock inventory of this sensor, fully tested and backed by a 12-month warranty.

Whether you are replacing a failed unit on a running production line, sourcing a long-lead discontinued spare, or planning a phased migration from an older Bently Nevada 3300 series rack to a current System 1 or 3500 series platform, the 330904-00-03-10-01-00 provides a direct, drop-in compatible solution that minimizes engineering rework and commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330904-00-03-10-01-00 into an existing plant automation architecture requires a structured approach that accounts for every interface between the sensor and the broader control system. In a typical legacy installation, the proximity sensor feeds into a Bently Nevada 3300/16 or 3300/20 monitor module housed in a 3300 series rack. The monitor module converts the raw gap voltage signal into a 4–20 mA process variable that is then wired to a DCS analog input card or a PLC I/O module — commonly a Rockwell Automation 1756-IF16 ControlLogix analog input or an equivalent SIEMENS S7-300 SM 331 analog input module. Before pulling the failed sensor, engineers should document the existing gap voltage (as-found reading) at the driver output terminal, typically accessible on the front-face terminal strip of the 3300/16-02-01-00 driver module.

The extension cable assembly — often a 330130-045-00-00 or similar 330130 series cable — must be inspected for continuity and insulation integrity before reuse. If the extension cable shows signs of mechanical damage or moisture ingress at the junction box, replacement of the full probe-cable-driver assembly is recommended to avoid repeat failures. The 330904-00-03-10-01-00 ships with the integral armored cable; the extension cable and driver are ordered separately and should be confirmed against the original bill of materials.

For facilities planning a phased migration toward the Bently Nevada 3500 series platform, the 330904-00-03-10-01-00 remains compatible when paired with a 3500/42M Proximitor/Seismic Monitor module. This migration path allows the sensor field wiring to remain unchanged while the rack, monitor modules, and communication interface are upgraded. The 3500 series rack communicates via Modbus TCP or PROFIBUS DP to the plant DCS, enabling integration with modern SCADA platforms without rewiring the sensor loop. During this transition, the existing HMI faceplate displays — whether running on a legacy Wonderware InTouch or a current FactoryTalk View SE — will require tag remapping to reflect the new monitor module’s register addresses.

Power supply considerations are equally important. The 3300 series rack typically draws from a dedicated 24 VDC bulk power supply; when adding or replacing modules during a retrofit, verify that the existing power supply (e.g., a 3300/05 power supply module) has sufficient headroom for the updated module complement. If the rack is being consolidated or expanded, a 3500/15 power supply module may be required for the new chassis. Signal isolation between the proximity sensor loop and the DCS analog input is sometimes achieved via a DIN-rail mounted signal isolator/conditioner — confirm whether the existing isolator’s input range is compatible with the 330904 driver output before finalizing the retrofit design.

I/O address mapping and PLC program logic should be reviewed before cutover. If the sensor feeds a vibration or position interlock in the PLC ladder logic, the engineer must confirm that the new sensor’s output scaling matches the original — particularly if the gap voltage-to-engineering-unit conversion is performed in the PLC rather than in the monitor module. A pre-cutover simulation using the existing program with a signal generator substituted for the live sensor output is strongly recommended to validate alarm setpoints and shutdown logic before the plant is taken offline.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a proximity sensor on a running machine train. The 330904-00-03-10-01-00 is stocked and ships within 24–48 hours of order confirmation, which eliminates the extended lead times associated with factory-new orders for discontinued or slow-moving part numbers. For critical rotating equipment — compressors, turbines, pumps — where continuous monitoring is a safety or regulatory requirement, a hot-standby spare held in the instrument store is the preferred strategy; NINERMAS can supply multiple units under a single purchase order to support both immediate replacement and on-site spare inventory.

During the physical swap, the machine should be taken to a safe hold point and the monitor channel bypassed or inhibited in the DCS to prevent a spurious shutdown during sensor disconnection. The as-found gap voltage should be recorded before disconnecting the extension cable. After installing the 330904-00-03-10-01-00 and reconnecting the extension cable to the driver, the gap should be set to the manufacturer’s nominal value (typically –10 VDC ±0.5 VDC at mid-gap) using a non-metallic gap-setting tool. The as-left gap voltage, probe serial number, and installation date should be logged in the plant maintenance management system (CMMS) for traceability.

Once the gap is confirmed, the monitor channel bypass should be removed and the channel verified to be reading within the normal operating band before the machine is returned to service. The entire replacement procedure — from machine hold to return to service — can typically be completed within two to four hours by a qualified instrument technician, provided the replacement sensor is on hand and the extension cable is reusable. NINERMAS’s pre-shipment functional test and 12-month warranty provide additional assurance that the replacement unit will perform correctly from first power-on, reducing the risk of a repeat outage caused by an infant-mortality failure in the replacement part.

Retrofit Support FAQ

Q1: Is the 330904-00-03-10-01-00 a direct replacement for other 330904 suffix variants?
The 330904 base part number covers a family of ruggedized proximity sensors with varying cable lengths, connector types, and temperature ratings encoded in the suffix. The -00-03-10-01-00 suffix specifies a particular configuration; before ordering, cross-reference the full suffix of the failed unit against the replacement to confirm mechanical fit, cable length, and electrical compatibility. NINERMAS technical staff can assist with cross-referencing if the original part number label is damaged or missing.

Q2: What commissioning steps are required after installation?
After mechanical installation, connect the extension cable to the driver module and apply power to the rack. Measure the DC gap voltage at the driver output terminals and adjust the probe axial position until the voltage falls within the specified nominal range (typically –10 VDC ±0.5 VDC). Verify that the monitor module is reading the correct engineering-unit value (e.g., mils or µm of gap) and that the OK relay is energized. Confirm alarm and danger setpoints are active and log the as-left gap voltage in the CMMS.

Q3: Can this sensor be used with a 3500 series monitor without replacing the field wiring?
Yes. The 330904-00-03-10-01-00 is electrically compatible with 3500 series Proximitor monitor modules (e.g., 3500/42M) when used with the appropriate 330130 series extension cable and a compatible driver. The field wiring between the junction box and the control room rack can typically be reused, making this sensor a cost-effective bridge component during a phased migration from a 3300 series to a 3500 series platform.

Q4: What does the 12-month warranty cover, and how does NINERMAS verify units before shipment?
All 330904-00-03-10-01-00 units supplied by NINERMAS undergo a pre-shipment functional test that verifies sensor output linearity, cable continuity, and insulation resistance. The 12-month warranty covers defects in materials and workmanship under normal operating conditions from the date of shipment. Units that fail within the warranty period are replaced or credited at NINERMAS’s discretion. Warranty claims should be submitted to sale@ninermas.com with the purchase order number, installation date, and a description of the failure mode.
