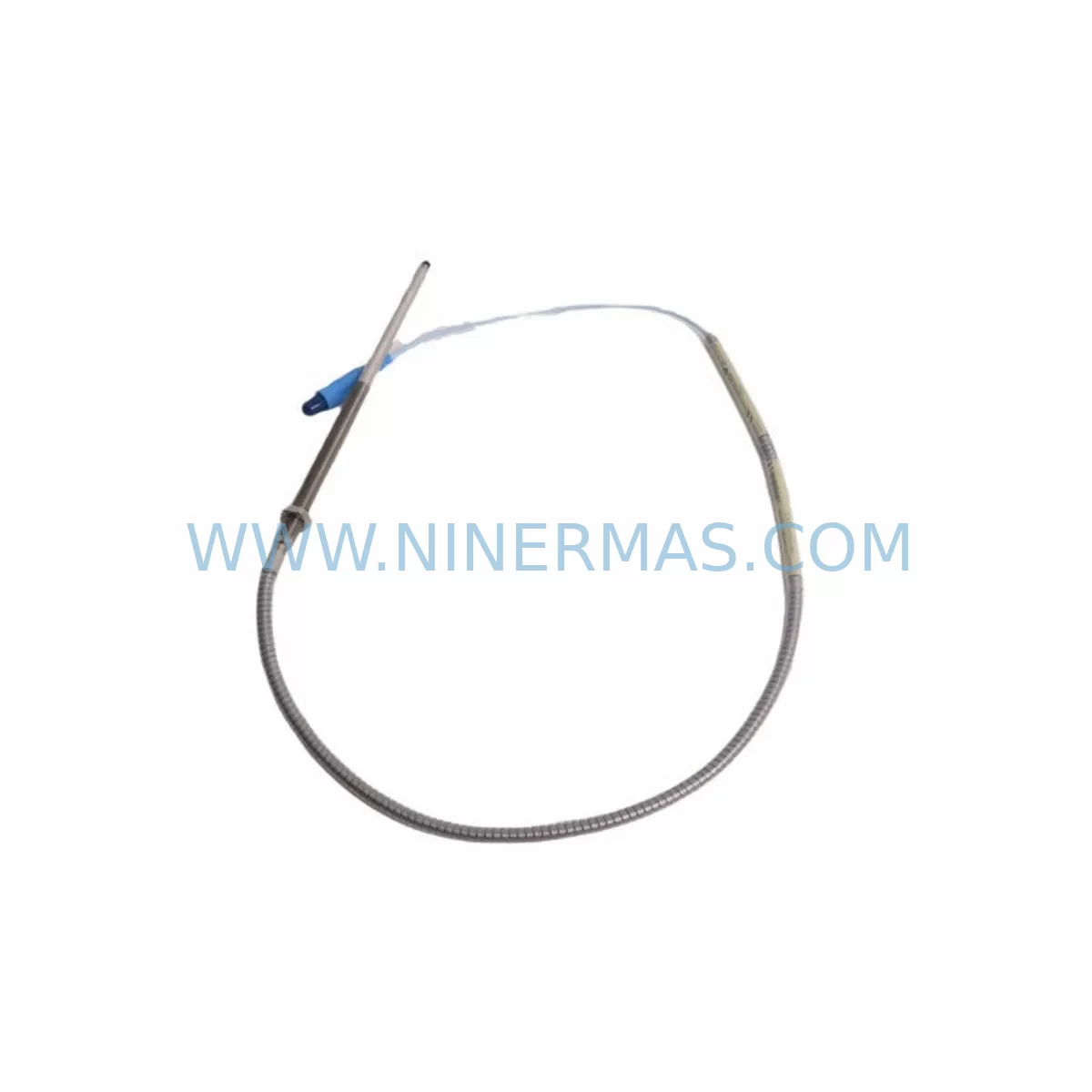

The Bently Nevada 330904-00-02-05-02-00 is a high-precision proximity transducer from the 3300 NSv series, engineered for non-contact vibration and position measurement in rotating machinery applications. As aging distributed control systems and machinery protection platforms reach end-of-life, this unit has become a critical retrofit component for facilities seeking to extend operational continuity without full system replacement. Whether you are upgrading a turbine monitoring rack, replacing a discontinued sensor in a compressor protection loop, or migrating from an older 3300 XL platform, the 330904-00-02-05-02-00 provides a verified drop-in solution that preserves existing wiring infrastructure and minimizes engineering rework.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330904-00-02-05-02-00 into an existing machinery protection system requires a structured pre-installation review. Engineers should begin by auditing the current transducer loop: confirm the extension cable part number (typically from the 330130-XX-XX series), verify the driver/proximitor model (such as the 3300/16 or 3300/20 proximitor), and check that the existing 3500 rack has available channel capacity on the 3500/22M or 3500/42M monitor modules.

Power supply integrity is a common failure point during retrofit. The 3300 NSv transducer system draws from the rack’s internal DC bus, typically –24 VDC. Before installation, confirm that the 3500 rack power supply module—often a 3500/15 or 3500/05 power supply—can support the additional load without exceeding rated capacity. If the rack is near capacity, a supplemental power supply or load redistribution across chassis slots may be required.

Terminal wiring should be mapped against the original loop drawing. The 330904-00-02-05-02-00 uses a standard coaxial connector at the probe tip and a MIL-spec connector at the proximitor interface. When replacing an older 3300 XL probe, technicians should inspect the junction box for corrosion, verify shield continuity, and confirm that the extension cable has not been spliced—spliced cables introduce impedance mismatches that degrade gap voltage accuracy and trigger false NOT OK alarms at the 3500/22M monitor.

For facilities running Bently Nevada System 1 software or the older ADRE 408 DSPi data acquisition platform, the transducer replacement does not require software reconfiguration provided the channel scaling and gap voltage setpoints remain within the original calibration range. However, if the retrofit is part of a broader migration from a 3300-series rack to a 3500-series rack, the System 1 database will need to be updated to reflect the new monitor module addresses and channel assignments. This is also an appropriate time to review the 3500/92 communication gateway configuration if the rack interfaces with a DCS via Modbus or OPC-DA.

In applications where the 330904-00-02-05-02-00 is being installed alongside new I/O expansion—such as adding a 3500/40M or 3500/44M temperature monitor to an existing rack—the backplane slot assignment must be confirmed before powering the chassis. Bently Nevada 3500 racks use a fixed slot architecture, and inserting a new module without updating the rack configuration in the 3500 Rack Configuration Utility will result in a rack fault condition. Coordinate the slot assignment with the System 1 database update to avoid unnecessary downtime.

Where HMI integration is required, verify that the existing Wonderware InTouch or Ignition SCADA tags referencing the old transducer channel are updated to reflect the new module address. In most cases, the tag path changes only if the monitor module slot has changed; if the 330904-00-02-05-02-00 is a direct channel-for-channel replacement within the same slot, HMI tags and historian configurations remain valid without modification.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer retrofit requires pre-staging all replacement components before the maintenance window opens. For the 330904-00-02-05-02-00, this means having the matched extension cable (330130 series), the proximitor (3300/16 or 3300/20), and any required junction box hardware on-site and bench-tested before the machine is taken offline.

Where the machinery protection system permits, use the 3500 rack’s bypass function to place the affected channel in bypass mode before disconnecting the existing transducer. This prevents the monitor from generating a spurious trip signal during the swap and protects the original program logic in the connected safety PLC or DCS. Document the bypass activation in the site’s management of change (MOC) record and set a hard time limit for the bypass window consistent with site safety procedures.

After installing the 330904-00-02-05-02-00, perform a static gap check using a calibrated DC voltmeter before re-energizing the full loop. The OK voltage window for the 3300 NSv system is typically –10.8 VDC to –18.0 VDC at the proximitor output; readings outside this range indicate a gap error, cable fault, or incompatible target material. Confirm the target material is AISI 4140 steel or equivalent—non-ferrous targets require a separate calibration factor and may not be compatible with standard 3300 NSv gap tables.

Once the gap is confirmed, remove the bypass, verify the OK relay closes at the 3500/22M monitor, and confirm that the System 1 or ADRE display shows a valid vibration reading within the expected baseline range for the machine. Log the as-found and as-left gap voltage values in the site’s calibration records to support future predictive maintenance trending.

Retrofit Support FAQ

Q: Is the 330904-00-02-05-02-00 a direct replacement for 3300 XL proximity probes?
A: Yes. The 330904-00-02-05-02-00 is designed as a retrofit-compatible replacement for legacy 3300 XL and 3300/16 proximity probes. The thread form, connector interface, and output characteristics are compatible with existing 3300-series extension cables and proximitors. Verify the extension cable part number and gap voltage setpoints before installation.

Q: What commissioning steps are required after installation?
A: After mechanical installation, perform a static gap check with a calibrated voltmeter, confirm the OK voltage is within the –10.8 to –18.0 VDC window, remove any bypass conditions, and verify the 3500/22M monitor displays a valid OK status. Update System 1 or ADRE channel records with the as-left gap voltage value.

Q: Can this transducer be used with a 3500 rack running Modbus communication?
A: Yes. The 330904-00-02-05-02-00 is compatible with 3500-series racks equipped with a 3500/92 communication gateway module configured for Modbus RTU or Modbus TCP. No transducer-level configuration is required; communication settings are managed at the gateway and rack configuration level.

Q: What warranty and supply terms apply?
A: All units are covered by a 12-month warranty against manufacturing defects. Stock is available for immediate shipment. Pre-shipment functional testing is performed on each unit. Contact our team to confirm lead time and quantity availability before placing your order.

—
